Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: Driver Airbag . Refer to: Driver Airbag - Vehicles With: Adaptive Steering .

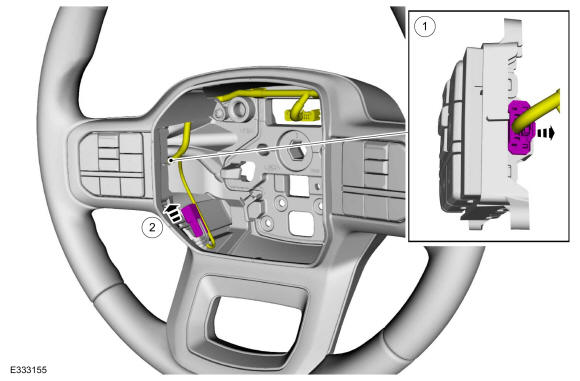

    1. On both sides. Disconnect the electrical connector.
    2. Detach the wire harness from the bezel.
    GFD552353Courtesy of FORD MOTOR COMPANY

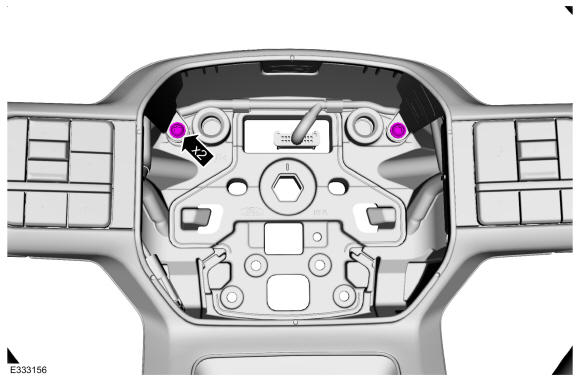

  3. Remove the steering wheel switch bezel retainers.
    GFD552354Courtesy of FORD MOTOR COMPANY

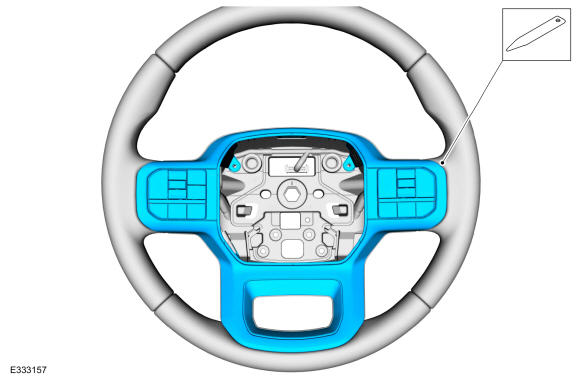

  4. Using a suitable flat-bladed tool, remove the steering wheel switch bezel.
    GFD552355Courtesy of FORD MOTOR COMPANY

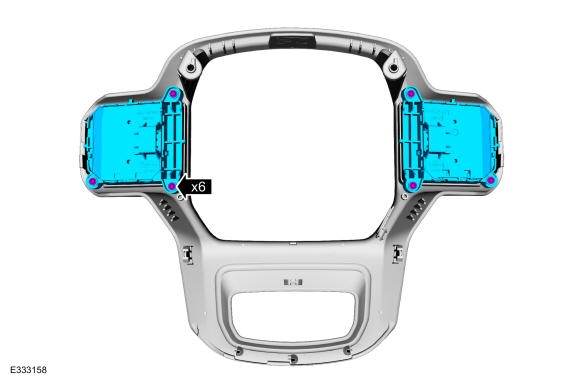

  5. Remove the retainers and the steering wheel multifunction switches.
GFD552356Courtesy of FORD MOTOR COMPANY
