Steering Column Multifunction Switch LH: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. REFER to: Steering Column Shrouds .
  2. If equipped, remove the steering column control switch. REFER to: Steering Column Control Switch .

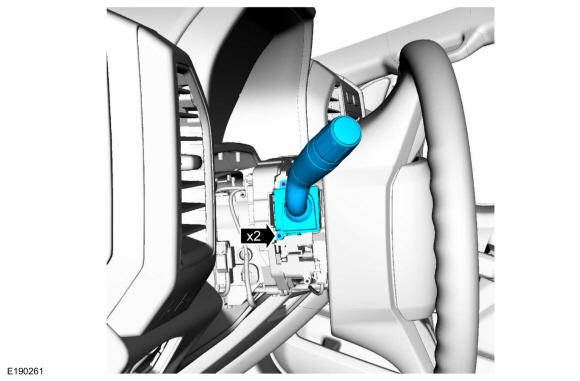

  3. Remove the screw(s) and the steering column multifunction switch.
GFD201166Courtesy of FORD MOTOR COMPANY
