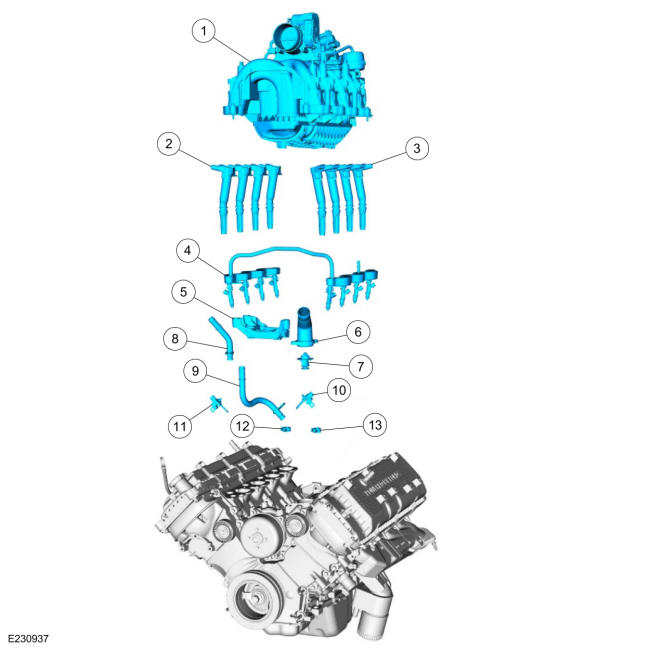

Upper Engine Exploded View
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9424 | Intake manifold assembly |
| 2 | 12029 | Ignition coil - RH (4 required) |
| 3 | 12029 | Ignition coil - LH (4 required) |
| 4 | 9F792 | Fuel rail |
| 5 | 10239 | Generator support bracket |
| 6 | 8594 | Thermostat housing |
| 7 | 8575 | Thermostat |
| 8 | 18696 | Heater coolant inlet fitting |
| 9 | 18663 | Heater coolant return fitting |
| 10 | 18801 | Radio interference capacitor - LH |
| 11 | 18801 | Radio interference capacitor - RH |
| 12 | 12A699 | Knock senor (KS) - RH |
| 13 | 12A699 | Knock senor (KS) - LH |
