Front Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Typical head restraint guide sleeve shown, others similar.

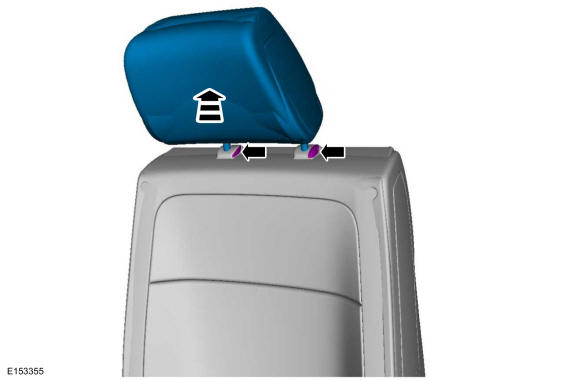

  1. Depress the locking tabs and remove the head restraint.
    GFD206560Courtesy of FORD MOTOR COMPANY

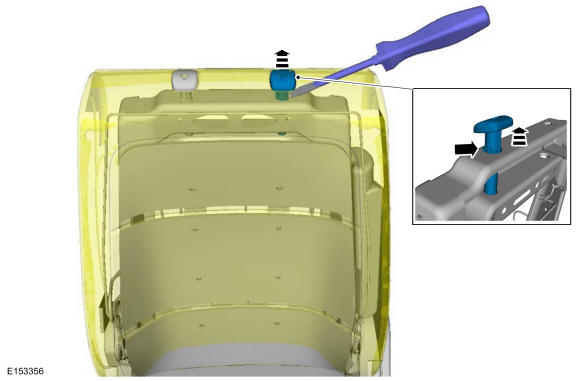

  2. Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
    GFD206561Courtesy of FORD MOTOR COMPANY

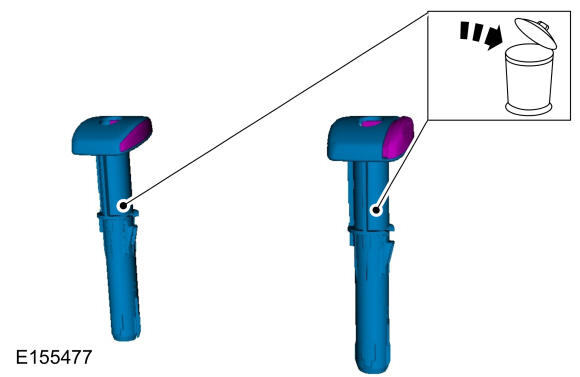

  3. Discard the head restraint guide sleeves.
GFD206562Courtesy of FORD MOTOR COMPANY
