Front Seat Track: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Driver seat shown, passenger seat similar.
- If equipped with manual lumbar, adjust the manual lumbar to the fully relaxed position.
- Remove the front seat cushion and cover as an assembly. Refer to: Front Seat Cushion Cover .

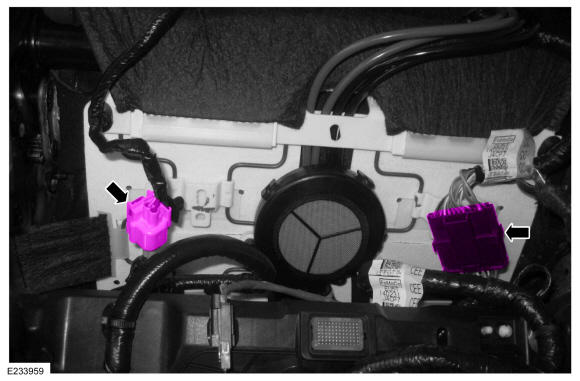

- Disconnect the electrical connectors.
- Release the wiring harness retainer(s) and position the wiring harness(es) aside.
- If equipped with a multi-contour seat. Remove the front seat cushion adjuster. Refer to: Front Seat Cushion Adjuster - Vehicles With: Multi-Contour Seats .

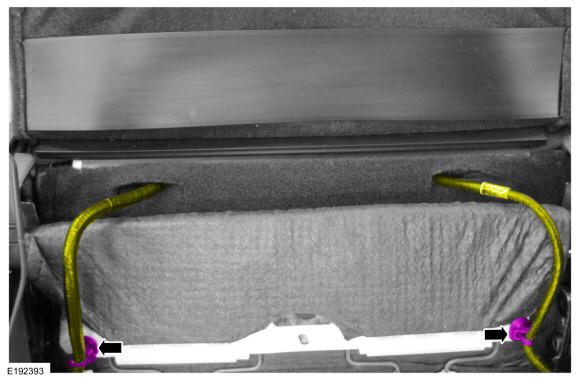

- If equipped with manual lumbar. Position the lumbar cable away from the seat track.

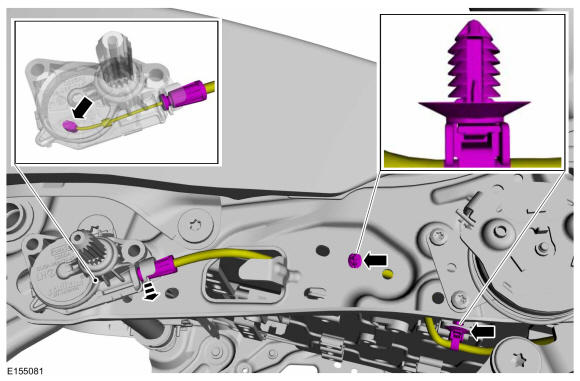

- Disconnect the cable from the manual lumbar actuator.
- Detach the cable retainers from the seat track.

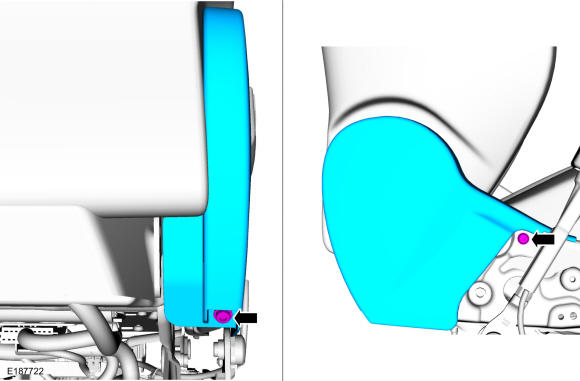

- Remove the screws and the recline cover.

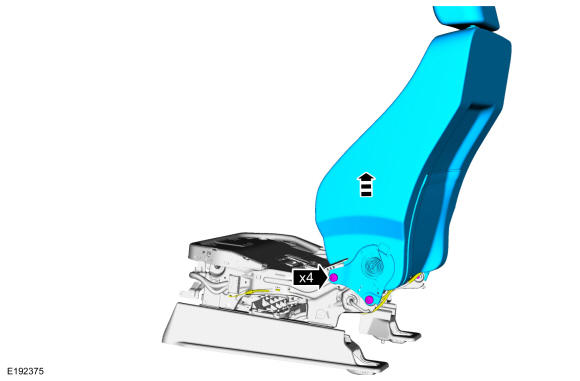

- Remove the bolts and the front seat backrest.
Torque: 33 lb.ft (45 Nm)
- Remove the seatbelt buckle. Refer to: Front Seatbelt Buckle .
