Front Seat: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.

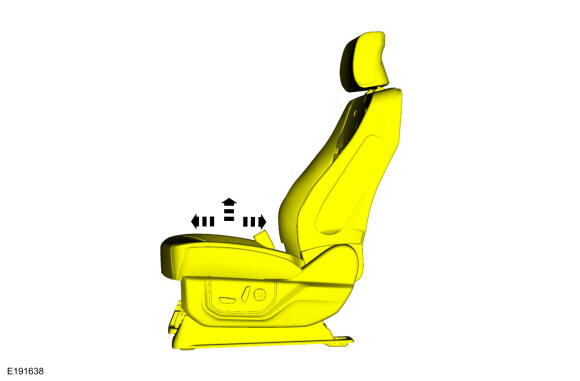

  1. Position the seat to access the front seat bolts.

    • If a power seat cannot be positioned horizontally to access the front seat bolts, diagnose the inoperative horizontal seat track motor. Refer to: Front Seats .

    GFD206565Courtesy of FORD MOTOR COMPANY
  2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
  3. Disconnect the seat harness electrical connector(s).

    1. Detach the wiring harness from the pin-type retainer.
    2. Release the locking tab(s) and rotate the position assurance lever(s).

    GFD206566Courtesy of FORD MOTOR COMPANY

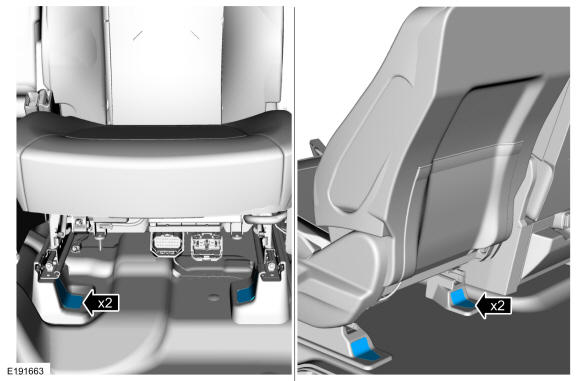

  4. Remove the front seat bolt caps.
    GFD206567Courtesy of FORD MOTOR COMPANY
  5. NOTE: Follow the unique instructions or graphics for this step in the installation.

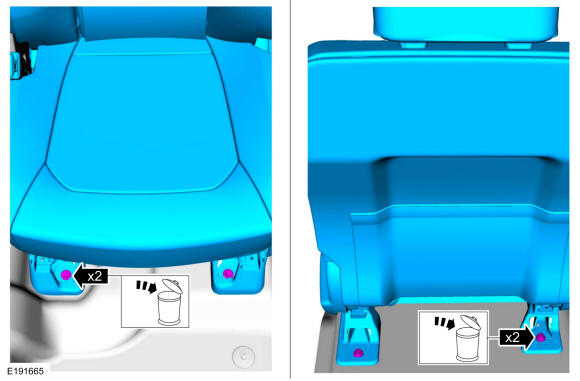

    Remove the bolts and the front seat.

GFD206568Courtesy of FORD MOTOR COMPANY
