Auto-Start-Stop System

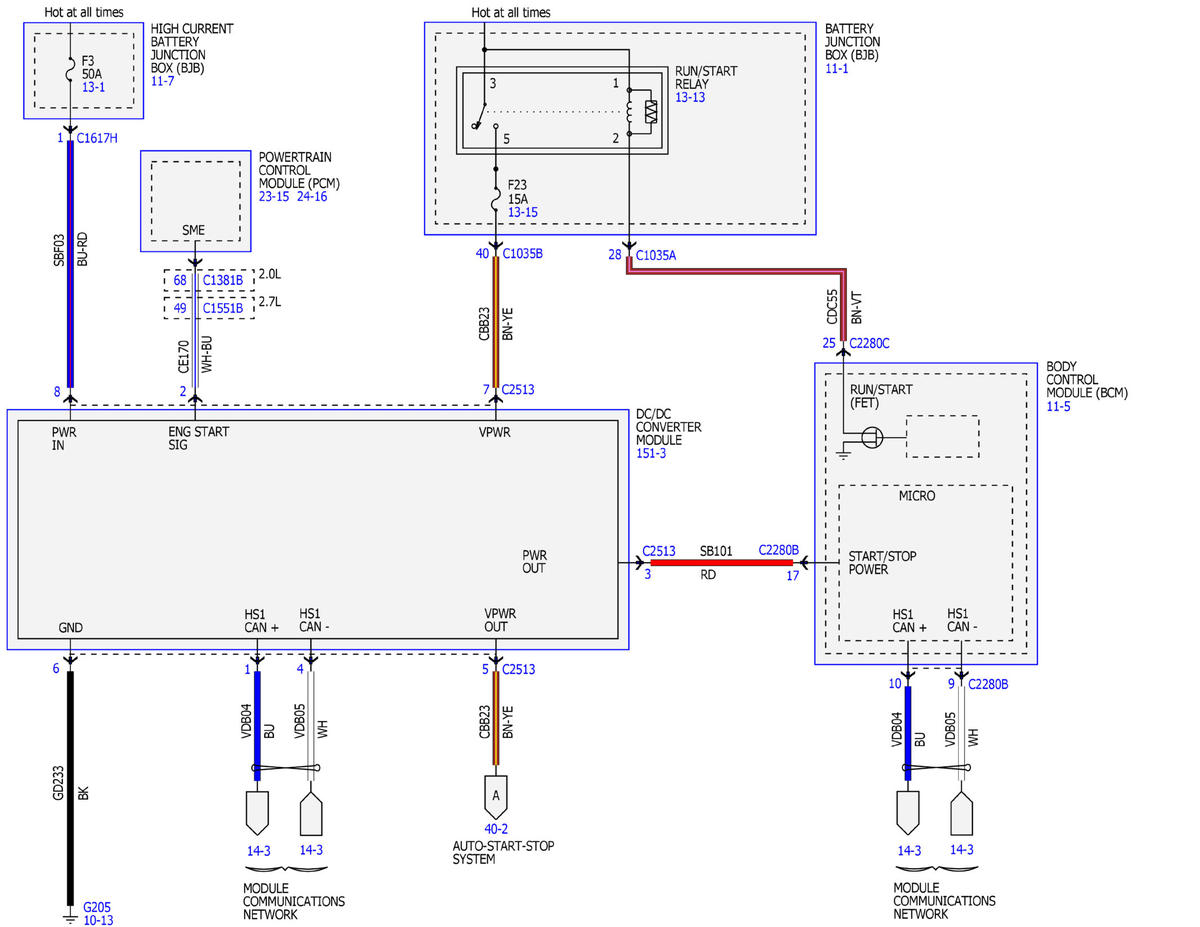

Fig 1: Auto-Start-Stop System Wiring Diagram (1 Of 3)
GFDWR139079Courtesy of FORD MOTOR COMPANY

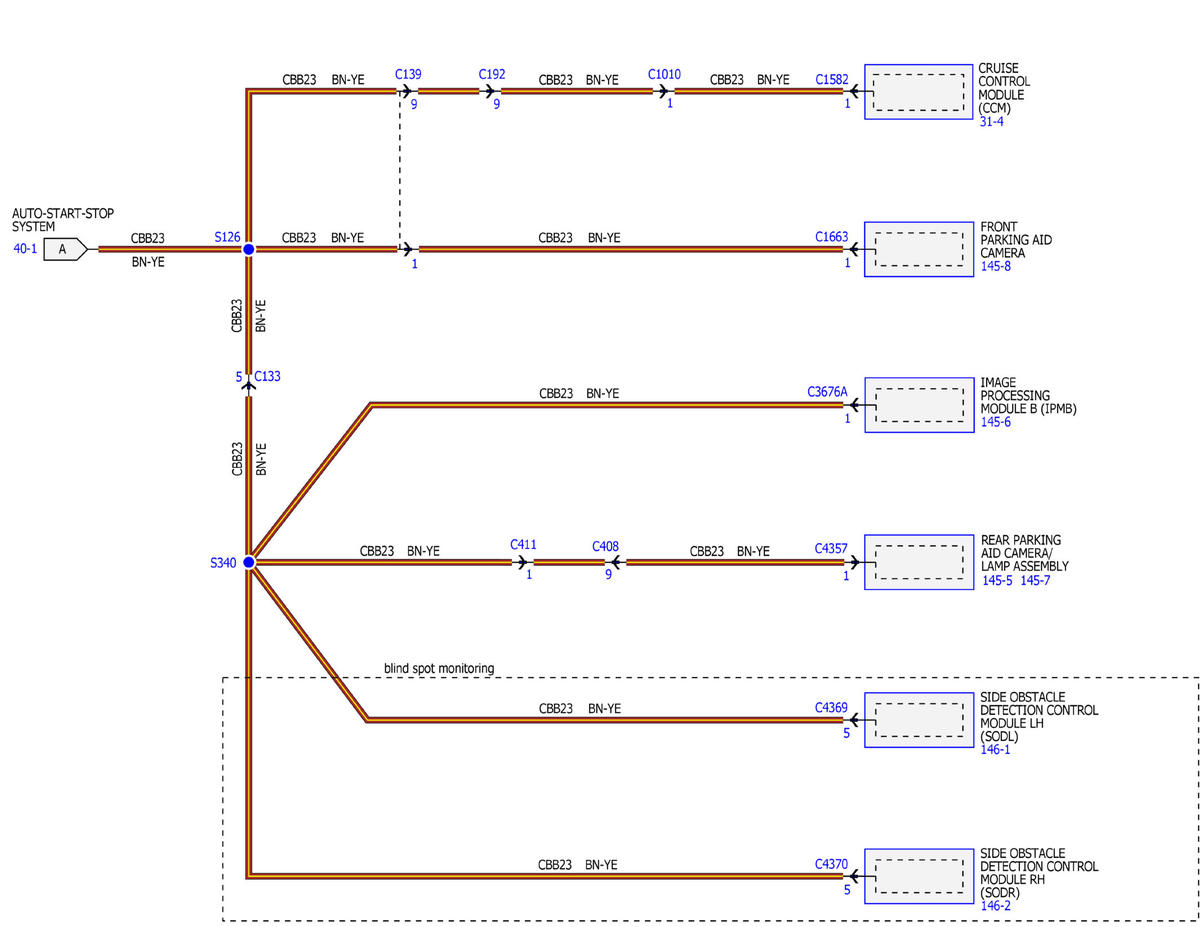

Fig 2: Auto-Start-Stop System Wiring Diagram (2 Of 3)
GFDWR139080Courtesy of FORD MOTOR COMPANY

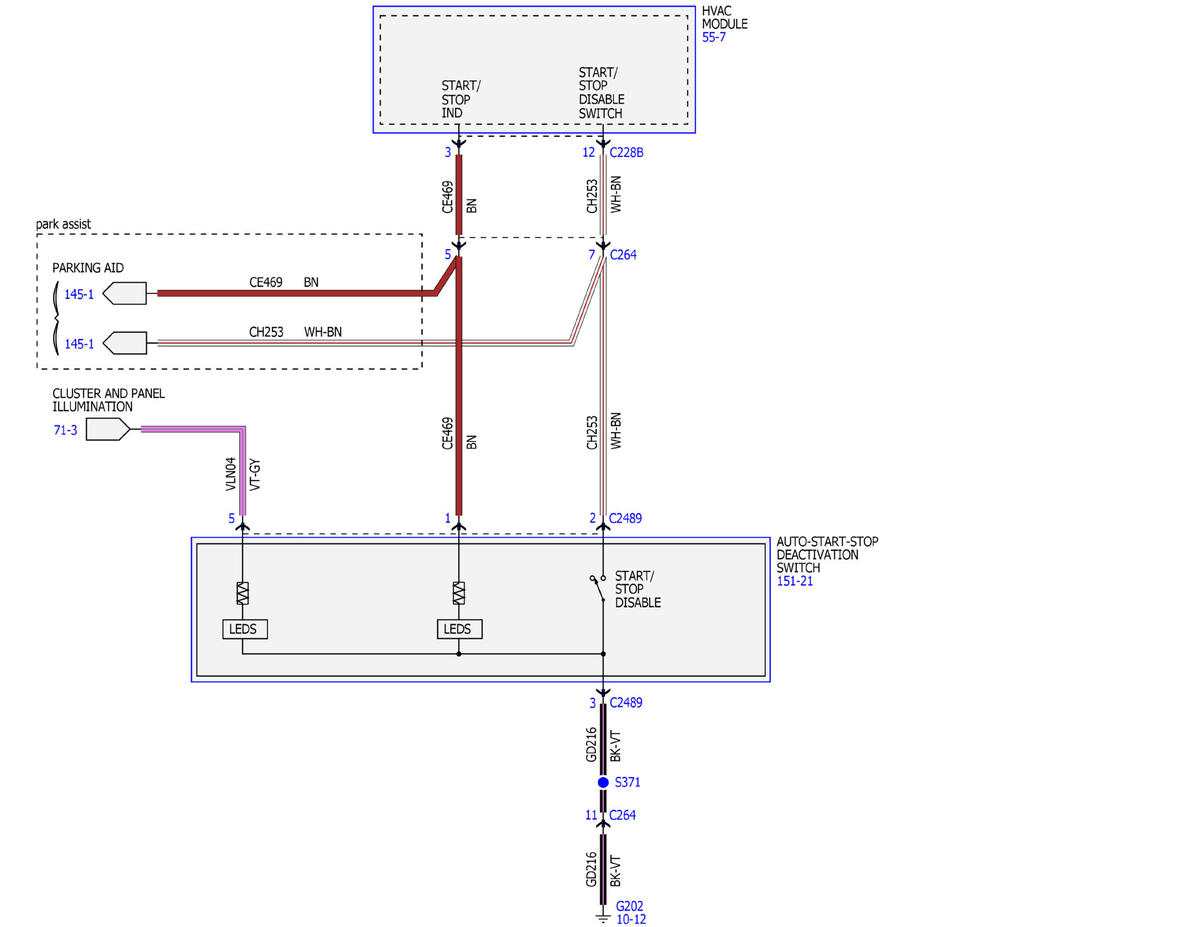

Fig 3: Auto-Start-Stop System Wiring Diagram (3 Of 3)
GFDWR139081Courtesy of FORD MOTOR COMPANY
