Cruise Control

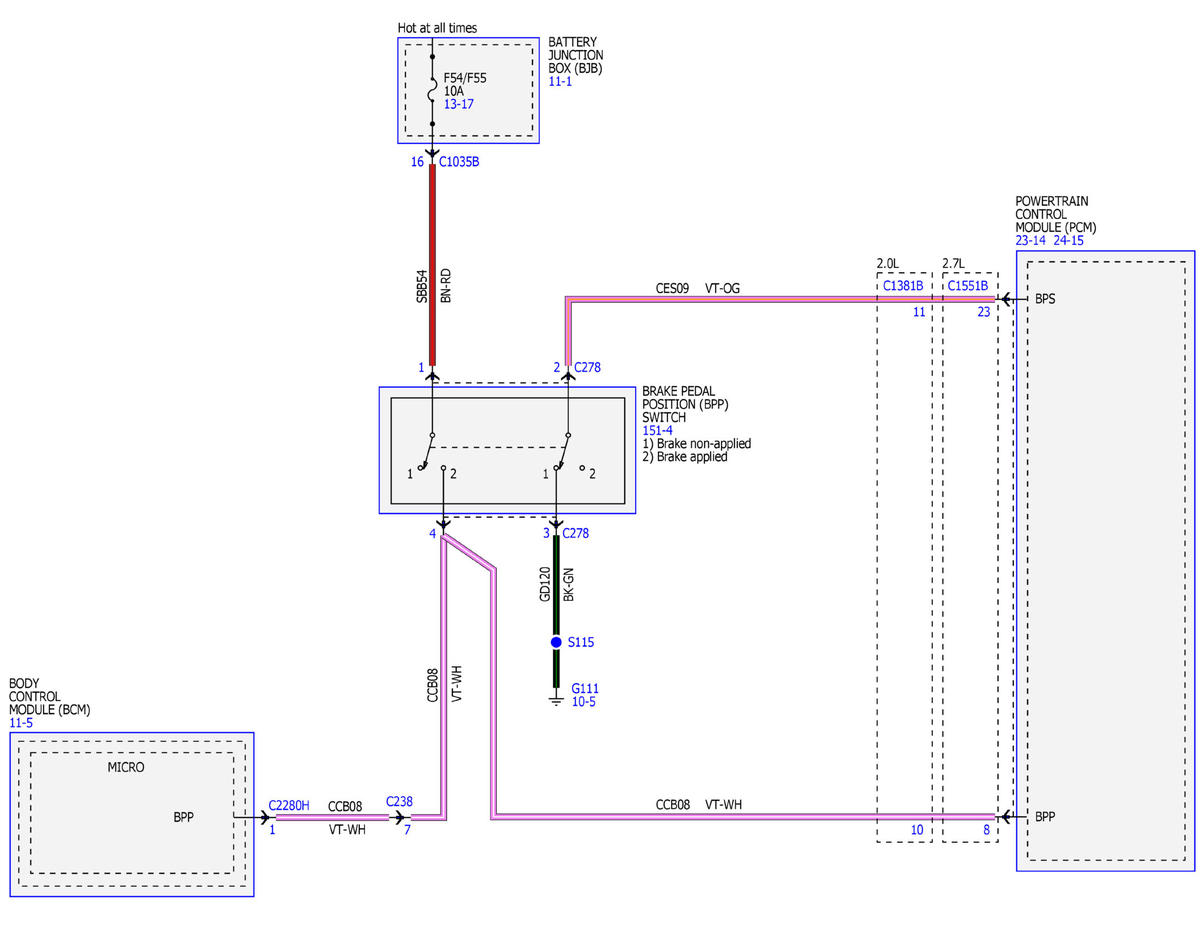

Fig 1: Cruise Control Wiring Diagram (1 Of 8)

GFDWR139110

Courtesy of FORD MOTOR COMPANY

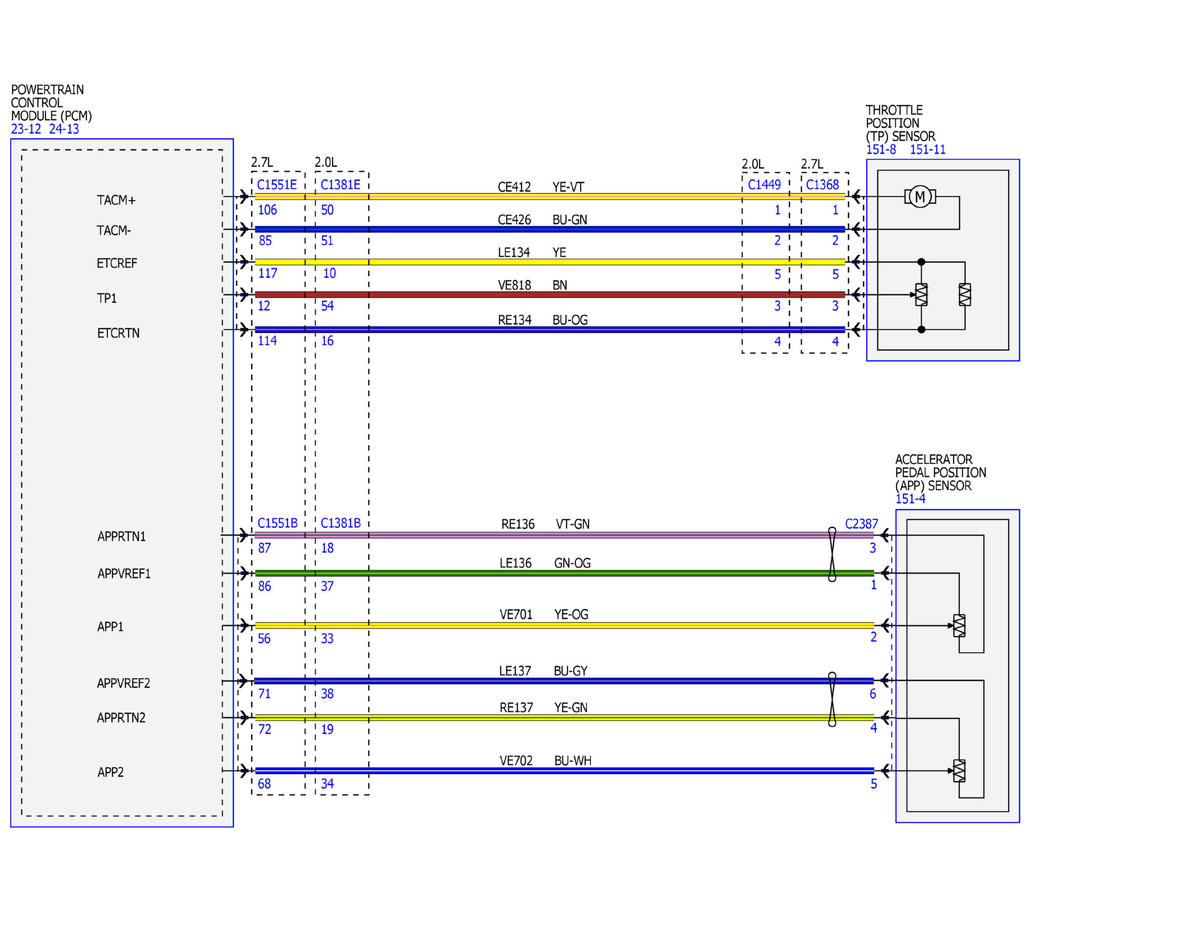

Fig 2: Cruise Control Wiring Diagram (2 Of 8)

GFDWR139111

Courtesy of FORD MOTOR COMPANY

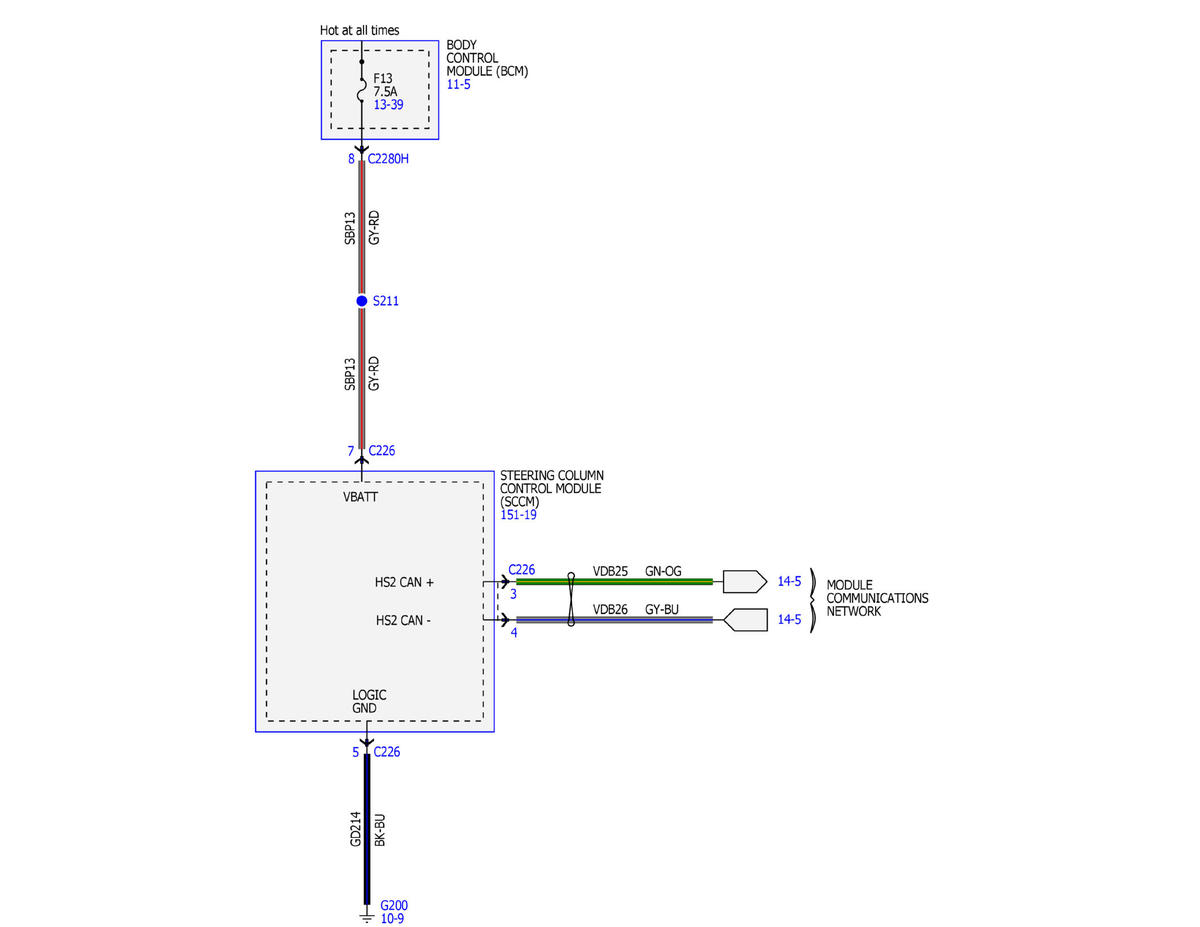

Fig 3: Cruise Control Wiring Diagram (3 Of 8)

GFDWR139112

Courtesy of FORD MOTOR COMPANY

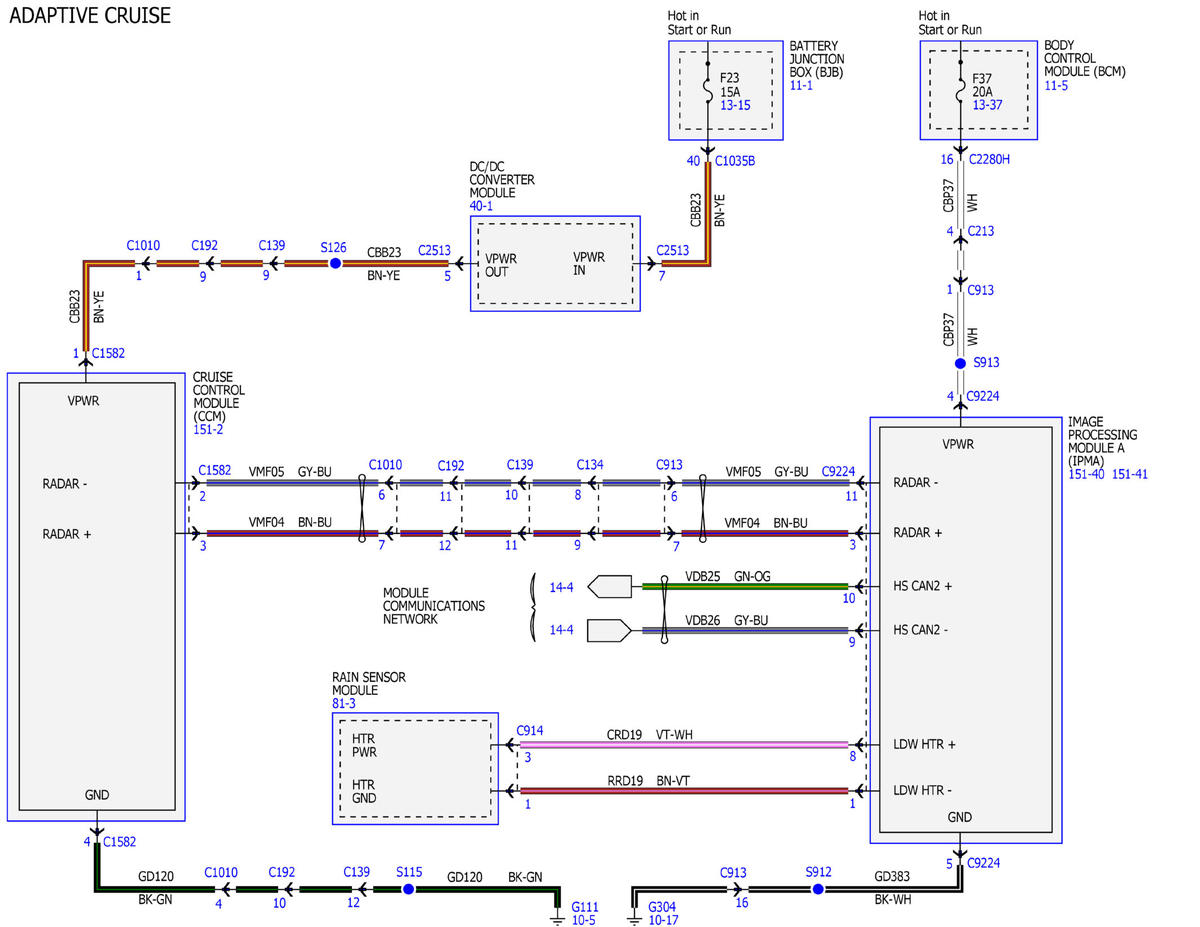

Fig 4: Cruise Control Wiring Diagram (4 Of 8)

GFDWR139113

Courtesy of FORD MOTOR COMPANY

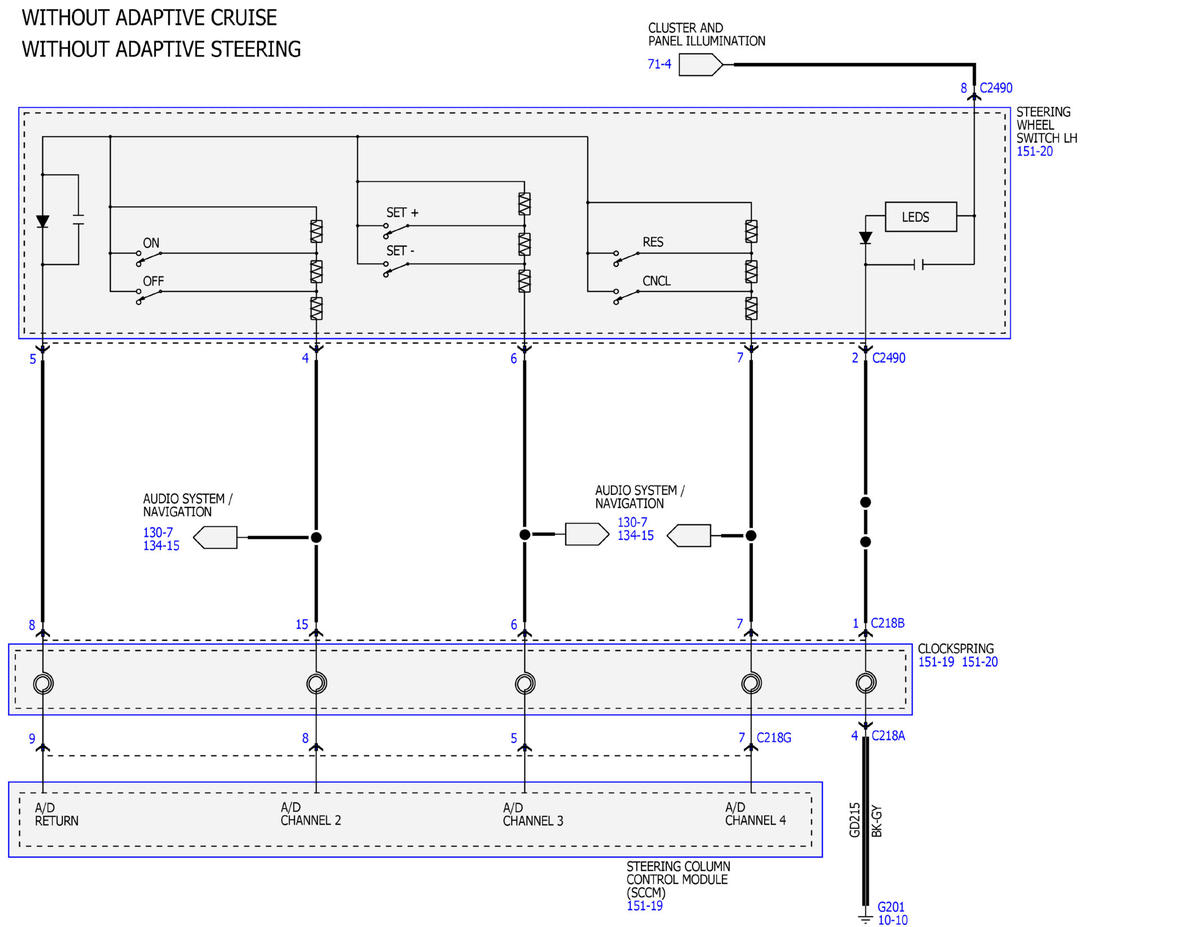

Fig 5: Cruise Control Wiring Diagram (5 Of 8)

GFDWR139114

Courtesy of FORD MOTOR COMPANY

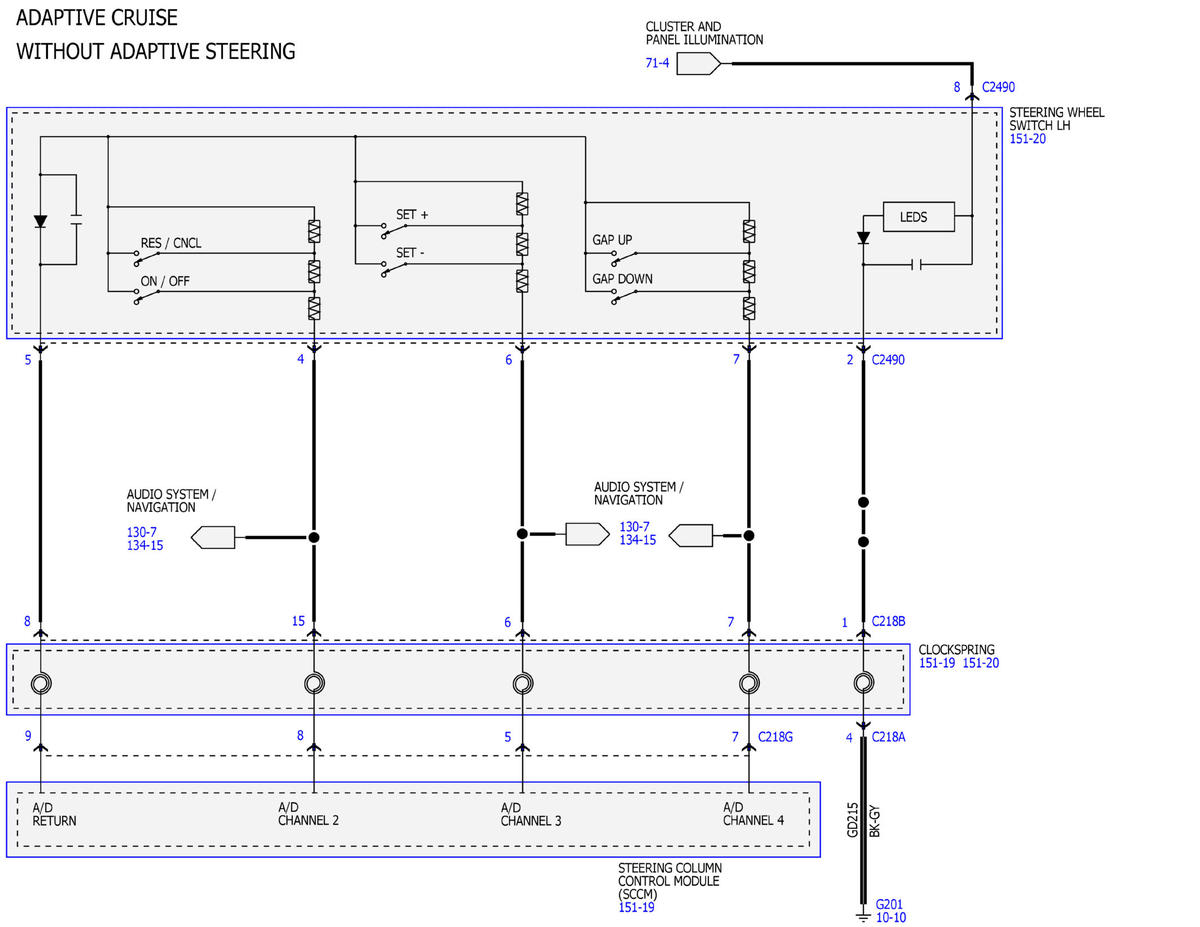

Fig 6: Cruise Control Wiring Diagram (6 Of 8)

GFDWR139115

Courtesy of FORD MOTOR COMPANY

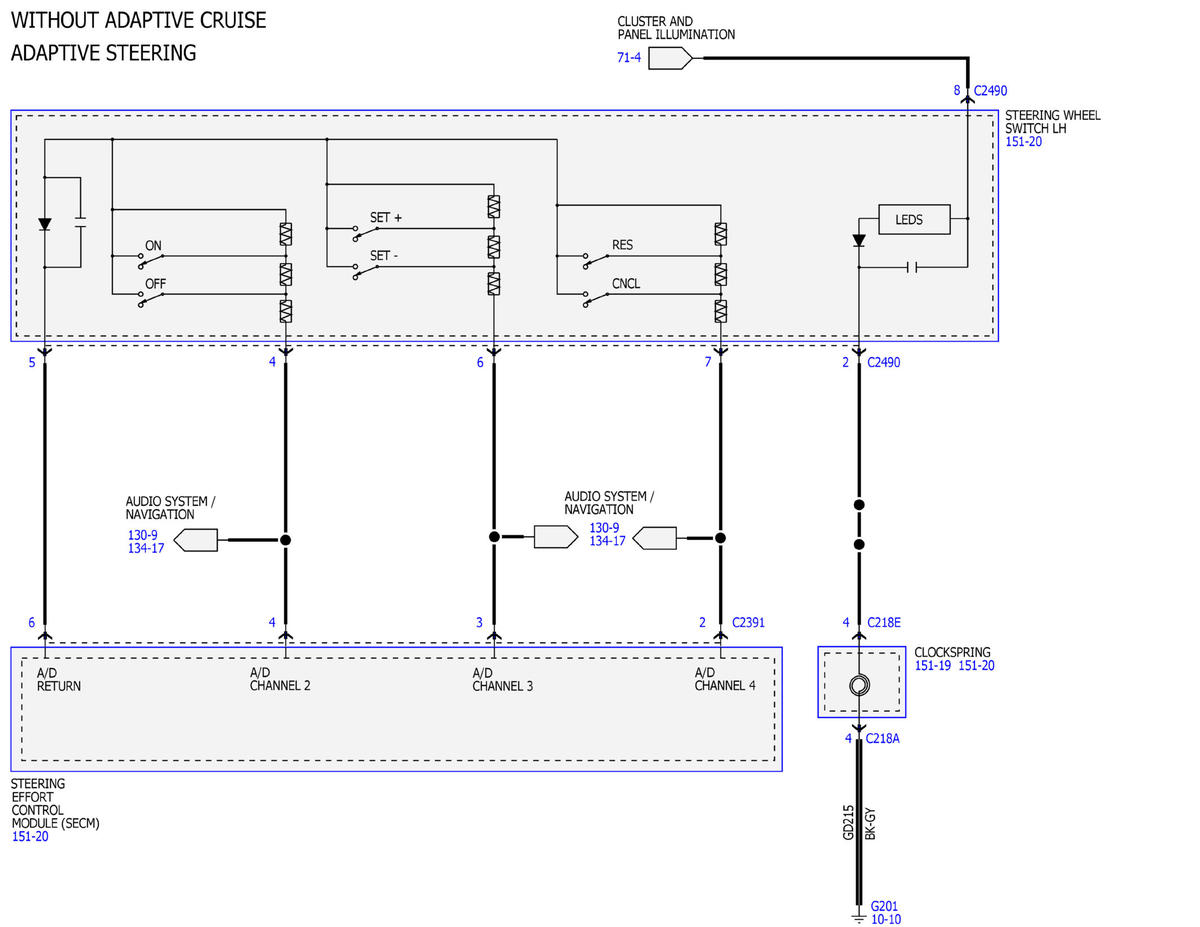

Fig 7: Cruise Control Wiring Diagram (7 Of 8)

GFDWR139116

Courtesy of FORD MOTOR COMPANY

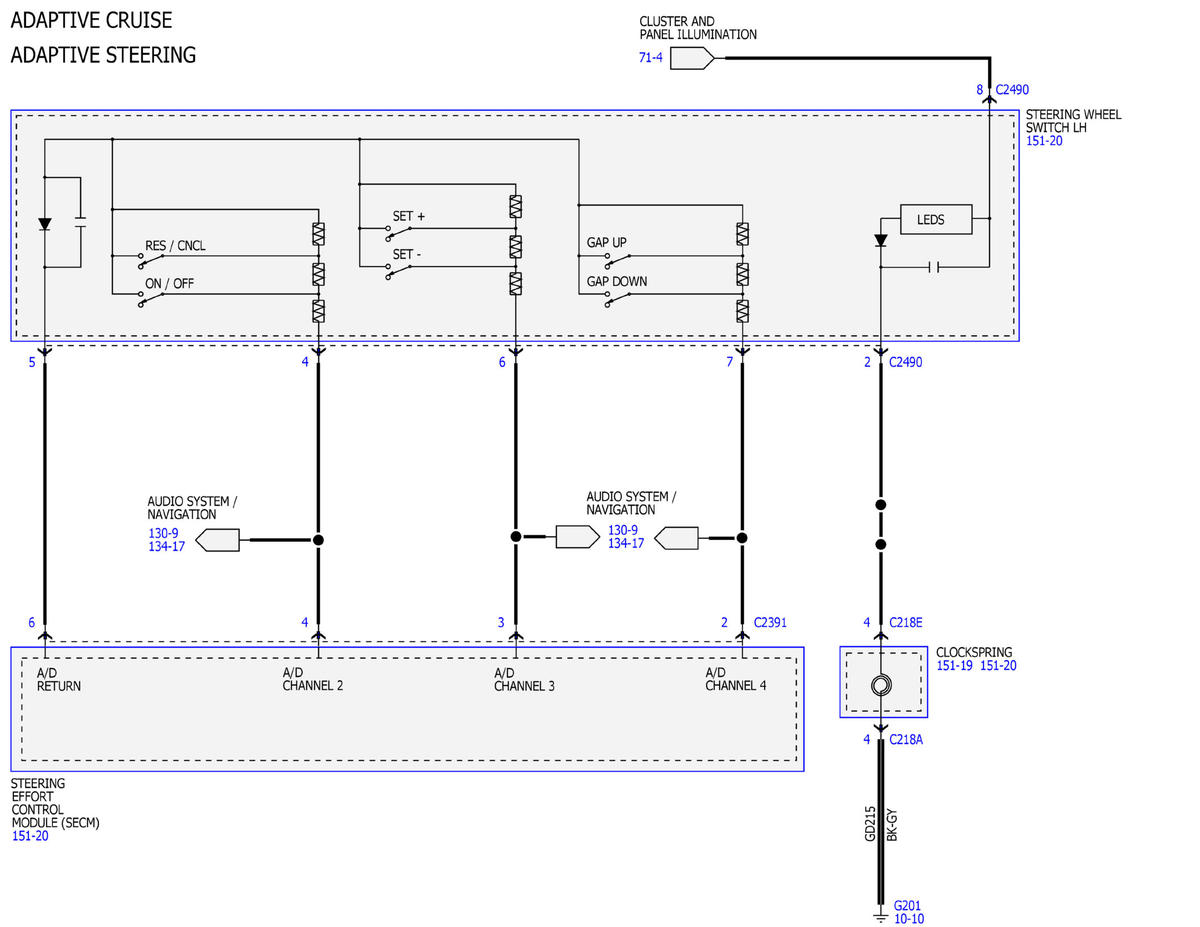

Fig 8: Cruise Control Wiring Diagram (8 Of 8)

GFDWR139117

Courtesy of FORD MOTOR COMPANY
