Heated Window

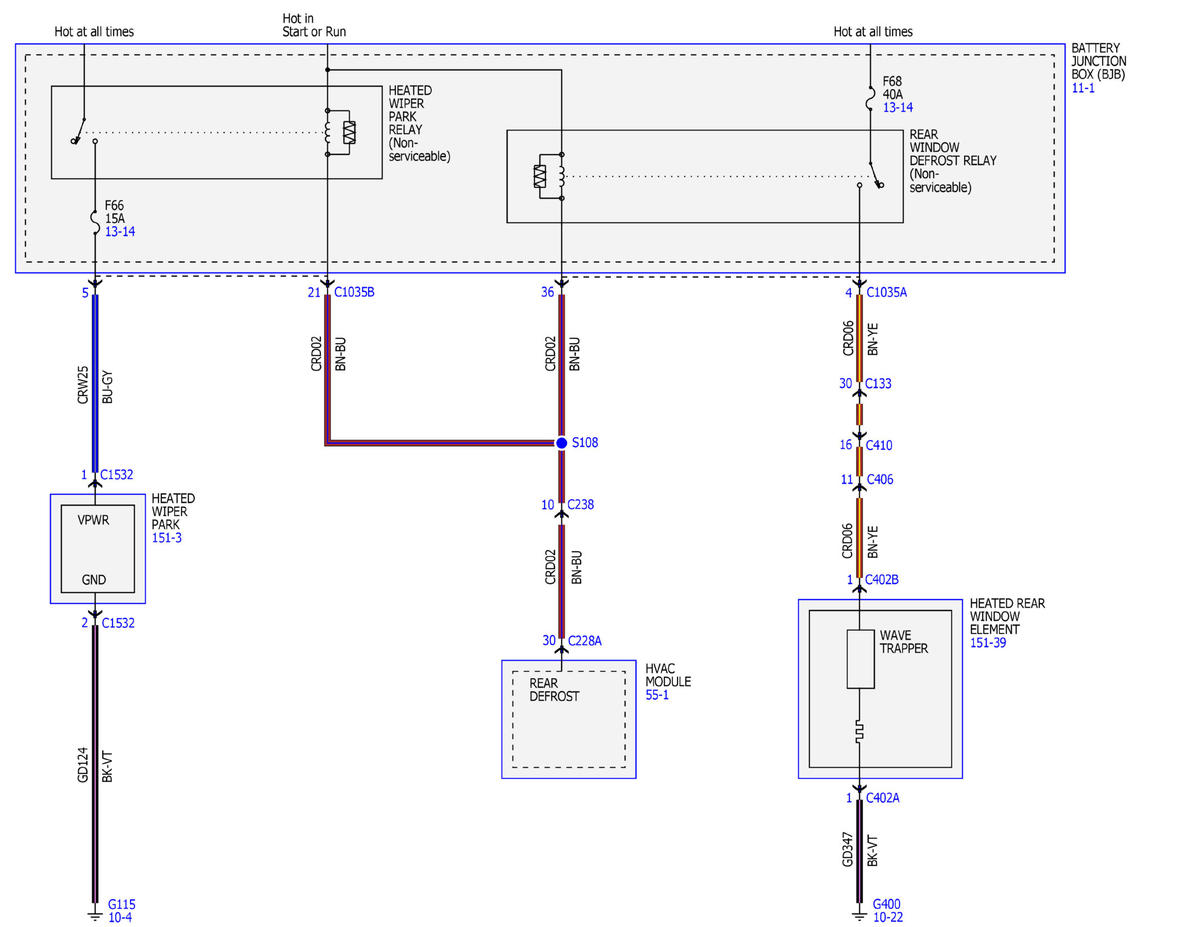

Fig 1: Heated Window Wiring Diagram (1 Of 2)
GFDWR139160Courtesy of FORD MOTOR COMPANY
Fig 2: Heated Window Wiring Diagram (2 Of 2)
GFDWR139161Courtesy of FORD MOTOR COMPANY
