Power Distribution

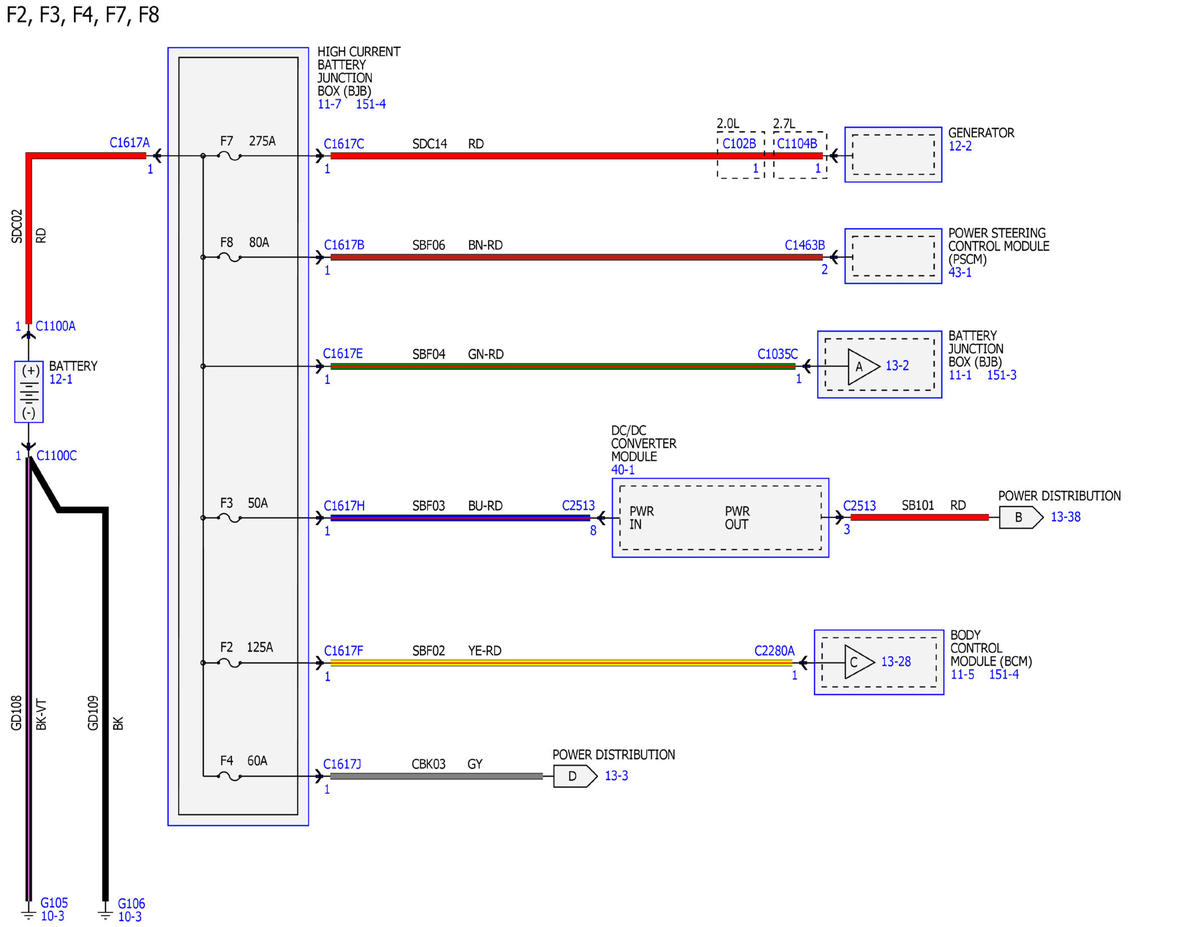

Fig 1: Power Distribution Wiring Diagram (1 Of 48)

GFDWR139214

Courtesy of FORD MOTOR COMPANY

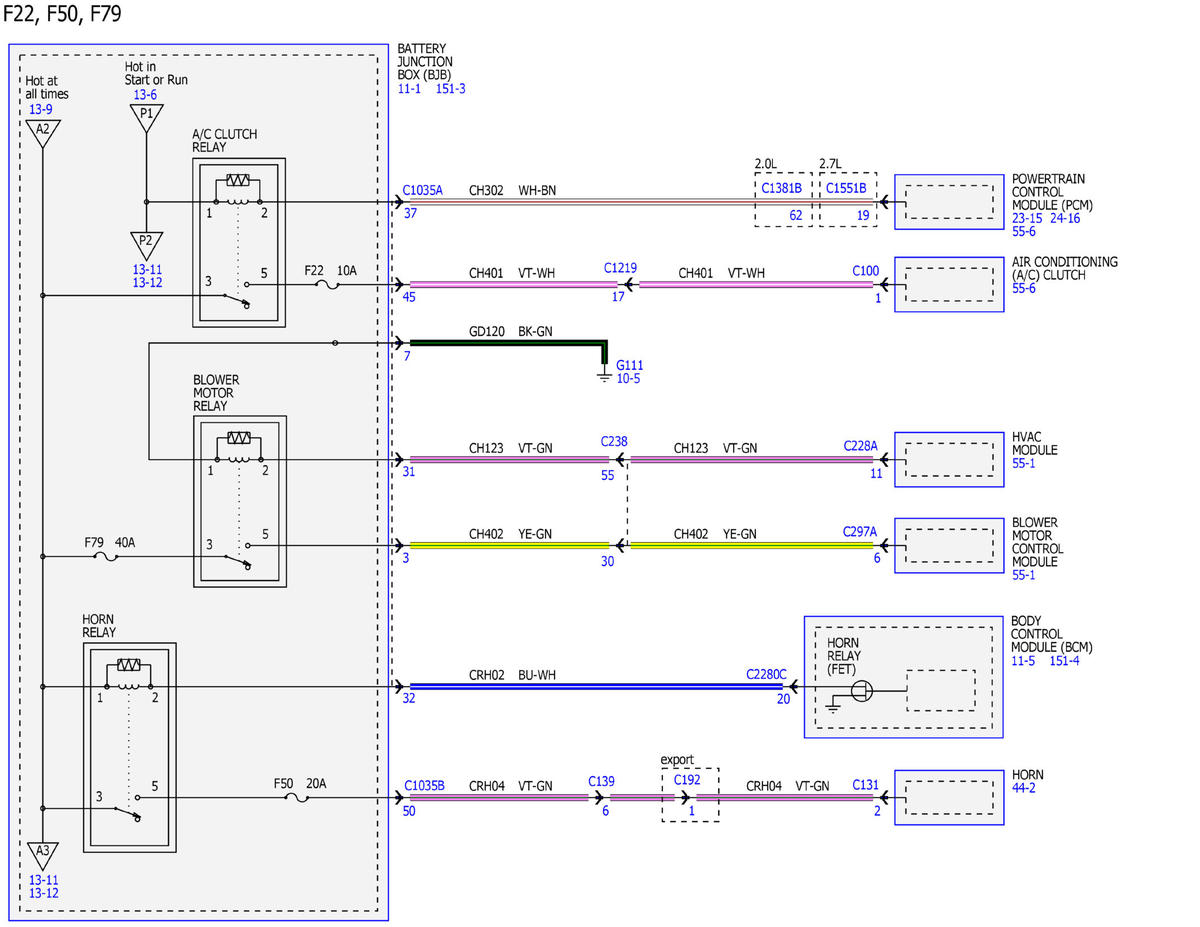

Fig 2: Power Distribution Wiring Diagram (2 Of 48)

GFDWR139215

Courtesy of FORD MOTOR COMPANY

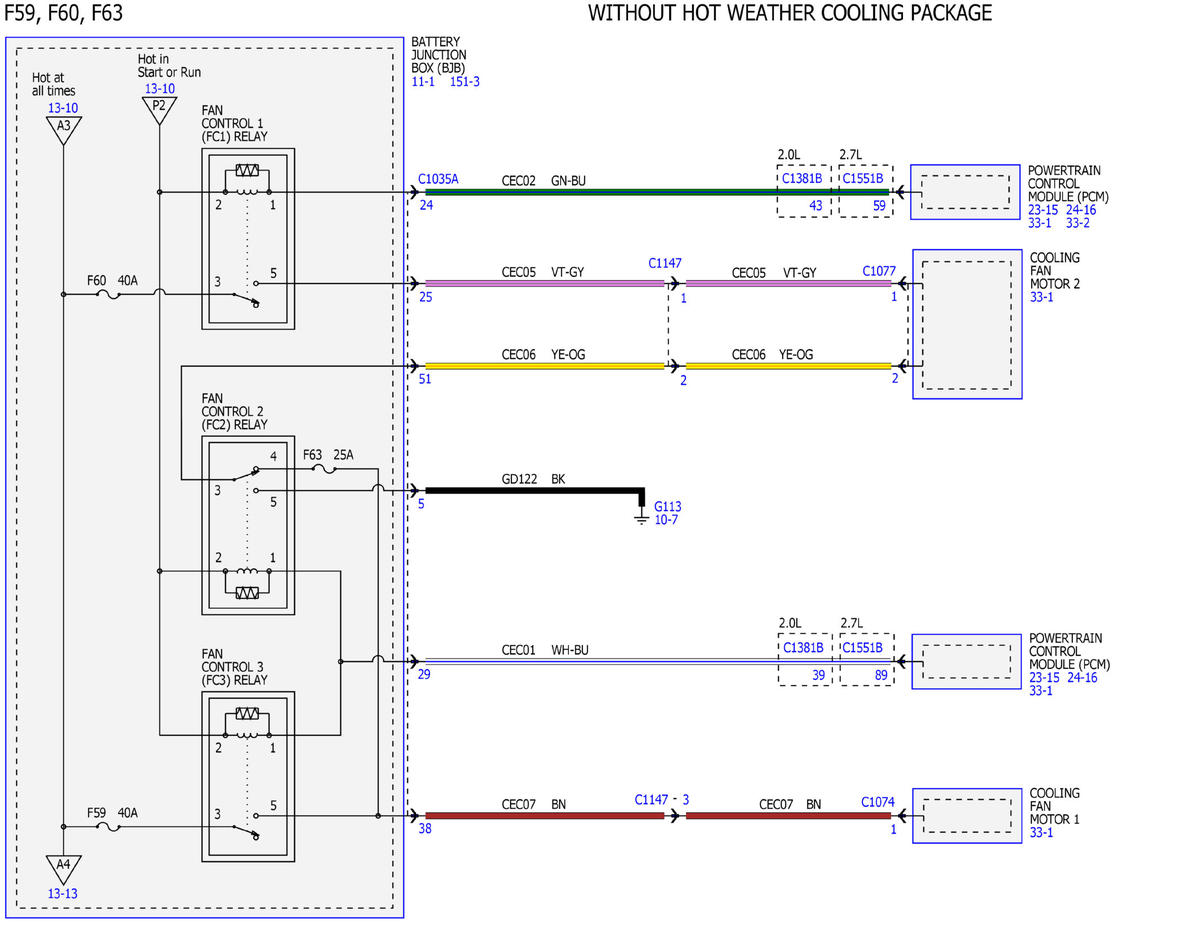

Fig 3: Power Distribution Wiring Diagram (3 Of 48)

GFDWR139216

Courtesy of FORD MOTOR COMPANY

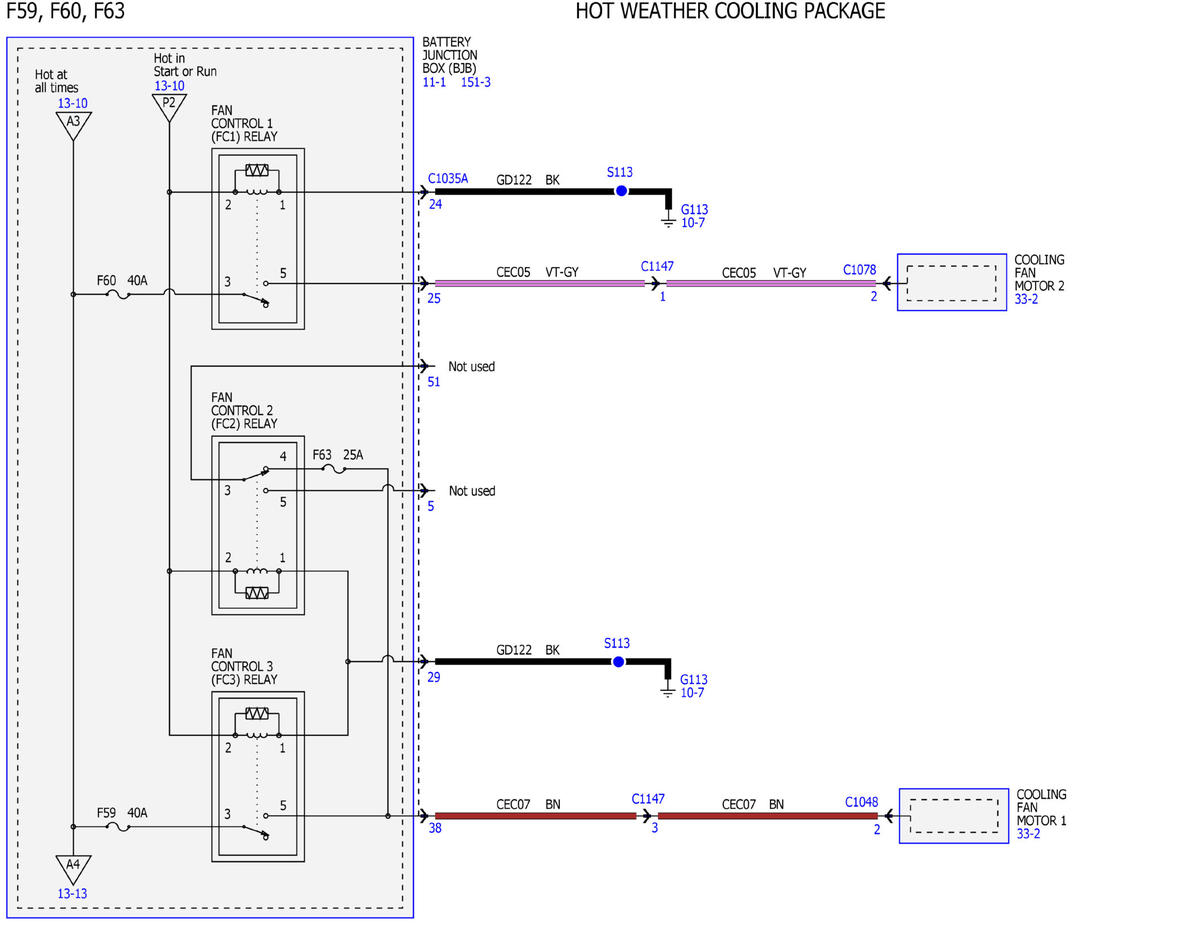

Fig 4: Power Distribution Wiring Diagram (4 Of 48)

GFDWR139217

Courtesy of FORD MOTOR COMPANY

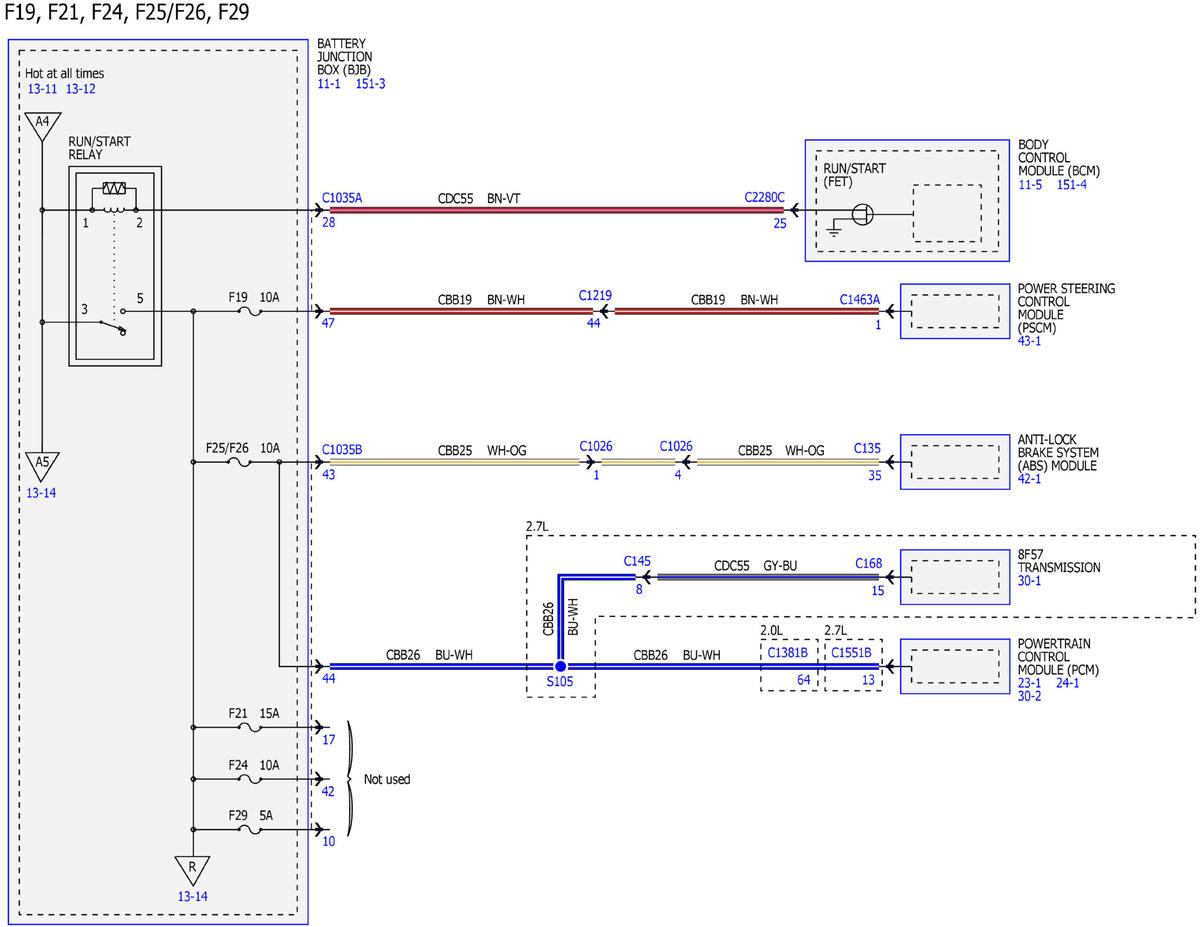

Fig 5: Power Distribution Wiring Diagram (5 Of 48)

GFDWR139218

Courtesy of FORD MOTOR COMPANY

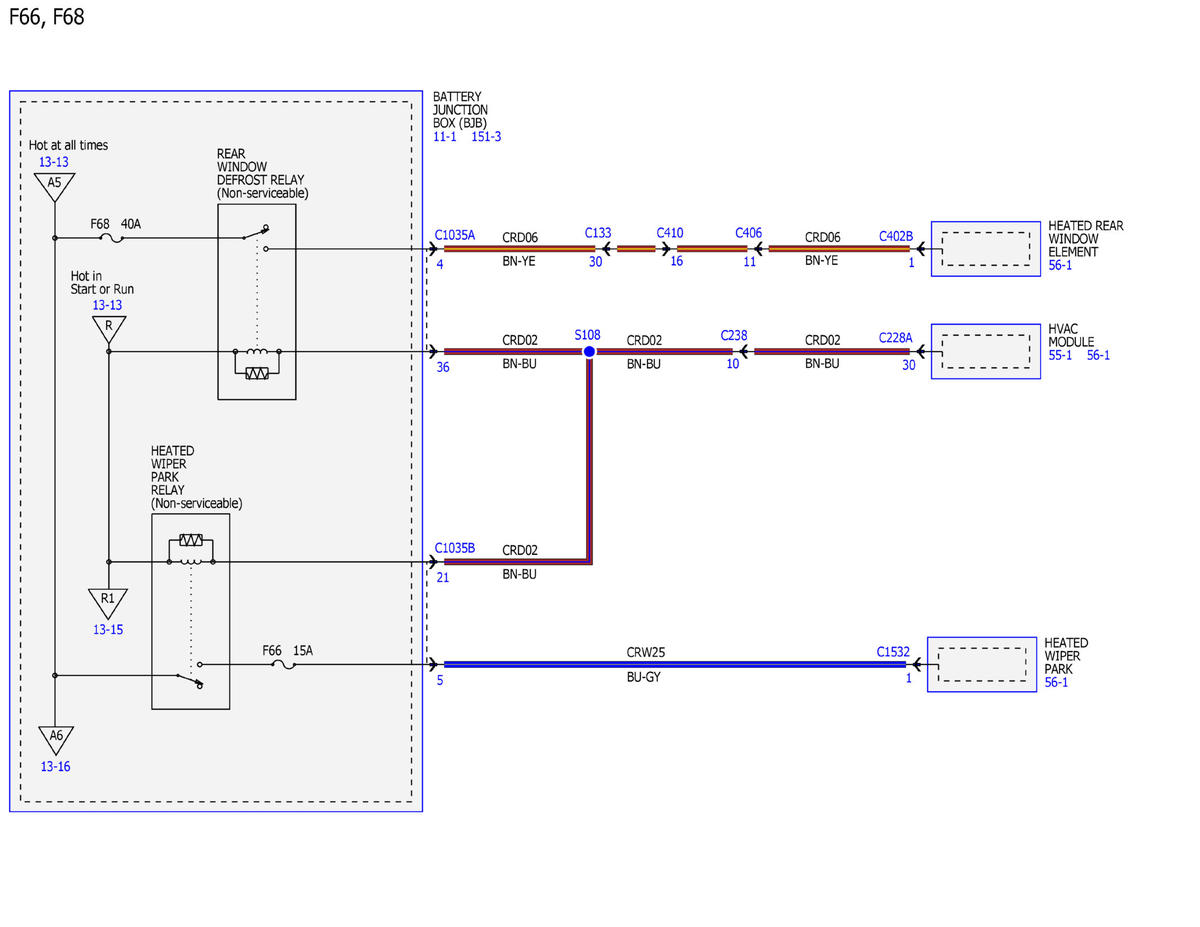

Fig 6: Power Distribution Wiring Diagram (6 Of 48)

GFDWR139219

Courtesy of FORD MOTOR COMPANY

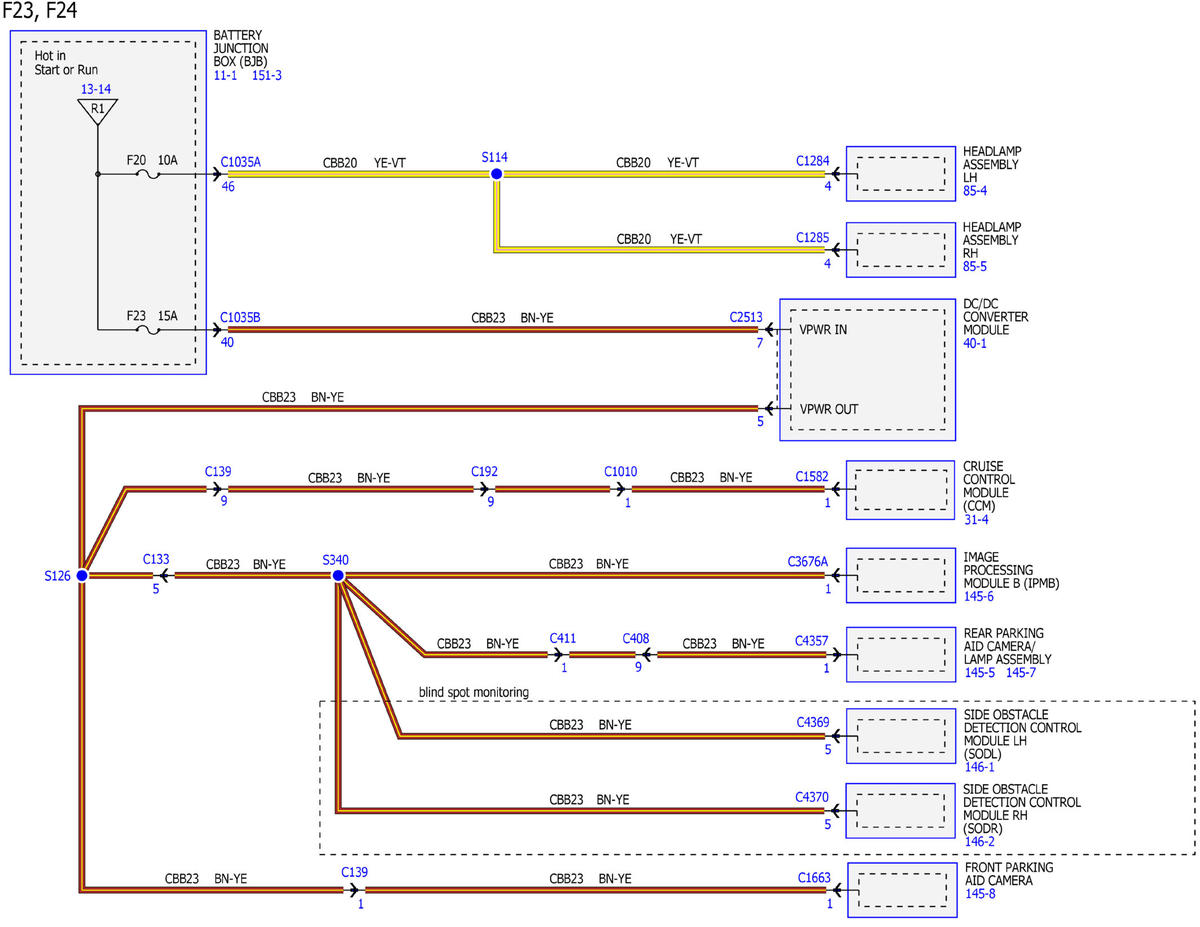

Fig 7: Power Distribution Wiring Diagram (7 Of 48)

GFDWR139220

Courtesy of FORD MOTOR COMPANY

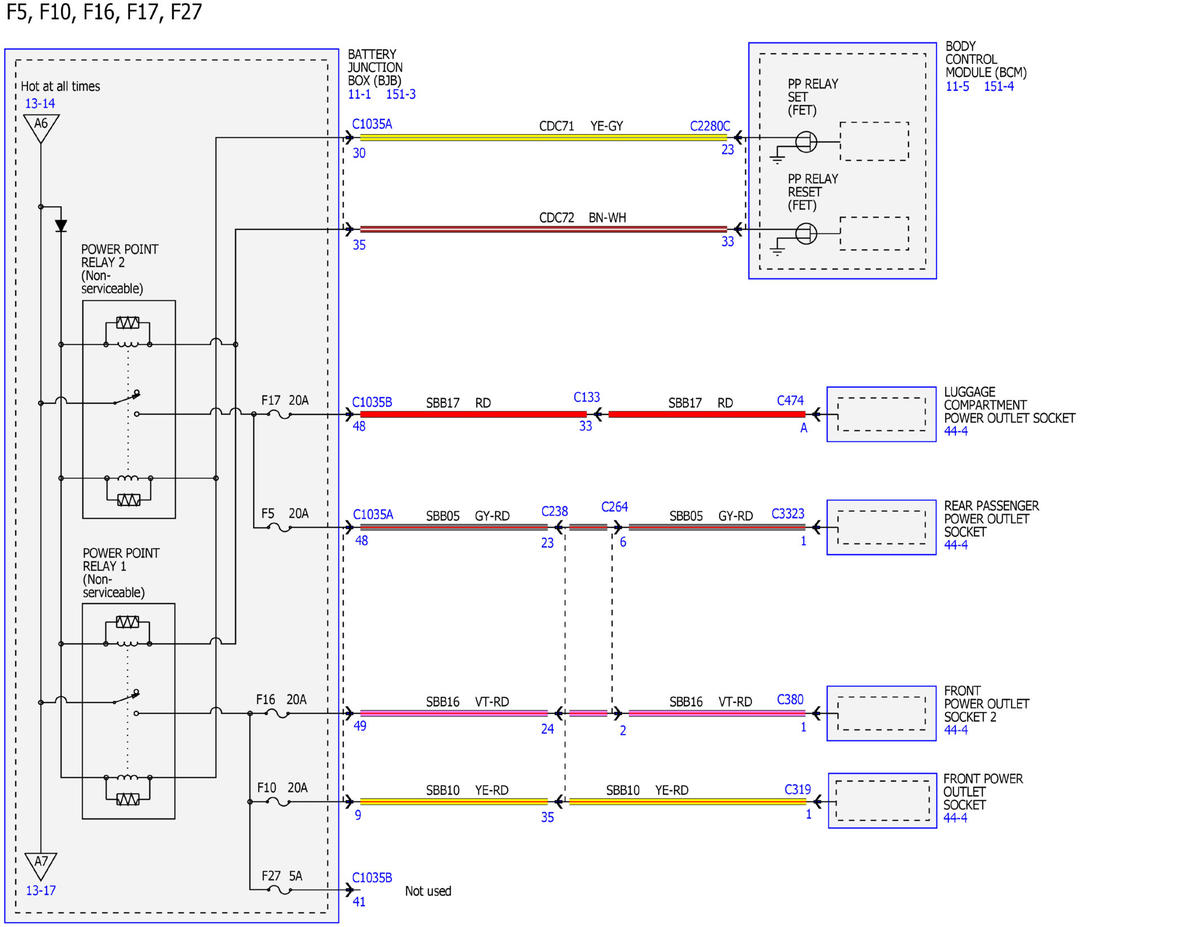

Fig 8: Power Distribution Wiring Diagram (8 Of 48)

GFDWR139221

Courtesy of FORD MOTOR COMPANY

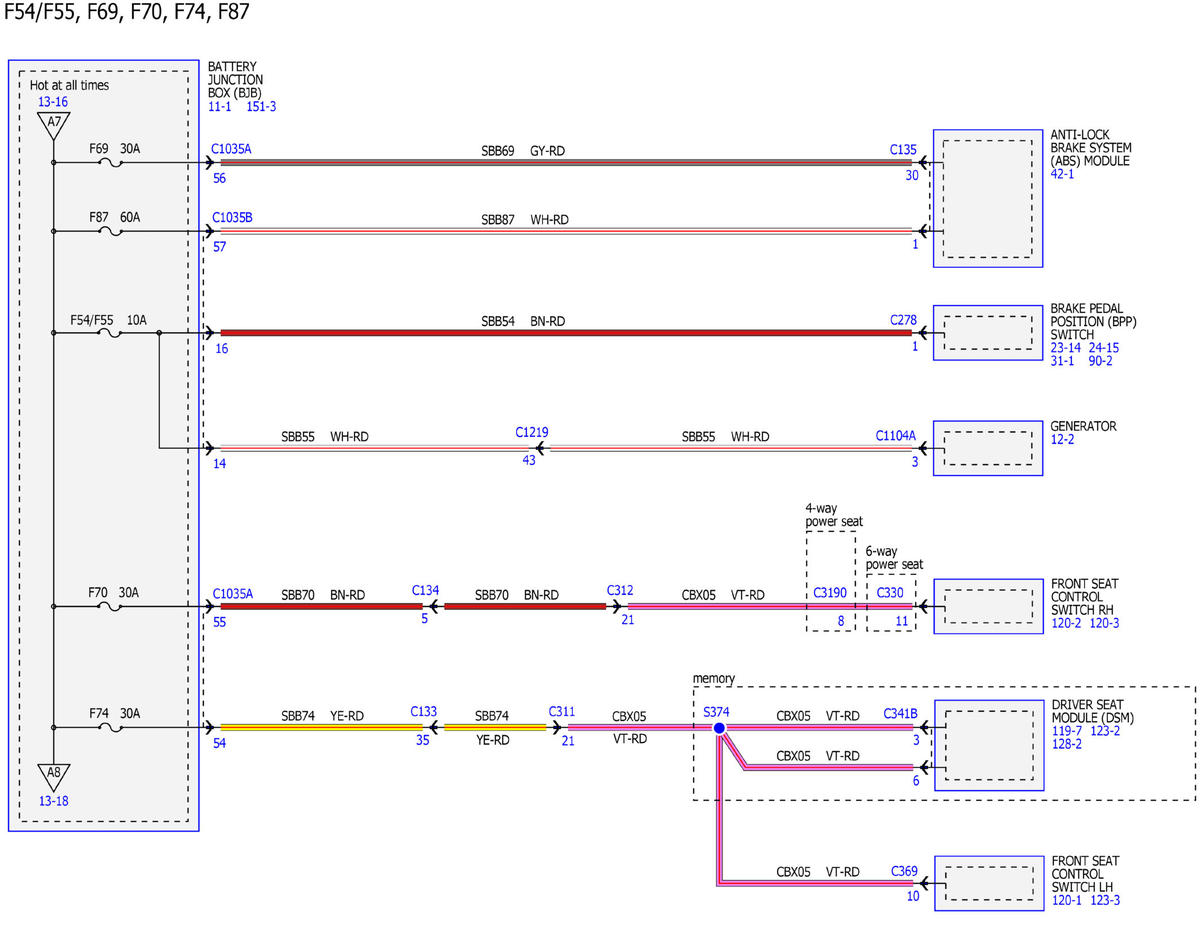

Fig 9: Power Distribution Wiring Diagram (9 Of 48)

GFDWR139222

Courtesy of FORD MOTOR COMPANY

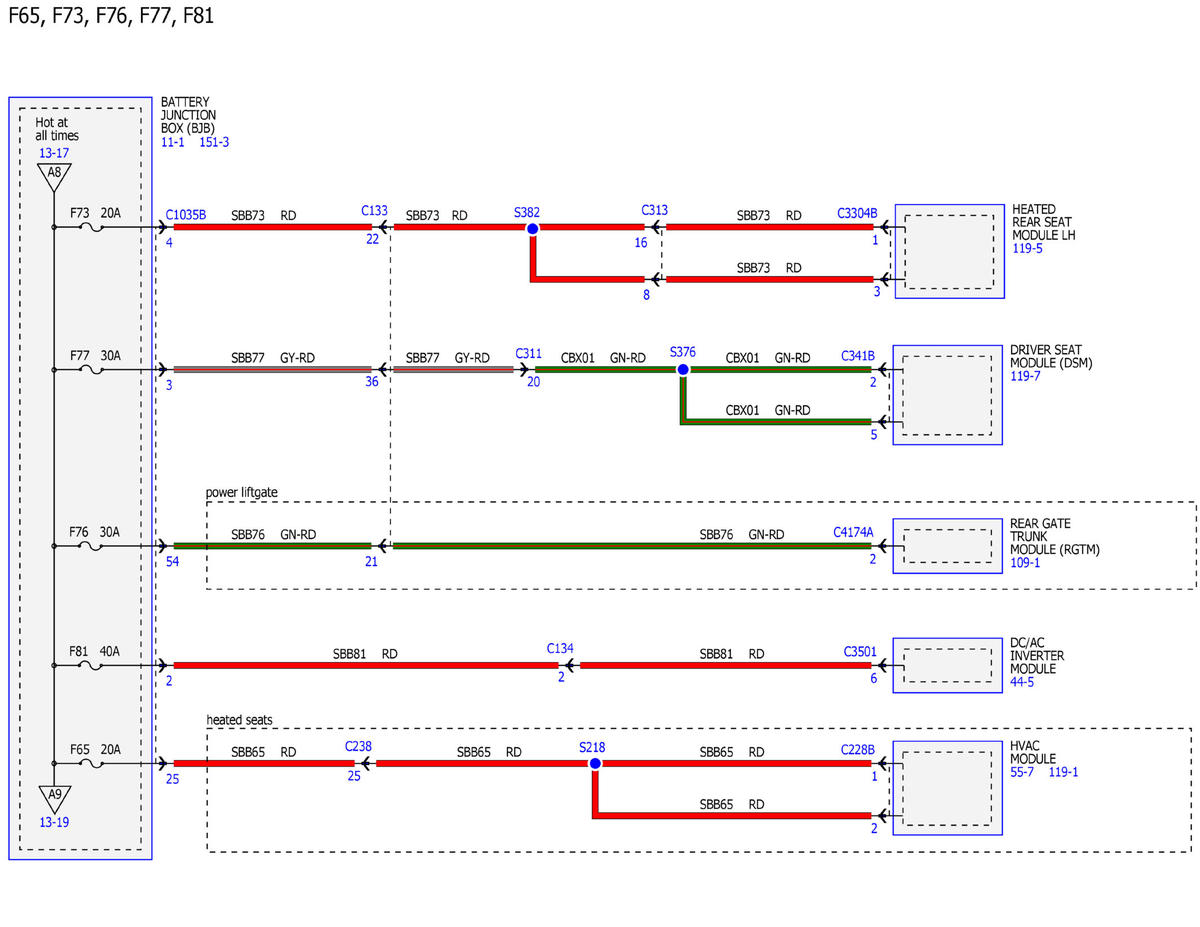

Fig 10: Power Distribution Wiring Diagram (10 Of 48)

GFDWR139223

Courtesy of FORD MOTOR COMPANY

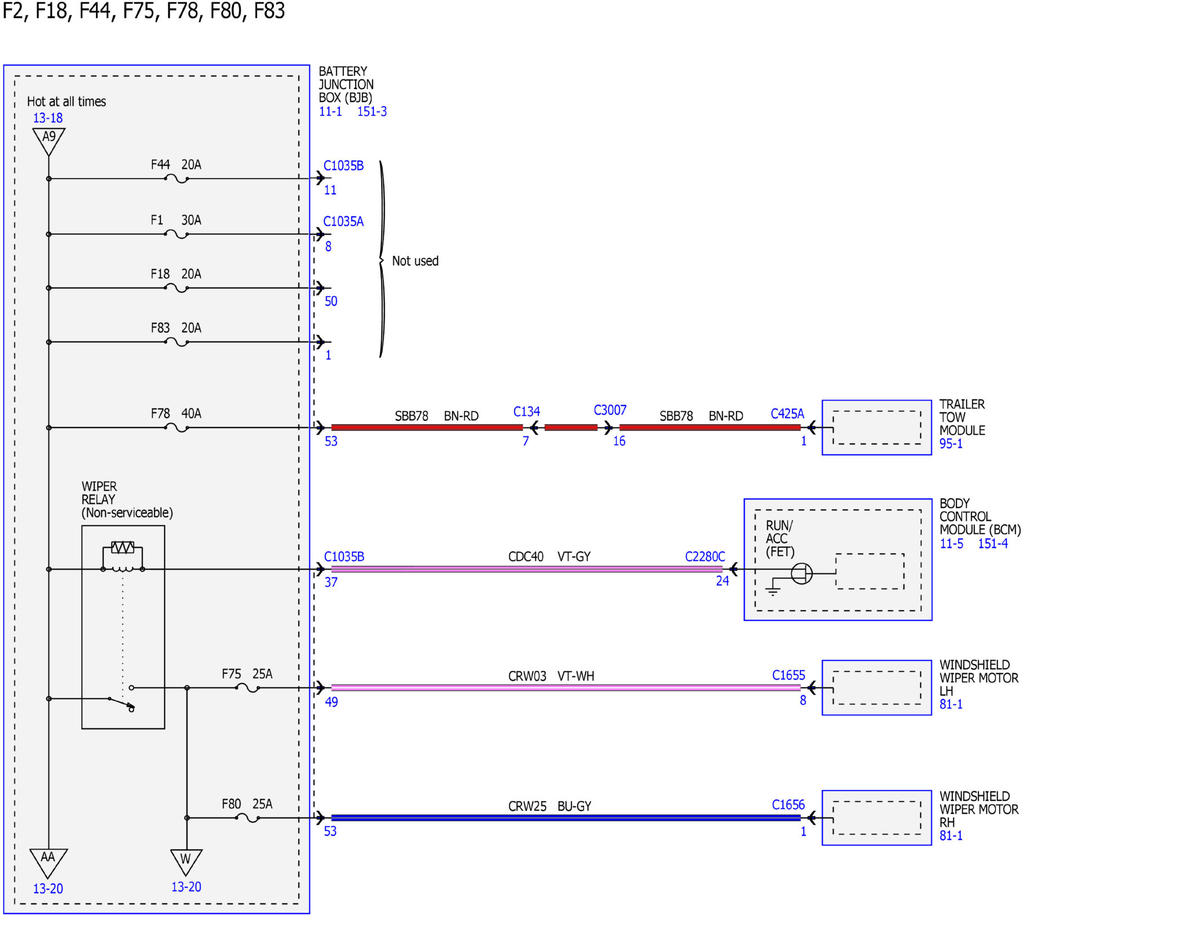

Fig 11: Power Distribution Wiring Diagram (11 Of 48)

GFDWR139224

Courtesy of FORD MOTOR COMPANY

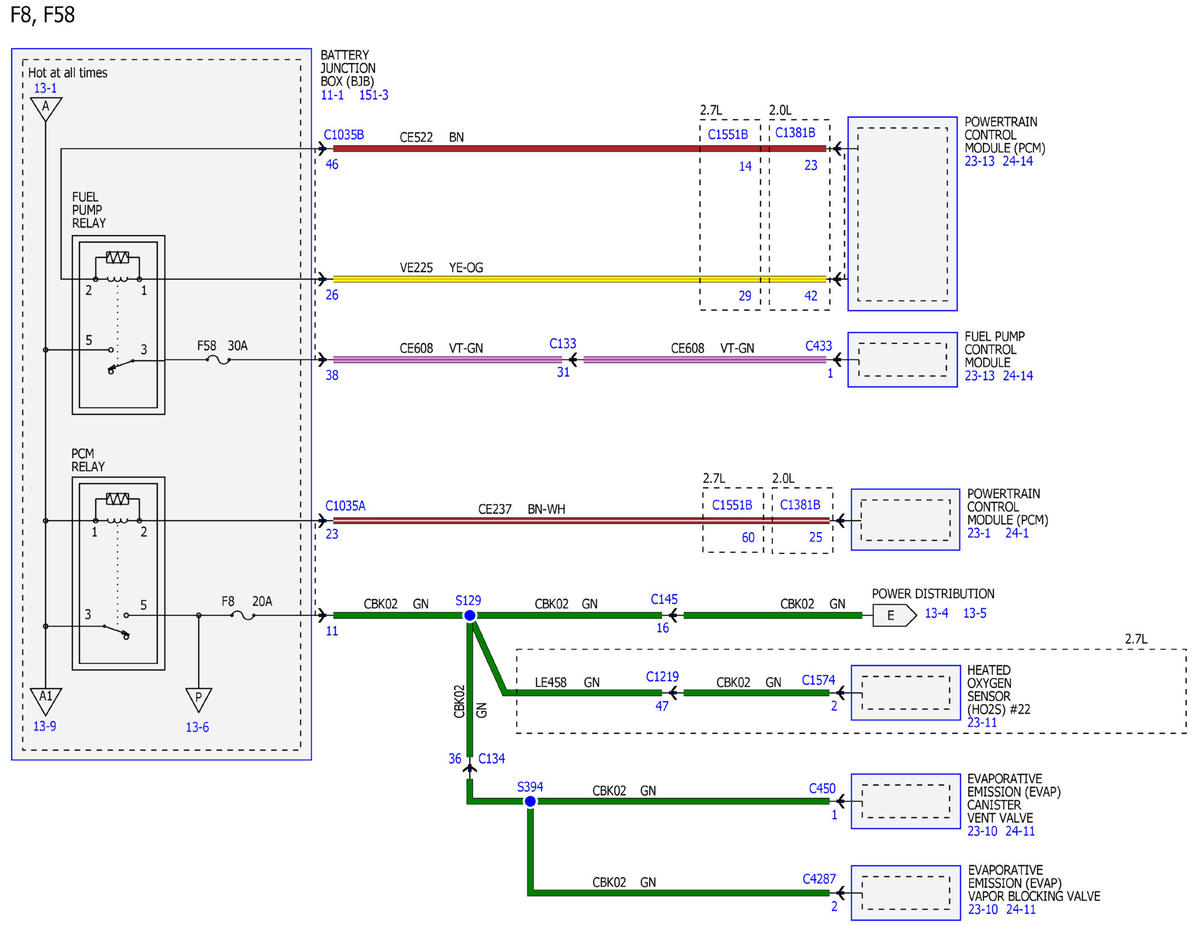

Fig 12: Power Distribution Wiring Diagram (12 Of 48)

GFDWR139225

Courtesy of FORD MOTOR COMPANY

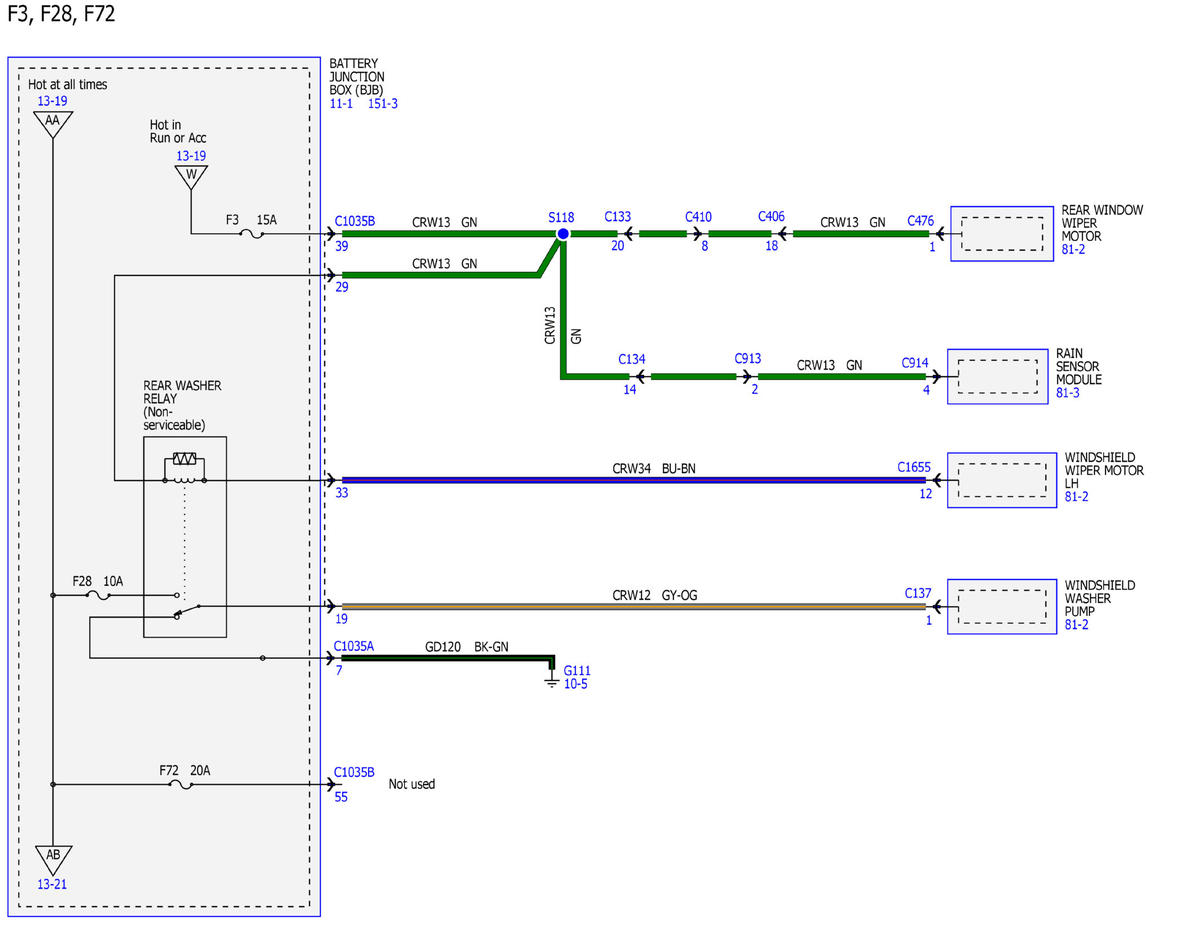

Fig 13: Power Distribution Wiring Diagram (13 Of 48)

GFDWR139226

Courtesy of FORD MOTOR COMPANY

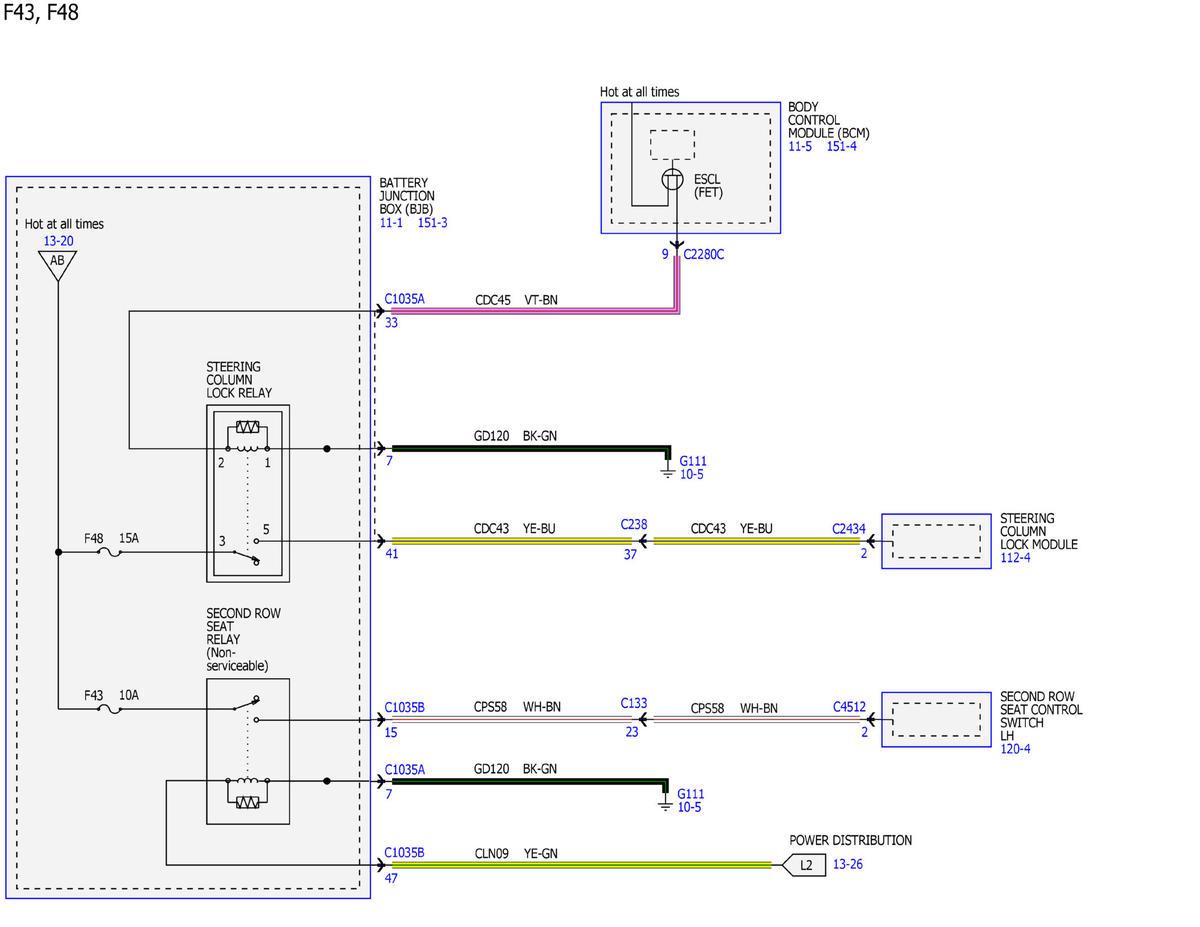

Fig 14: Power Distribution Wiring Diagram (14 Of 48)

GFDWR139227

Courtesy of FORD MOTOR COMPANY

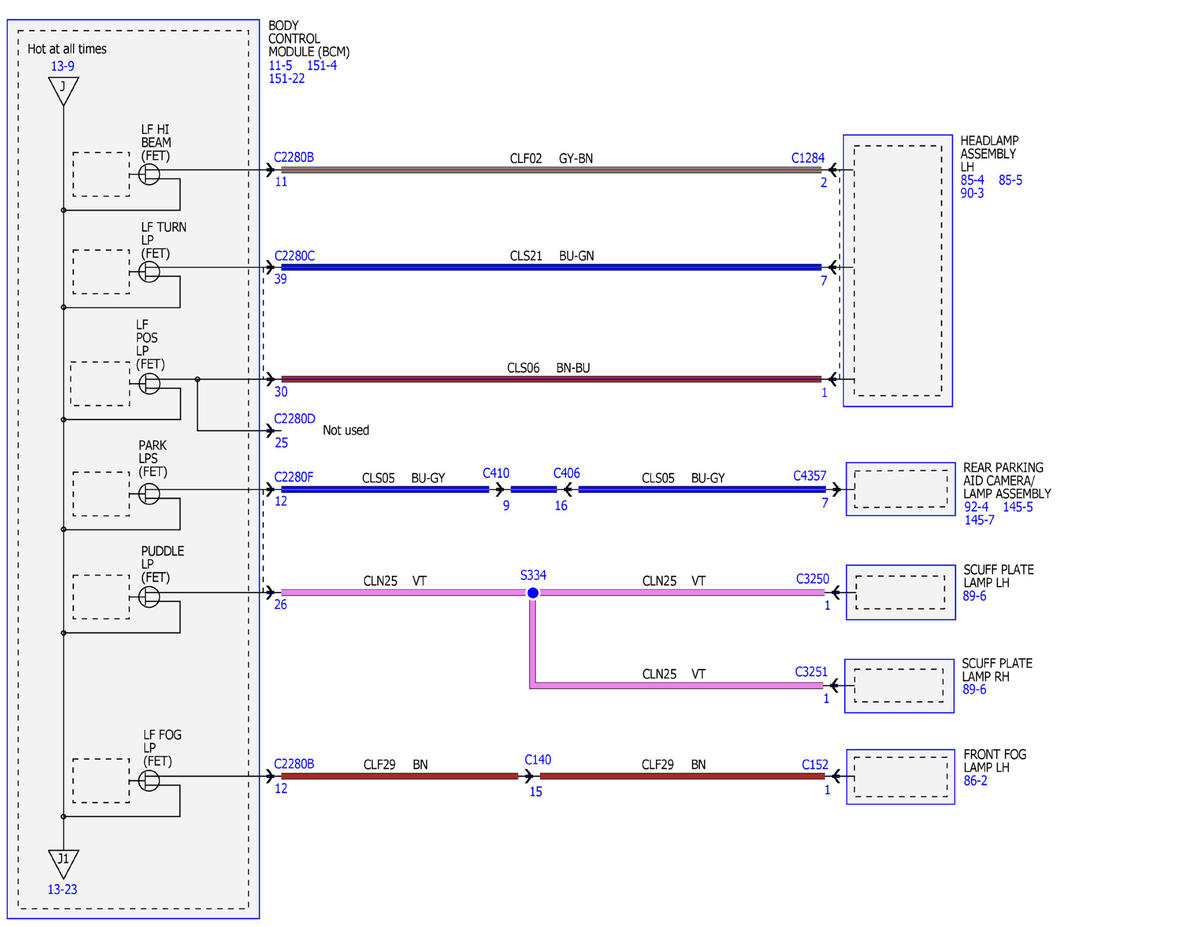

Fig 15: Power Distribution Wiring Diagram (15 Of 48)

GFDWR139228

Courtesy of FORD MOTOR COMPANY

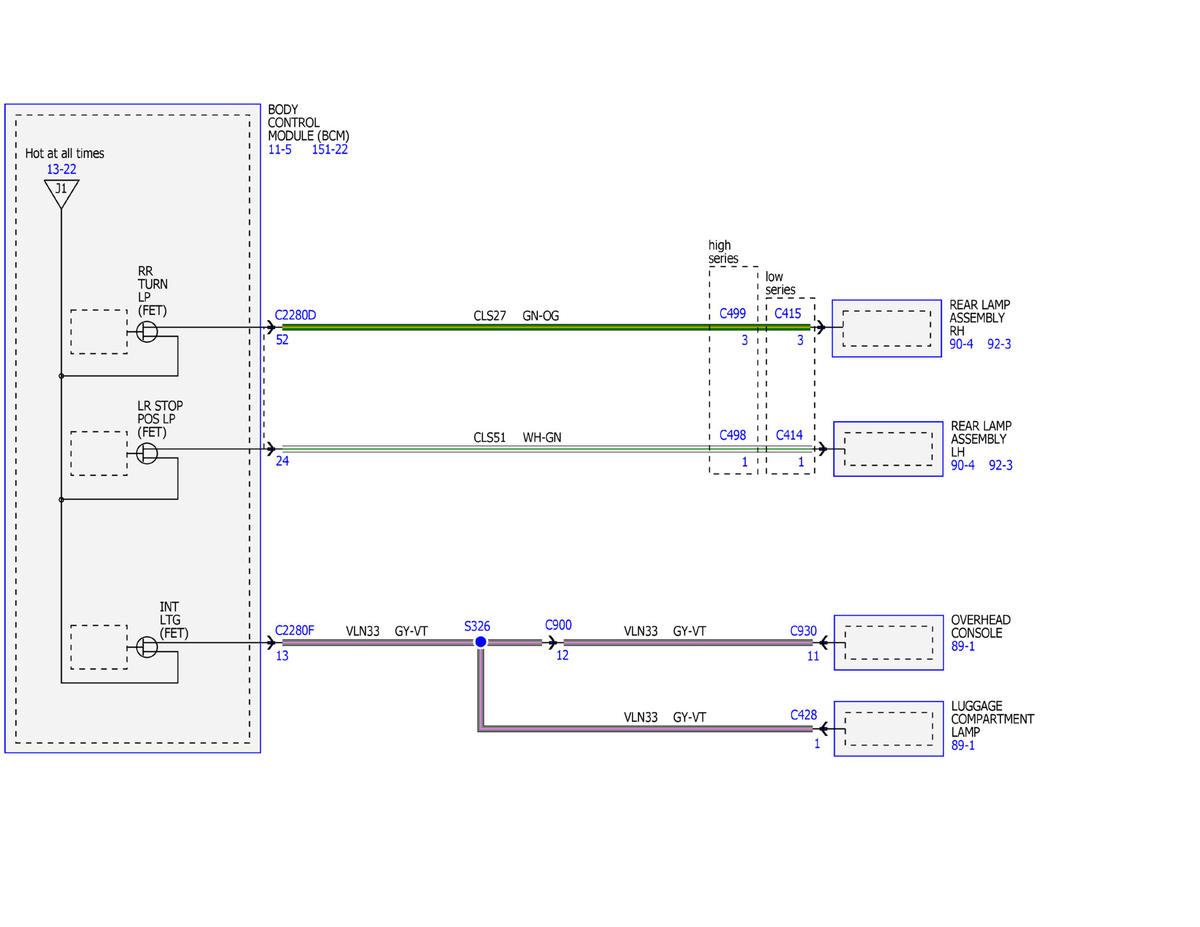

Fig 16: Power Distribution Wiring Diagram (16 Of 48)

GFDWR139229

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 Of 48)

GFDWR139230

Courtesy of FORD MOTOR COMPANY

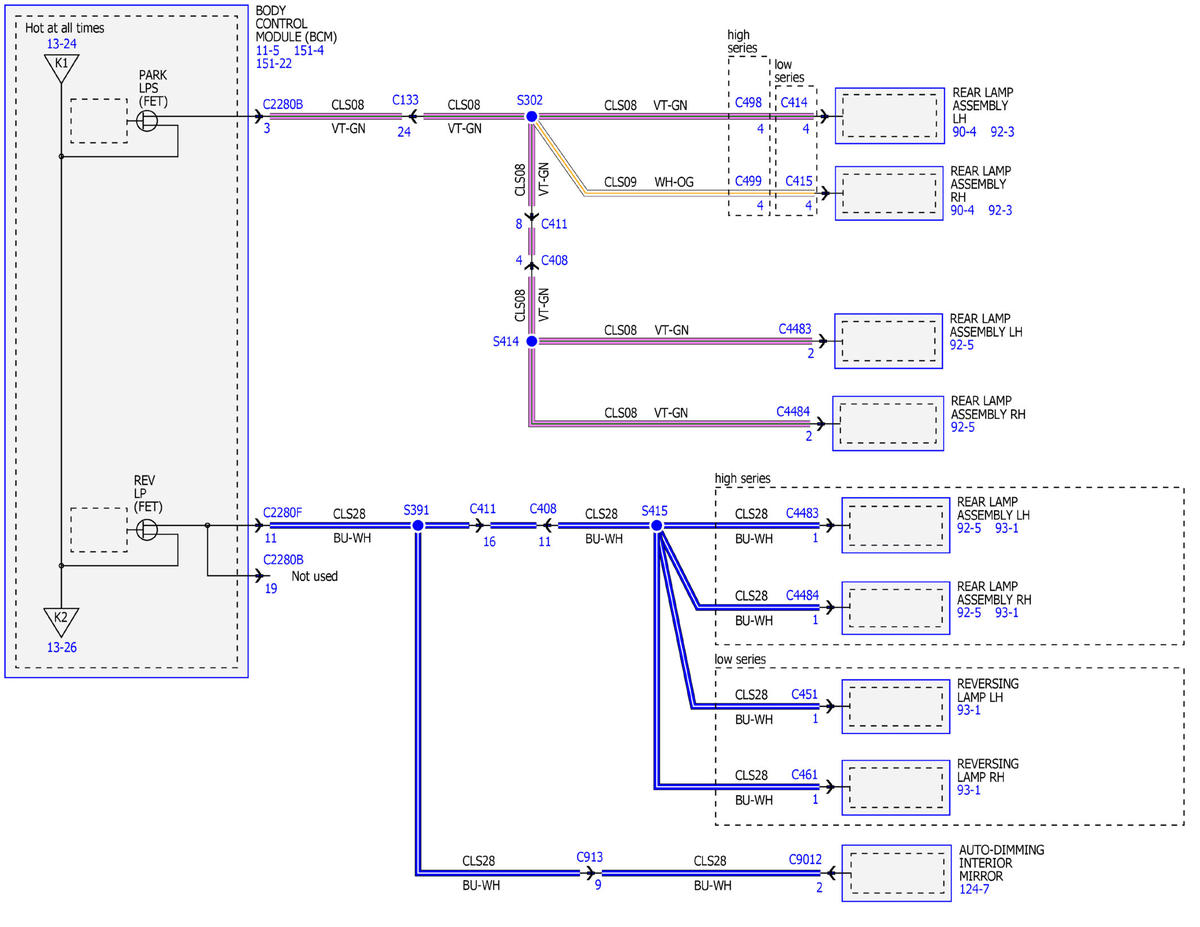

Fig 18: Power Distribution Wiring Diagram (18 Of 48)

GFDWR139231

Courtesy of FORD MOTOR COMPANY

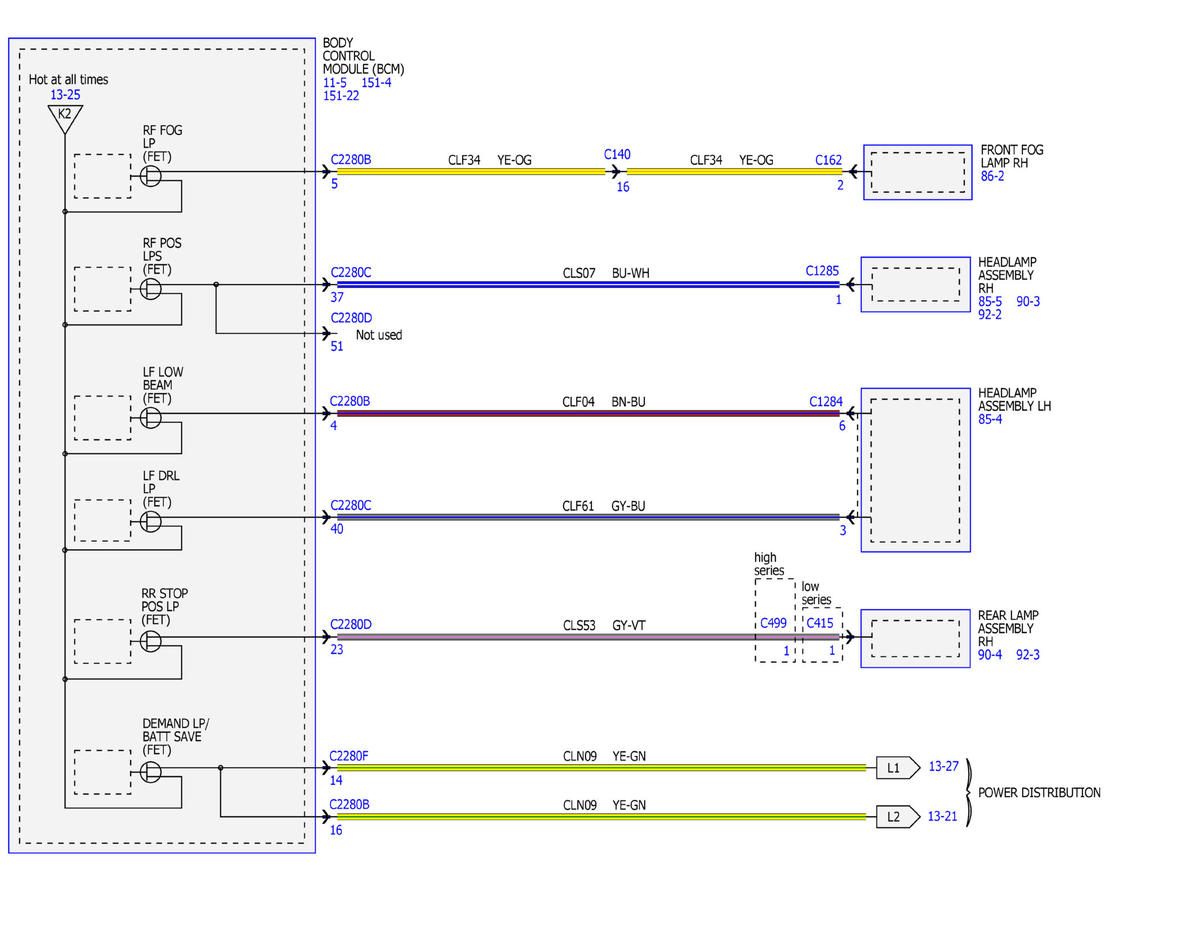

Fig 19: Power Distribution Wiring Diagram (19 Of 48)

GFDWR139232

Courtesy of FORD MOTOR COMPANY

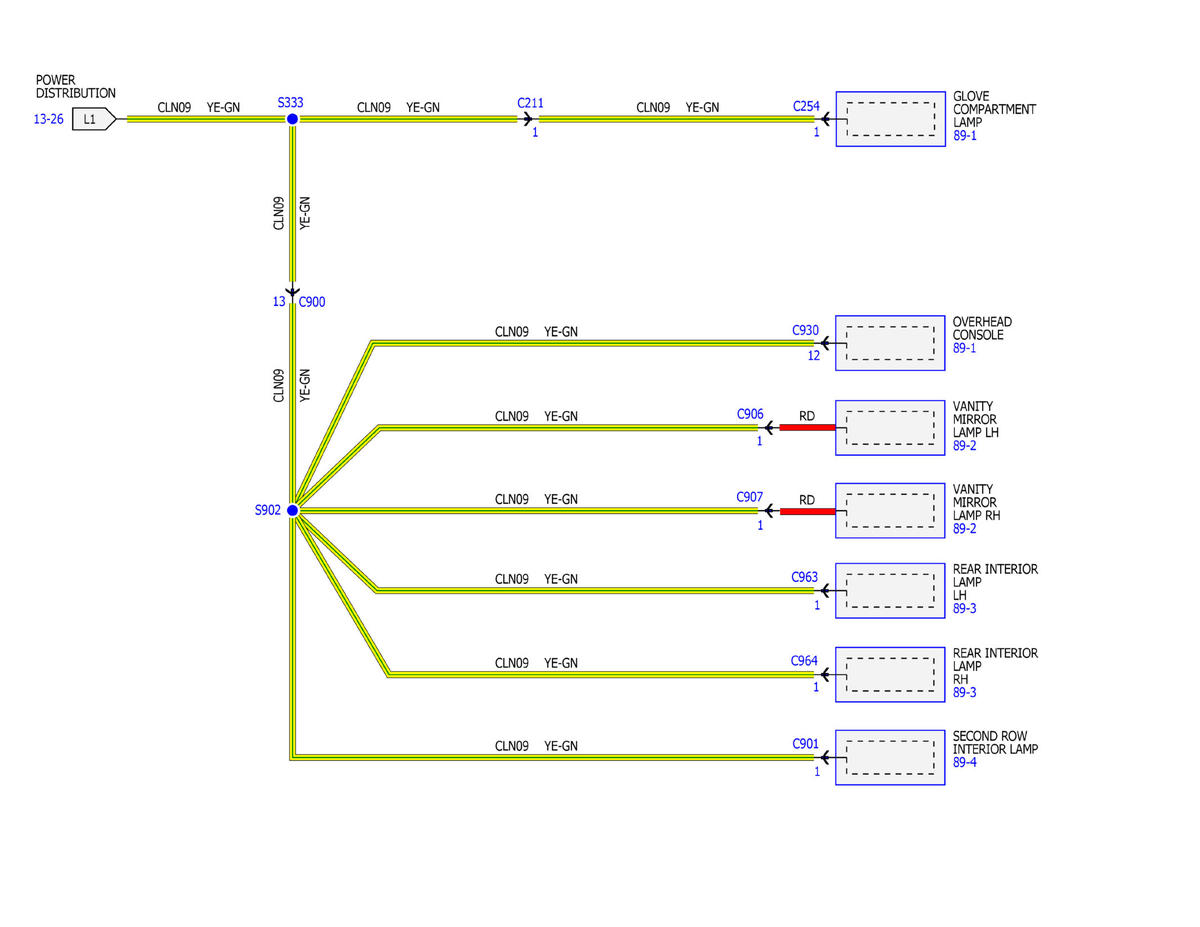

Fig 20: Power Distribution Wiring Diagram (20 Of 48)

GFDWR139233

Courtesy of FORD MOTOR COMPANY

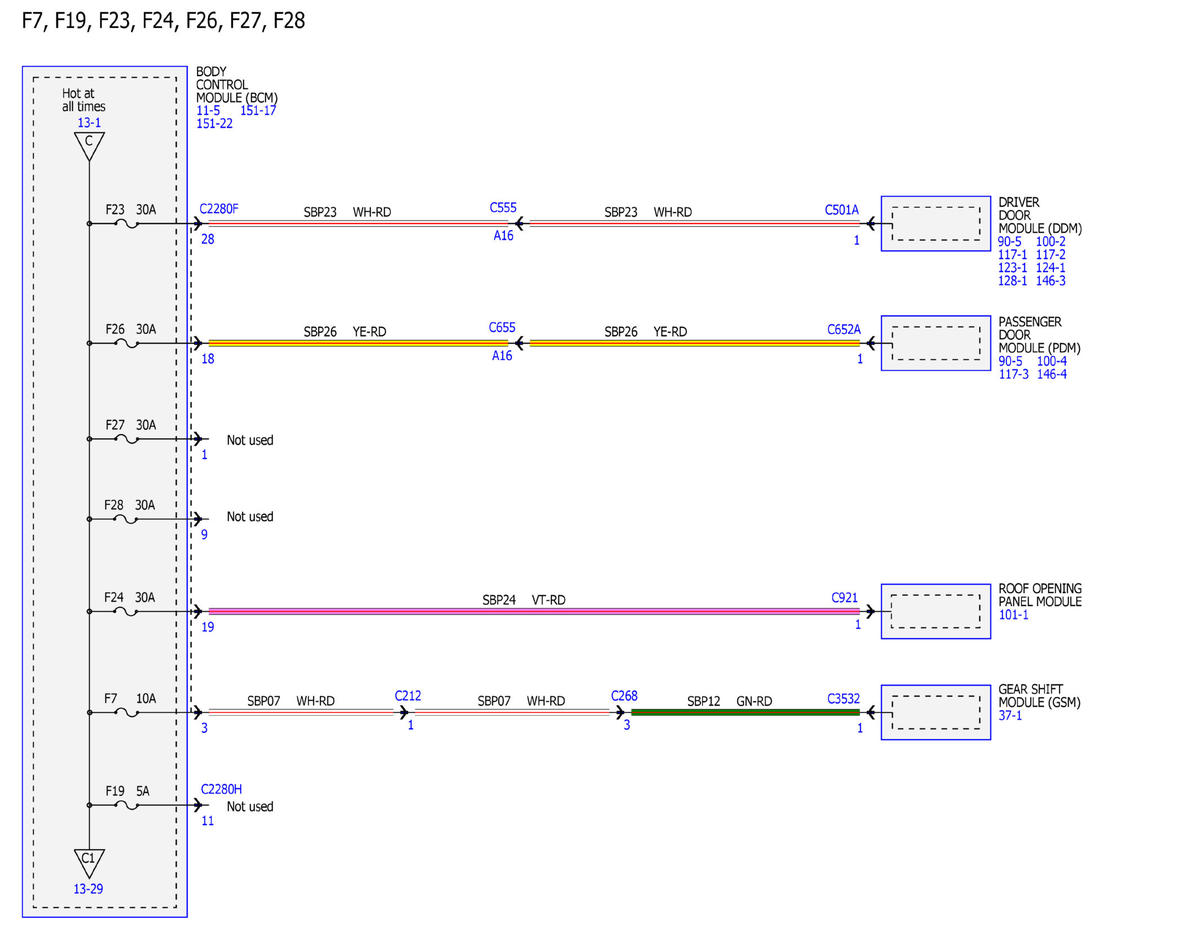

Fig 21: Power Distribution Wiring Diagram (21 Of 48)

GFDWR139234

Courtesy of FORD MOTOR COMPANY

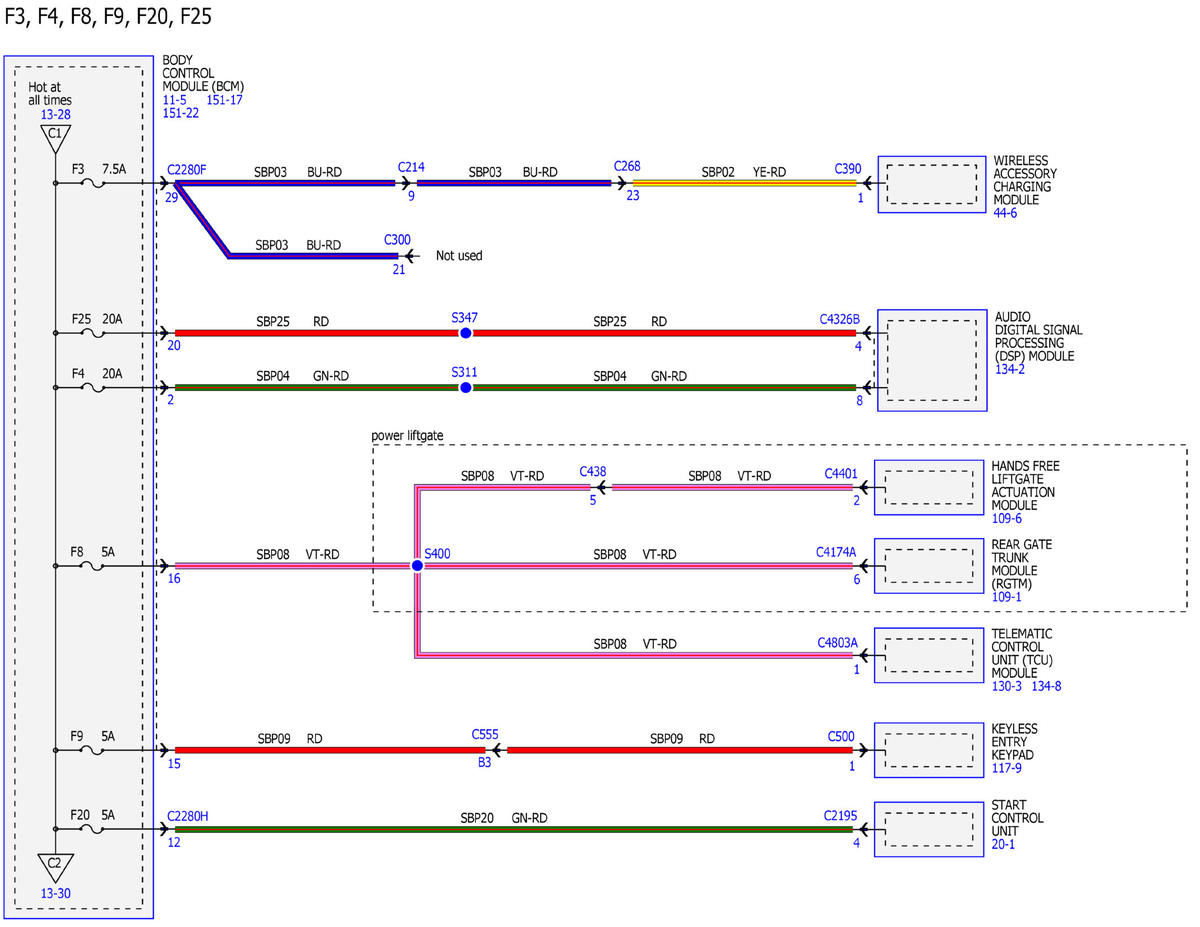

Fig 22: Power Distribution Wiring Diagram (22 Of 48)

GFDWR139235

Courtesy of FORD MOTOR COMPANY

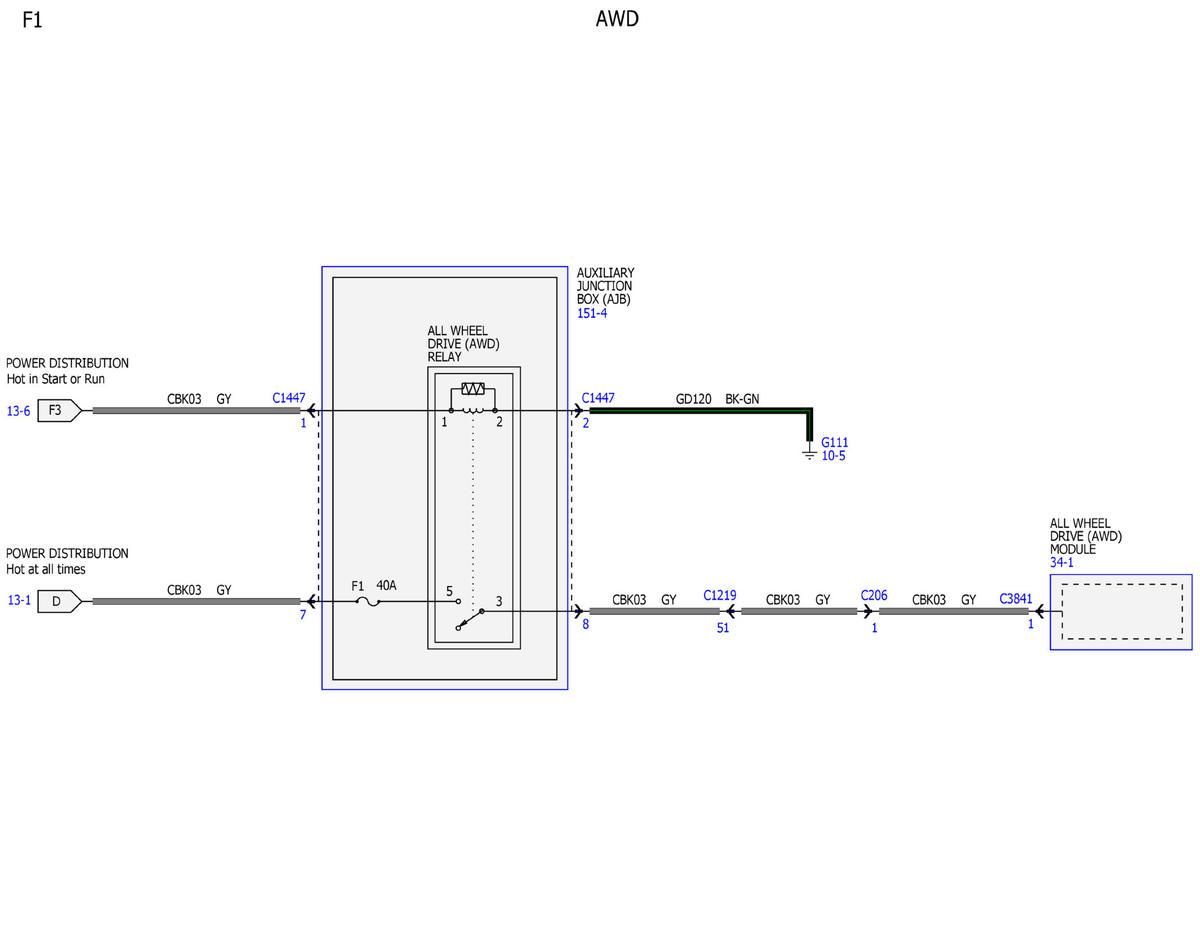

Fig 23: Power Distribution Wiring Diagram (23 Of 48)

GFDWR139236

Courtesy of FORD MOTOR COMPANY

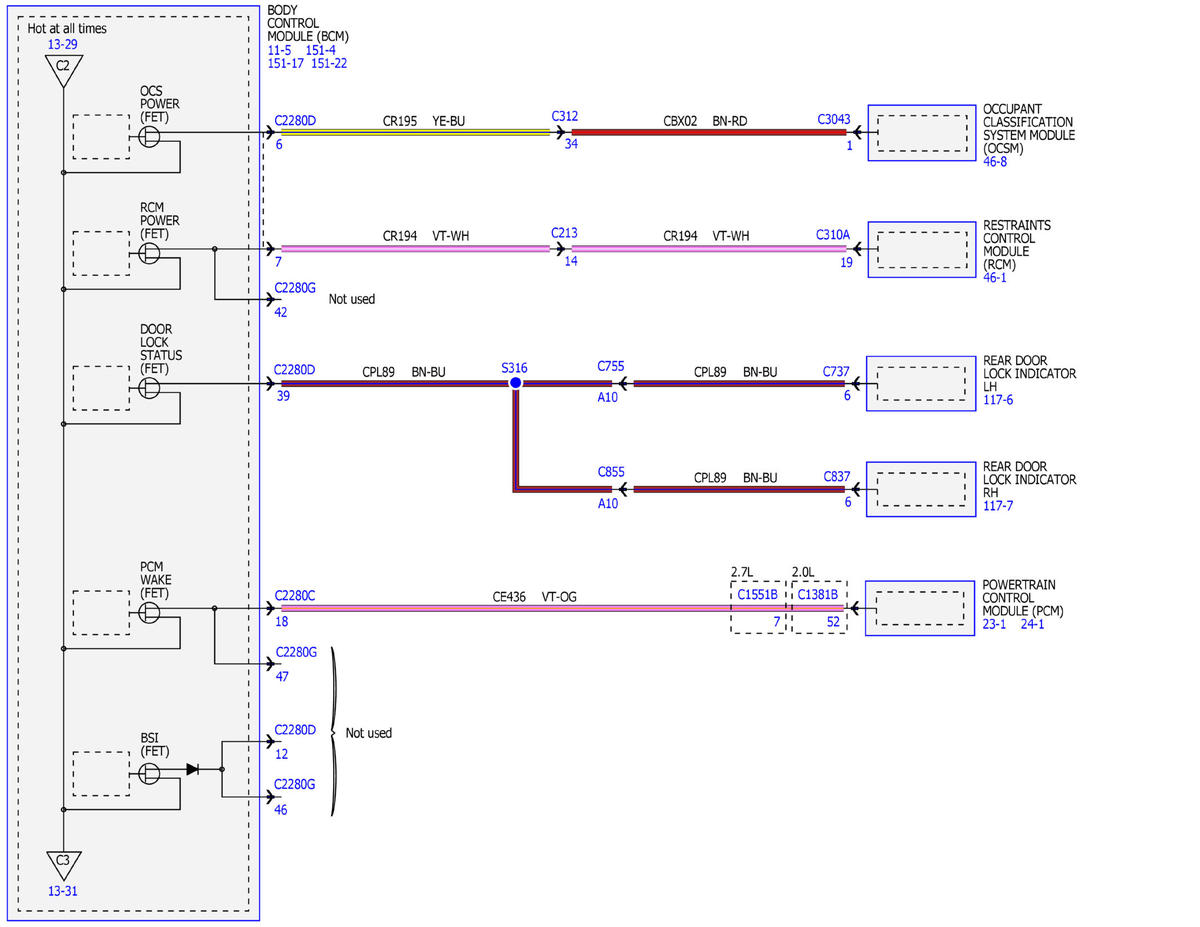

Fig 24: Power Distribution Wiring Diagram (24 Of 48)

GFDWR139237

Courtesy of FORD MOTOR COMPANY

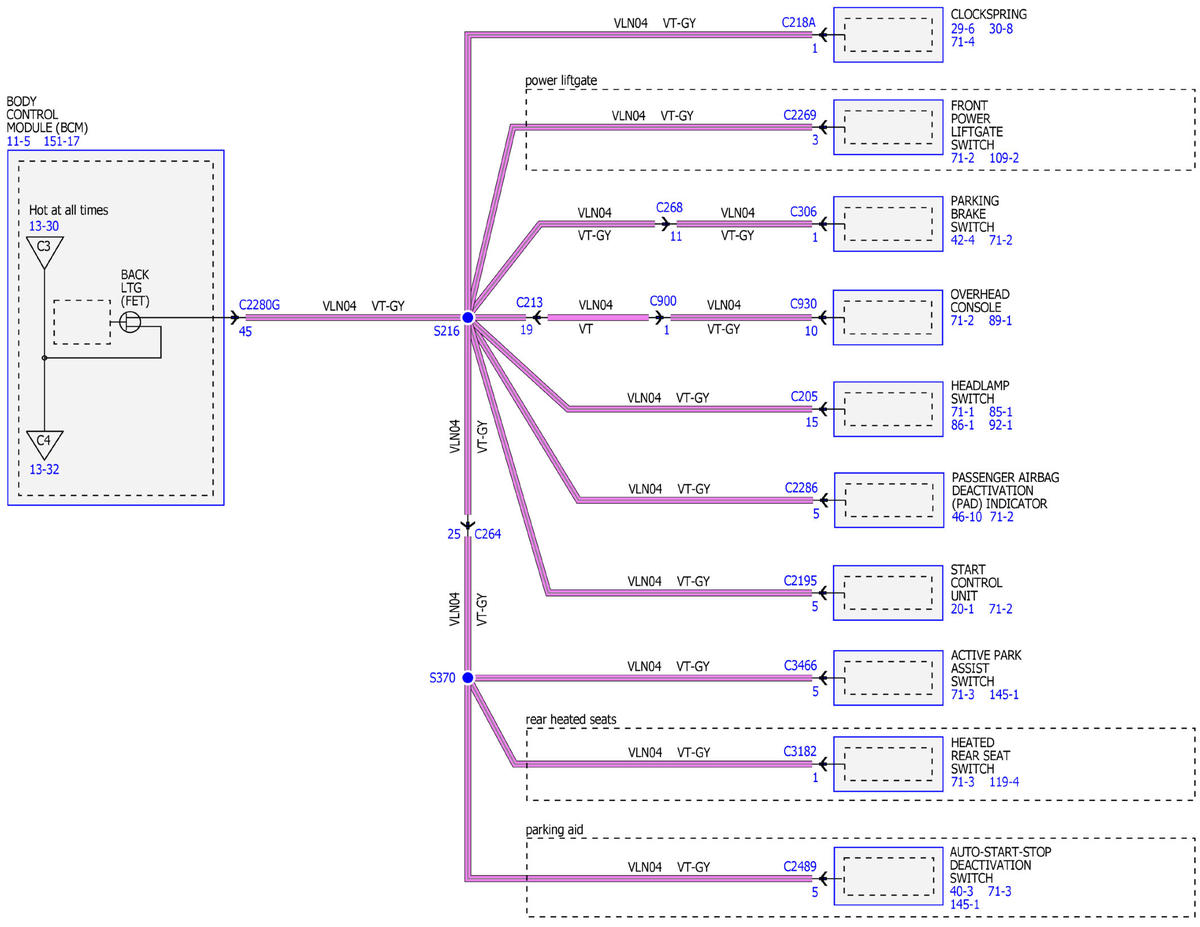

Fig 25: Power Distribution Wiring Diagram (25 Of 48)

GFDWR139238

Courtesy of FORD MOTOR COMPANY

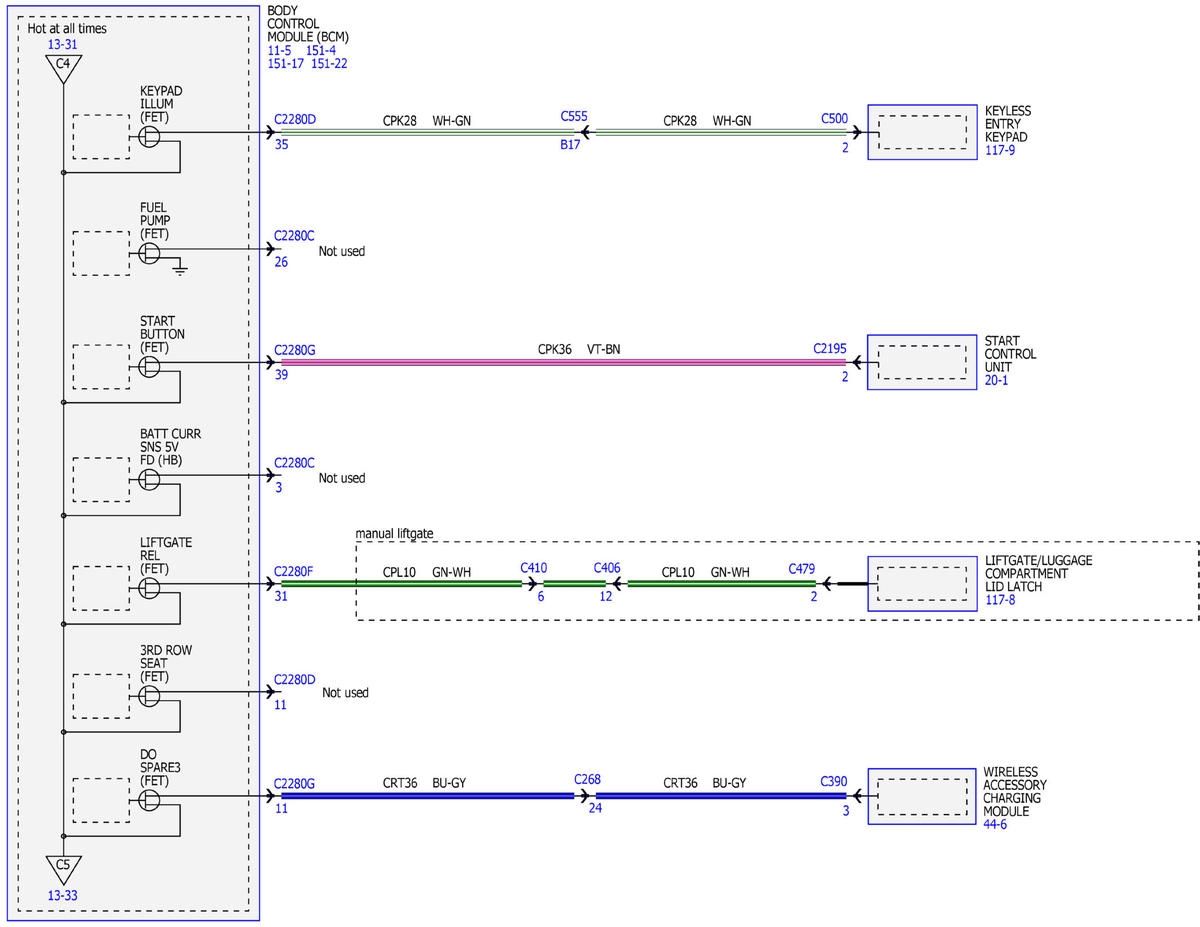

Fig 26: Power Distribution Wiring Diagram (26 Of 48)

GFDWR139239

Courtesy of FORD MOTOR COMPANY

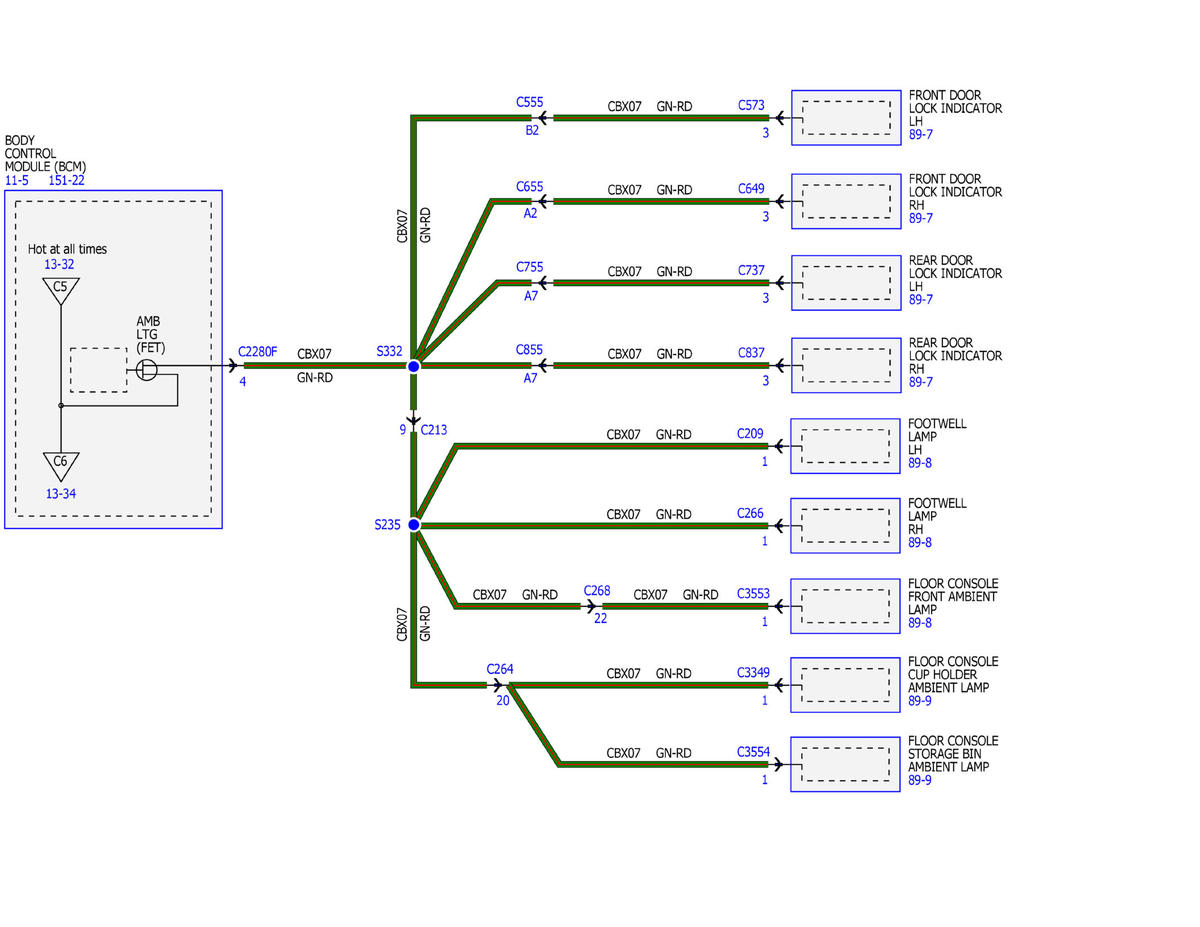

Fig 27: Power Distribution Wiring Diagram (27 Of 48)

GFDWR139240

Courtesy of FORD MOTOR COMPANY

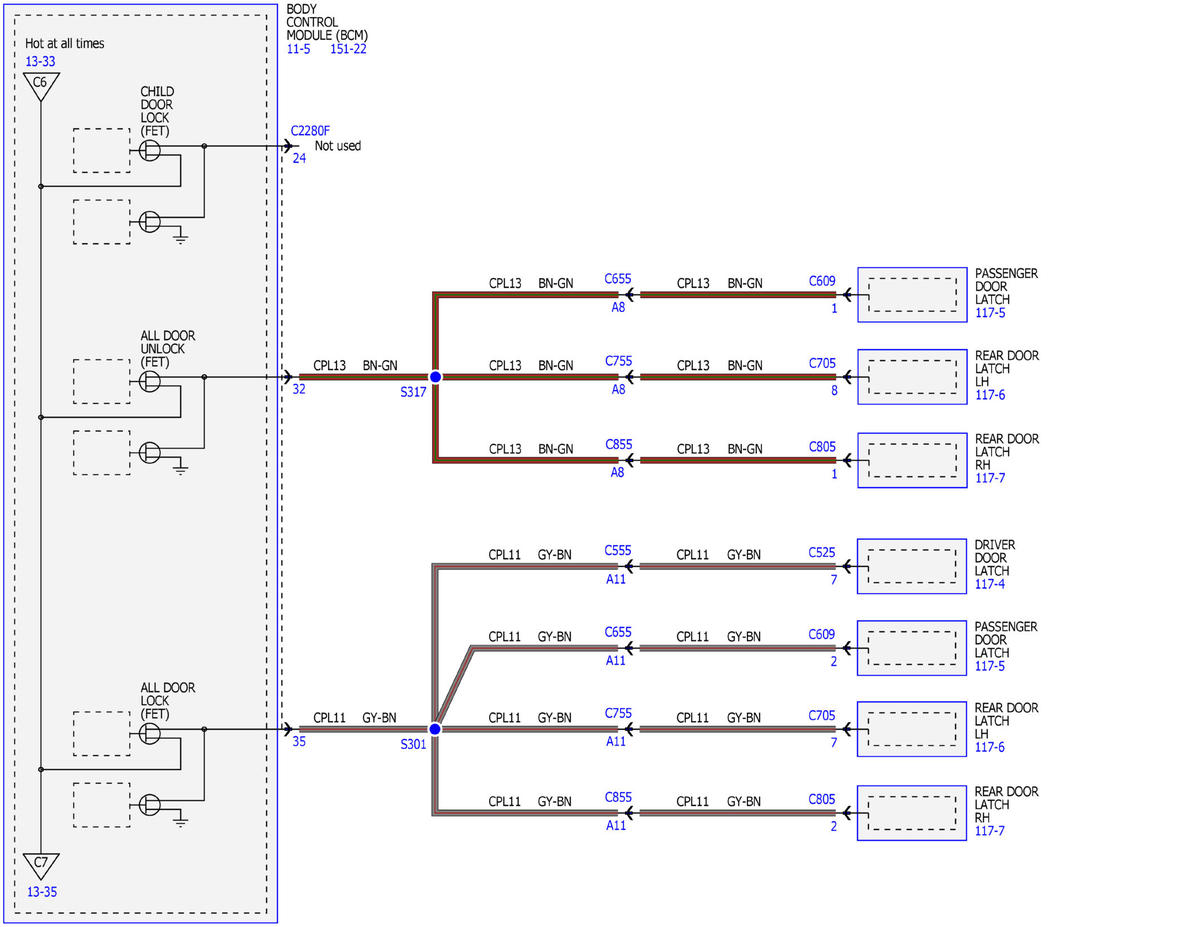

Fig 28: Power Distribution Wiring Diagram (28 Of 48)

GFDWR139241

Courtesy of FORD MOTOR COMPANY

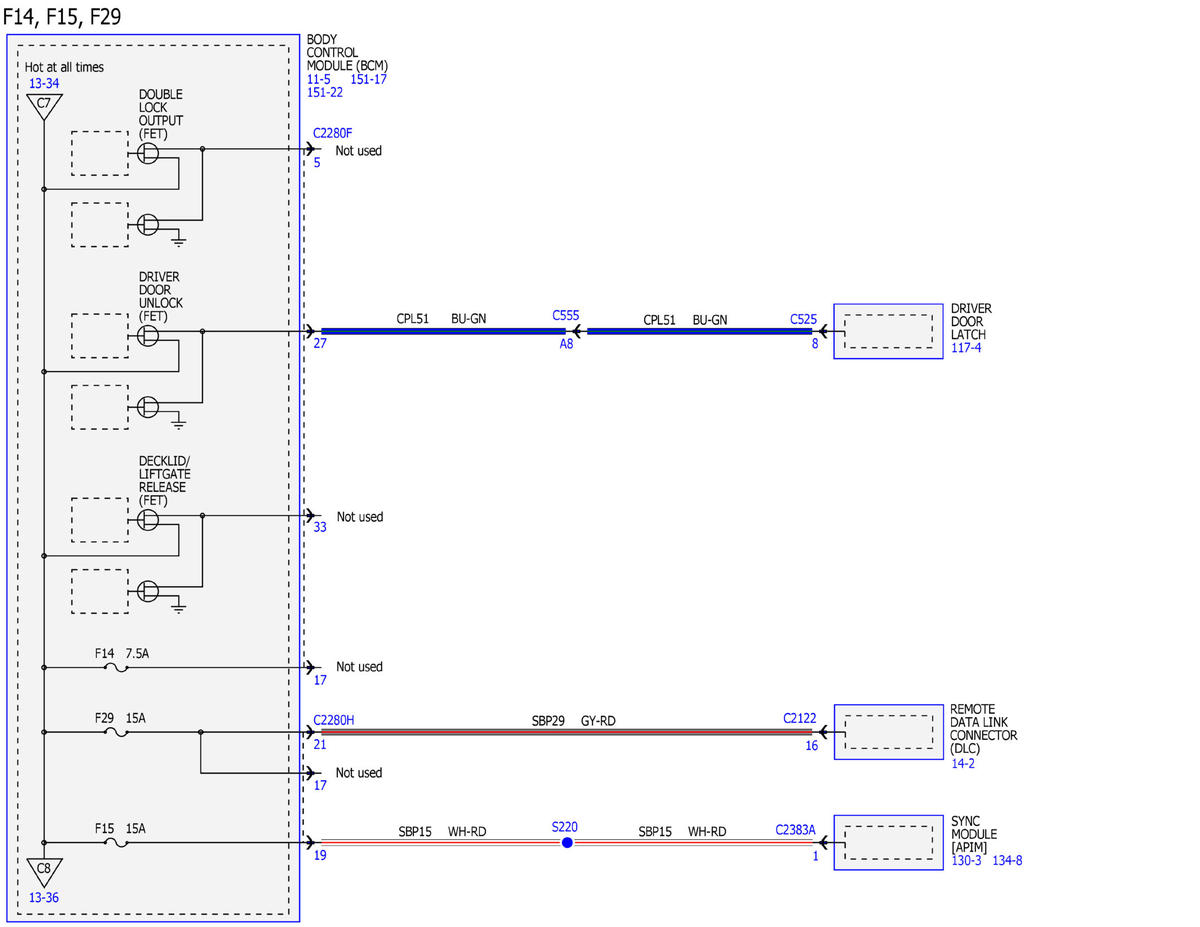

Fig 29: Power Distribution Wiring Diagram (29 Of 48)

GFDWR139242

Courtesy of FORD MOTOR COMPANY

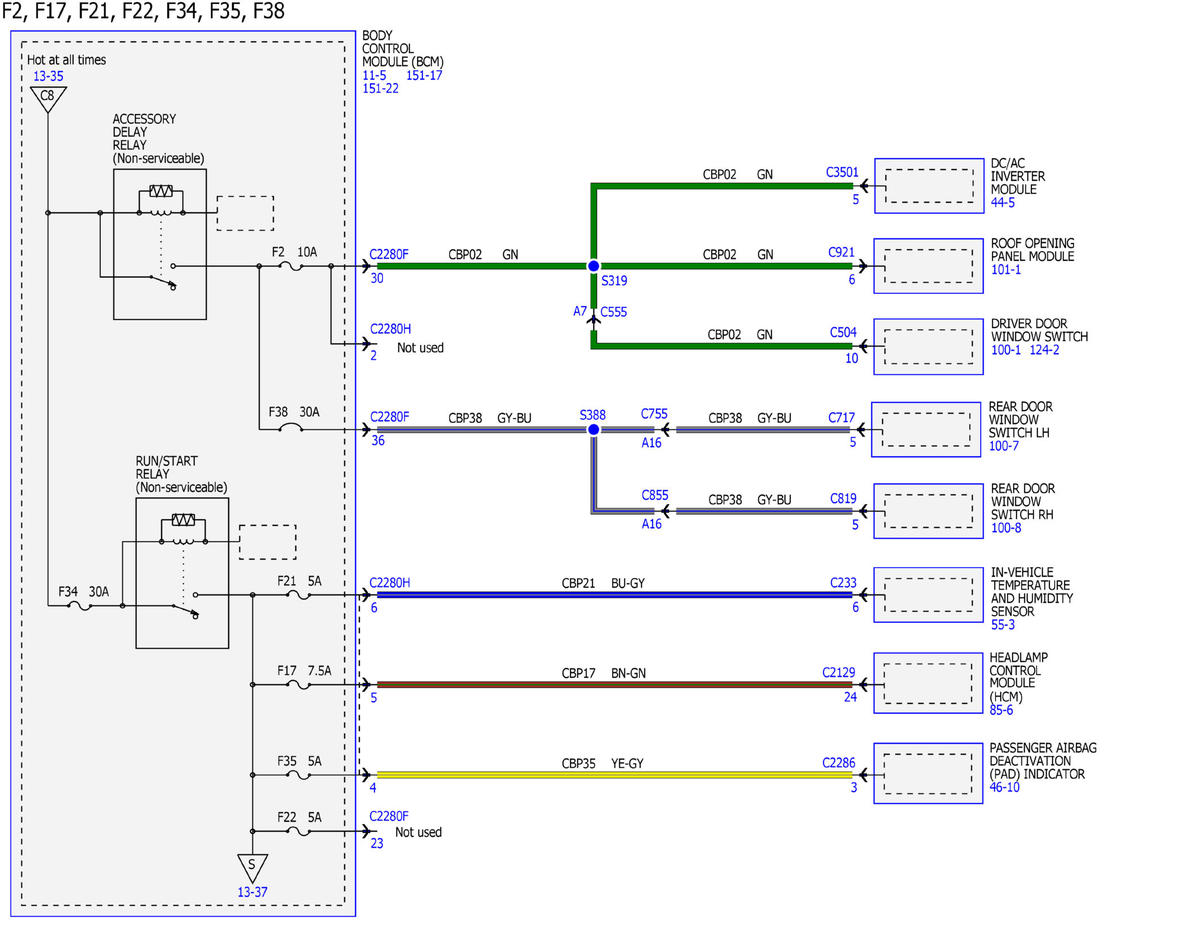

Fig 30: Power Distribution Wiring Diagram (30 Of 48)

GFDWR139243

Courtesy of FORD MOTOR COMPANY

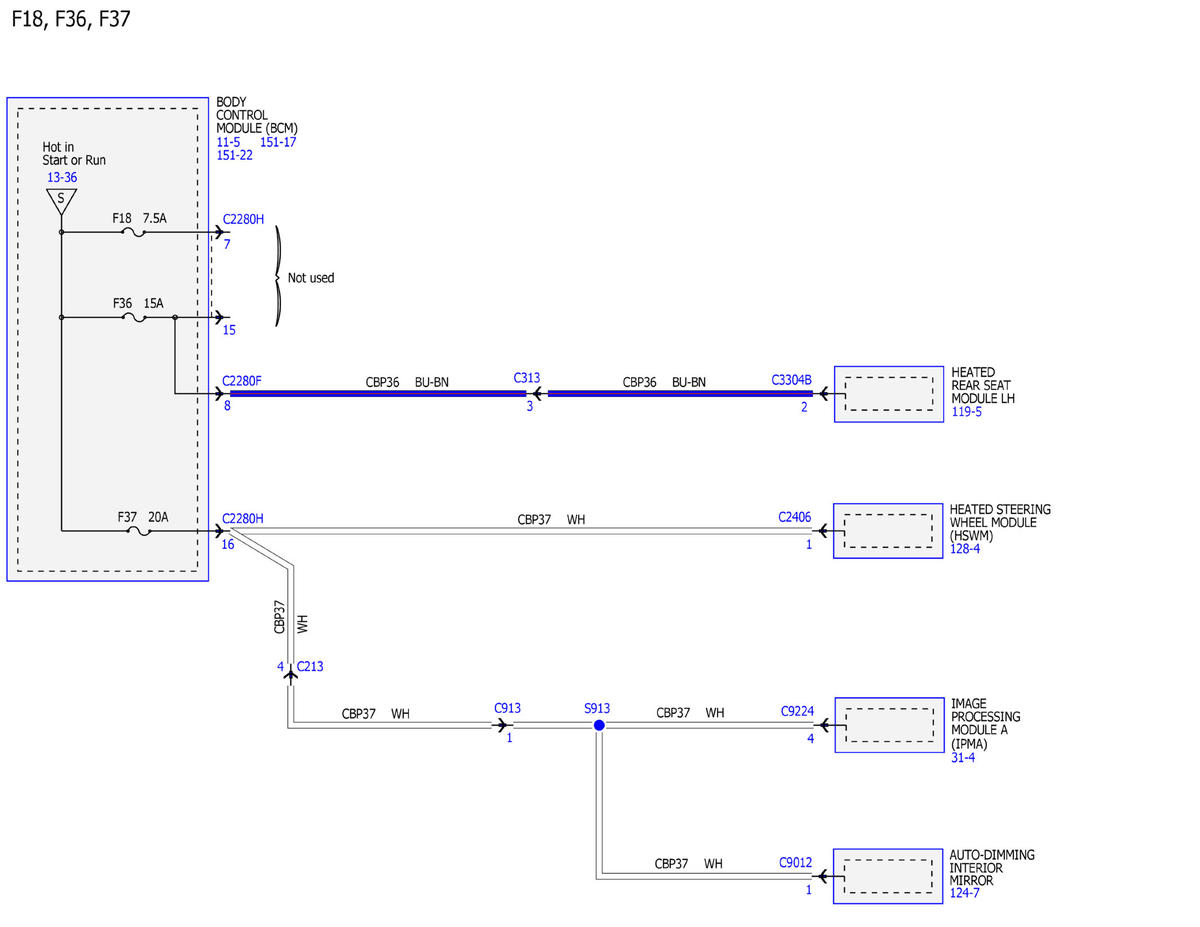

Fig 31: Power Distribution Wiring Diagram (31 Of 48)

GFDWR139244

Courtesy of FORD MOTOR COMPANY

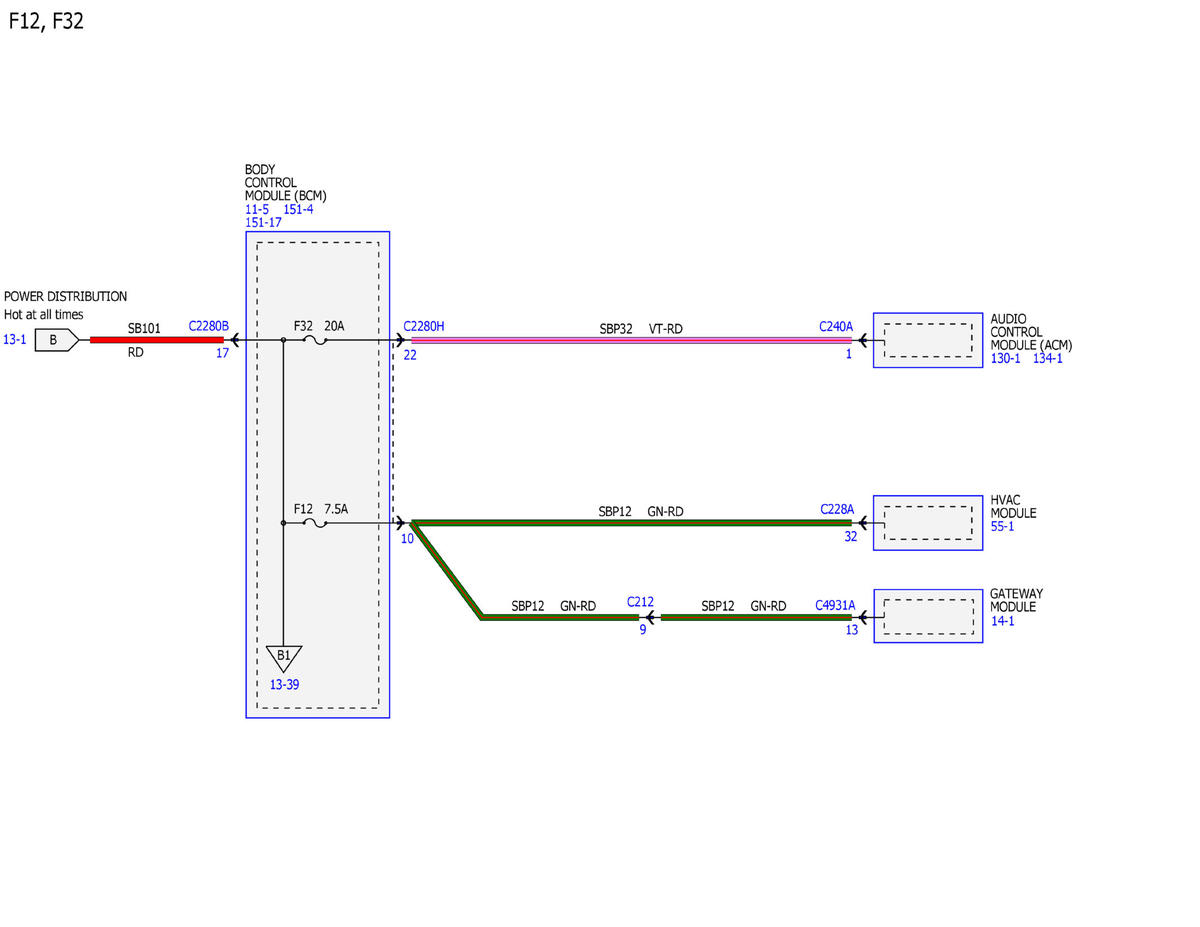

Fig 32: Power Distribution Wiring Diagram (32 Of 48)

GFDWR139245

Courtesy of FORD MOTOR COMPANY

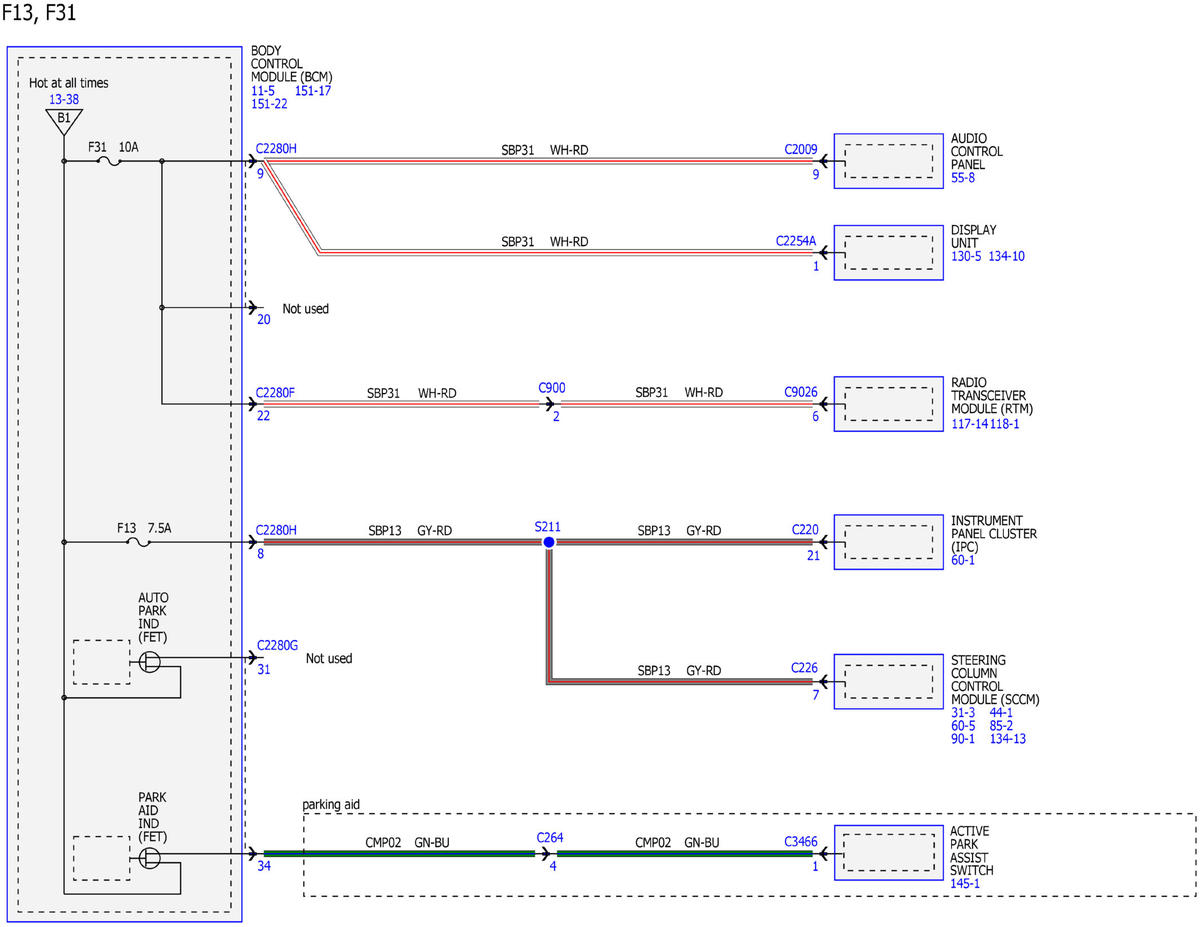

Fig 33: Power Distribution Wiring Diagram (33 Of 48)

GFDWR139246

Courtesy of FORD MOTOR COMPANY

Fig 34: Power Distribution Wiring Diagram (34 Of 48)

GFDWR139247

Courtesy of FORD MOTOR COMPANY

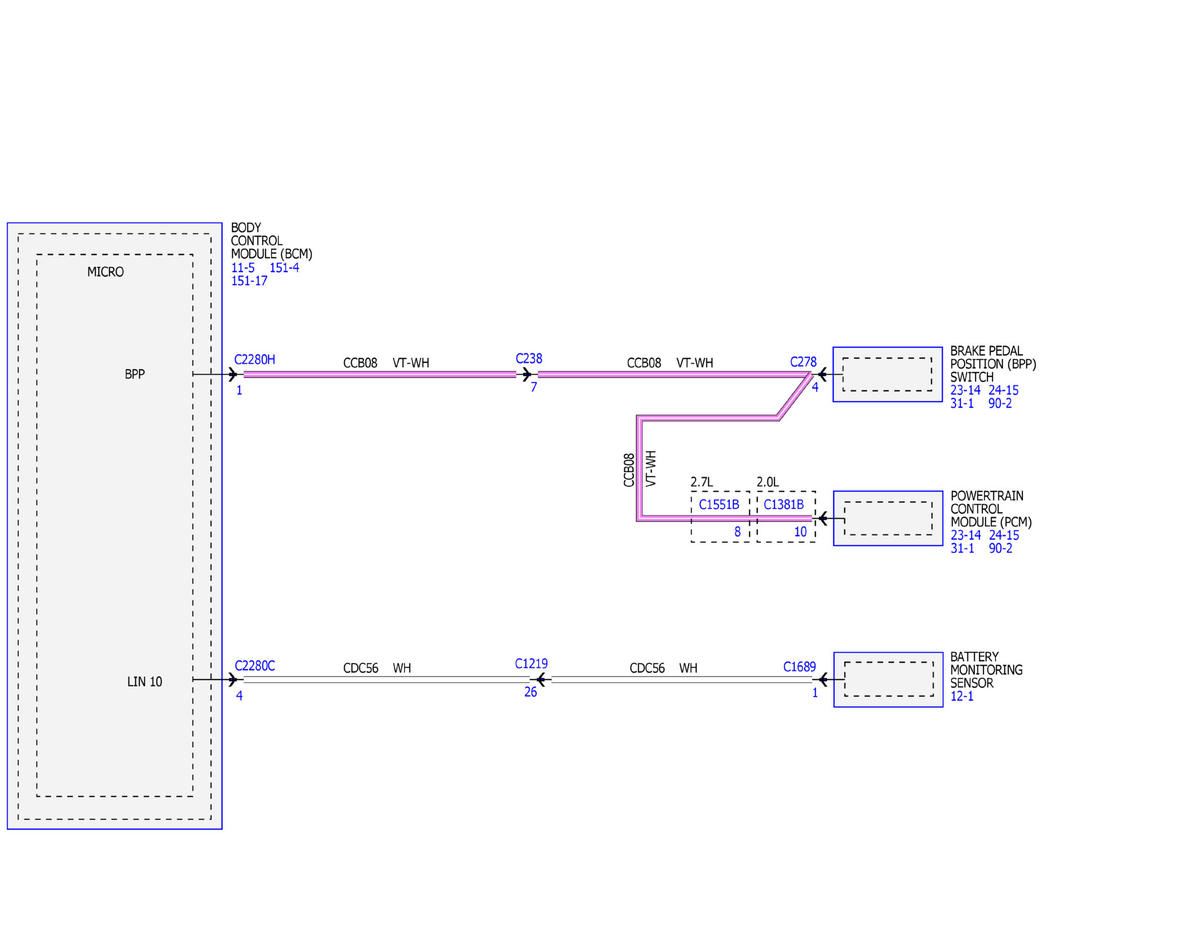

Fig 35: Power Distribution Wiring Diagram (35 Of 48)

GFDWR139248

Courtesy of FORD MOTOR COMPANY

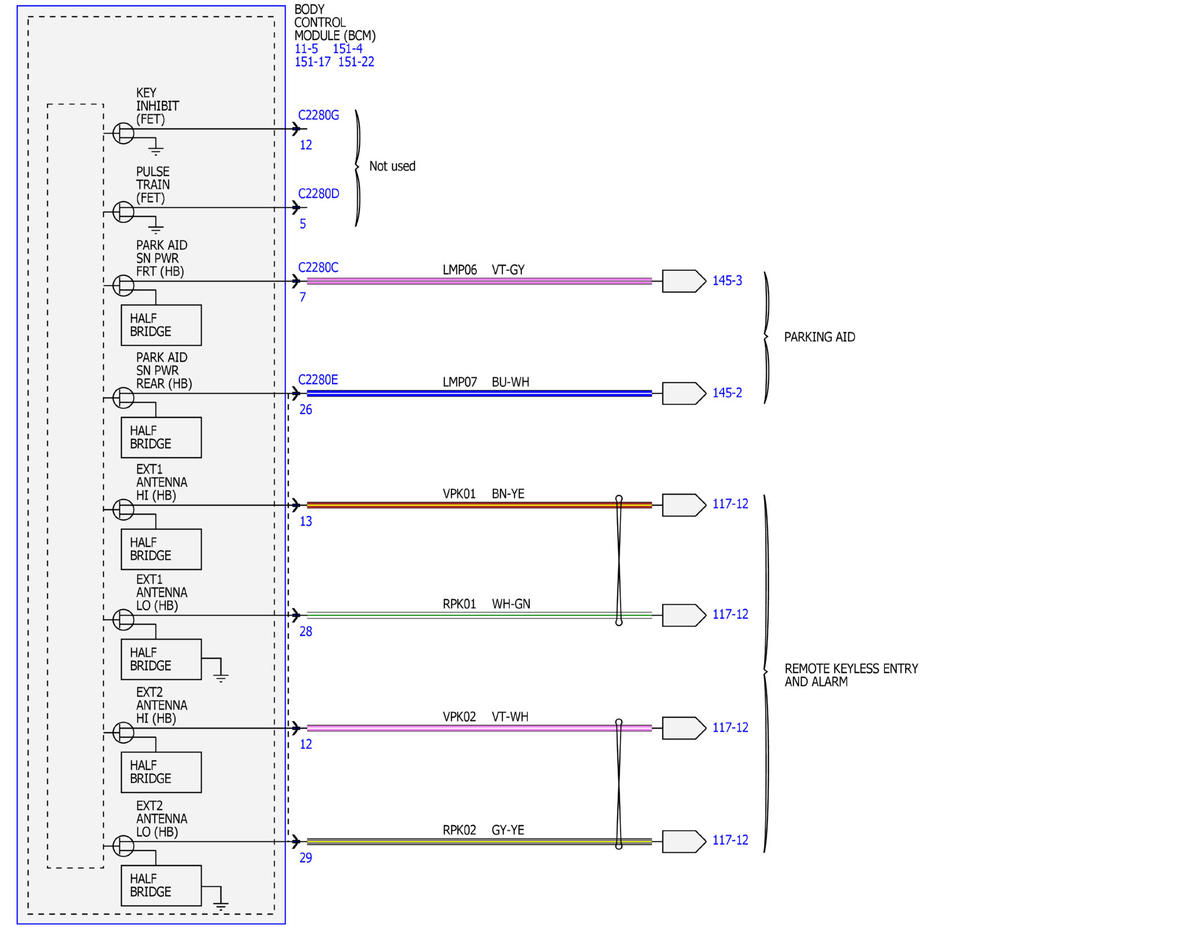

Fig 36: Power Distribution Wiring Diagram (36 Of 48)

GFDWR139249

Courtesy of FORD MOTOR COMPANY

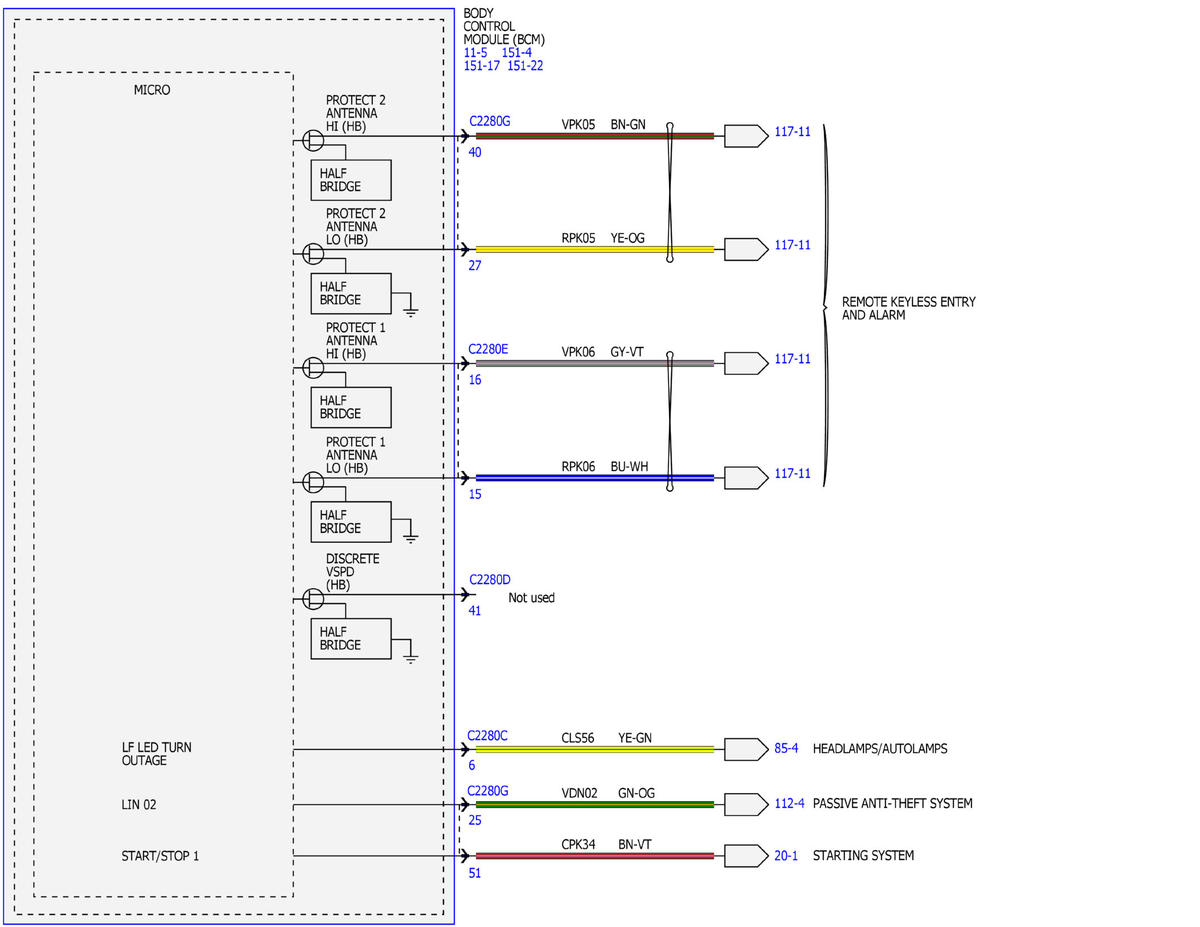

Fig 37: Power Distribution Wiring Diagram (37 Of 48)

GFDWR139250

Courtesy of FORD MOTOR COMPANY

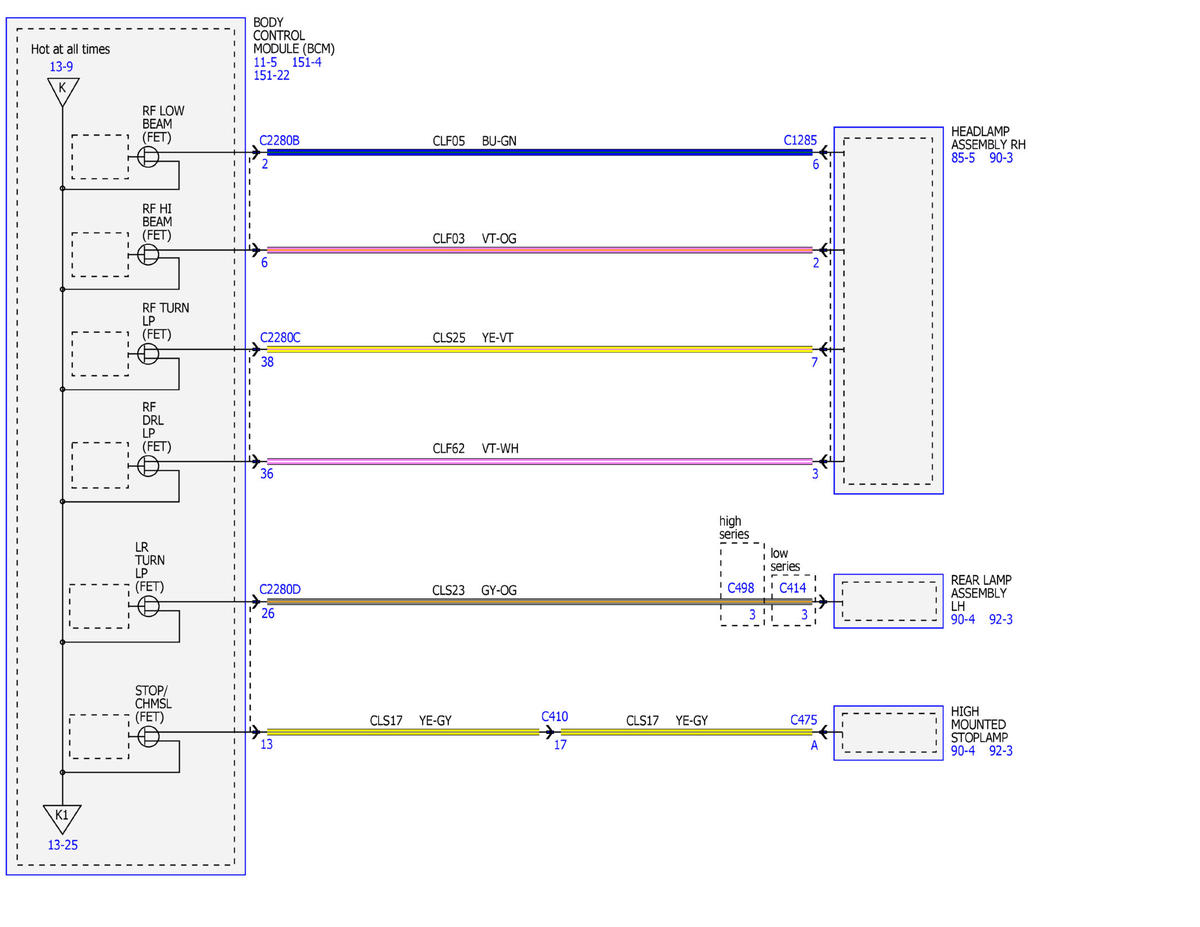

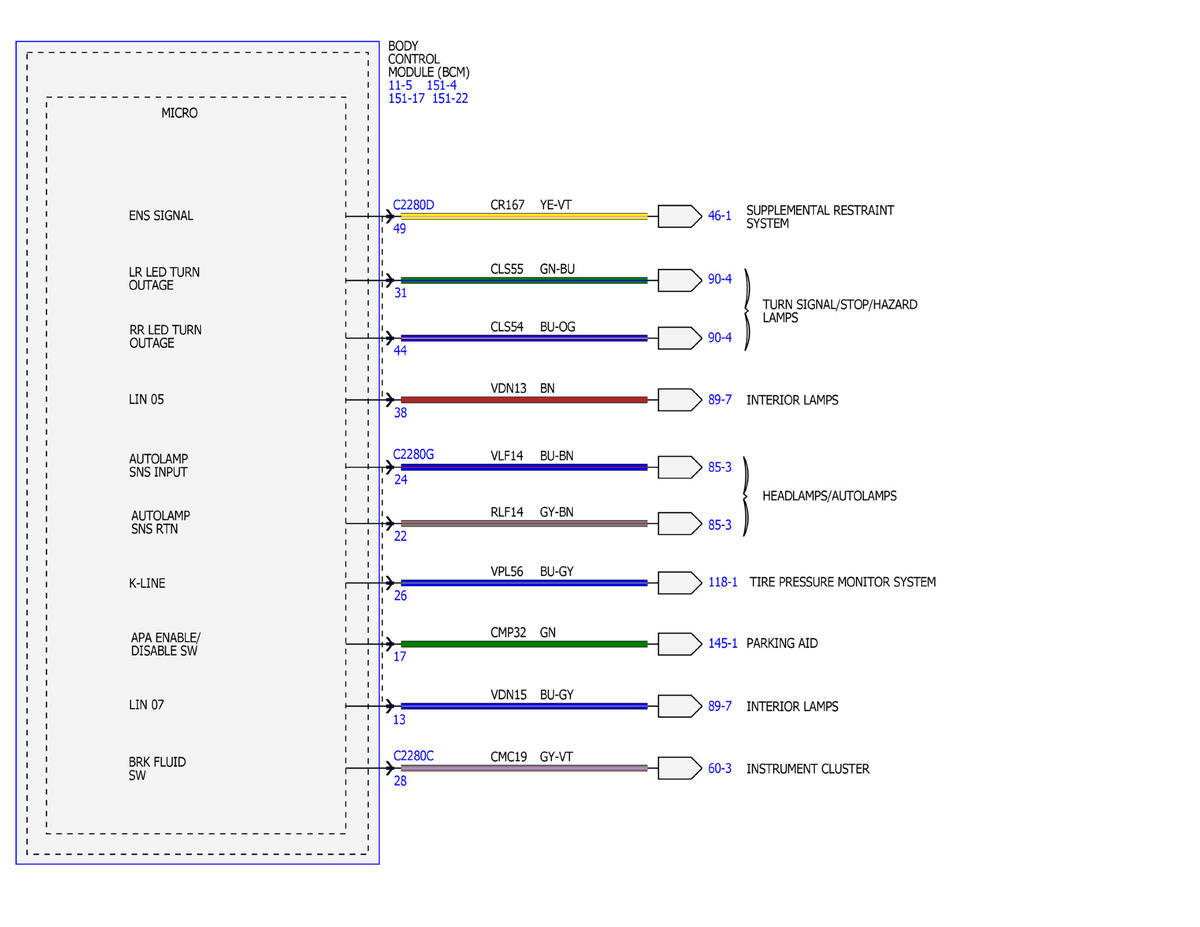

Fig 38: Power Distribution Wiring Diagram (38 Of 48)

GFDWR139251

Courtesy of FORD MOTOR COMPANY

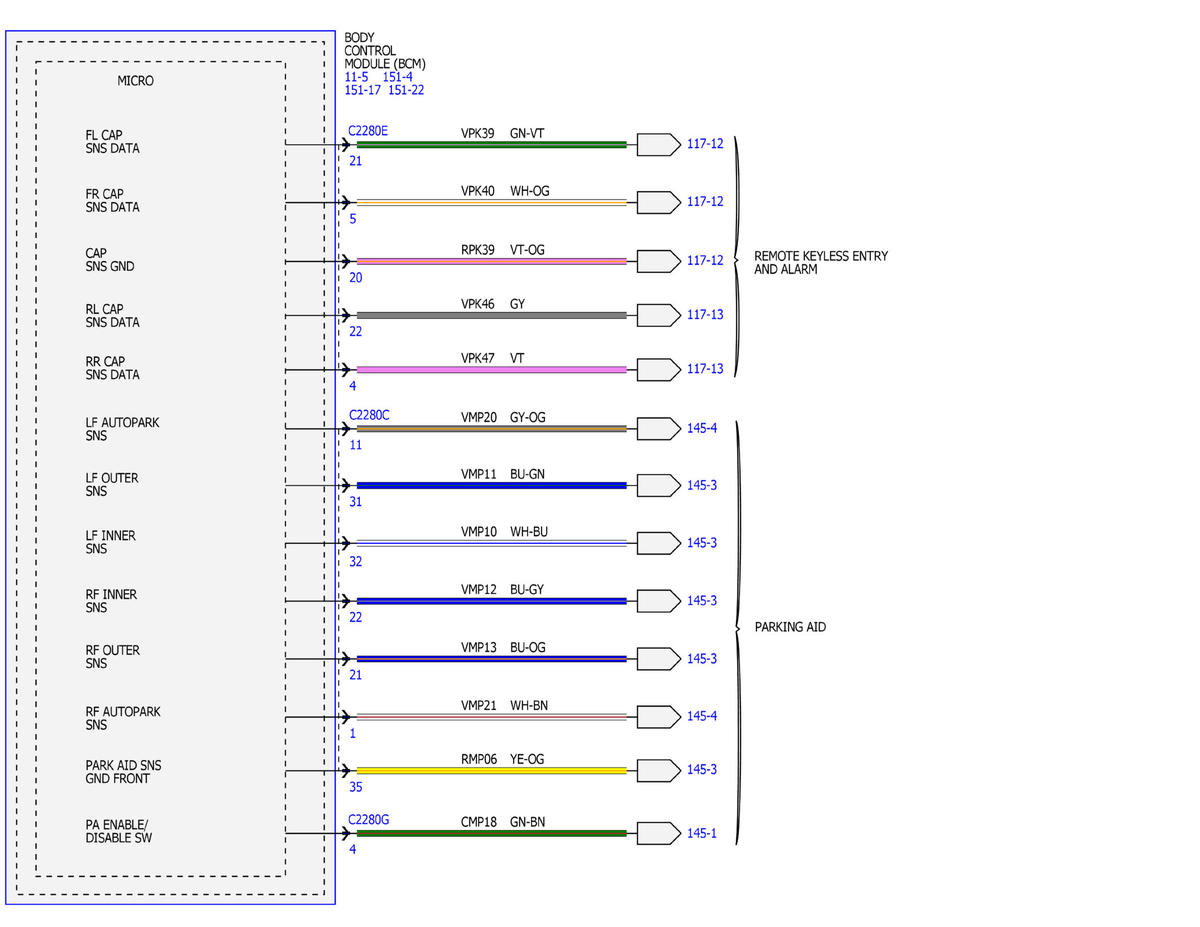

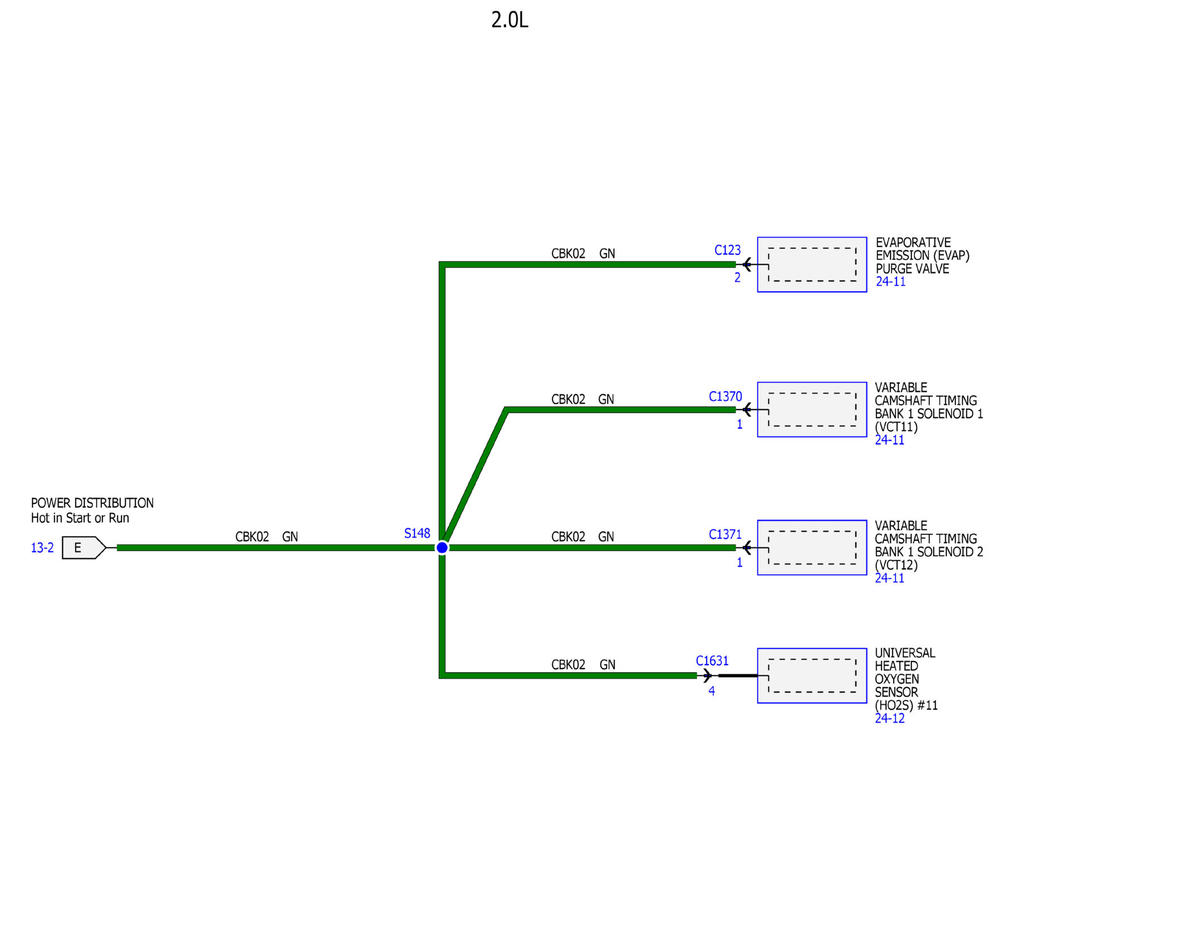

Fig 39: Power Distribution Wiring Diagram (39 Of 48)

GFDWR139252

Courtesy of FORD MOTOR COMPANY

Fig 40: Power Distribution Wiring Diagram (40 Of 48)

GFDWR139253

Courtesy of FORD MOTOR COMPANY

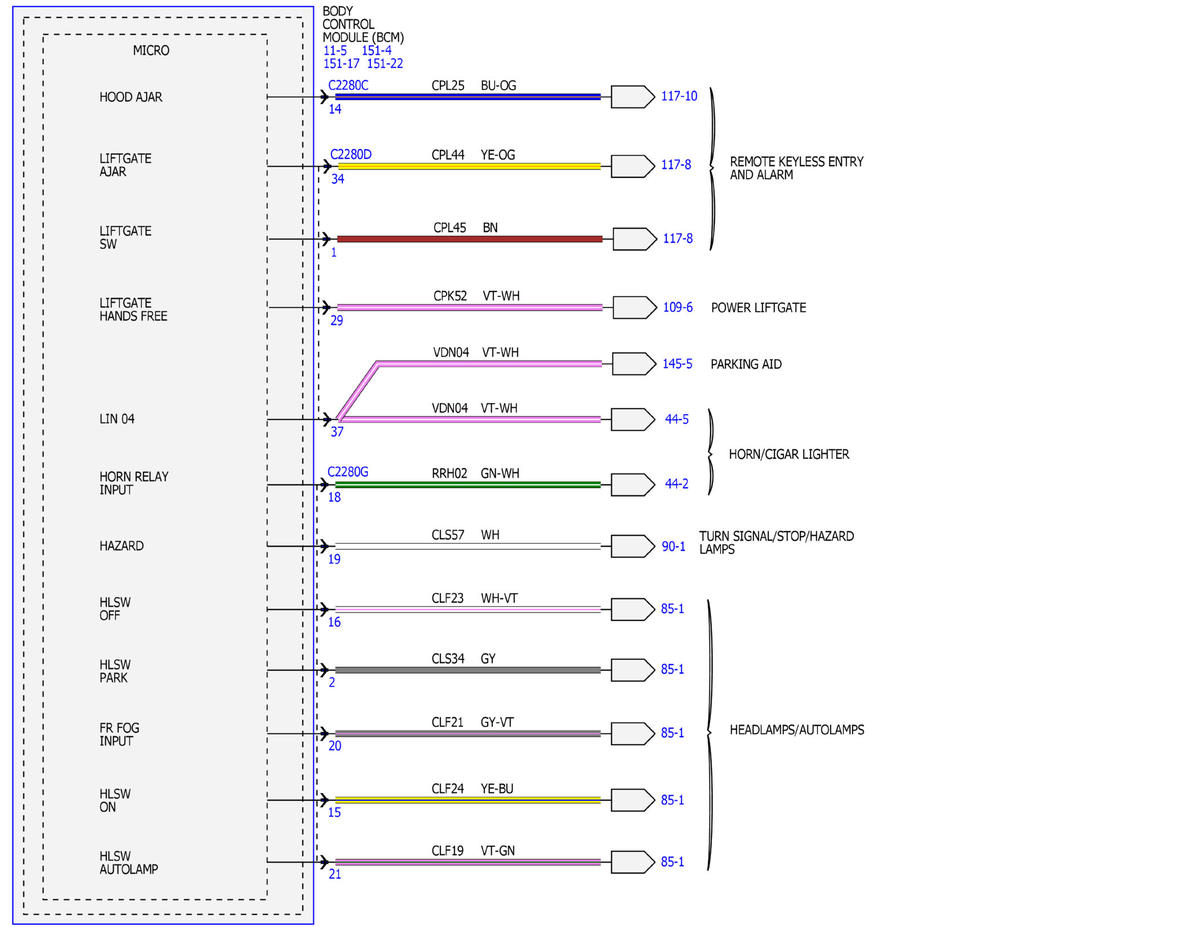

Fig 41: Power Distribution Wiring Diagram (41 Of 48)

GFDWR139254

Courtesy of FORD MOTOR COMPANY

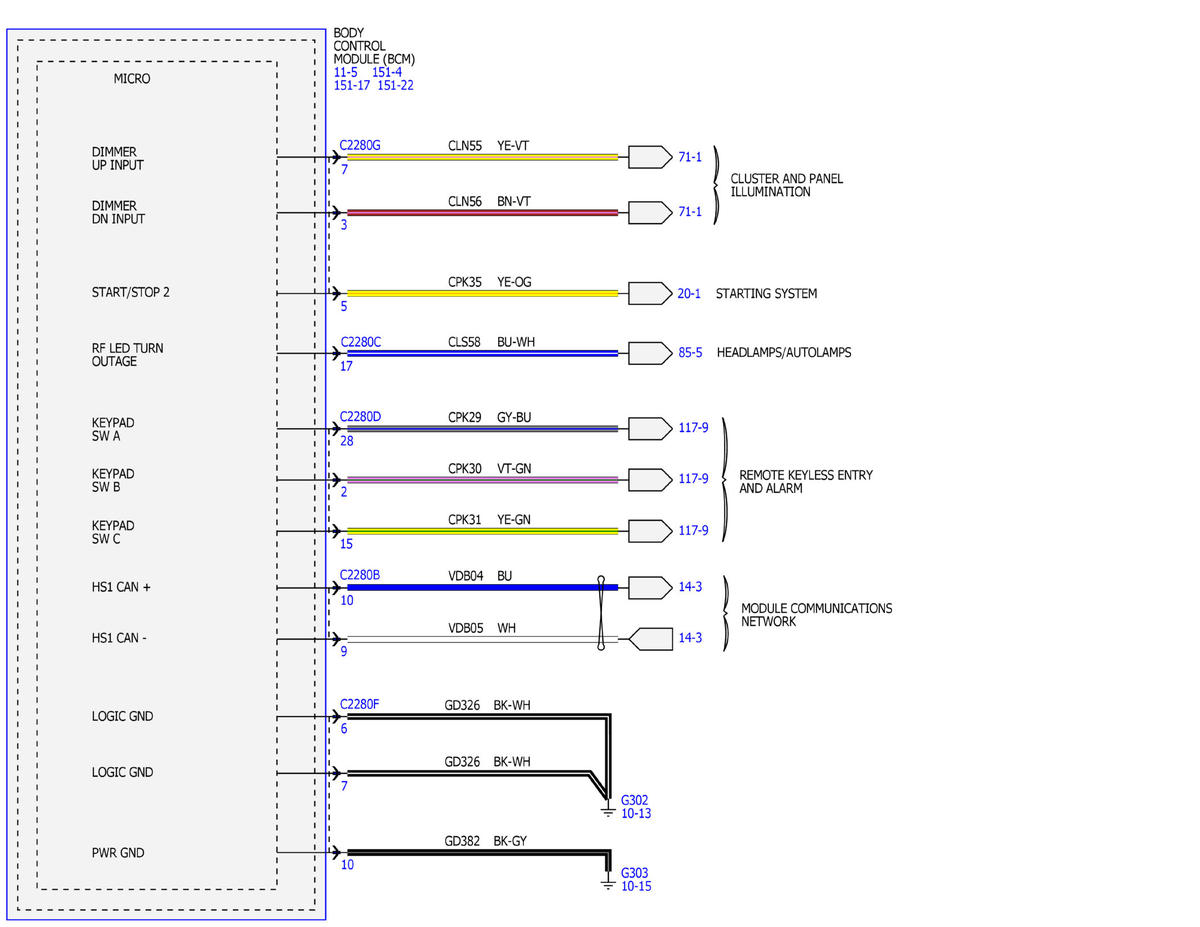

Fig 42: Power Distribution Wiring Diagram (42 Of 48)

GFDWR139255

Courtesy of FORD MOTOR COMPANY

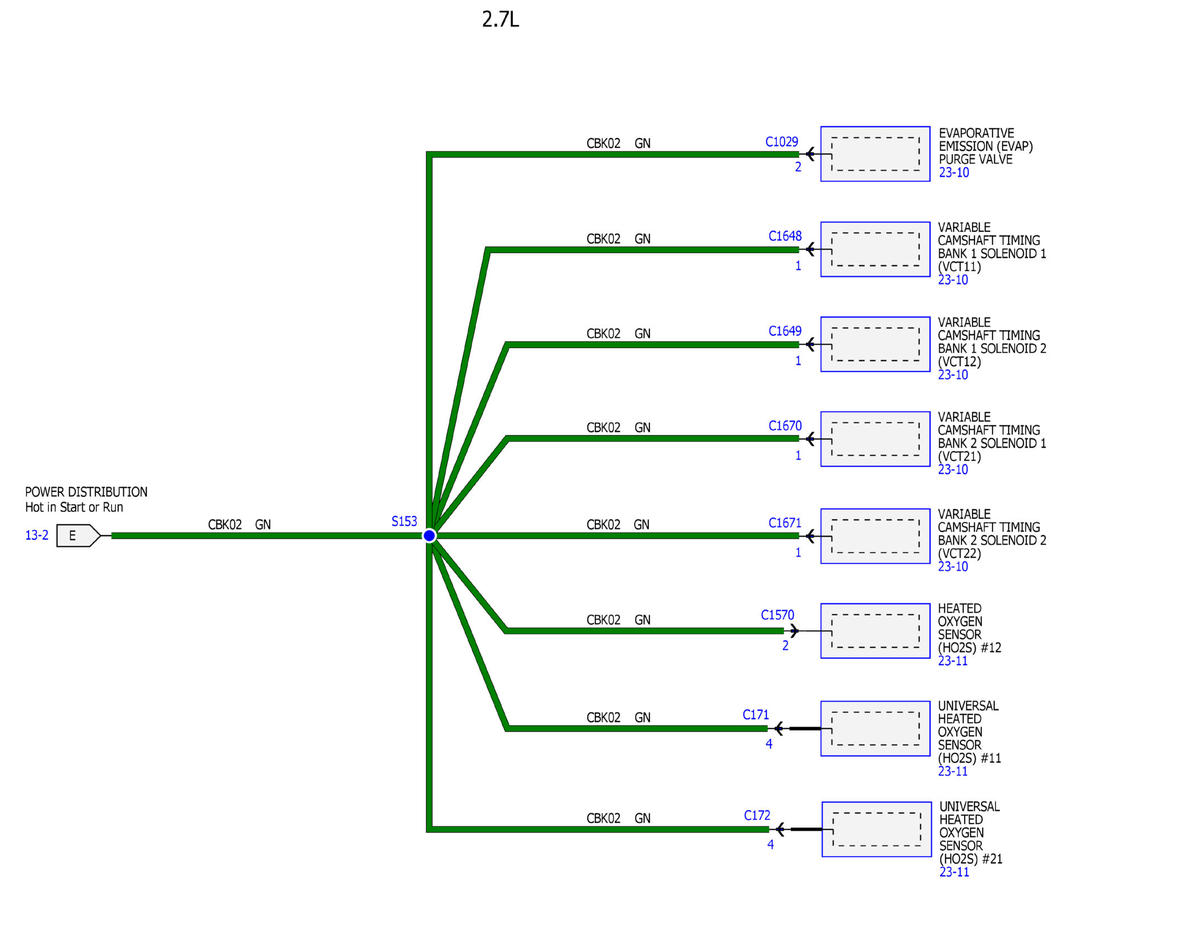

Fig 43: Power Distribution Wiring Diagram (43 Of 48)

GFDWR139256

Courtesy of FORD MOTOR COMPANY

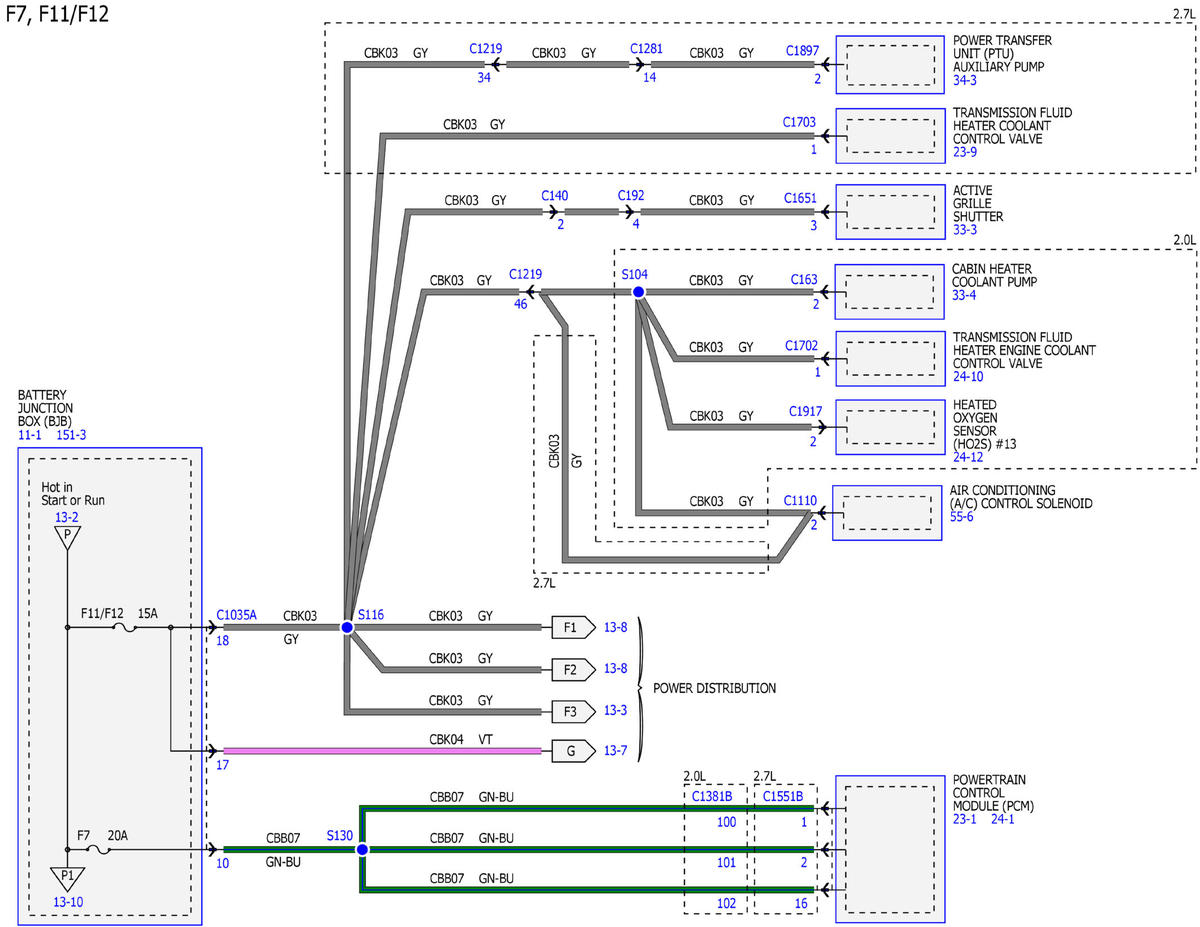

Fig 44: Power Distribution Wiring Diagram (44 Of 48)

GFDWR139257

Courtesy of FORD MOTOR COMPANY

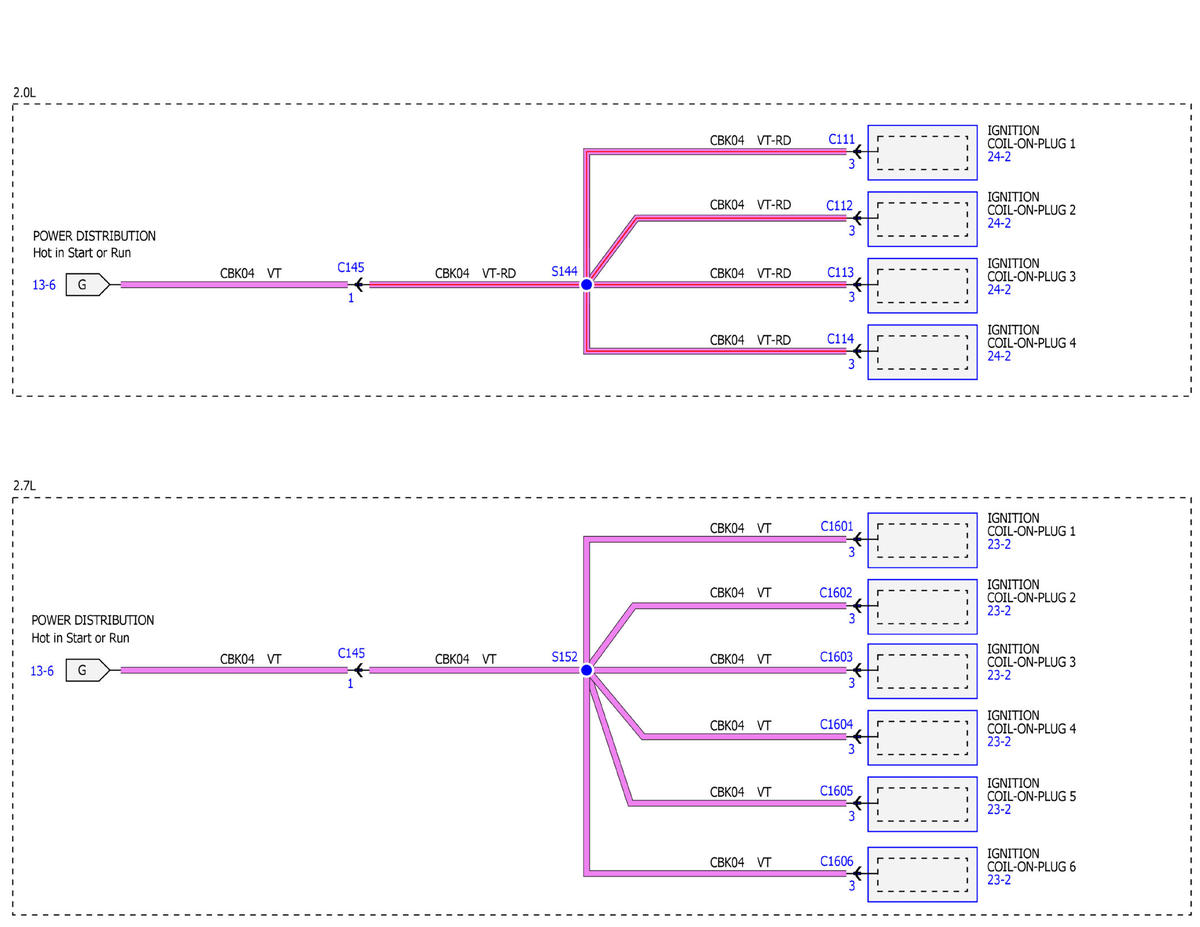

Fig 45: Power Distribution Wiring Diagram (45 Of 48)

GFDWR139258

Courtesy of FORD MOTOR COMPANY

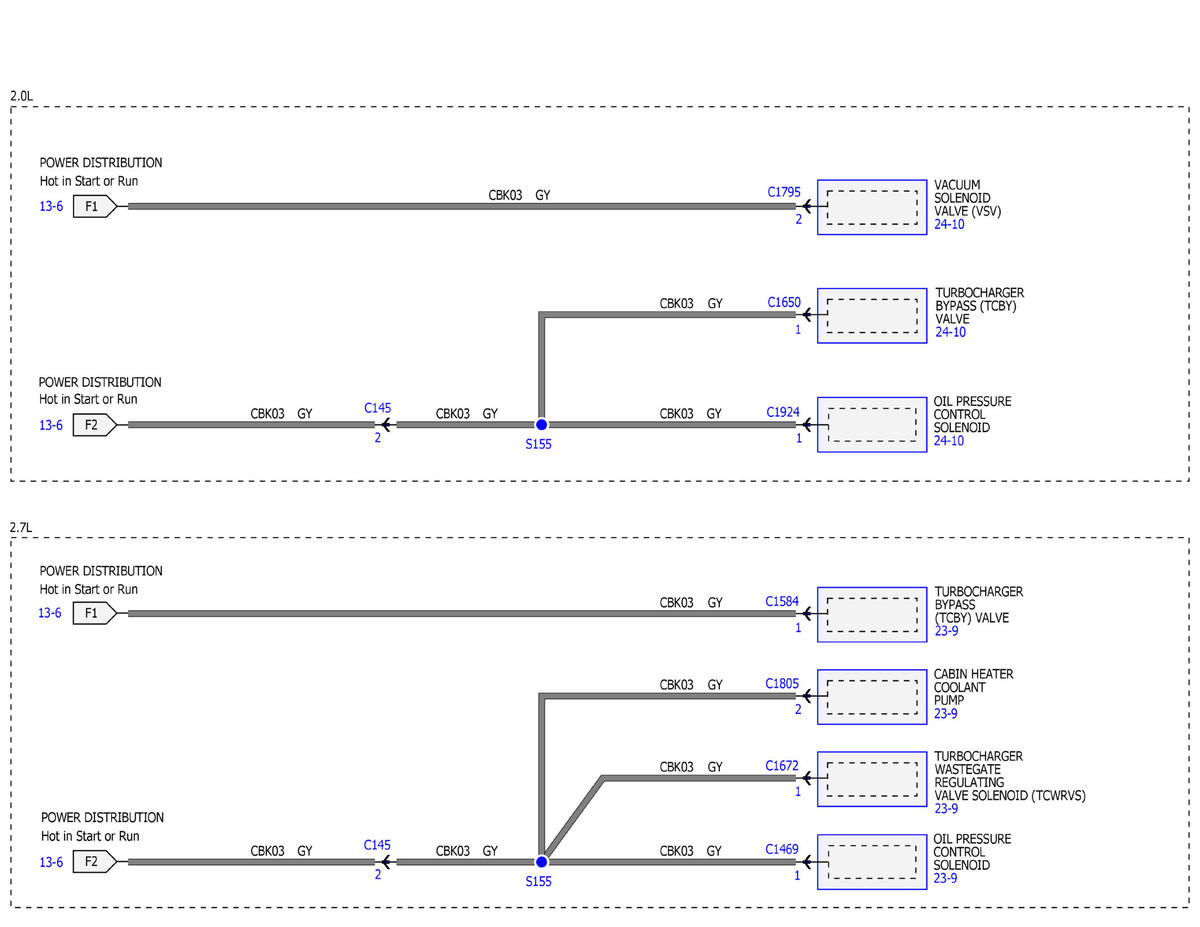

Fig 46: Power Distribution Wiring Diagram (46 Of 48)

GFDWR139259

Courtesy of FORD MOTOR COMPANY

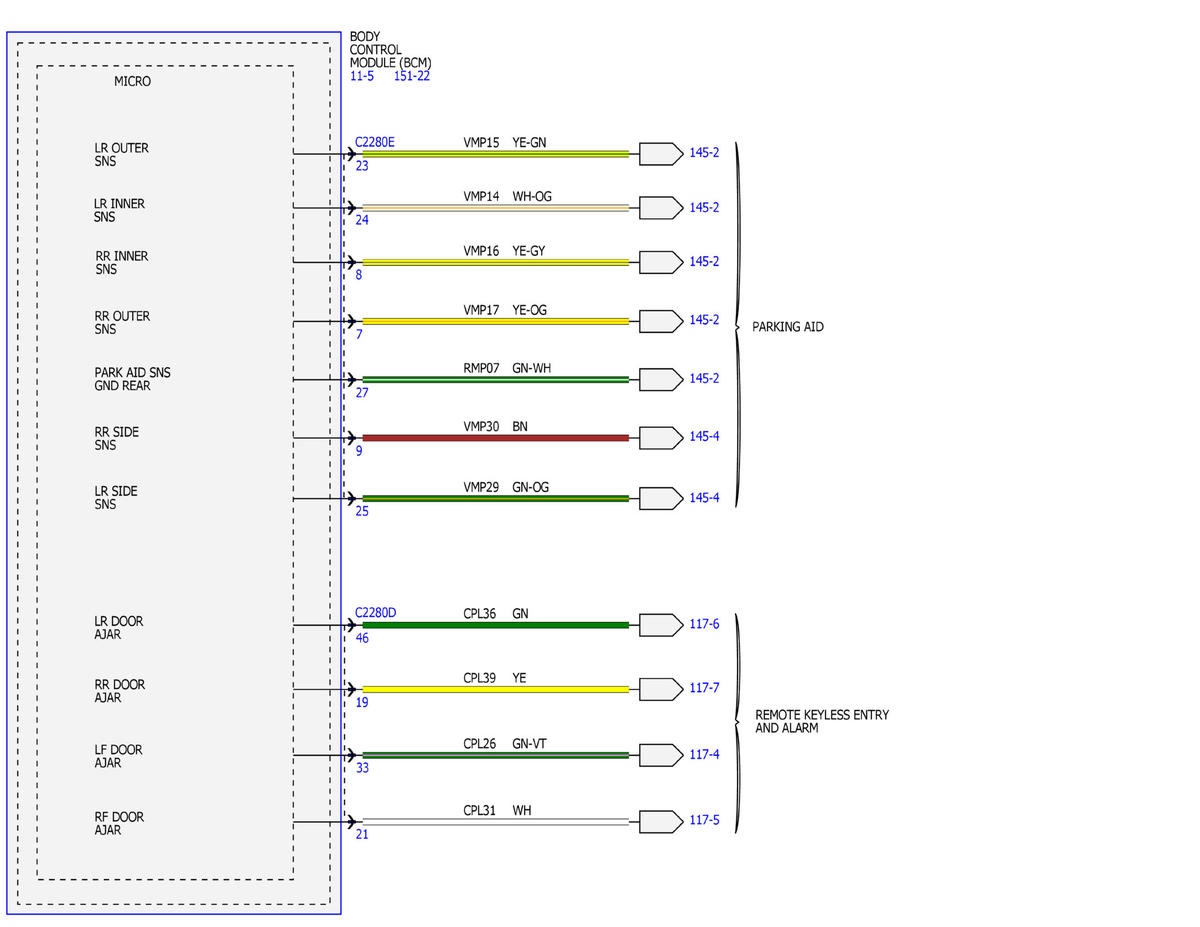

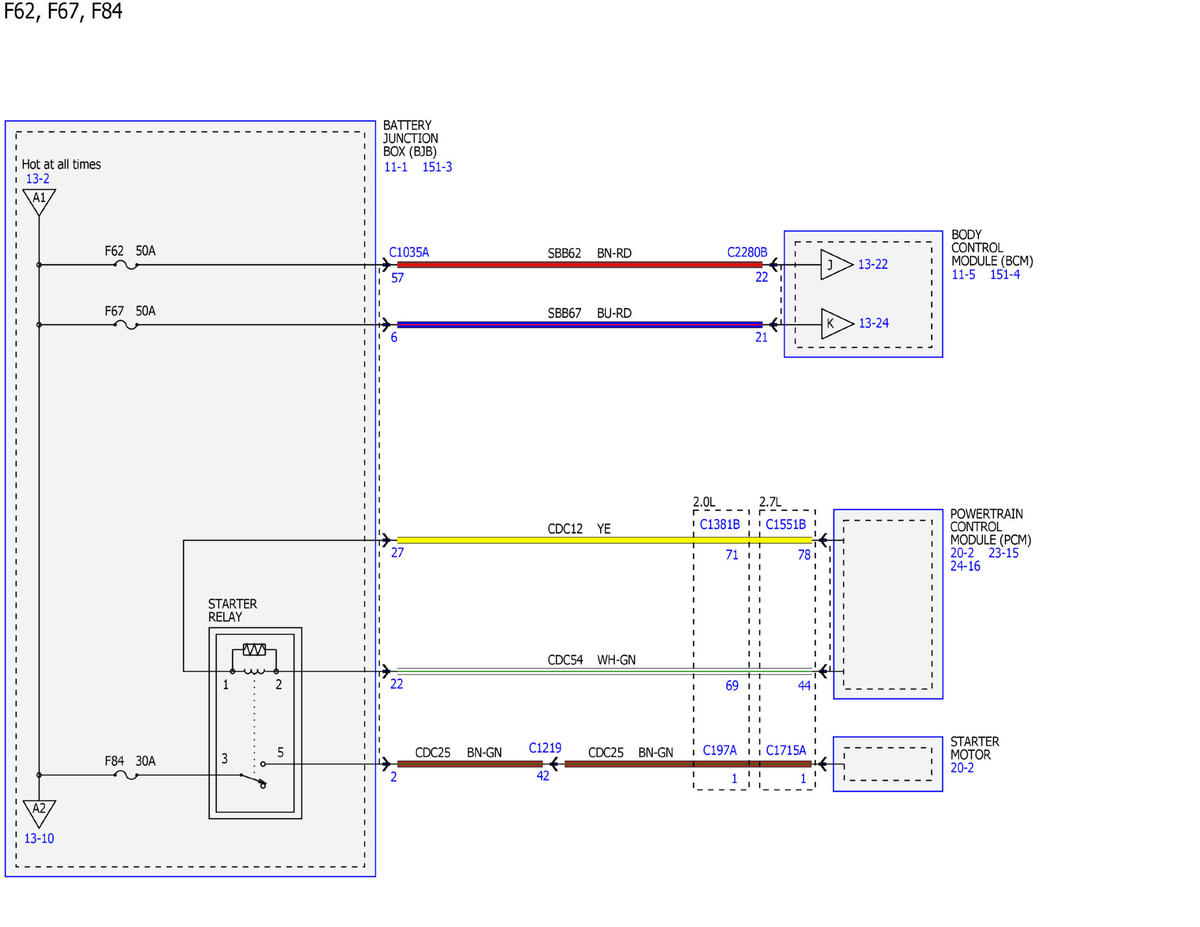

Fig 47: Power Distribution Wiring Diagram (47 Of 48)

GFDWR139260
