Power Liftgate

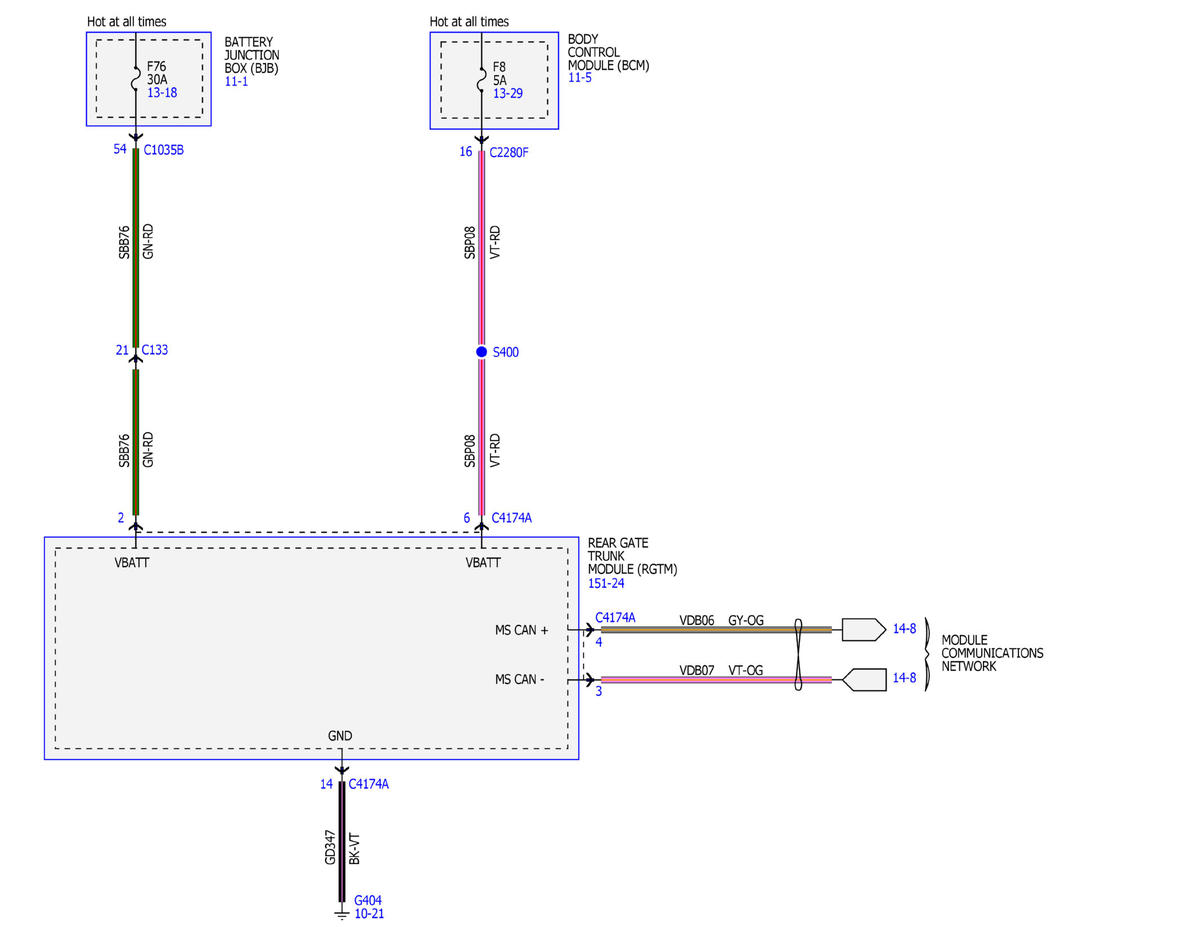

Fig 1: Power Liftgate Wiring Diagrams (1 Of 6)
GFDWR139261Courtesy of FORD MOTOR COMPANY

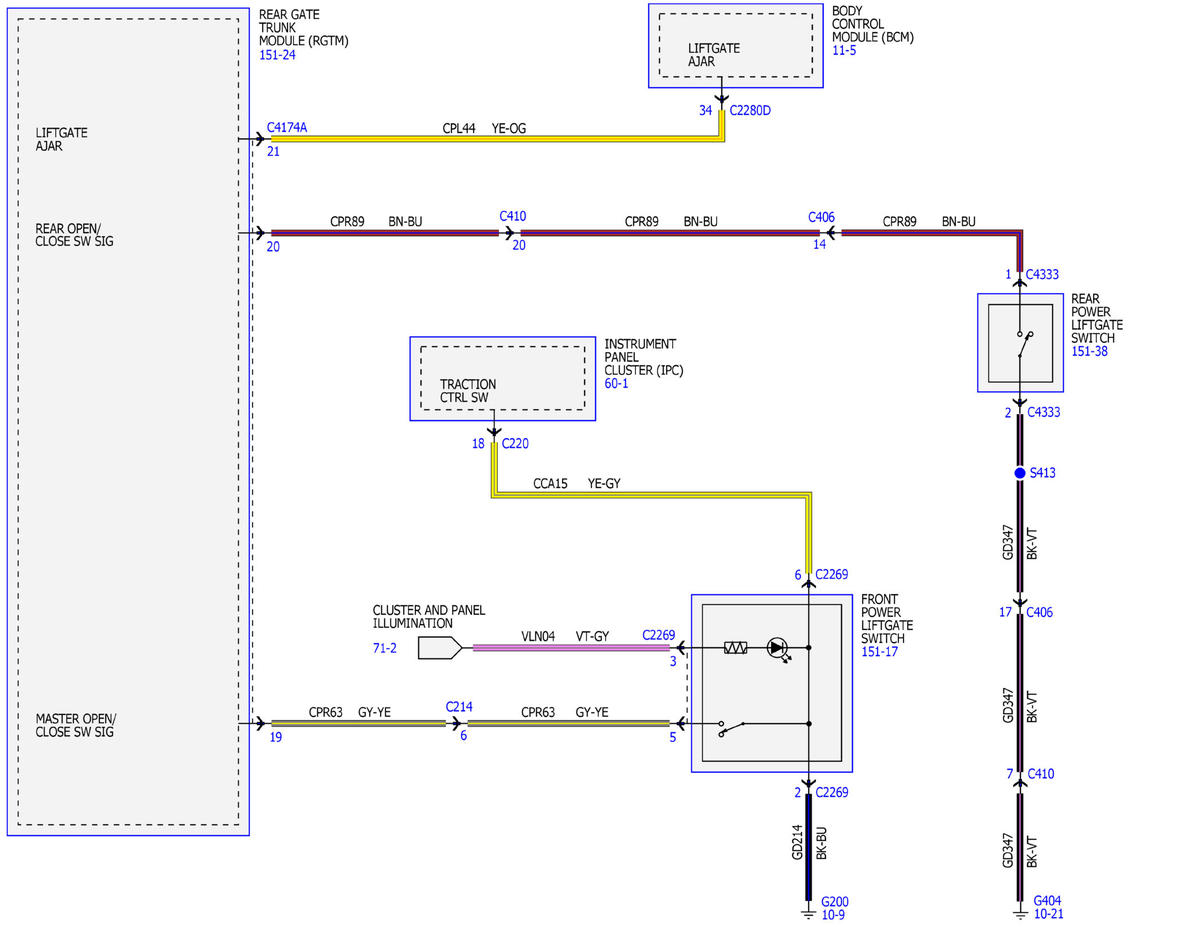

Fig 2: Power Liftgate Wiring Diagrams (2 Of 6)
GFDWR139262Courtesy of FORD MOTOR COMPANY

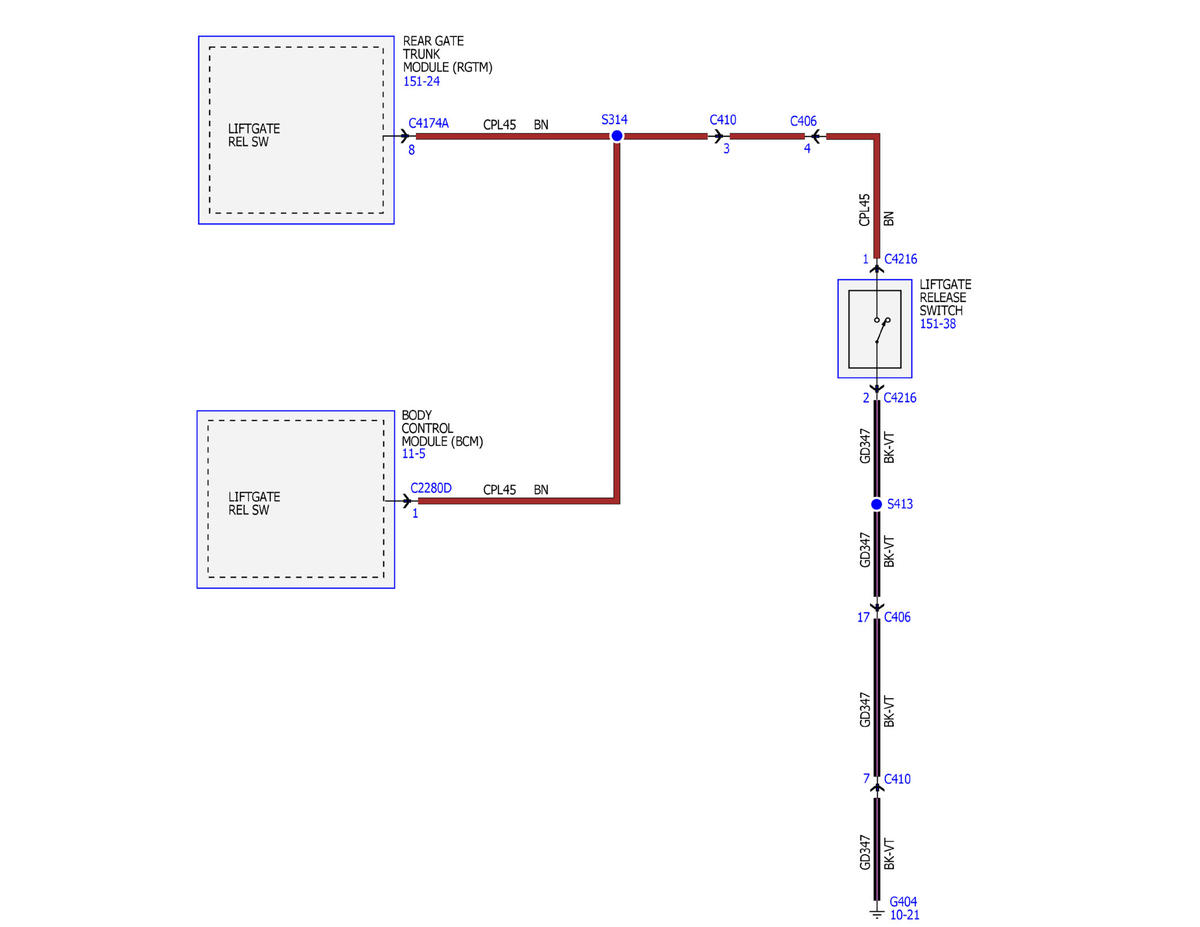

Fig 3: Power Liftgate Wiring Diagrams (3 Of 6)
GFDWR139263Courtesy of FORD MOTOR COMPANY

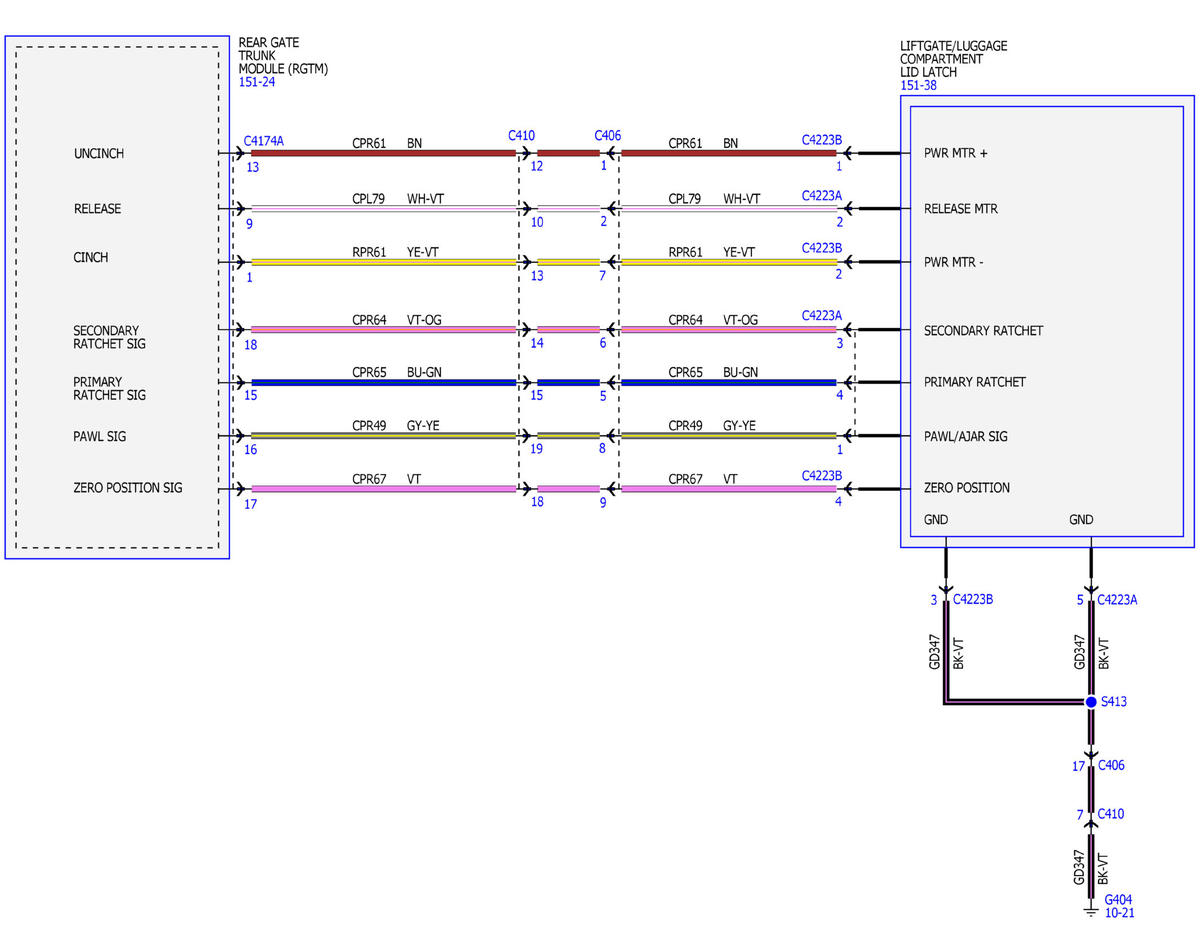

Fig 4: Power Liftgate Wiring Diagrams (4 Of 6)
GFDWR139264Courtesy of FORD MOTOR COMPANY

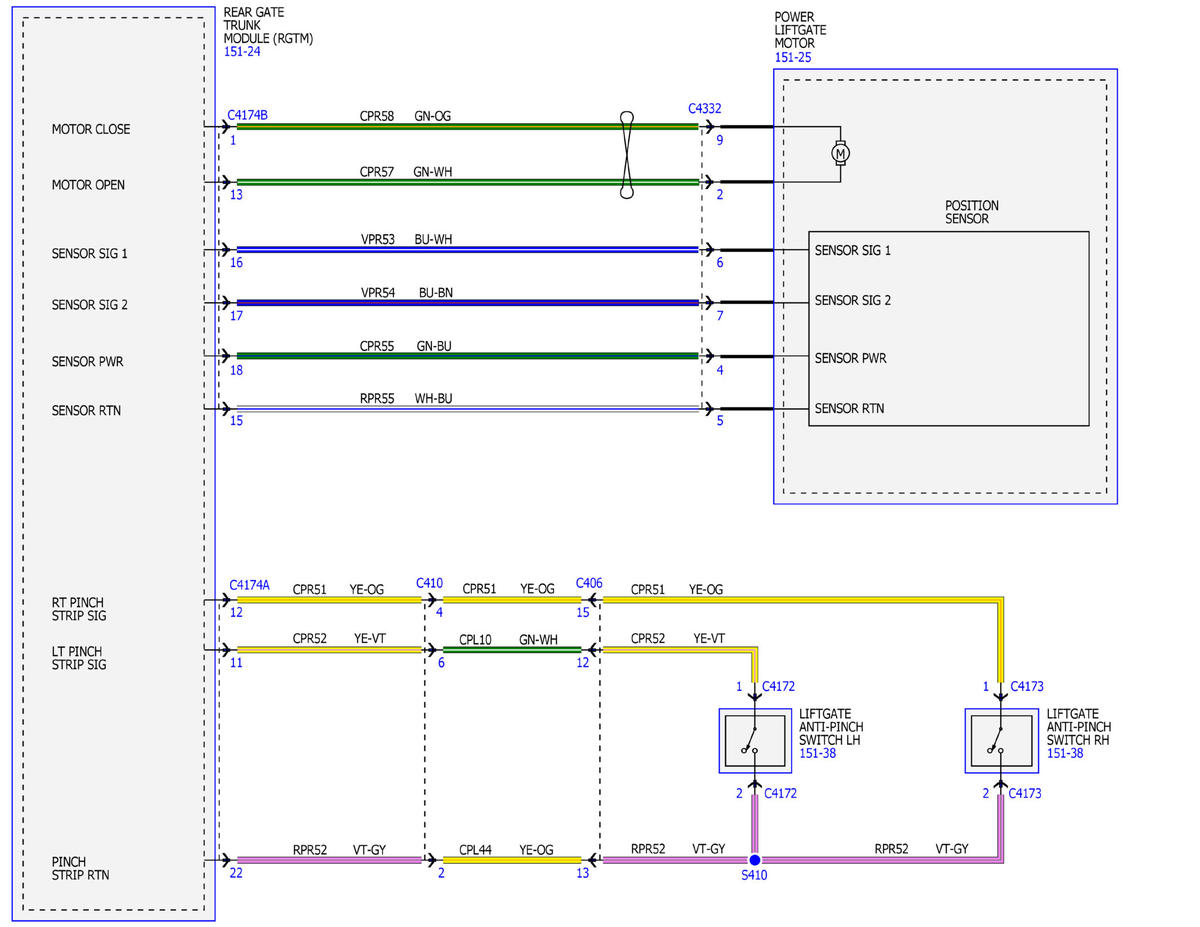

Fig 5: Power Liftgate Wiring Diagrams (5 Of 6)
GFDWR139265Courtesy of FORD MOTOR COMPANY

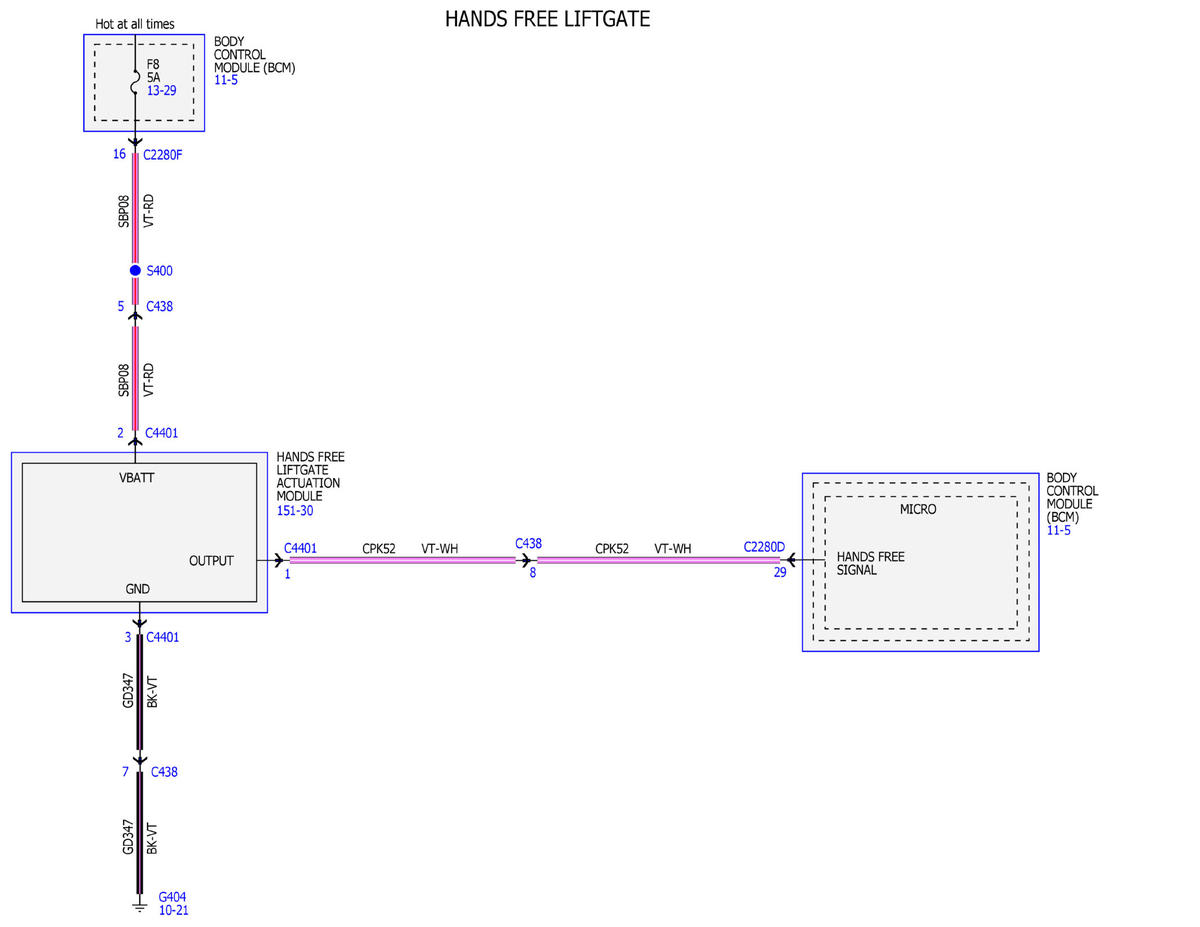

Fig 6: Power Liftgate Wiring Diagrams (6 Of 6)
GFDWR139266Courtesy of FORD MOTOR COMPANY
