Steering Column Tilt Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the steering column shrouds. Refer to: Steering Column Shrouds

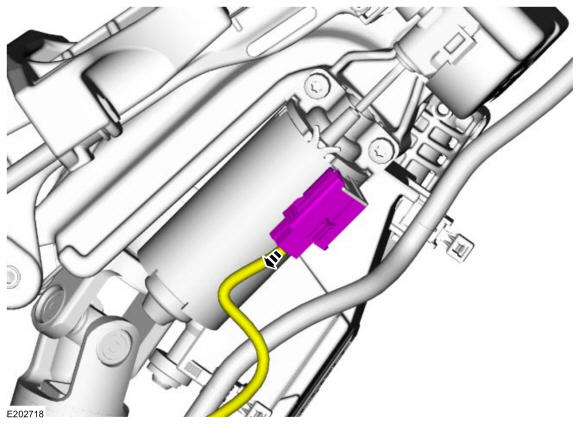

2. Detach the tilt motor electrical connector.

   Courtesy of FORD MOTOR COMPANY

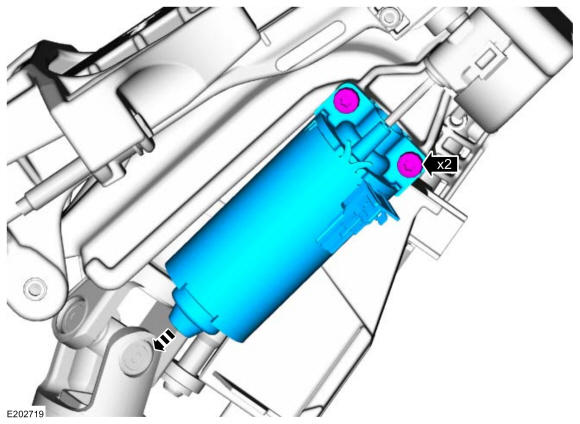

3. Remove the screws and the tilt motor.

   Torque

   : 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
