Rear Camber Adjustment
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION
Special Tool(s) / General Equipment
| Wheel Alignment System |
|---|
Adjustment
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
- Using alignment equipment and the manufacturer's instructions, measure the rear camber. Use the General Equipment: Wheel Alignment System

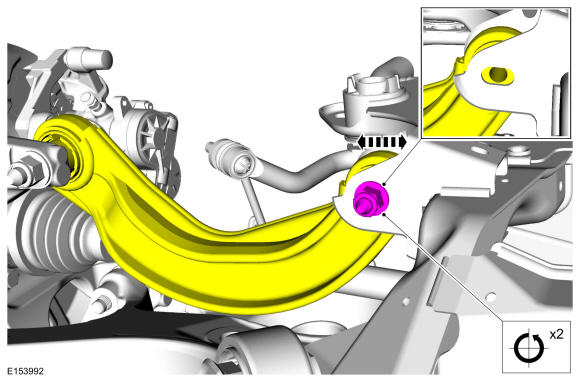

- Loosen the upper arm-to-frame bolt counterclockwise (CCW) through 2 complete turns and move the upper arm inboard or outboard to adjust rear camber as necessary.
Torque: 85 lb.ft (115 Nm)
- Recheck alignment to verify camber change and adjust rear toe if necessary. Refer to: Rear Toe Adjustment
