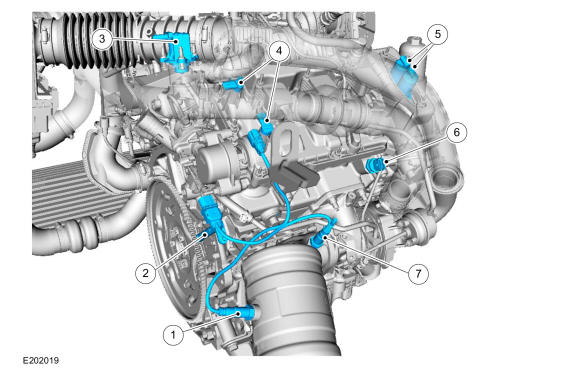

Electronic Engine Controls- RH

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Right hand Catalyst monitor sensor
2	CKP sensor
3	Turbocharger bypass valve
4	Right hand CMP sensors
5	Right hand VCT oil control solenoids
6	EOP sensor
7	Right hand HO2S
