Fuel Pump Driver Module (FPDM): Installation

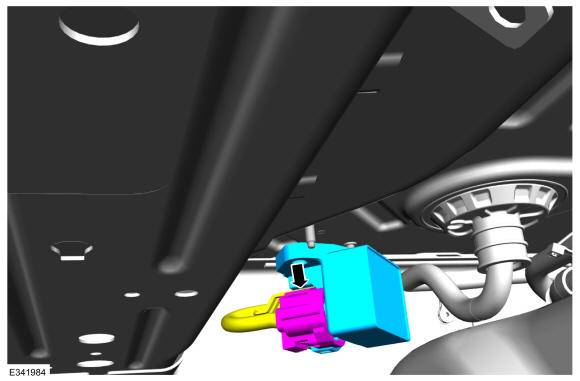

1. Connect the fuel pump driver module electrical connector.

   Courtesy of FORD MOTOR COMPANY

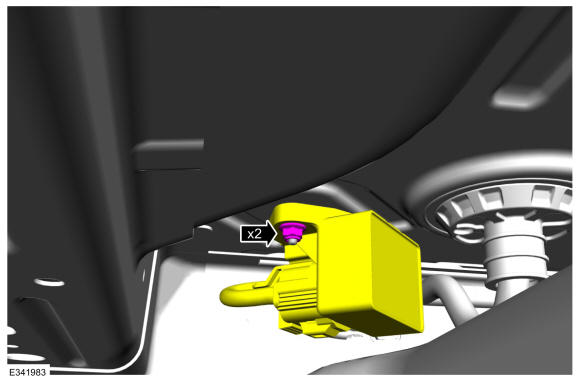

2. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.

   Torque

   : 36 lb.in (4.1 Nm)

   Courtesy of FORD MOTOR COMPANY

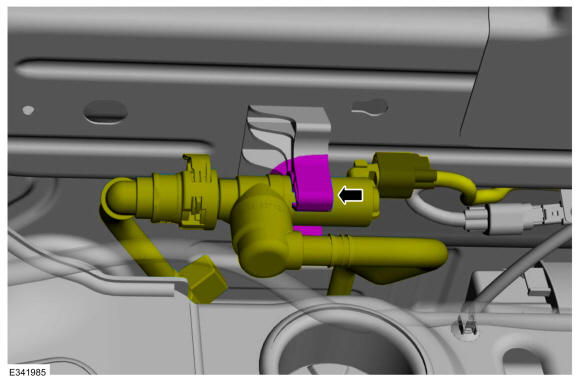

3. Position back the EVAP blocking valve and hoses.

Courtesy of FORD MOTOR COMPANY
