Steering Column Control Switch: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. REFER to: Steering Column Shrouds .

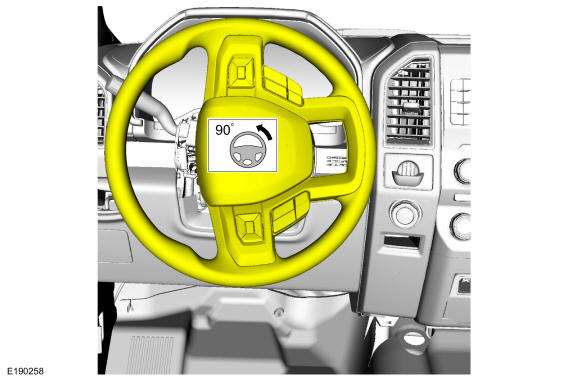

  2. Turn the steering wheel 90 degrees left.
    GFD201163Courtesy of FORD MOTOR COMPANY

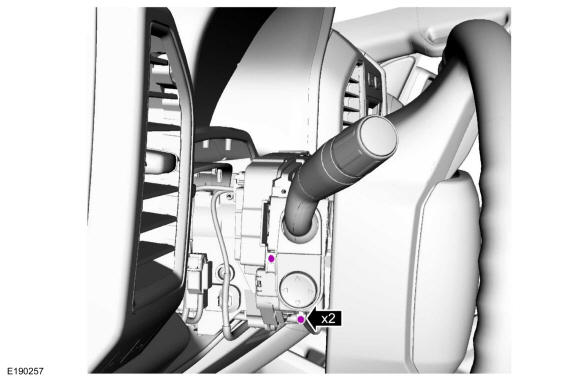

  3. Remove the screws.
    GFD201164Courtesy of FORD MOTOR COMPANY

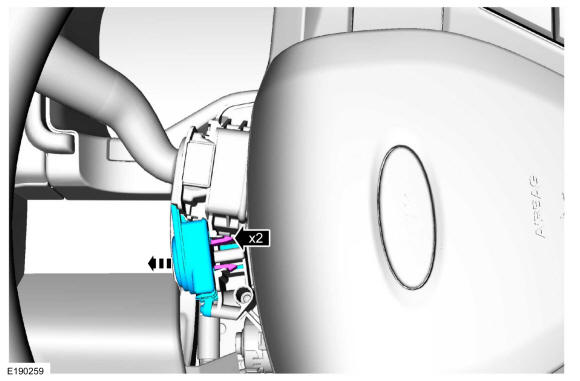

  4. Squeeze the tabs and remove the steering column control switch.
GFD201165Courtesy of FORD MOTOR COMPANY
