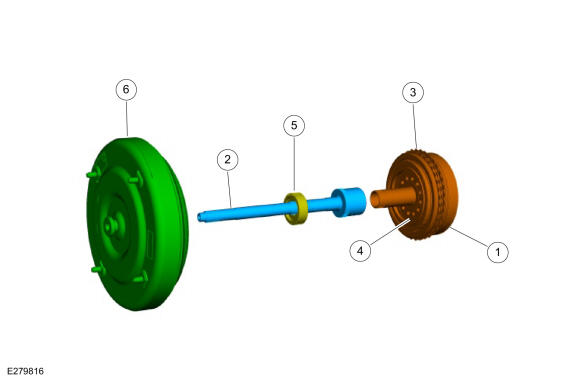

Input Shaft Exploded View
| Item | Description |
|---|---|
| 1 | B (4, 6, R)/E (5, 6, 7, 8) clutch hub |
| 2 | Input shaft |
| 3 | B (4, 6, R) clutch |
| 4 | E (5, 6, 7, 8) clutch |
| 5 | Input sun gear |
| 6 | Torque converter |

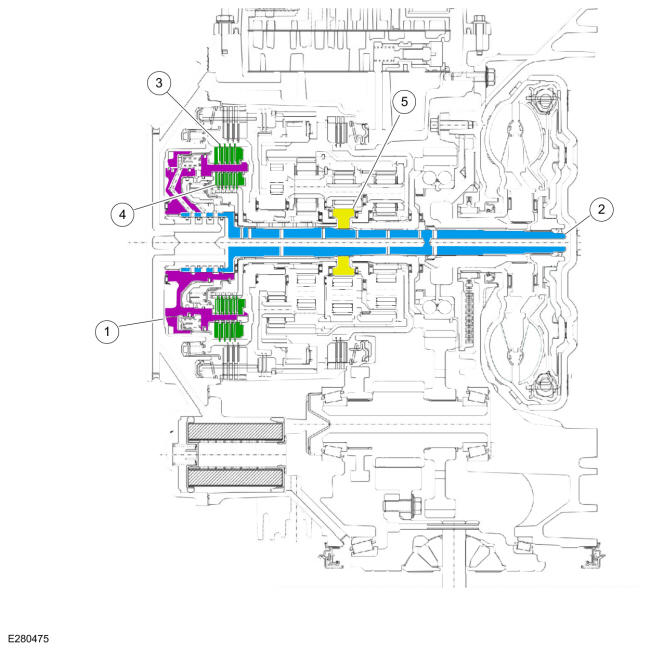

Input Shaft Cutaway View
Input Shaft
The input shaft is part of the B (4, 6, R)/E (5, 6, 7, 8) clutch assembly and is splined to the torque converter turbine and the input planetary sun gear.
