Disassembly And Assembly Of Subassemblies: Differential: Assembly
-
NOTE: Do not torque the 4 ring gear bolts.

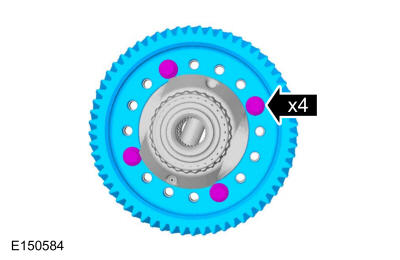

Hand-start 4 new ring gear bolts to align the holes in the ring gear and the differential case. Evenly tighten the 4 bolts to seat the ring gear onto the differential case.
- Install the remaining new differential ring gear bolts and tighten in 2 stages.
Torque: Stage 1: 24 lb.ft (33 Nm) Stage 2: 60 deg.

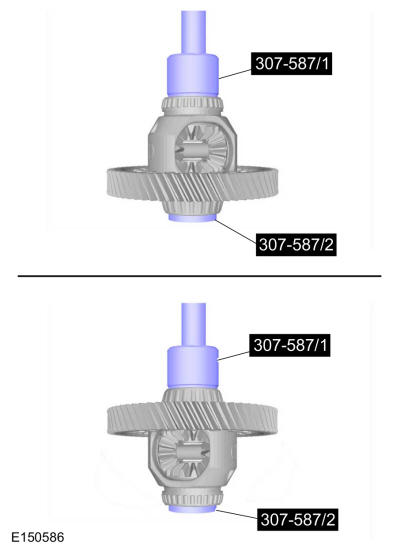

- Using the special tools, press new differential carrier bearings on the differential assembly. Use Special Service Tool: 307-587 Differential bearing installer and guide.Use the General Equipment: Hydraulic Press
- Select a new differential shim. Refer to: Torque Converter Housing
