Transfer Shaft: Assembly
- Install the park pawl wheel.

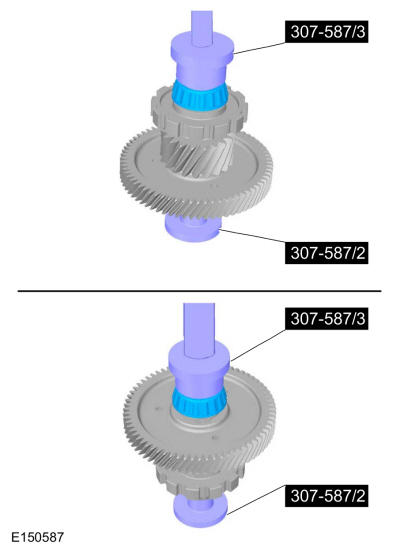

- Using the special tool, install the transfer shaft bearings. Use Special Service Tool: 307-587 Differential bearing installer and guide.Use the General Equipment: Hydraulic Press
- Select a new transfer shaft shim. Refer to: Torque Converter Housing
