Differential Fluid Level Check
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION
Materials
| Name | Specification |
|---|---|
| Motorcraft® Disconnect Rear Drive Unit FluidXY-75W-QL | - |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

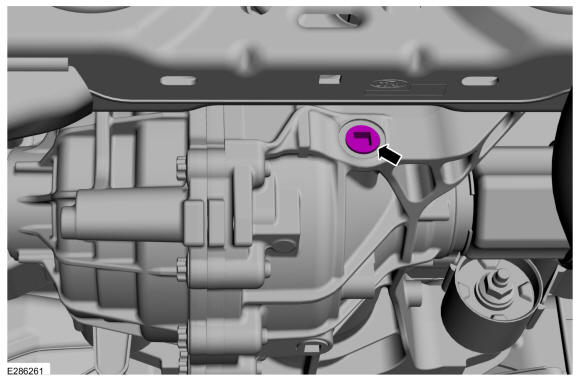

- Remove the RDU fluid filling plug.

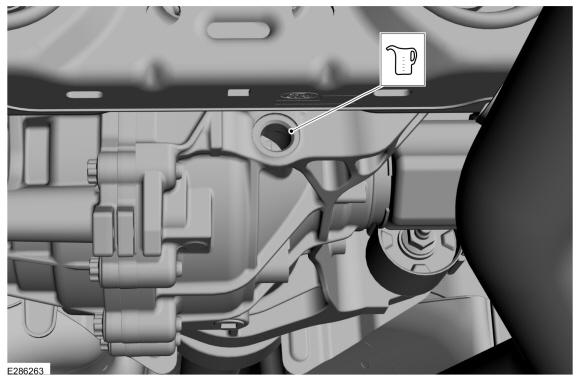

- If empty, fill the rear axle with clean RDU fluid. If fluid level is low, fill to the bottom of the filler hole. Refer to: Specifications
Material
: Motorcraft® Disconnect Rear Drive Unit Fluid / XY-75W-QL
- Install the RDU fluid filling plug.
Torque: 21 lb.ft (29 Nm)
