Hood Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Inspection

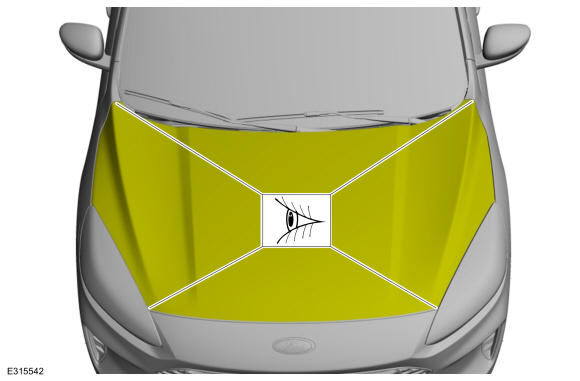

1. Inspect the hood-to-body dimensions.

   Courtesy of FORD MOTOR COMPANY

   All alignments

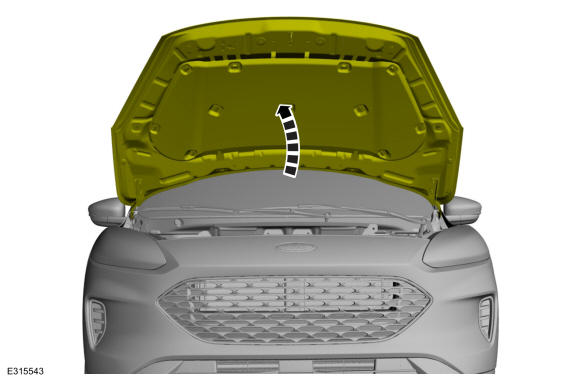

2. Open the hood.

   Courtesy of FORD MOTOR COMPANY

3. Remove the hood latch. Refer to: Hood Latch

   Hood fore and aft, left and right alignments

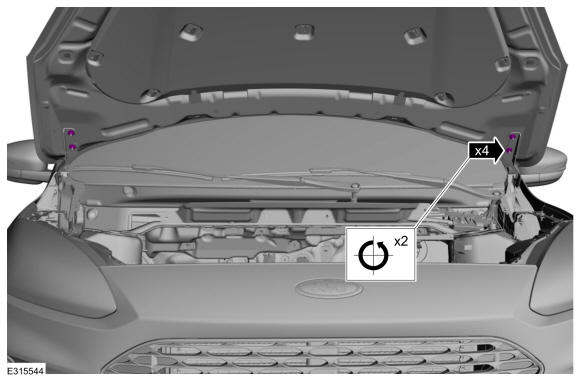

4. Loosen the nuts enough to permit movement of the hood.

   Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

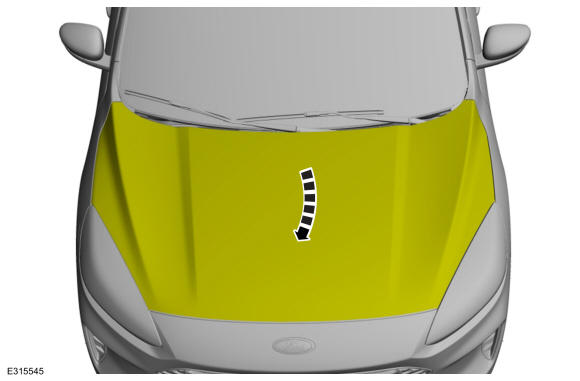

5. Carefully close the hood.

   Courtesy of FORD MOTOR COMPANY

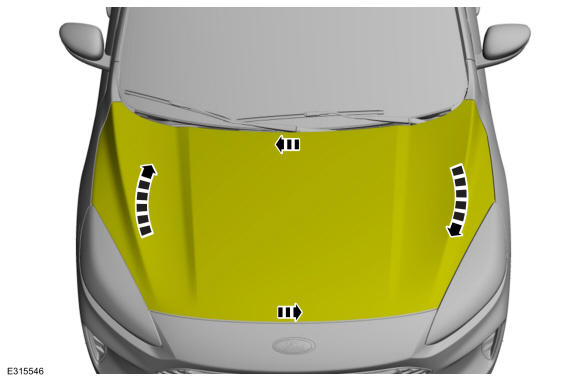

6. Adjust the hood as required.

   Courtesy of FORD MOTOR COMPANY

7. Carefully open the hood.

   Courtesy of FORD MOTOR COMPANY

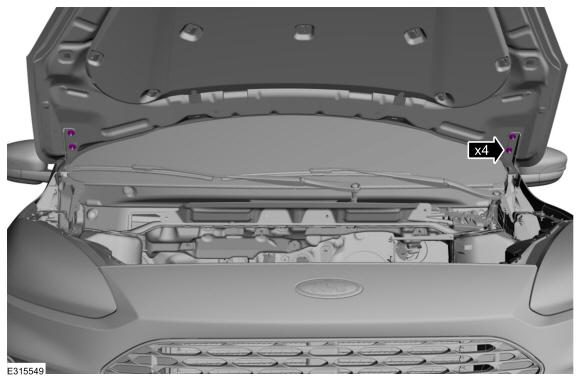

8. Tighten the nuts.

   Torque

   : 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

   Hood front up and down alignments

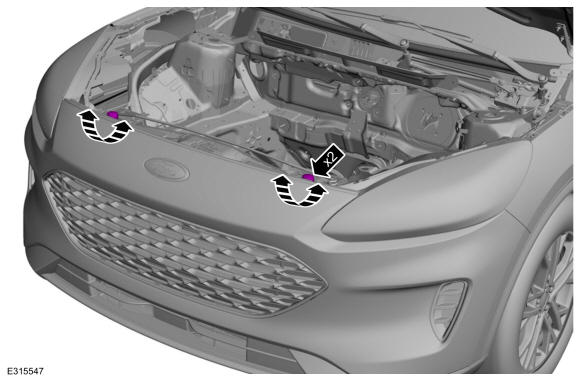

9. Adjust the bump stop rubbers.

   Courtesy of FORD MOTOR COMPANY

10. Carefully close the hood.

    Courtesy of FORD MOTOR COMPANY

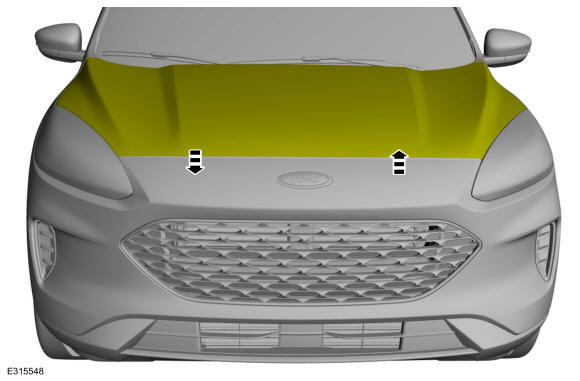

11. Adjust the hood as required.

    Courtesy of FORD MOTOR COMPANY

    All alignments

12. Install the hood latch. Refer to: Hood Latch
13. Inspect the body-to-hood dimensions.

Courtesy of FORD MOTOR COMPANY
