Auxiliary Power Point: Removal

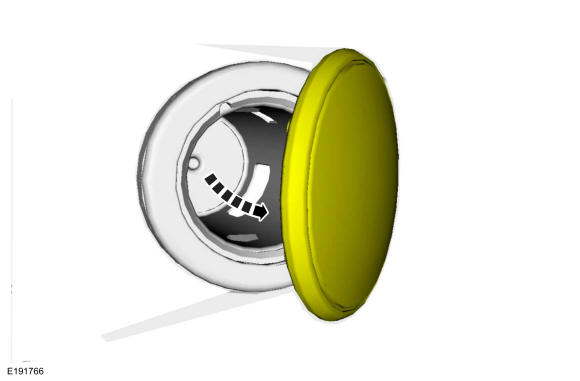

- Open the power point cover.

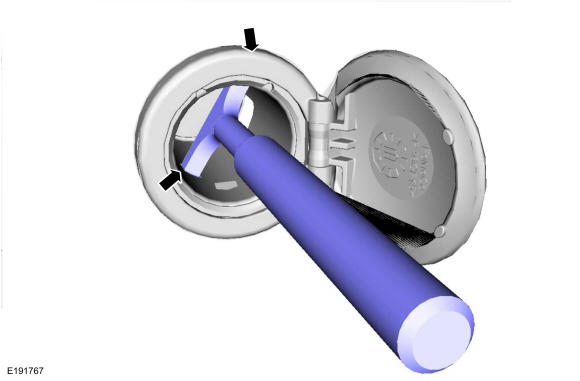

- Position the power point extractor so that it engages in the adjacent slots in the power point socket.
Remove Suggested Tool: 501-194 Remover, Power Point.
-

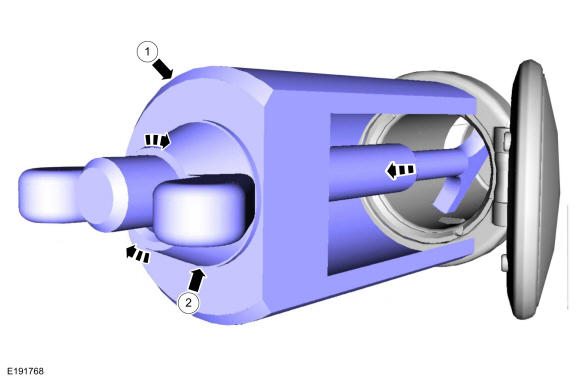

- Install the receiver cup.
- Install and tighten the wing nut.
Remove Suggested Tool: 501-194 Remover, Power Point.

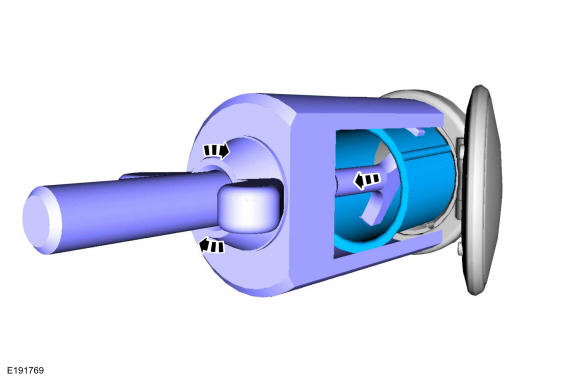

- Tighten the wing nut to pull the power point socket out of the retainer.
Remove Suggested Tool: 501-194 Remover, Power Point.
- Disconnect the electrical connector.
