Selector Lever Mechanism: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: To access the top selector mechanism bolts, position the selector lever in N before removing the selector lever.
Remove the selector lever. Refer to: Selector Lever .

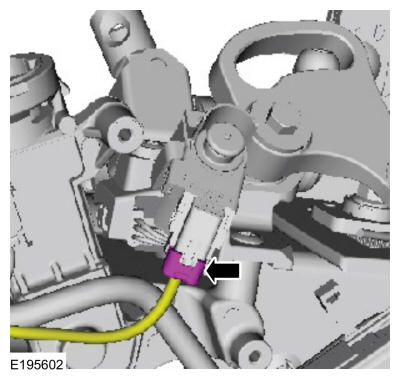

- Disconnect the brake shift interlock actuator electrical connector.
-

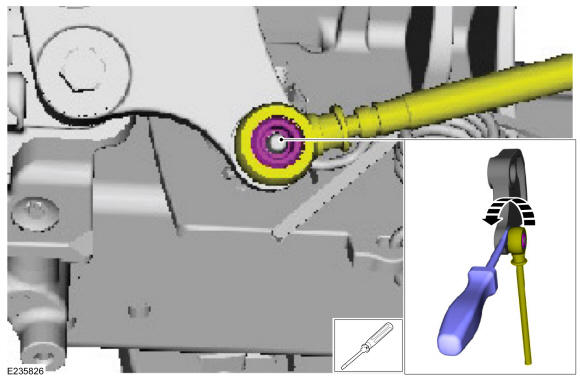

NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.
Using a screwdriver, pry the selector lever cable end from the selector lever mechanism.

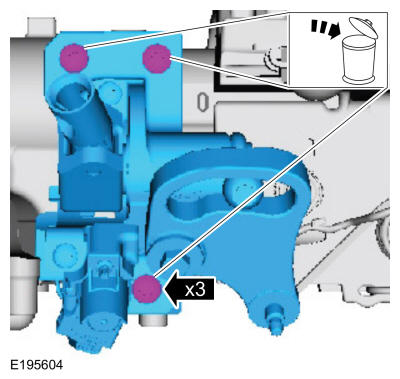

- Remove and discard the bolts and remove the selector lever mechanism.
Torque: 89 lb.in (10 Nm)
