Image Processing Module A (IPMA) Camera Heated Windshield Element: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-

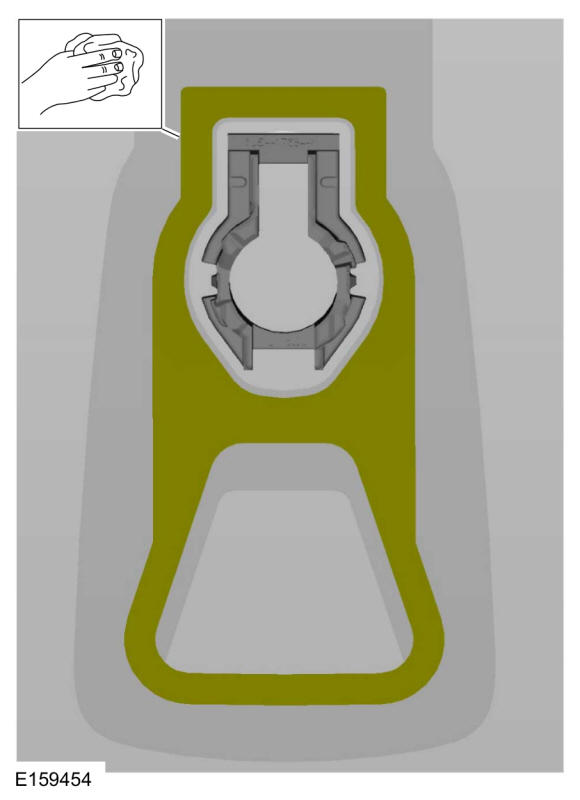

NOTE: Use an alcohol pad to remove the residual adhesive. If required, a plastic scraper may be used.
Clean and remove any residual adhesive from the windshield.

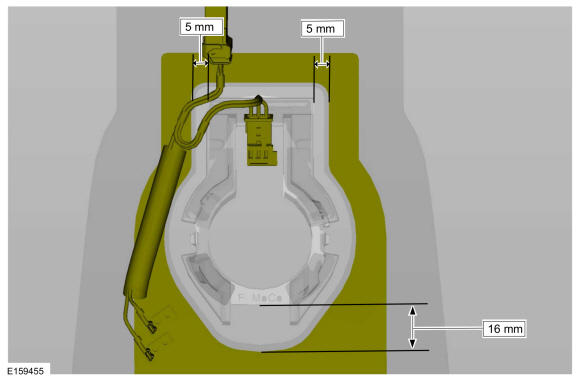

- Remove the protective covering from the new camera windshield defrost heater and align the camera windshield defrost heater.
-
NOTE: Apply even pressure to adhere the camera windshield defrost heater to the windshield.

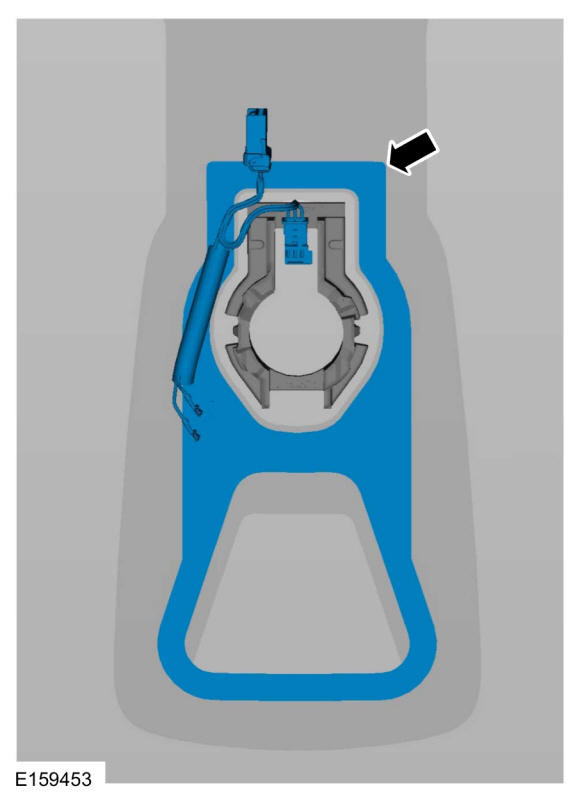

Install the IPMA camera heated windshield element.
- Install the interior rear view mirror. Refer to: Interior Rear View Mirror .
