Front Brake Pads: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. Refer to: Wheel and Tire .
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

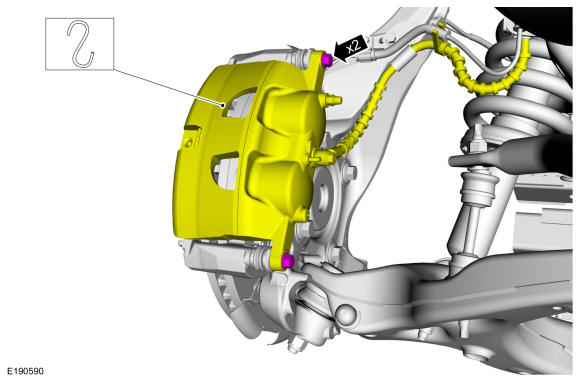

Remove the 2 bolts and position the brake caliper aside.

Torque

: 27 lb.ft (37 Nm)

Courtesy of FORD MOTOR COMPANY

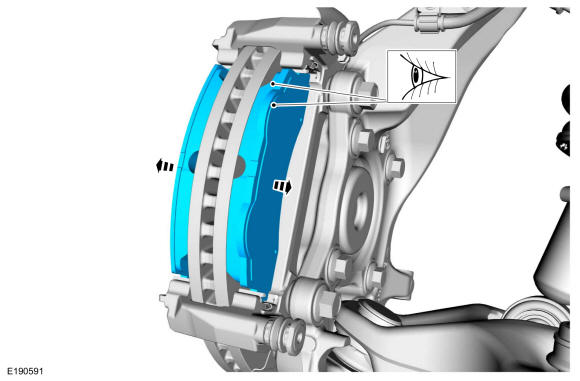

Remove the brake pads.

Courtesy of FORD MOTOR COMPANY

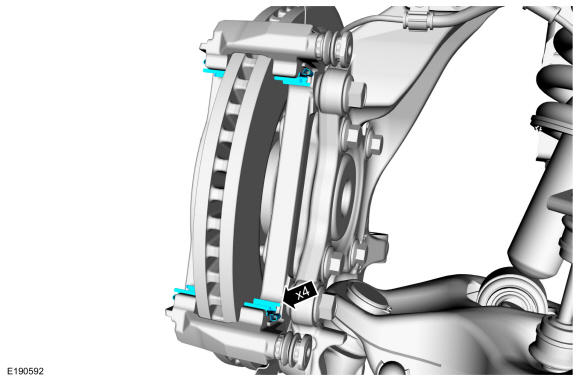

Remove the 4 brake pad clips.

Courtesy of FORD MOTOR COMPANY
NOTE: Protect the caliper pistons and boots when pushing the caliper piston into the caliper piston bores or damage to components may occur.

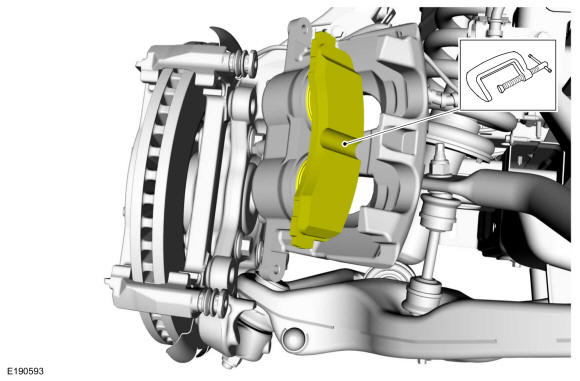

If installing new brake pads. Use a C-clamp and a worn brake pad to compress the disc brake caliper pistons into the brake caliper bore.

Courtesy of FORD MOTOR COMPANY
