Rear Wheel Speed Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

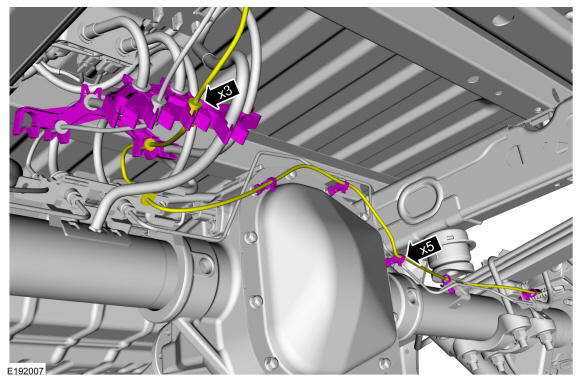

Right hand (RH) wheel speed sensor
- Detach the harness isolators from the brake hose brackets and detach the 5 harness retainers from the axle.

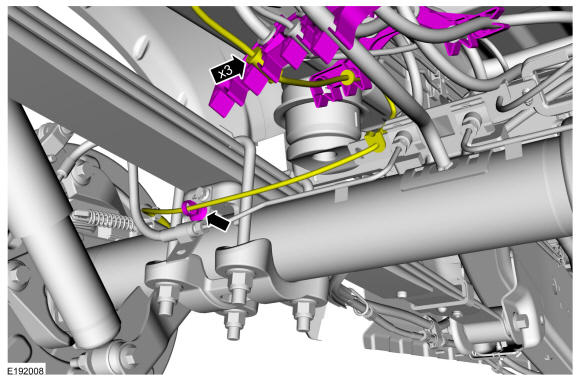

Left hand (LH) wheel speed sensor
- Detach the harness isolators from the brake hose brackets and detach the harness retainer from the axle.
Right hand (RH) and left hand (LH) wheel speed sensors

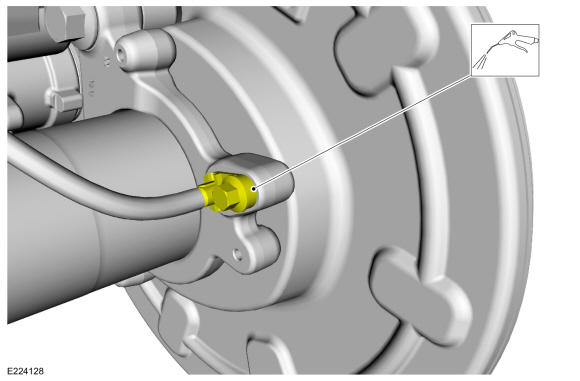

- Using compressed air, clean the area surrounding the rear wheel speed sensor.

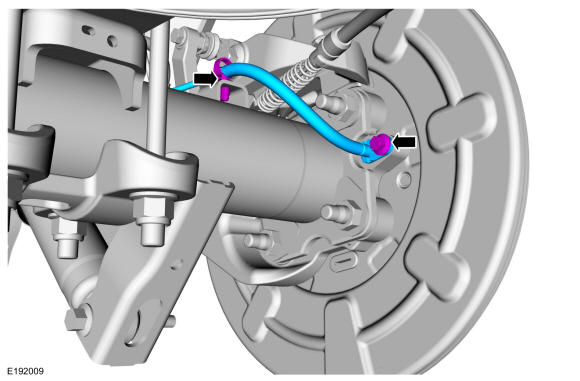

- Detach the harness retainer, remove the bolt and the wheel speed sensor.
Torque
: 133 lb.in (15 Nm)
