Instrument Panel Upper Section: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel. Refer to: Instrument Panel .

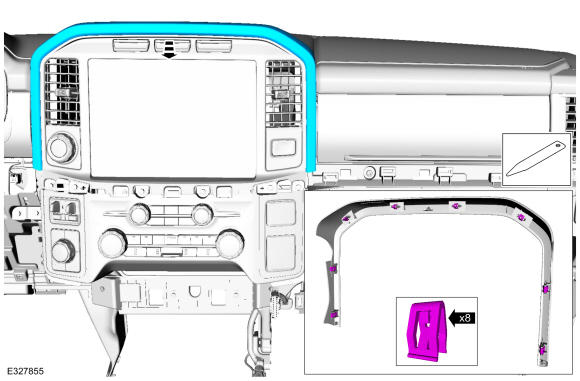

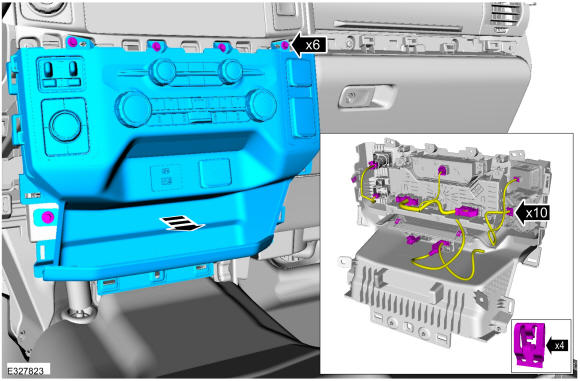

Release the clips and remove the center finish trim.
- Disconnect the electrical connector.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

Vehicles without floor console

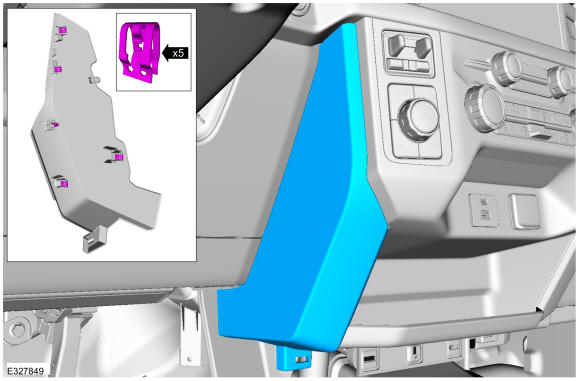

Release the clips and remove the LH center trim panel.

Courtesy of FORD MOTOR COMPANY

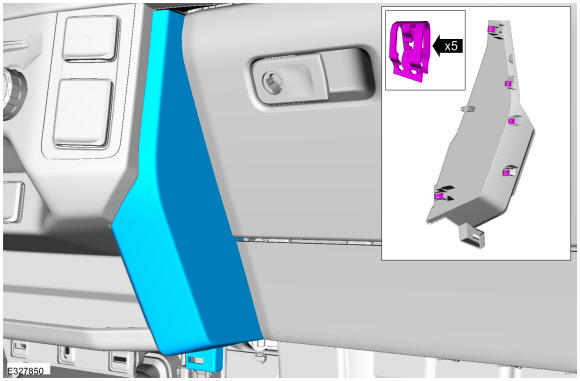

Release the clips and remove the RH center trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the FCIM.
- Disconnect the electrical connectors.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles

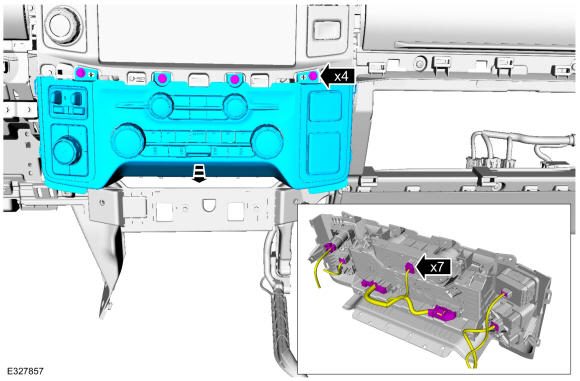

Remove the bolts and the FCIM.
- Disconnect the electrical connectors.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

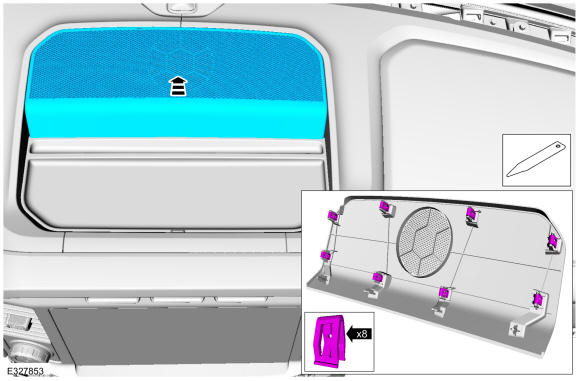

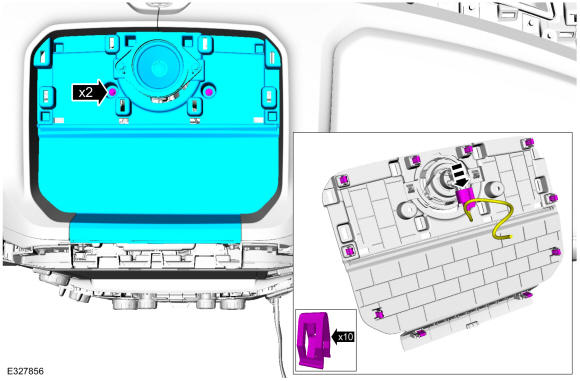

Release the clips and remove the speaker grille.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

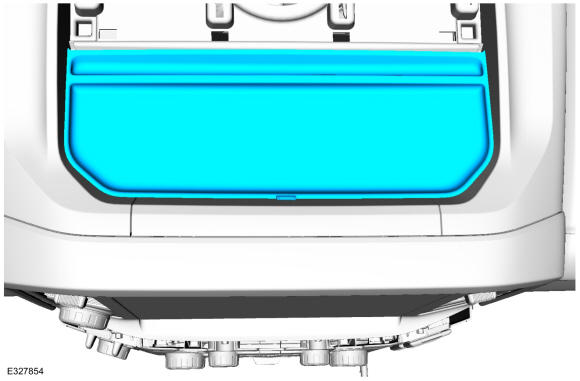

Remove the rubber pad.

Courtesy of FORD MOTOR COMPANY

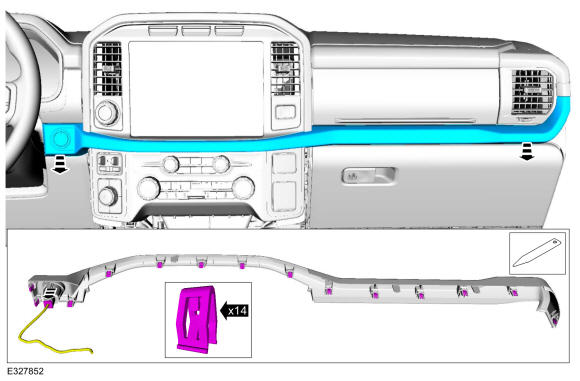

Release the clips and remove the trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the bolts, release the clips and remove the trim panel.
- Disconnect the electrical connector.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the bolts.
Torque

: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The push pin must be replaced each time the bezel is removed.

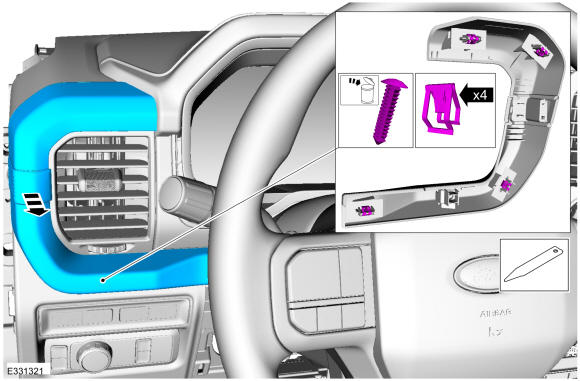

Release the retainers and remove the LH register bezel.
- Remove and discard the push pin.
Courtesy of FORD MOTOR COMPANY

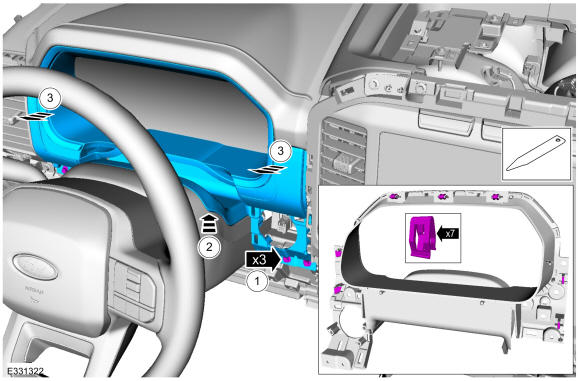

1. Remove the bolts.
  Torque

  : 36 lb.in (4.1 Nm)
2. Separate the gap hider from the upper steering column shroud.
3. Release the 3 clips and remove the IPC bezel.
Courtesy of FORD MOTOR COMPANY

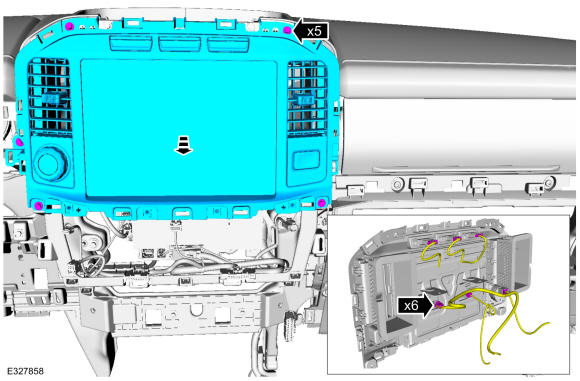

Remove the bolts and the display unit.
- Disconnect the electrical connectors.
  Torque

  : 55 lb.in (6.2 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: The push pin must be replaced each time the bezel is removed.

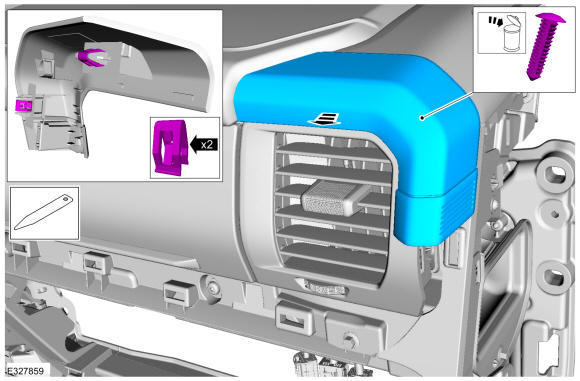

Release the retainers and remove the RH register bezel.
- Remove and discard the push pin.
Courtesy of FORD MOTOR COMPANY

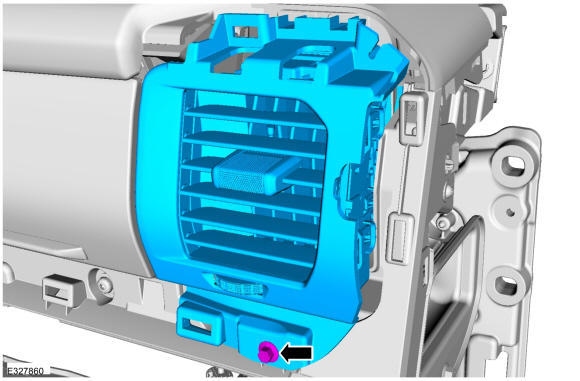

Remove the bolt and the RH register.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

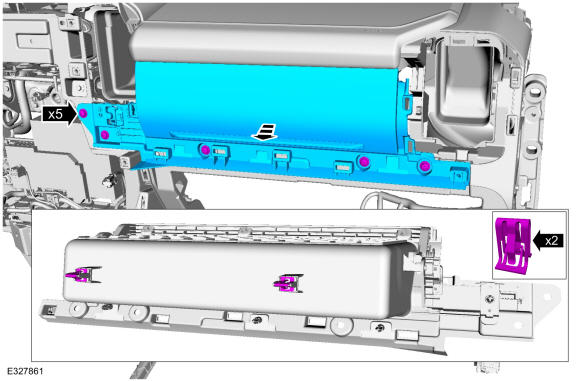

Remove the bolts, release the clips and remove the upper stowage bin.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

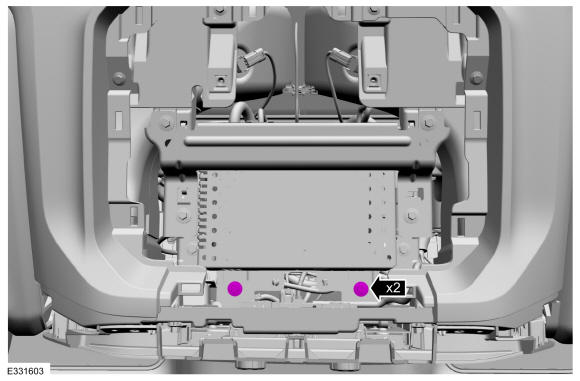

Remove the screws through the upper stowage bin opening.

Courtesy of FORD MOTOR COMPANY

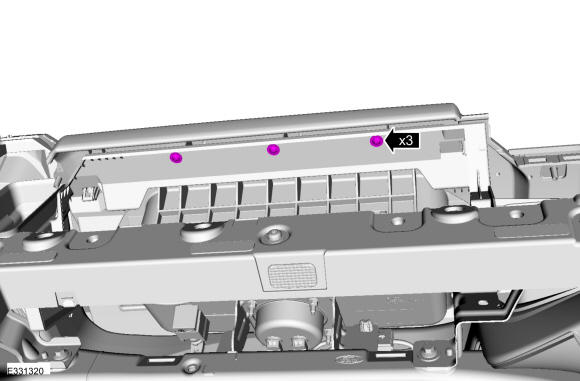

Remove the bolts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

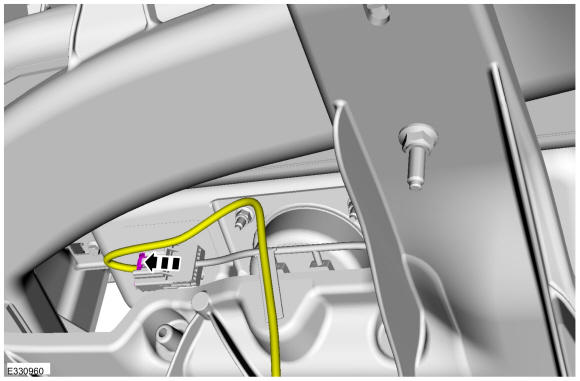

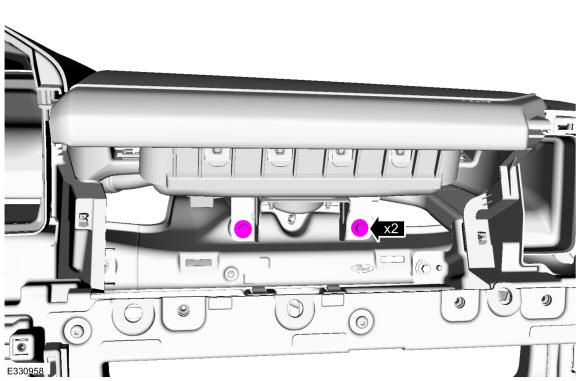

Disconnect the passenger airbag electrical connector.

Courtesy of FORD MOTOR COMPANY

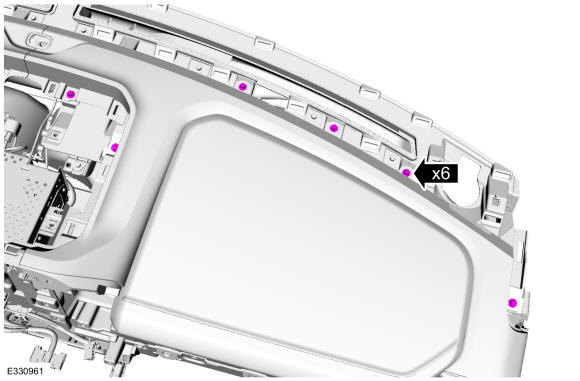

Remove the RH instrument panel upper section bolts.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

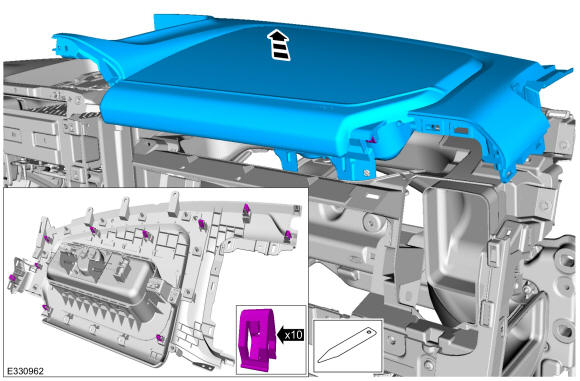

Remove the RH instrument panel upper section by lift upwards to release the clips.
Use the General Equipment: Interior Trim Remover

GFD562061

Courtesy of FORD MOTOR COMPANY
