Instrument Panel: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
  2. Remove the floor console. Refer to: Floor Console .
  3. Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .

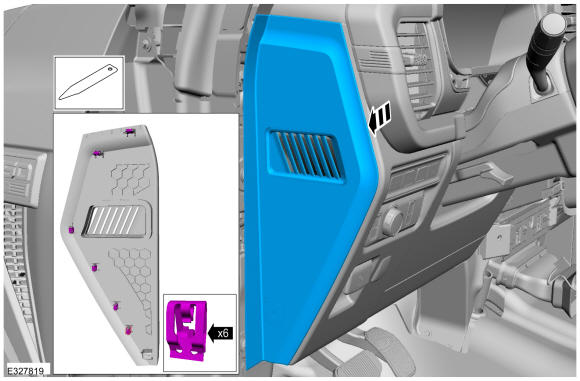

  4. Release the clips and remove the LH instrument panel trim panel.

    Use the General Equipment: Interior Trim Remover

    GFD562013Courtesy of FORD MOTOR COMPANY

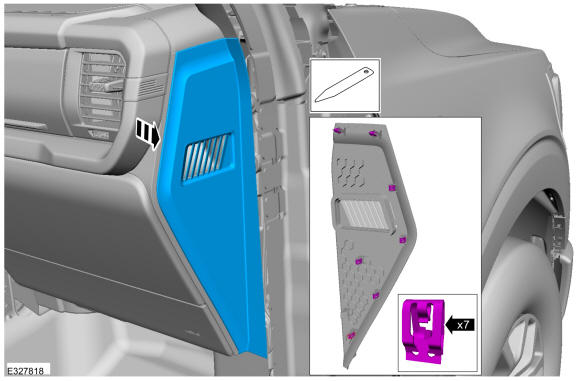

  5. Release the clips and remove the RH instrument panel trim panel.

    Use the General Equipment: Interior Trim Remover

    GFD562014Courtesy of FORD MOTOR COMPANY

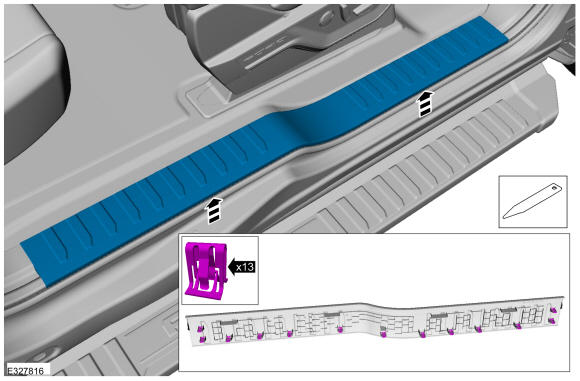

  6. NOTE: Super Cab shown in illustration, other cabs similar.

    Release the clips and remove the RH scuff plate.

    Use the General Equipment: Interior Trim Remover

    GFD562015Courtesy of FORD MOTOR COMPANY

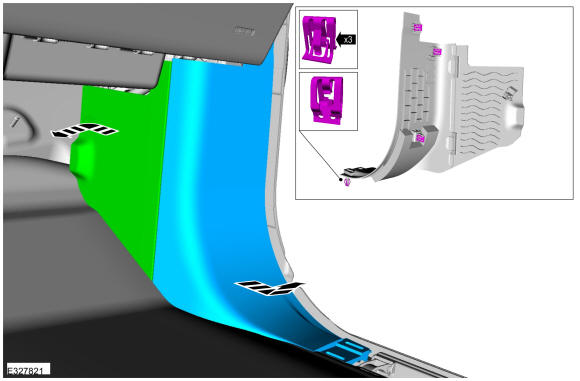

  7. Release the clips and remove the RH lower cowl trim panel.

    • Release the molded snap in the fuse panel cover then rotate fuse panel inboard and foward to disengage hooks from the cowl trim.

    GFD562016Courtesy of FORD MOTOR COMPANY

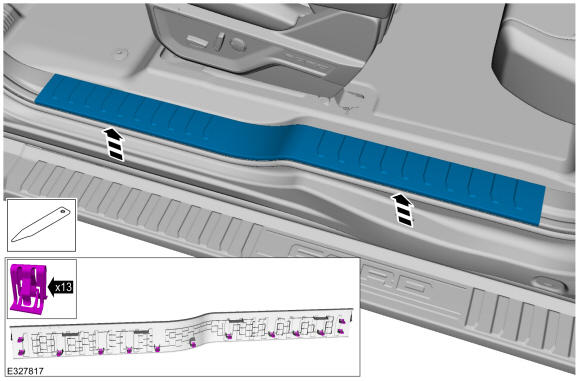

  8. NOTE: Super Cab shown in illustration, other cabs similar.

    Release the clips and remove the LH scuff plate.

    Use the General Equipment: Interior Trim Remover

    GFD562017Courtesy of FORD MOTOR COMPANY

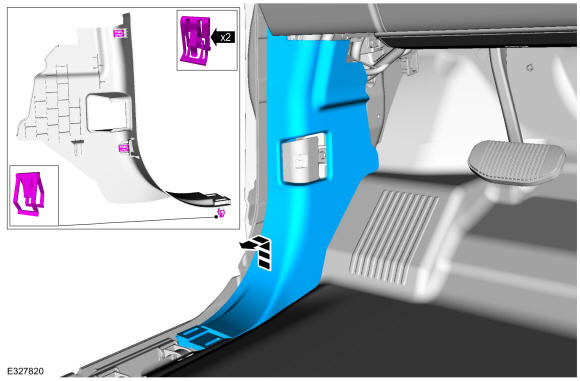

  9. Release the clips and remove the LH lower cowl trim panel.
    GFD562018Courtesy of FORD MOTOR COMPANY

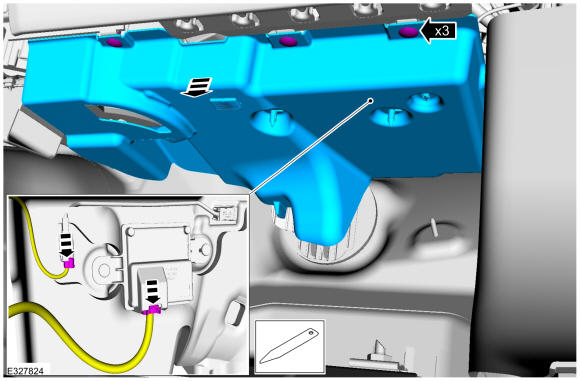

  10. Remove the push pins and the RH insulation panel.

    • Disconnect the electrical connectors.

      Use the General Equipment: Interior Trim Remover

    GFD562019Courtesy of FORD MOTOR COMPANY

    Without floor console

  11. Remove the front center seat. Refer to: Front Center Seat .

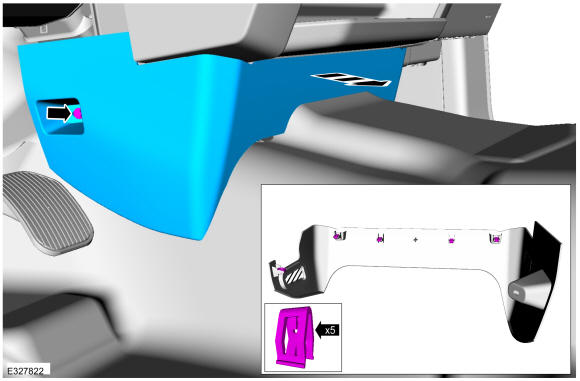

  12. Remove the bolt, release the clips and remove the lower instrument panel finish panel.
    GFD562020Courtesy of FORD MOTOR COMPANY

    All vehicles

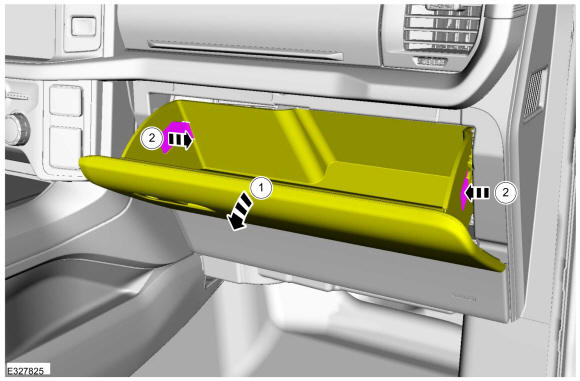

    1. Open the glove compartment.
    2. Push the stop tabs inward.
    GFD562011Courtesy of FORD MOTOR COMPANY

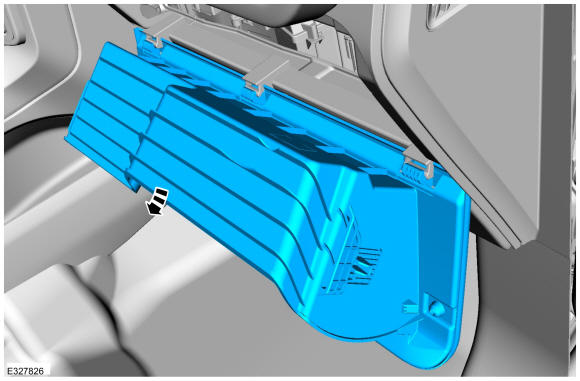

  13. Fully lower the glove compartment and lift off the hinges.
    GFD562012Courtesy of FORD MOTOR COMPANY

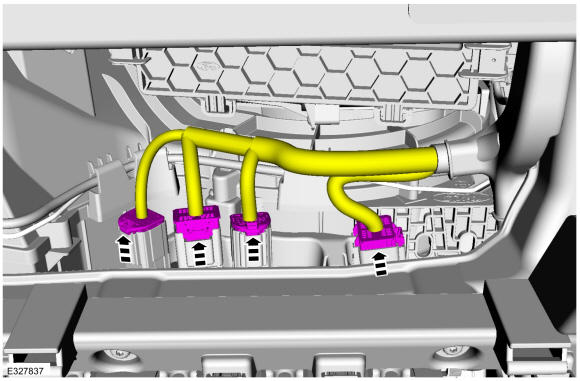

  14. Disconnect the electrical connectors.
    GFD562021Courtesy of FORD MOTOR COMPANY

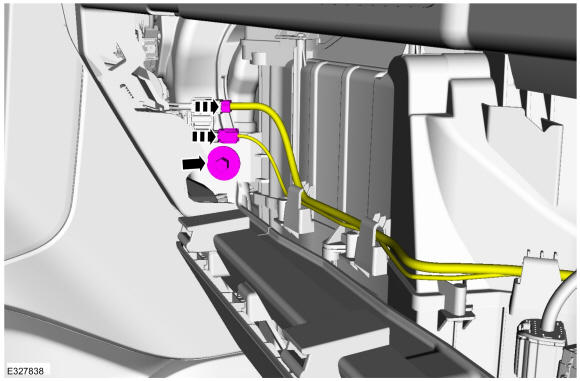

  15. Remove the bolt and disconnect the electrical connectors.

    Torque

    : 80 lb.in (9 Nm)

    GFD562022Courtesy of FORD MOTOR COMPANY

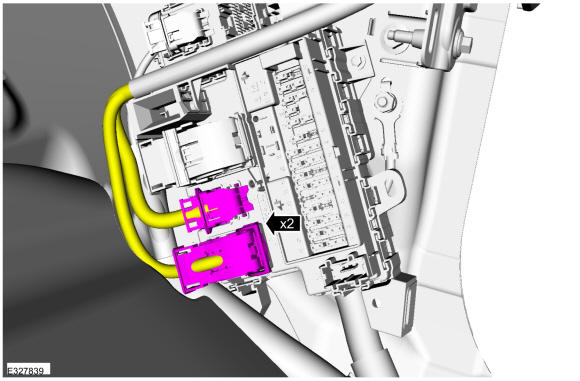

  16. Disconnect the electrical connectors at the BCM.
    GFD562023Courtesy of FORD MOTOR COMPANY

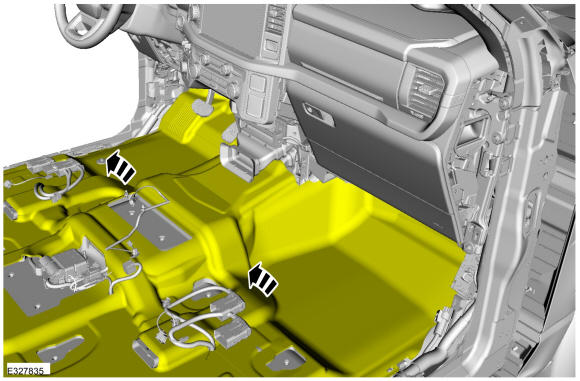

  17. Fold the carpet rearward.
    GFD562024Courtesy of FORD MOTOR COMPANY

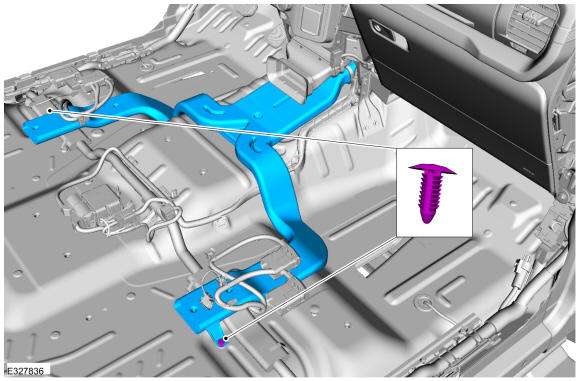

  18. Remove the push pins and the HVAC floor duct.
    GFD562025Courtesy of FORD MOTOR COMPANY

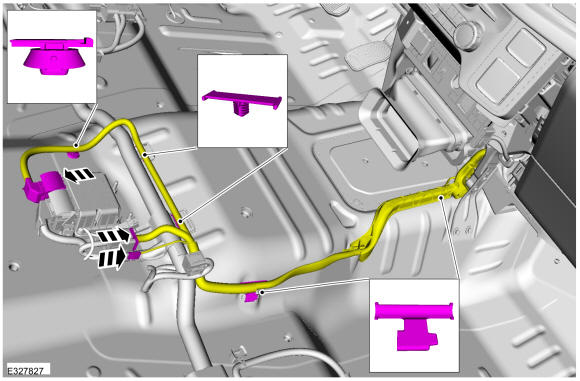

  19. Disconnect the electrical connectors, release the harness retainers and position aside the harness.
    GFD562026Courtesy of FORD MOTOR COMPANY

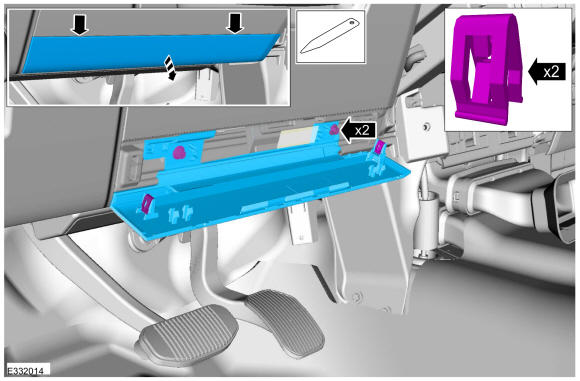

  20. Release the clips to open the access panel, remove the bolts and the access panel.

    Torque

    : 22 lb.in (2.5 Nm)

    GFD562027Courtesy of FORD MOTOR COMPANY

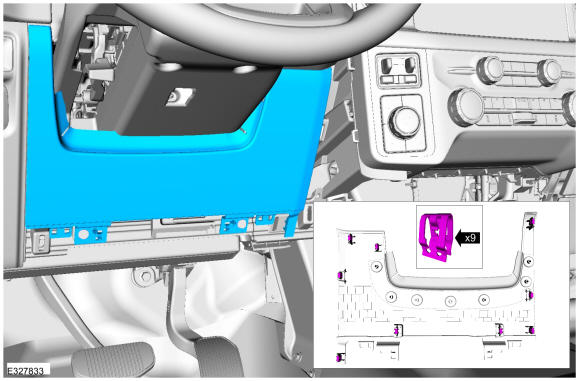

  21. Release the clips and remove the lower steering column trim panel.
    GFD562028Courtesy of FORD MOTOR COMPANY

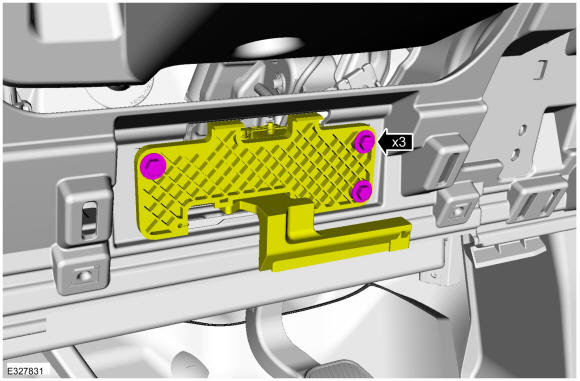

  22. Remove the bolts and position the lever assembly for access.
    GFD562029Courtesy of FORD MOTOR COMPANY

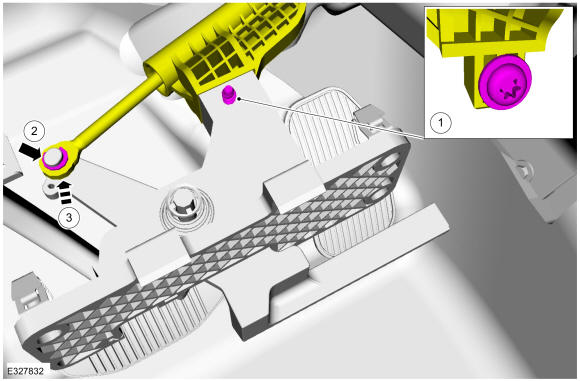

    1. Remove the screw.
    2. Remove the clip.
    3. Remove the cable from the lever and position aside.
    GFD562030Courtesy of FORD MOTOR COMPANY

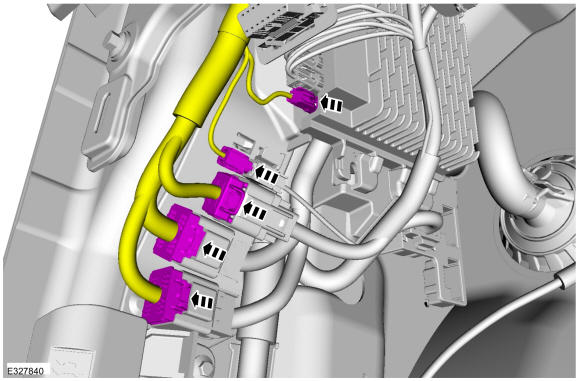

  23. Disconnect the electrical connectors.
    GFD562031Courtesy of FORD MOTOR COMPANY

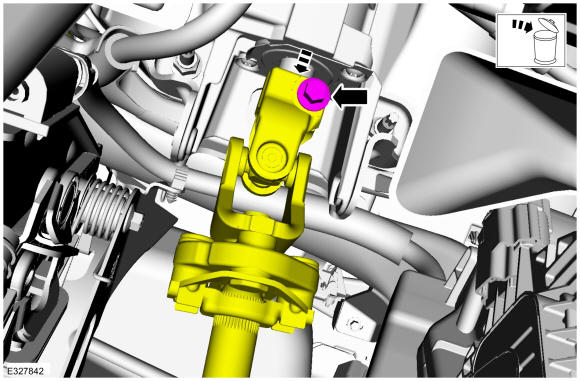

  24. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result.

    Remove and discard the bolt and disconnect the upper steering column shaft.

    Torque

    : 22 lb.ft (30 Nm)

    GFD562032Courtesy of FORD MOTOR COMPANY

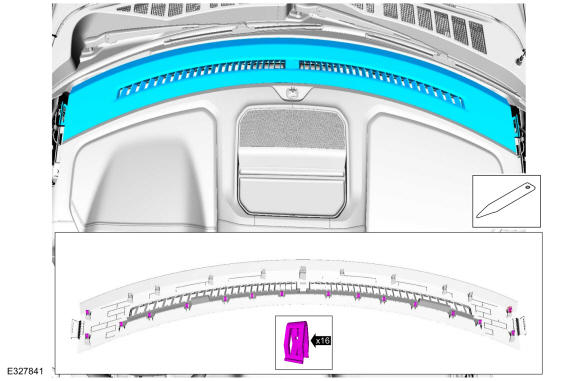

  25. Release the clips and remove the defrost grille trim panel.
    GFD562033Courtesy of FORD MOTOR COMPANY

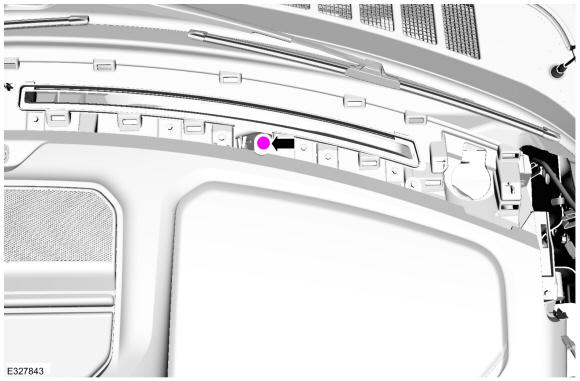

  26. Remove the bolt.

    Torque

    : 22 lb.ft (30 Nm)

    GFD562034Courtesy of FORD MOTOR COMPANY

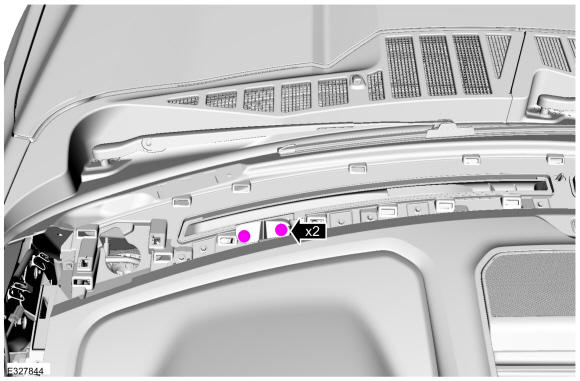

  27. Remove the bolts.

    Torque

    : 22 lb.ft (30 Nm)

    GFD562035Courtesy of FORD MOTOR COMPANY

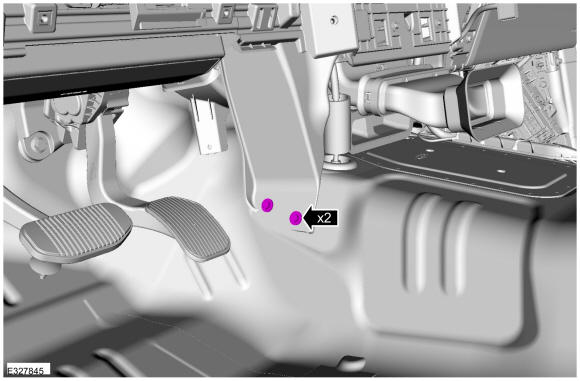

  28. Remove the bolts.

    Torque

    : 80 lb.in (9 Nm)

    GFD562036Courtesy of FORD MOTOR COMPANY

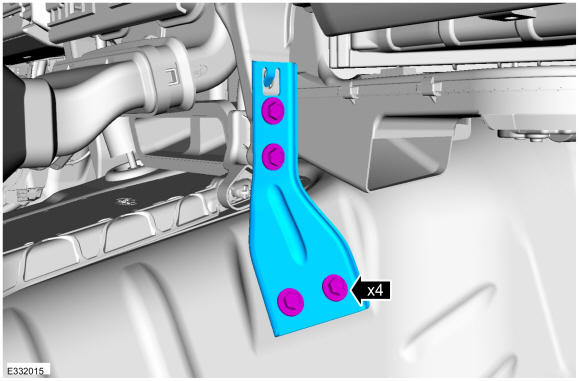

  29. Remove the bolts and the RH center support brace.

    Torque

    : 80 lb.in (9 Nm)

    GFD562037Courtesy of FORD MOTOR COMPANY

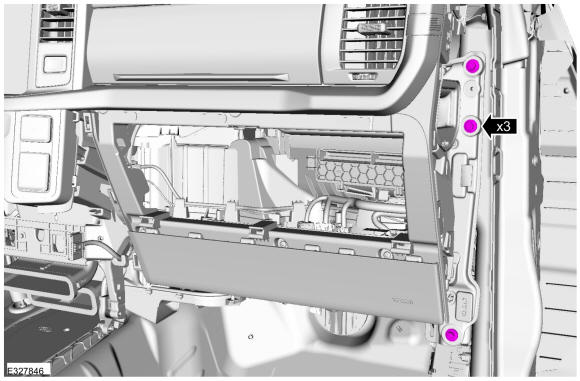

  30. Remove the bolts.

    Torque

    : 22 lb.ft (30 Nm)

    GFD562038Courtesy of FORD MOTOR COMPANY

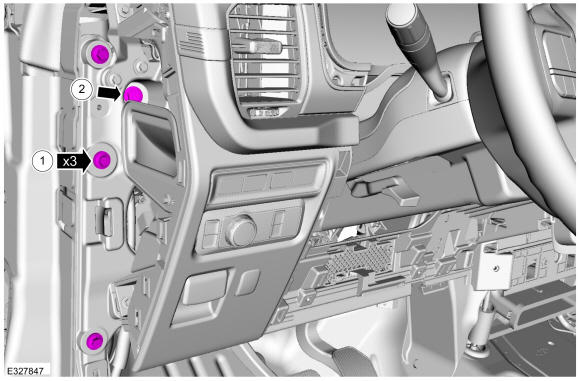

    1. Remove the bolts.

      Torque

      : 22 lb.ft (30 Nm)

    2. NOTE: Do not fully remove this bolt until ready to remove the instrument panel.

      Remove the bolt.

      Torque

      : 22 lb.ft (30 Nm)

    GFD562039Courtesy of FORD MOTOR COMPANY

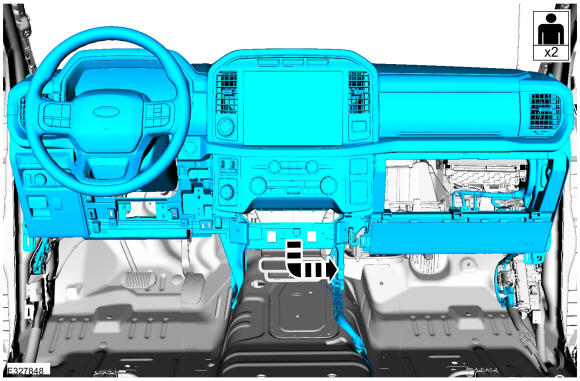

  31. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Rotate the instrument panel as required and remove through the RH front door opening.

GFD562040Courtesy of FORD MOTOR COMPANY
