Windshield Wiper Pivot Arm: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

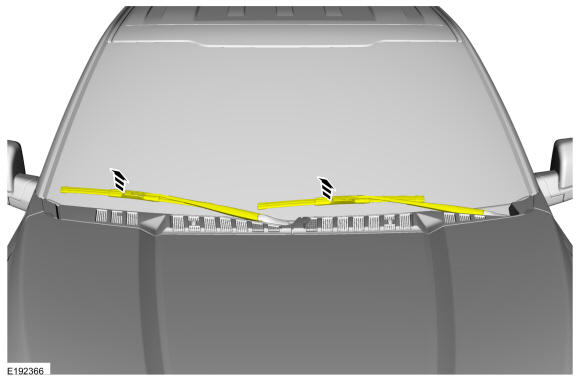

Raise the windshield wiper pivot arms into the SERVICE-UP position.

Courtesy of FORD MOTOR COMPANY
NOTE: During installation, it is necessary to fully release the windshield wiper pivot arm latch and hold while installing the pivot arm onto the wiper linkage assembly.

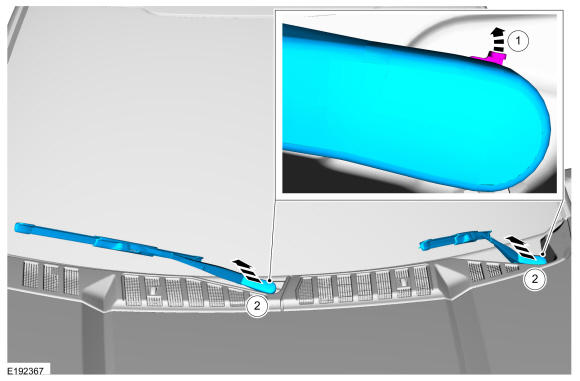

1. Release the windshield wiper pivot arm latch.
2. Remove the windshield wiper pivot arm.

Courtesy of FORD MOTOR COMPANY
