Charging System

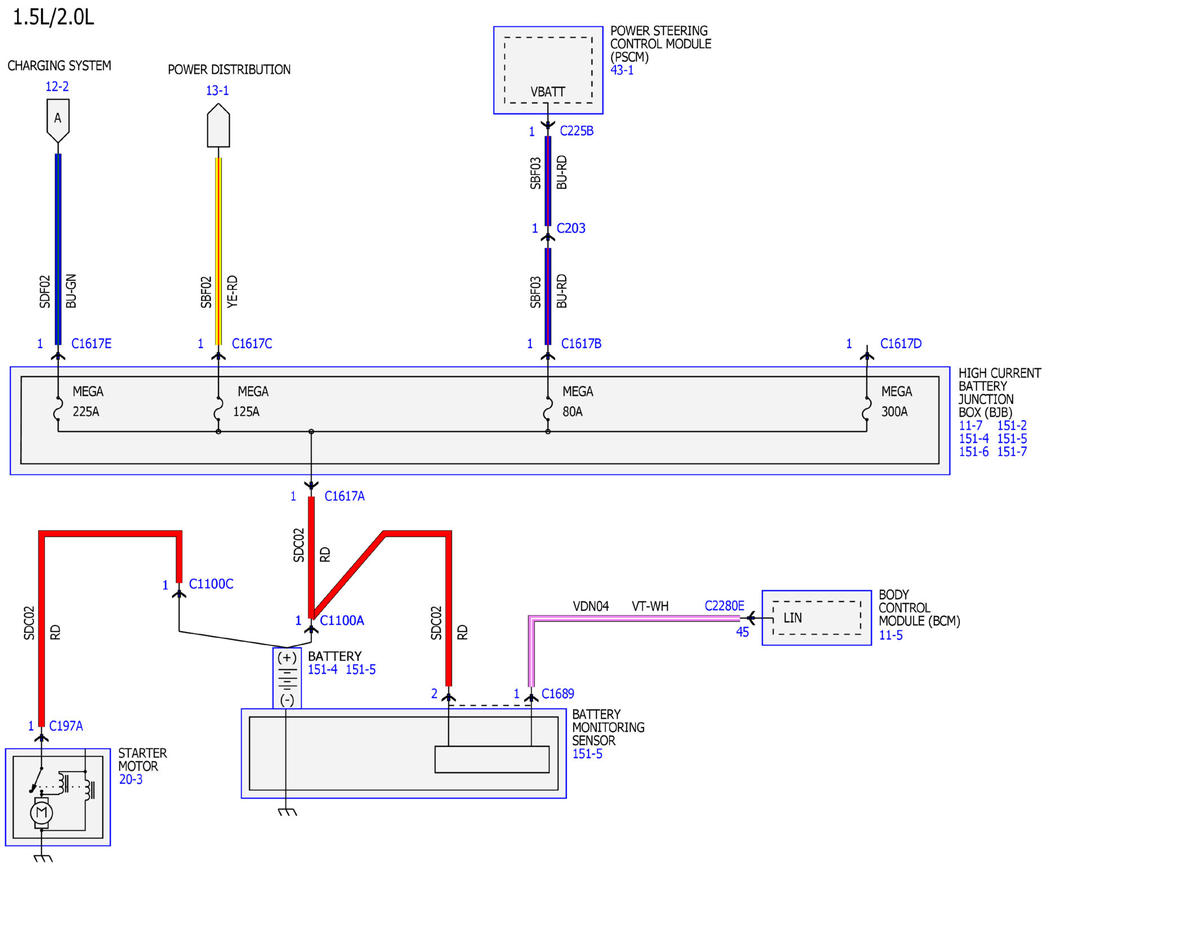

Fig 1: Charging System Wiring Diagram (1 Of 8)

GFDWR137154

Courtesy of FORD MOTOR COMPANY

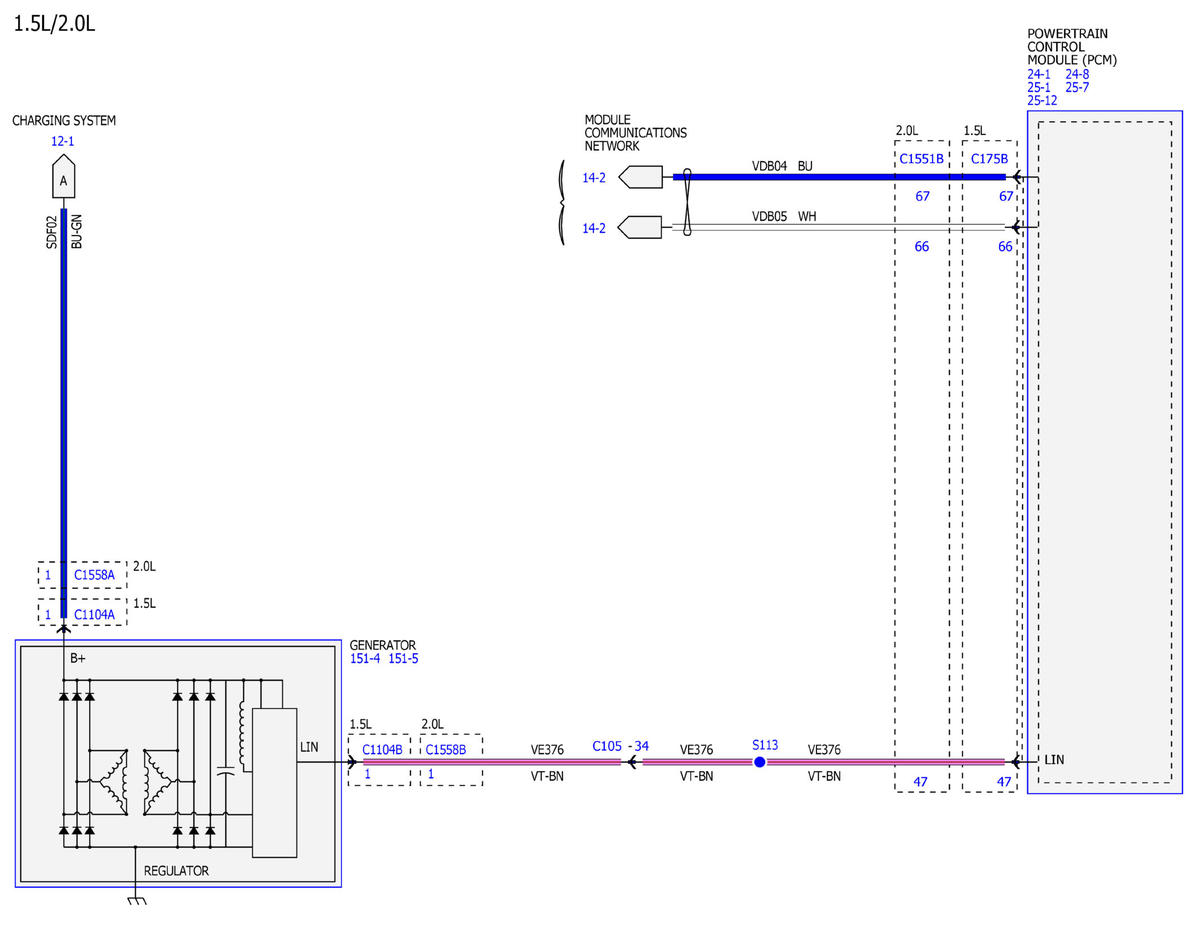

Fig 2: Charging System Wiring Diagram (2 Of 8)

GFDWR137155

Courtesy of FORD MOTOR COMPANY

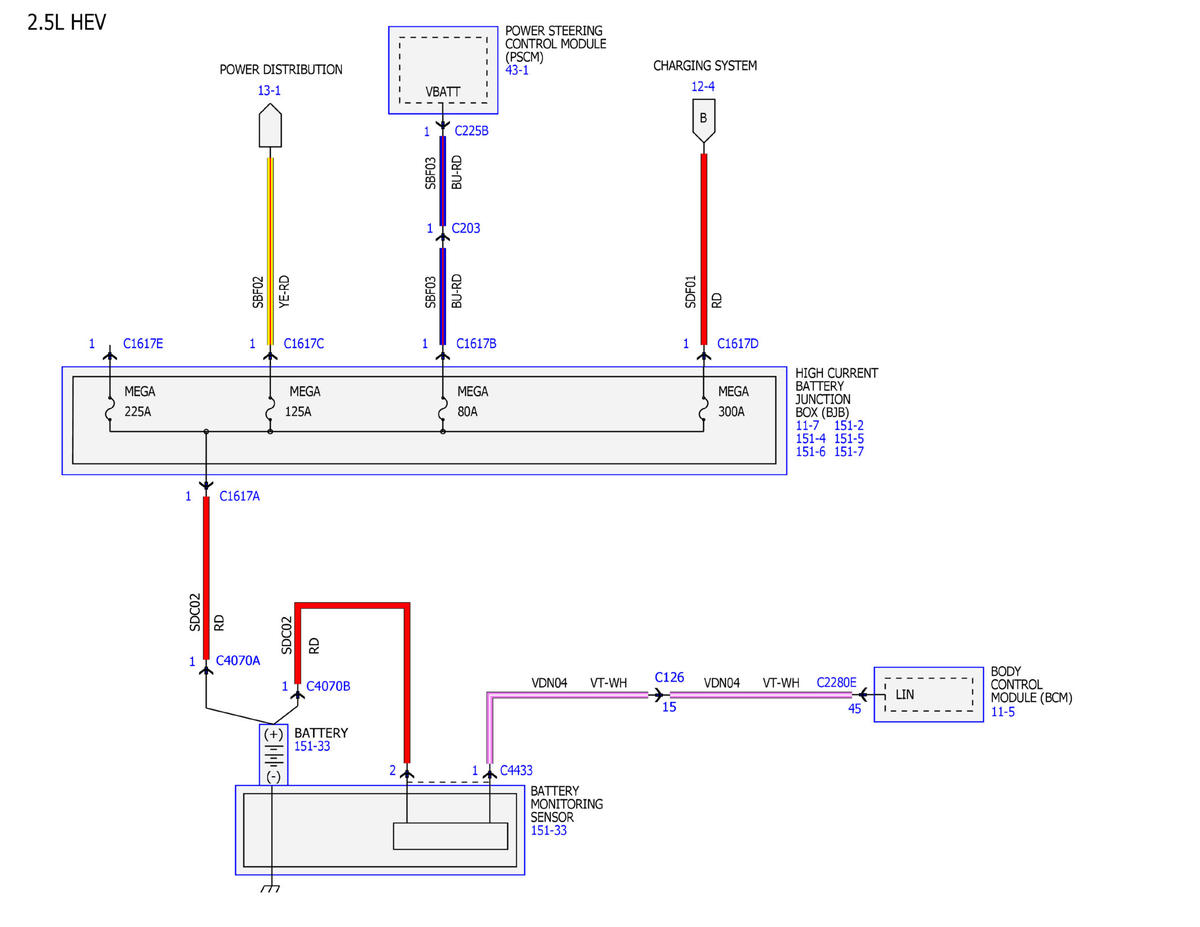

Fig 3: Charging System Wiring Diagram (3 Of 8)

GFDWR137156

Courtesy of FORD MOTOR COMPANY

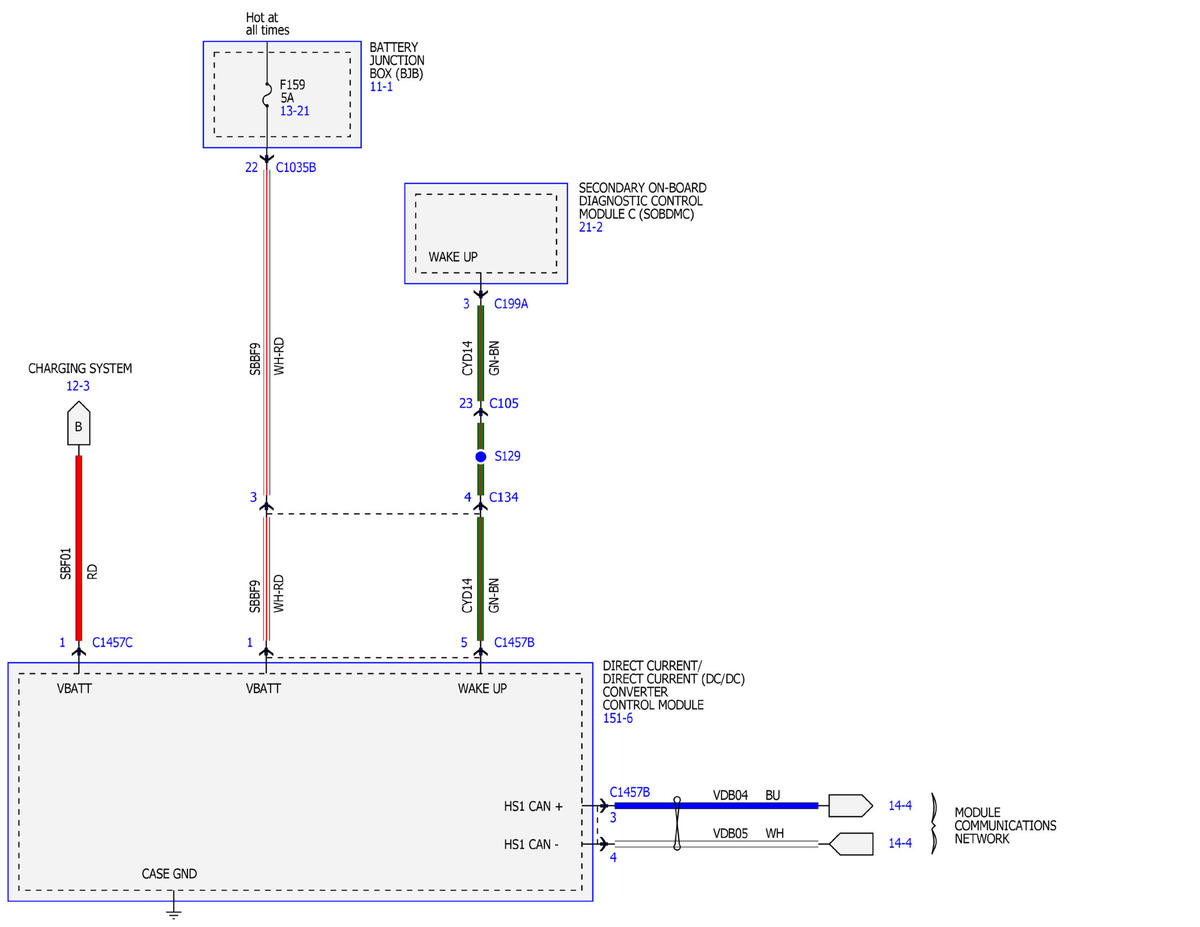

Fig 4: Charging System Wiring Diagram (4 Of 8)

GFDWR137157

Courtesy of FORD MOTOR COMPANY

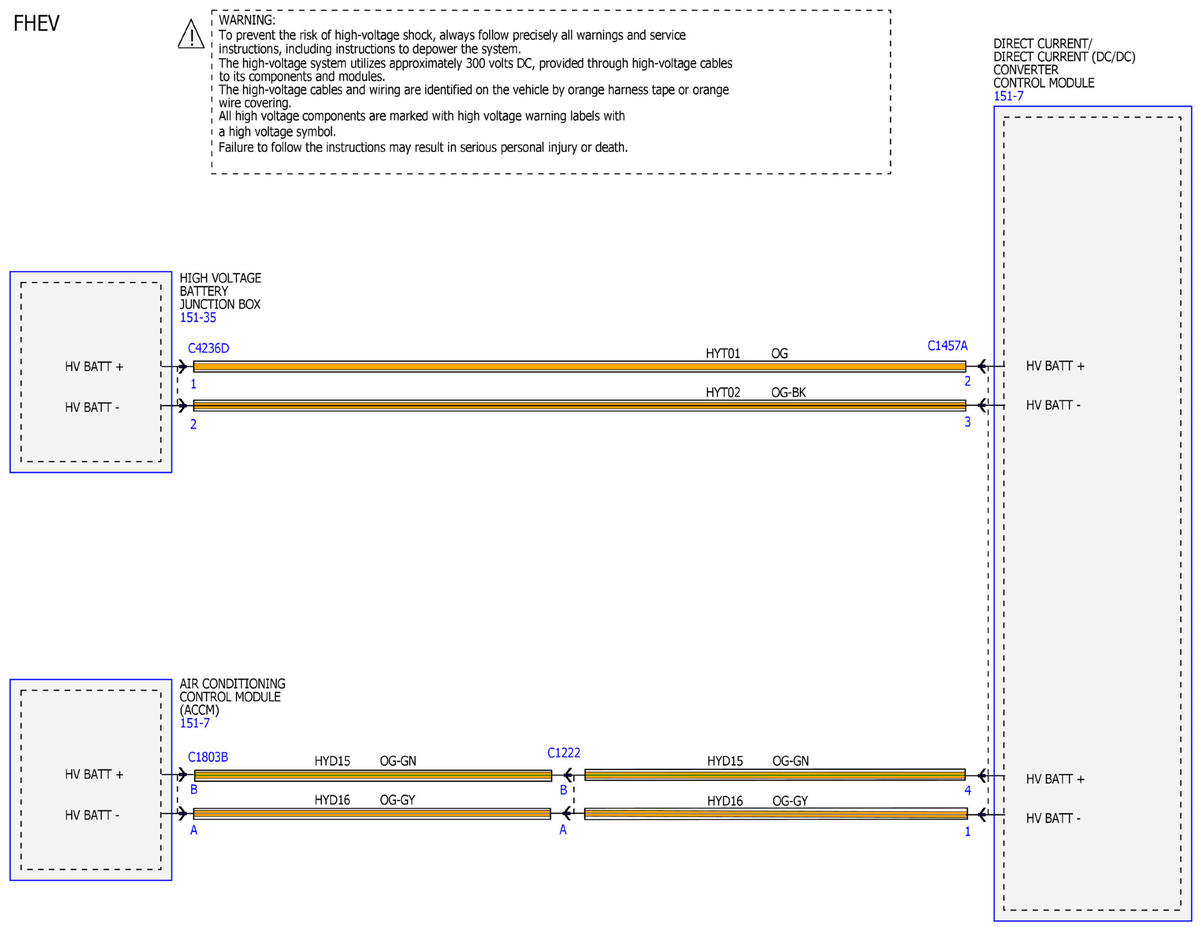

Fig 5: Charging System Wiring Diagram (5 Of 8)

GFDWR137158

Courtesy of FORD MOTOR COMPANY

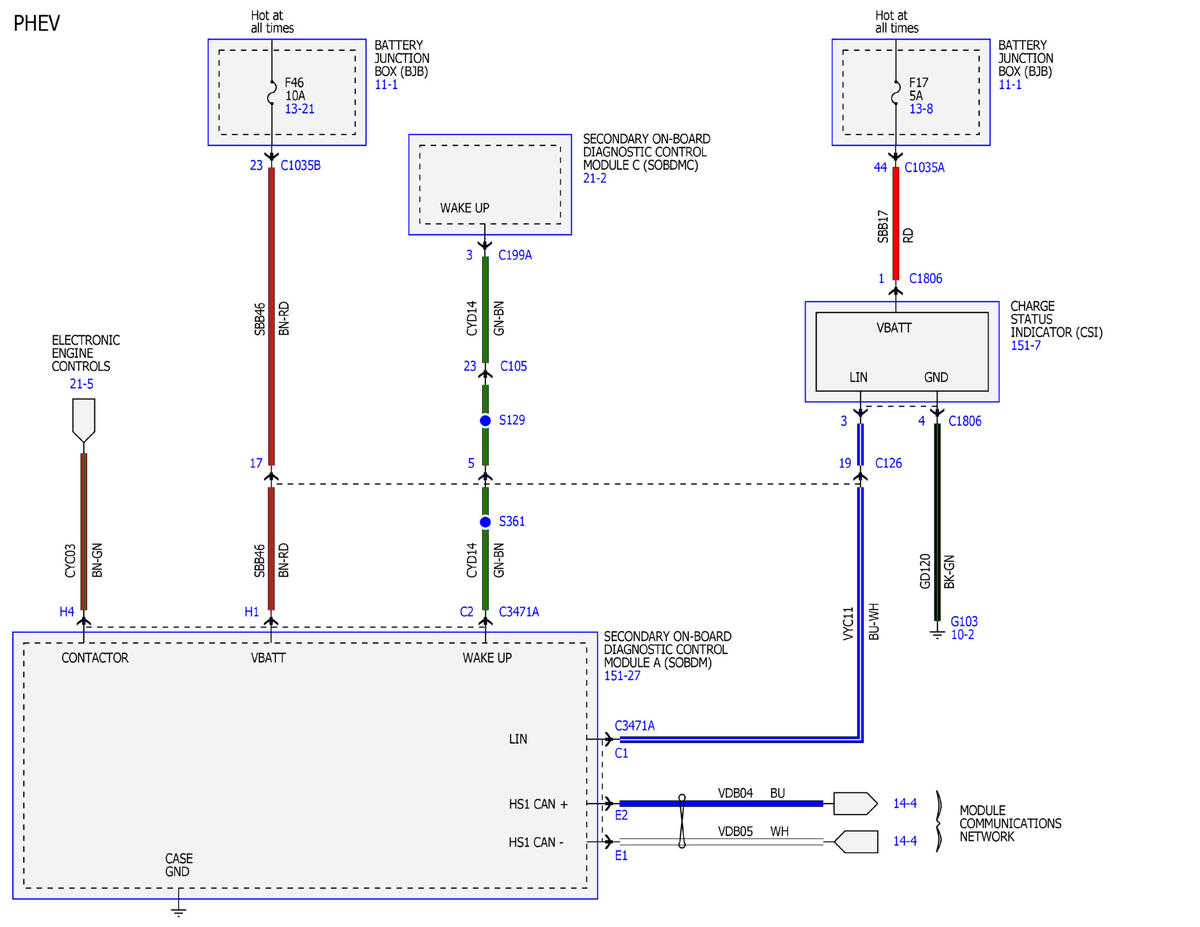

Fig 6: Charging System Wiring Diagram (6 Of 8)

GFDWR137159

Courtesy of FORD MOTOR COMPANY

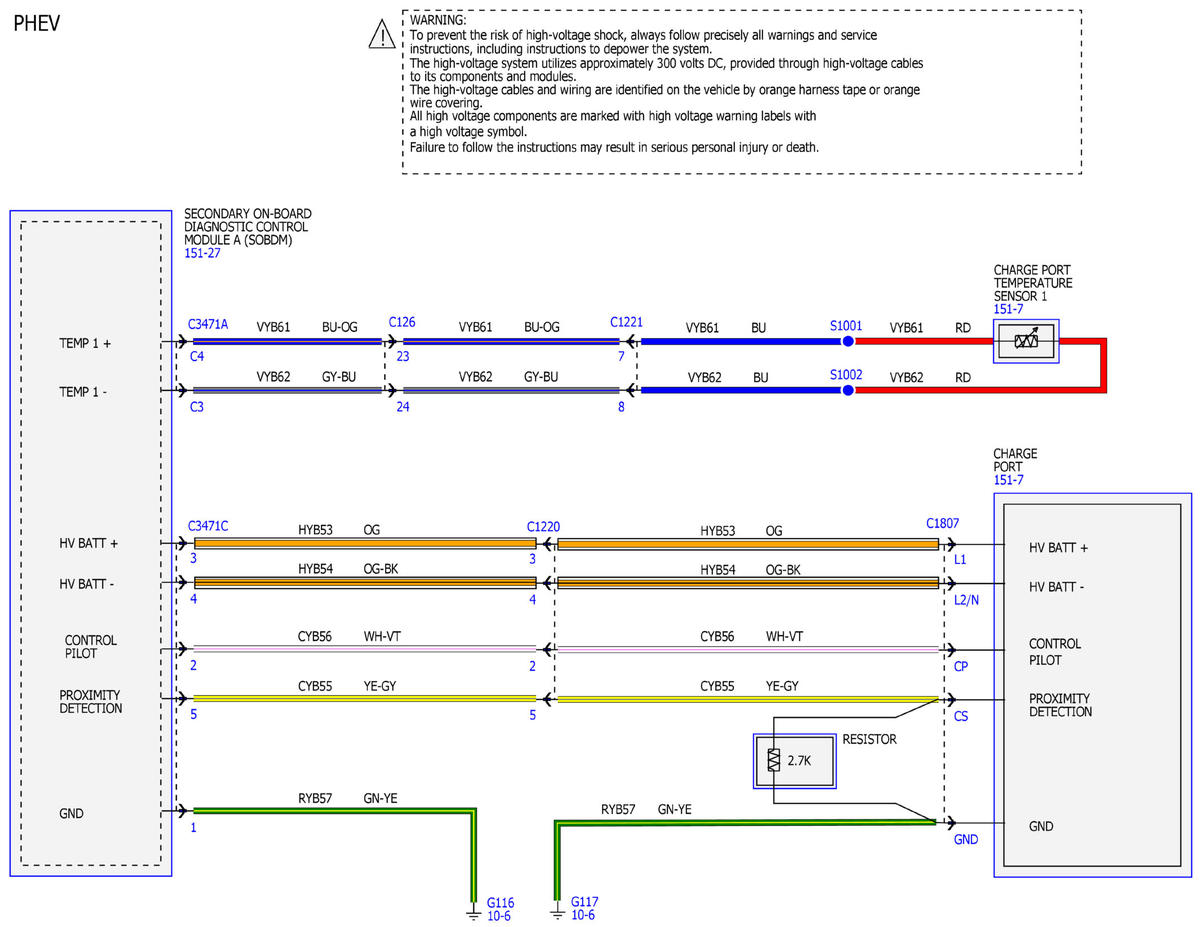

Fig 7: Charging System Wiring Diagram (7 Of 8)

GFDWR137160

Courtesy of FORD MOTOR COMPANY

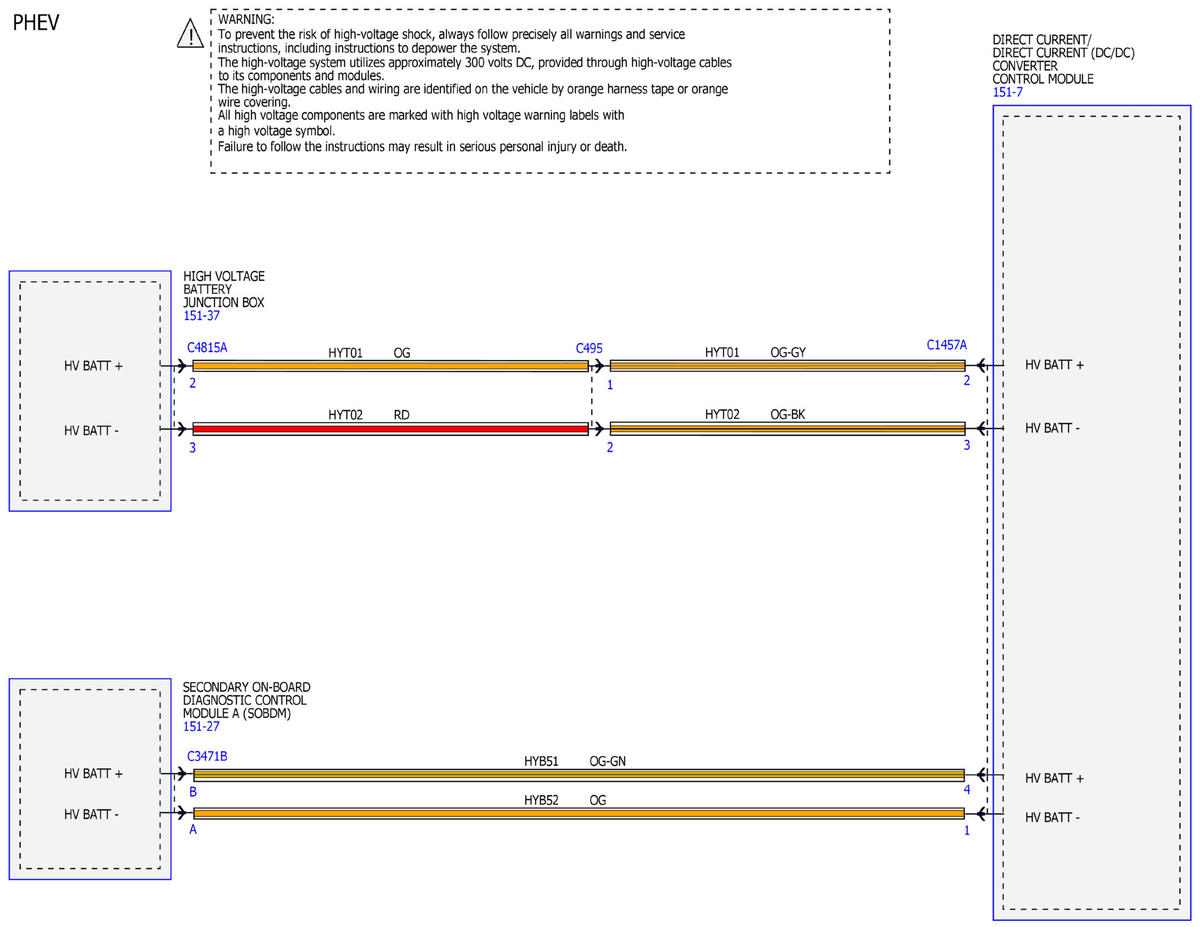

Fig 8: Charging System Wiring Diagram (8 Of 8)

GFDWR137161

Courtesy of FORD MOTOR COMPANY
