Power Distribution/BCM

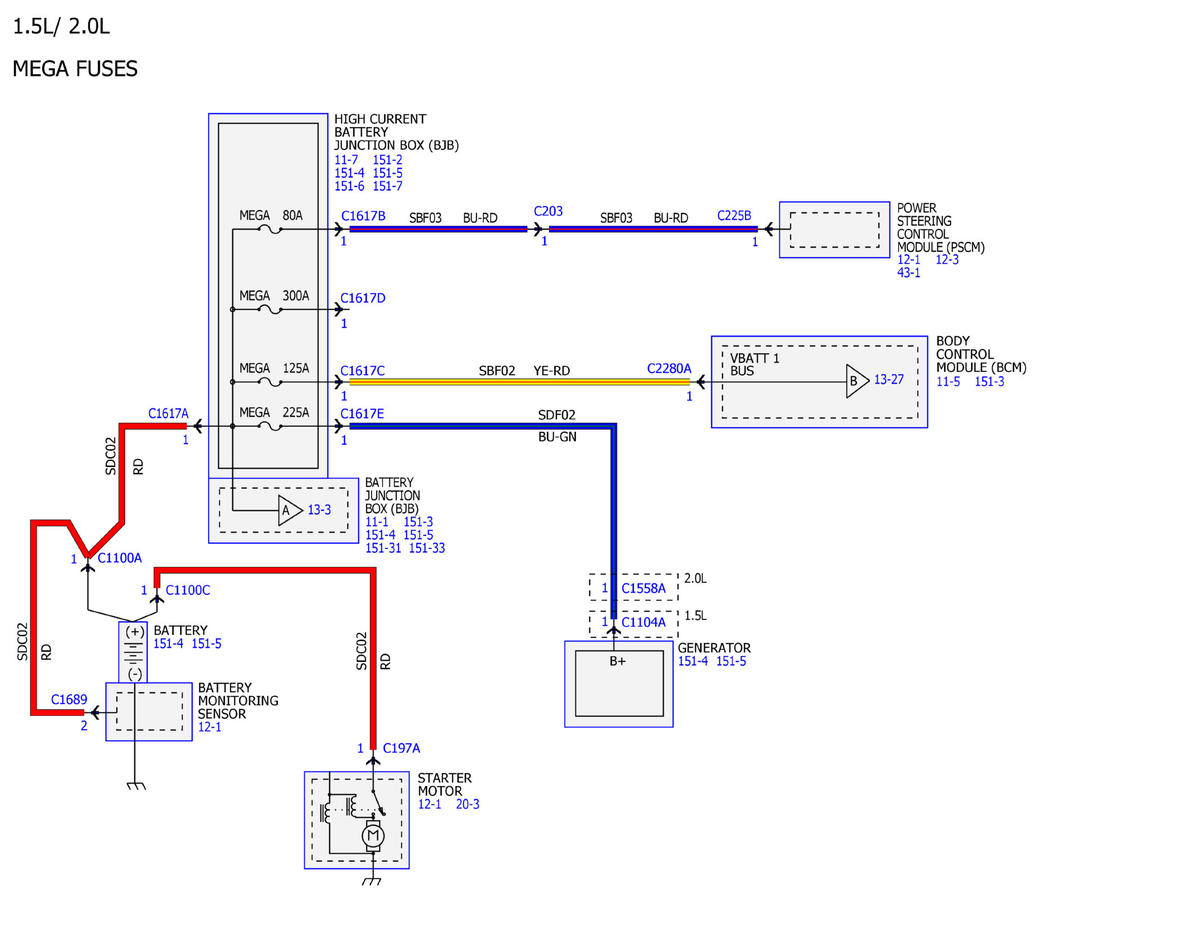

Fig 1: Power Distribution/BCM Wiring Diagram (1 Of 44)

GFDWR137292

Courtesy of FORD MOTOR COMPANY

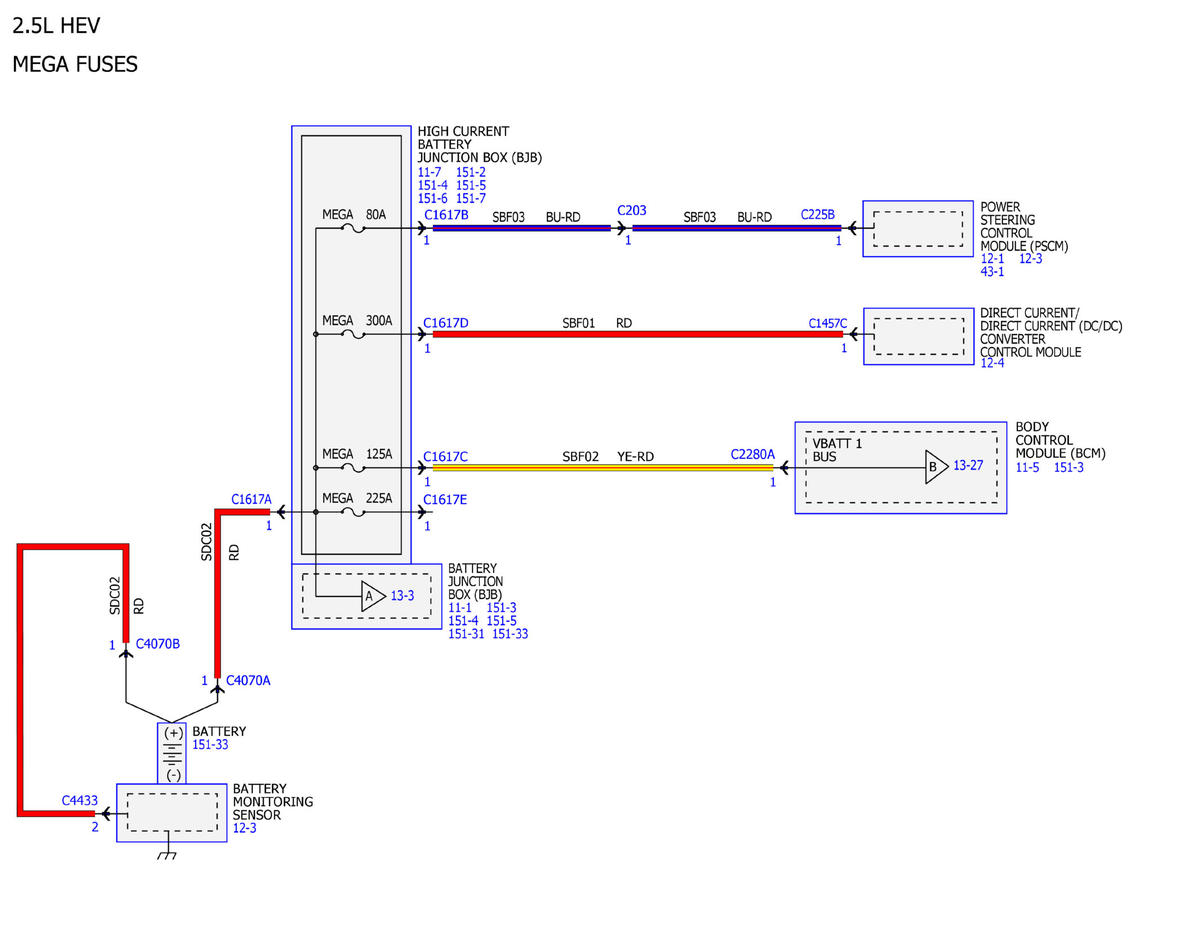

Fig 2: Power Distribution/BCM Wiring Diagram (2 Of 44)

GFDWR137303

Courtesy of FORD MOTOR COMPANY

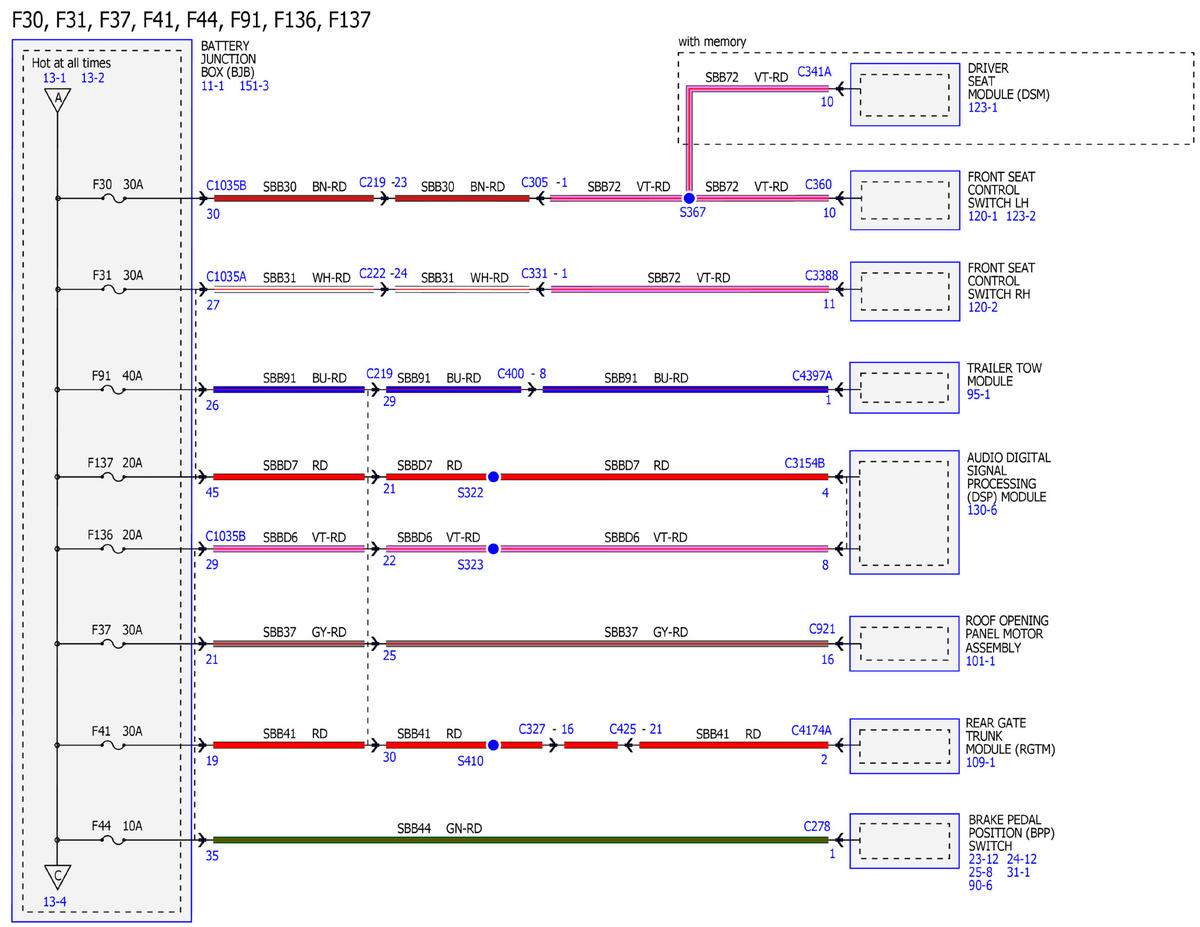

Fig 3: Power Distribution/BCM Wiring Diagram (3 Of 44)

GFDWR137314

Courtesy of FORD MOTOR COMPANY

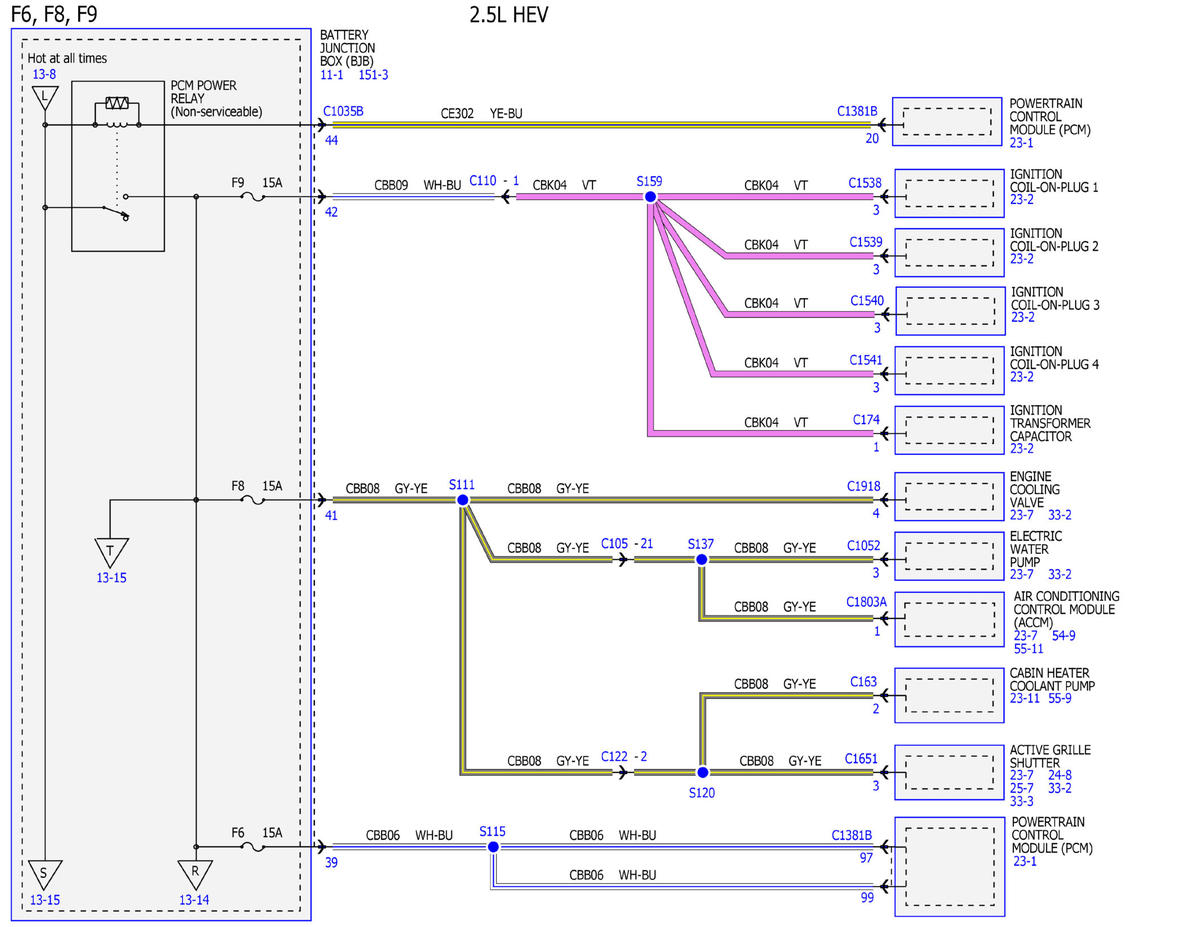

Fig 4: Power Distribution/BCM Wiring Diagram (4 Of 44)

GFDWR137325

Courtesy of FORD MOTOR COMPANY

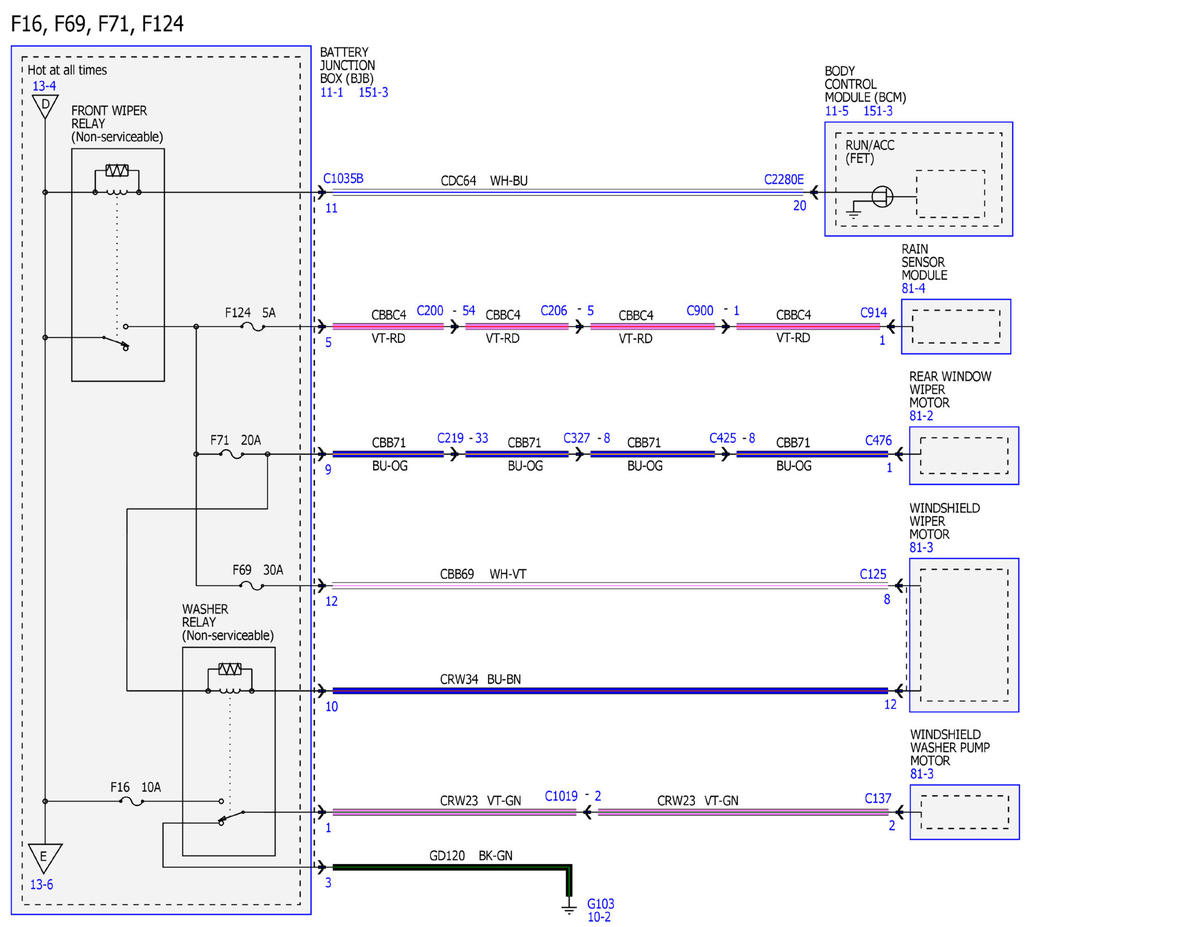

Fig 5: Power Distribution/BCM Wiring Diagram (5 Of 44)

GFDWR137331

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Distribution/BCM Wiring Diagram (6 Of 44)

GFDWR137332

Courtesy of FORD MOTOR COMPANY

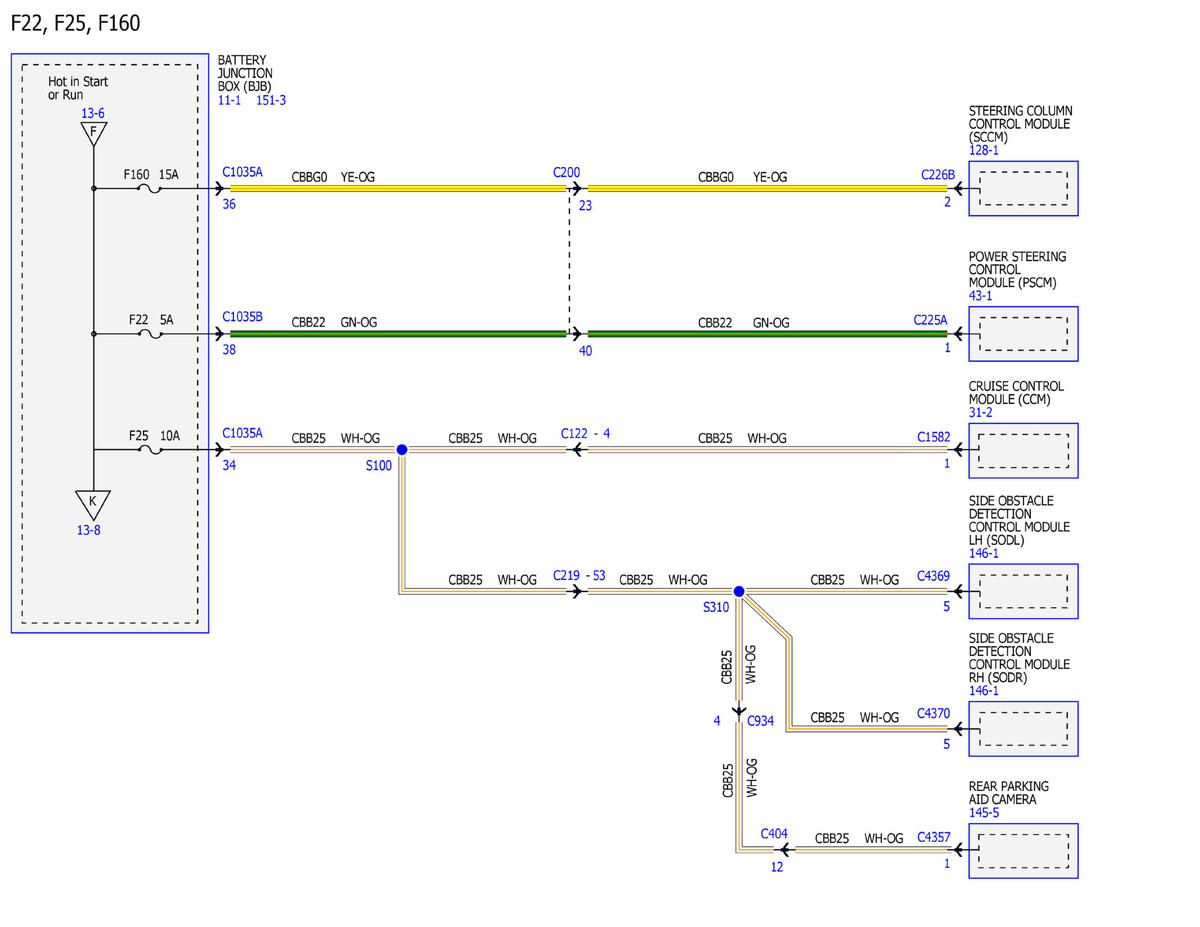

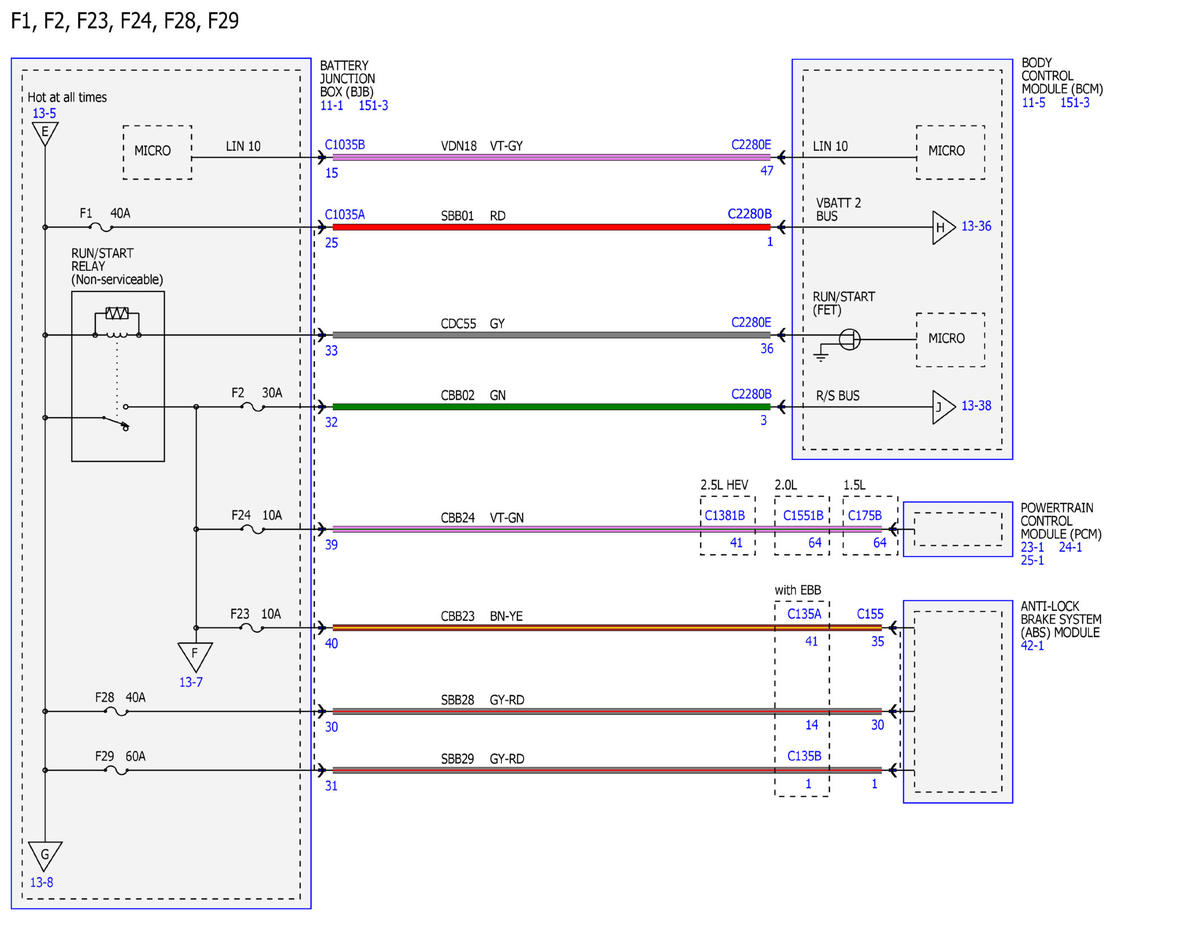

Fig 7: Power Distribution/BCM Wiring Diagram (7 Of 44)

GFDWR137333

Courtesy of FORD MOTOR COMPANY

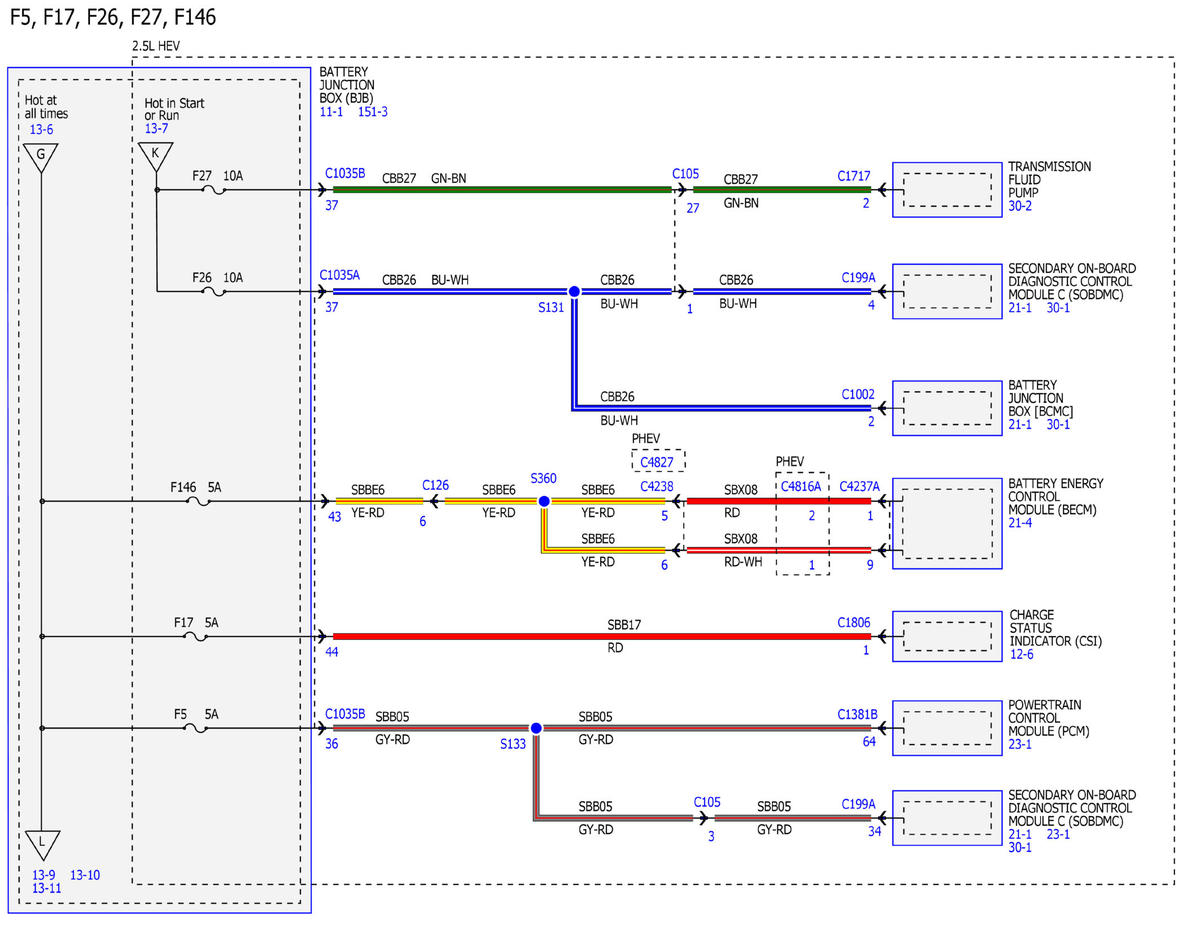

Fig 8: Power Distribution/BCM Wiring Diagram (8 Of 44)

GFDWR137334

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Distribution/BCM Wiring Diagram (9 Of 44)

GFDWR137335

Courtesy of FORD MOTOR COMPANY

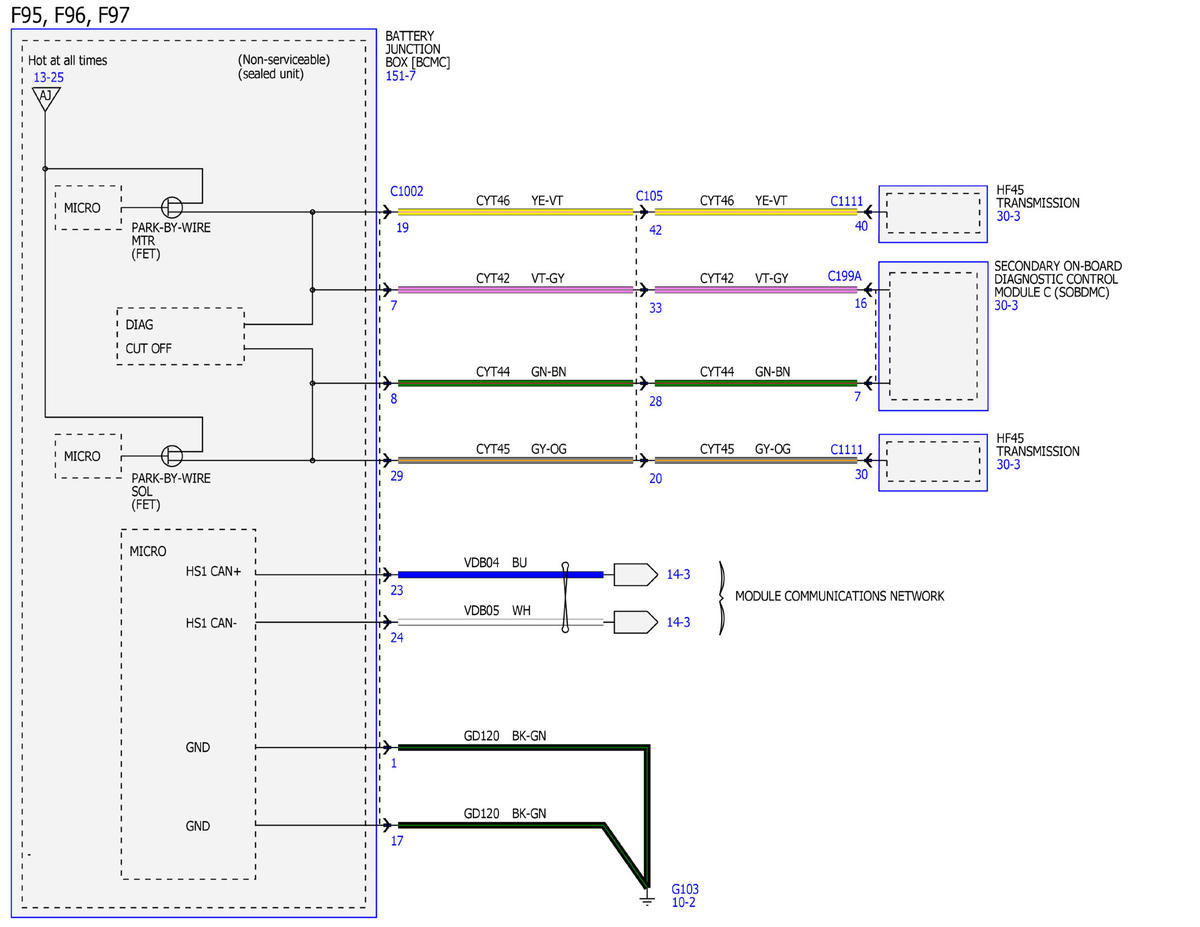

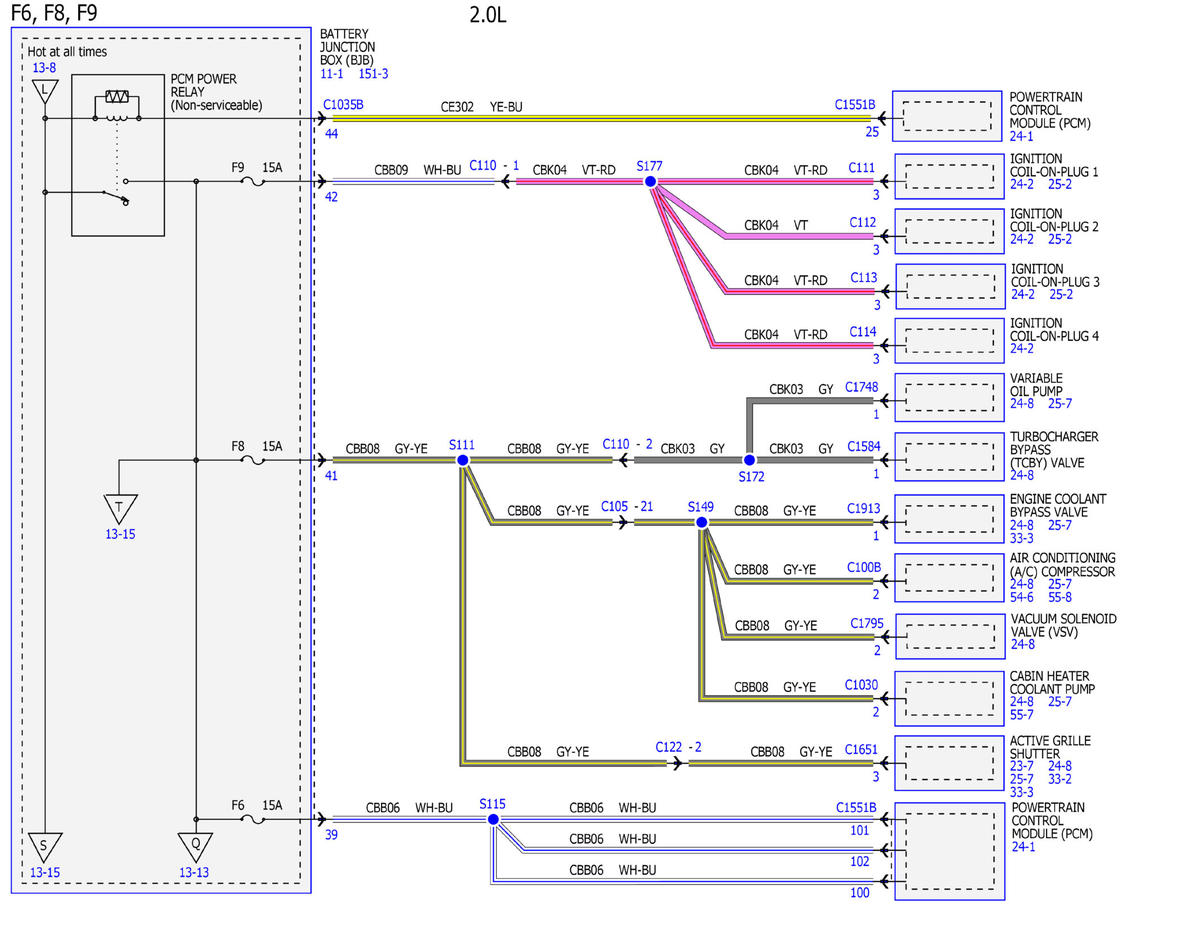

Fig 10: Power Distribution/BCM Wiring Diagram (10 Of 44)

GFDWR137293

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Distribution/BCM Wiring Diagram (11 Of 44)

GFDWR137294

Courtesy of FORD MOTOR COMPANY

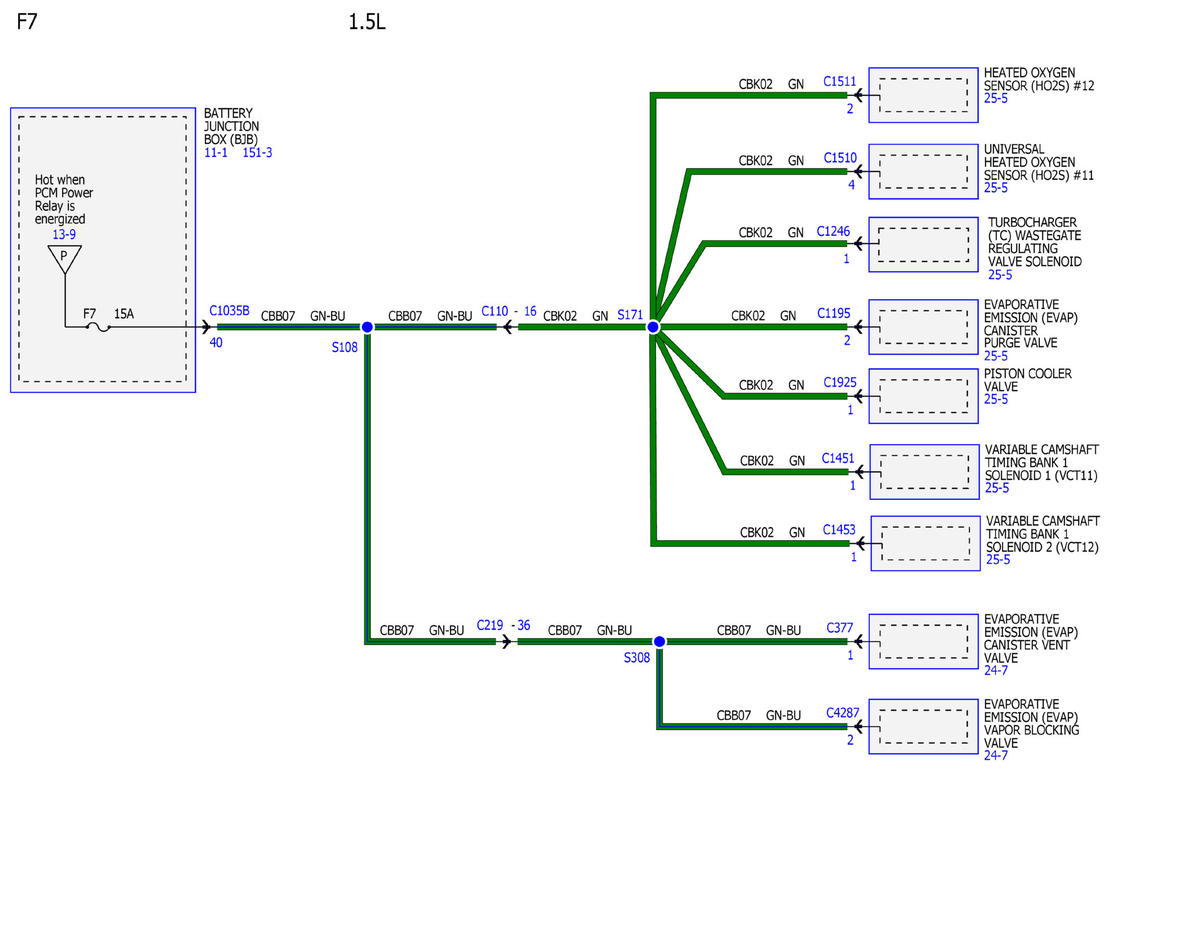

Fig 12: Power Distribution/BCM Wiring Diagram (12 Of 44)

GFDWR137295

Courtesy of FORD MOTOR COMPANY

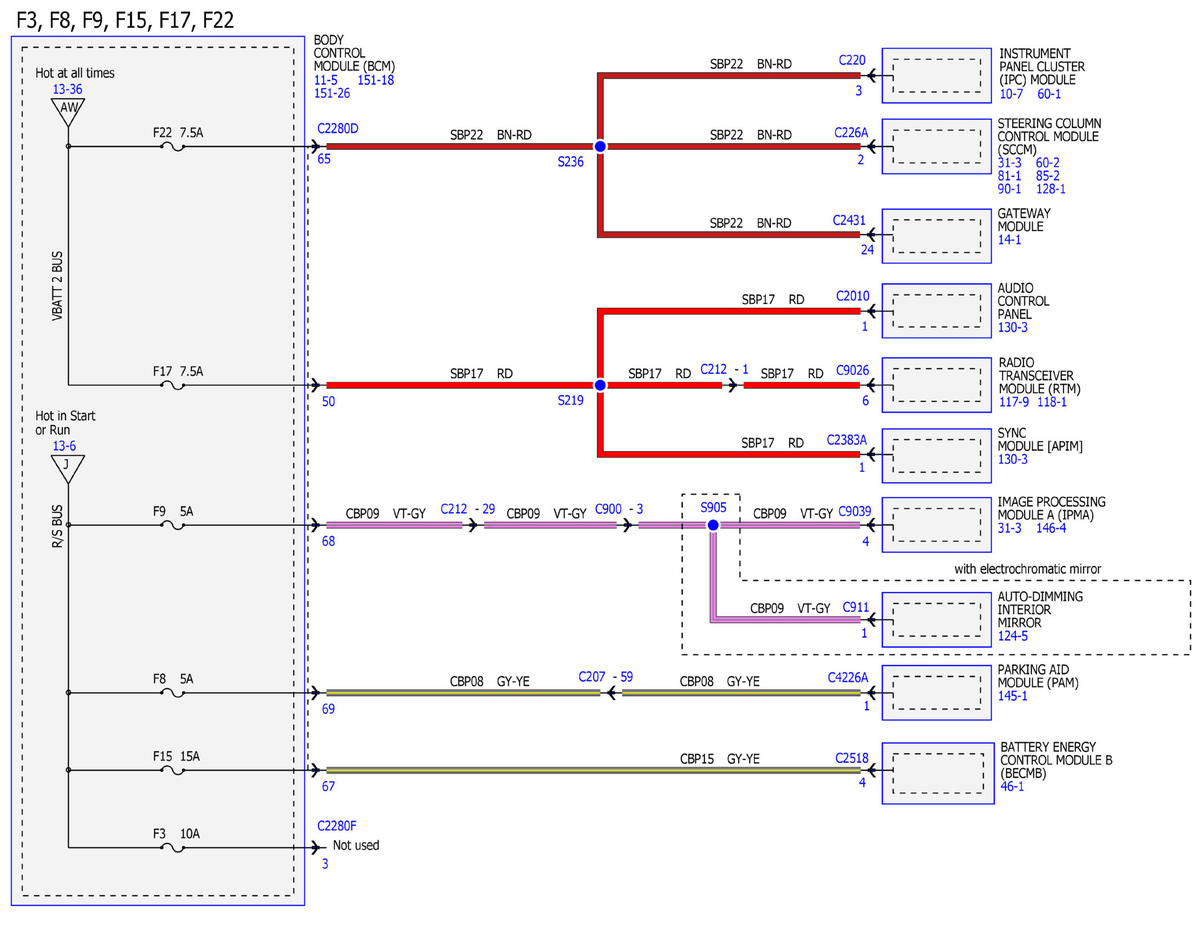

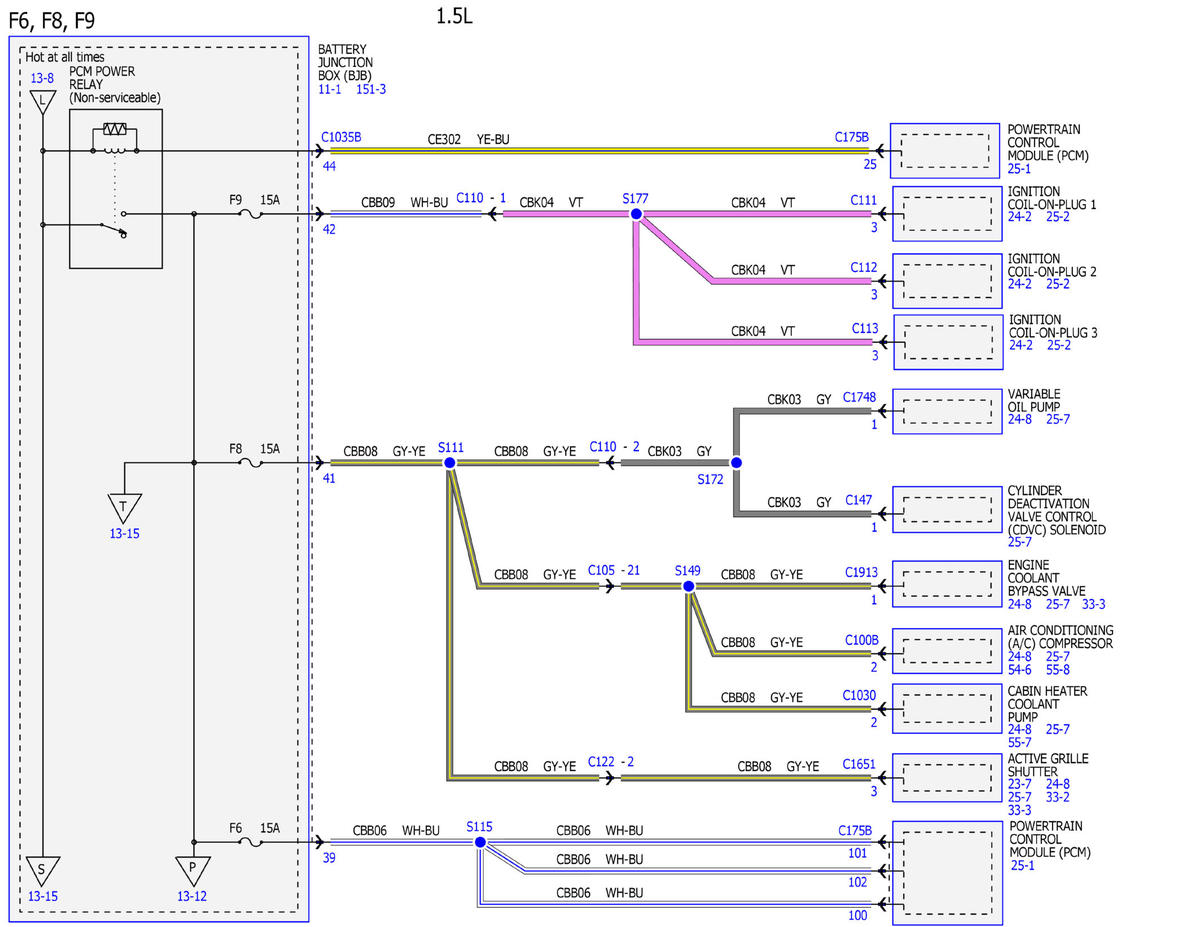

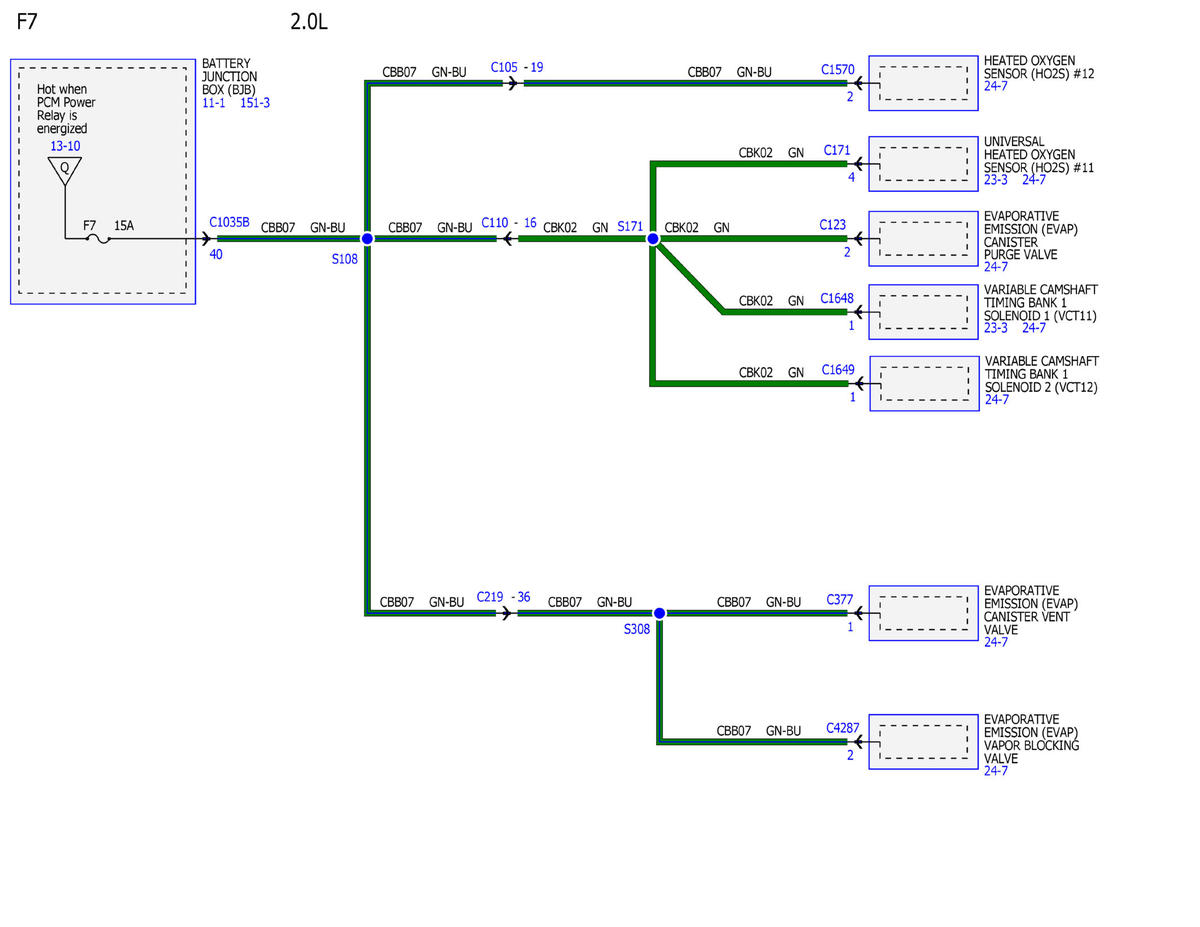

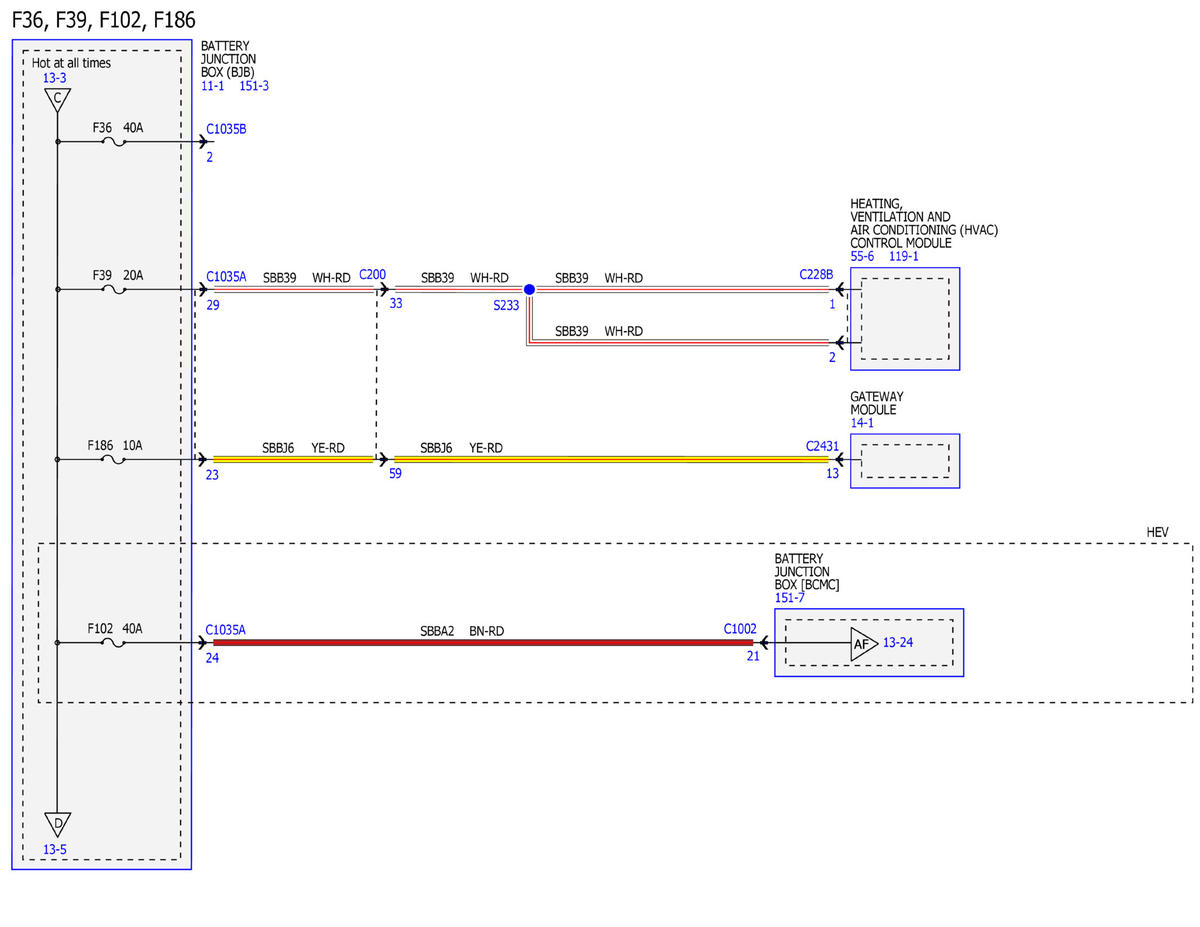

Fig 13: Power Distribution/BCM Wiring Diagram (13 Of 44)

GFDWR137296

Courtesy of FORD MOTOR COMPANY

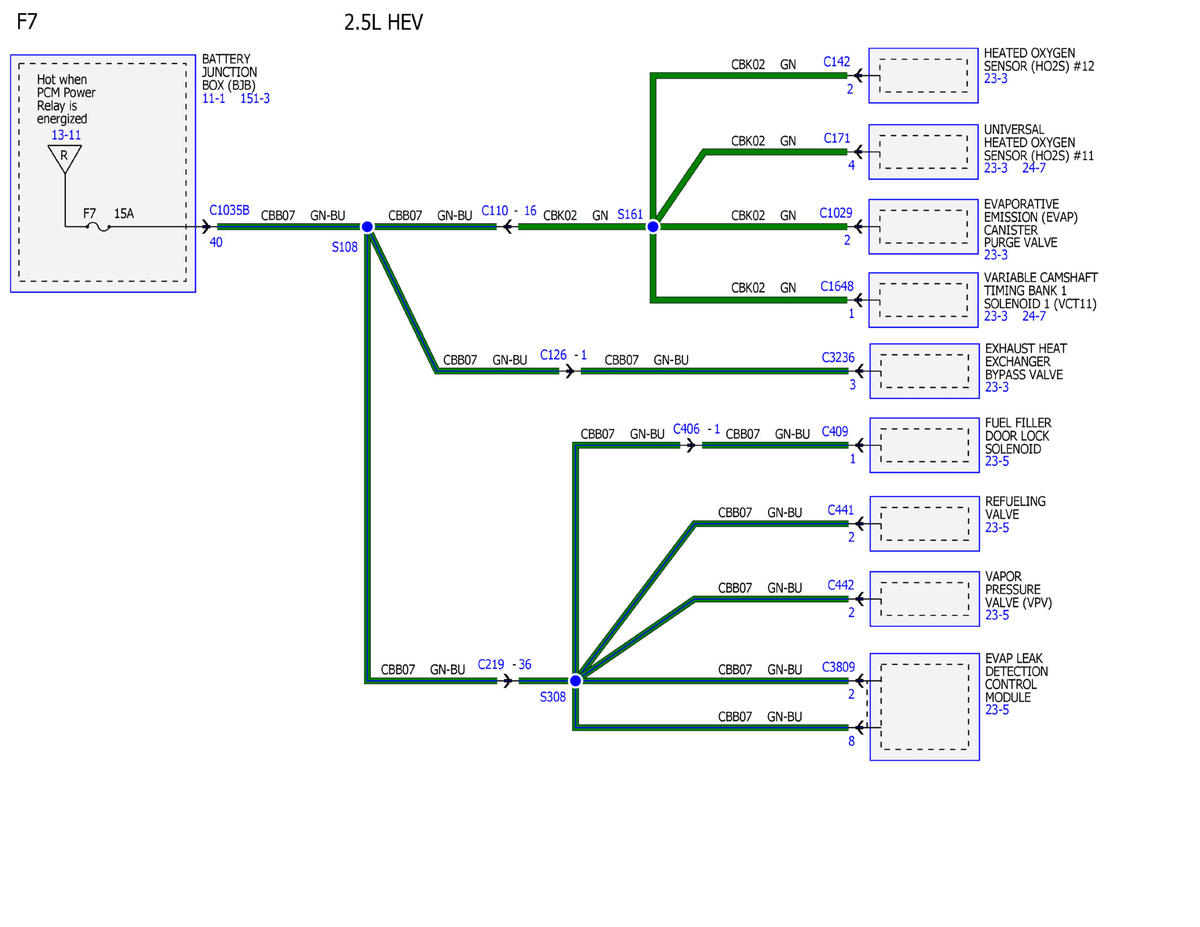

Fig 14: Power Distribution/BCM Wiring Diagram (14 Of 44)

GFDWR137297

Courtesy of FORD MOTOR COMPANY

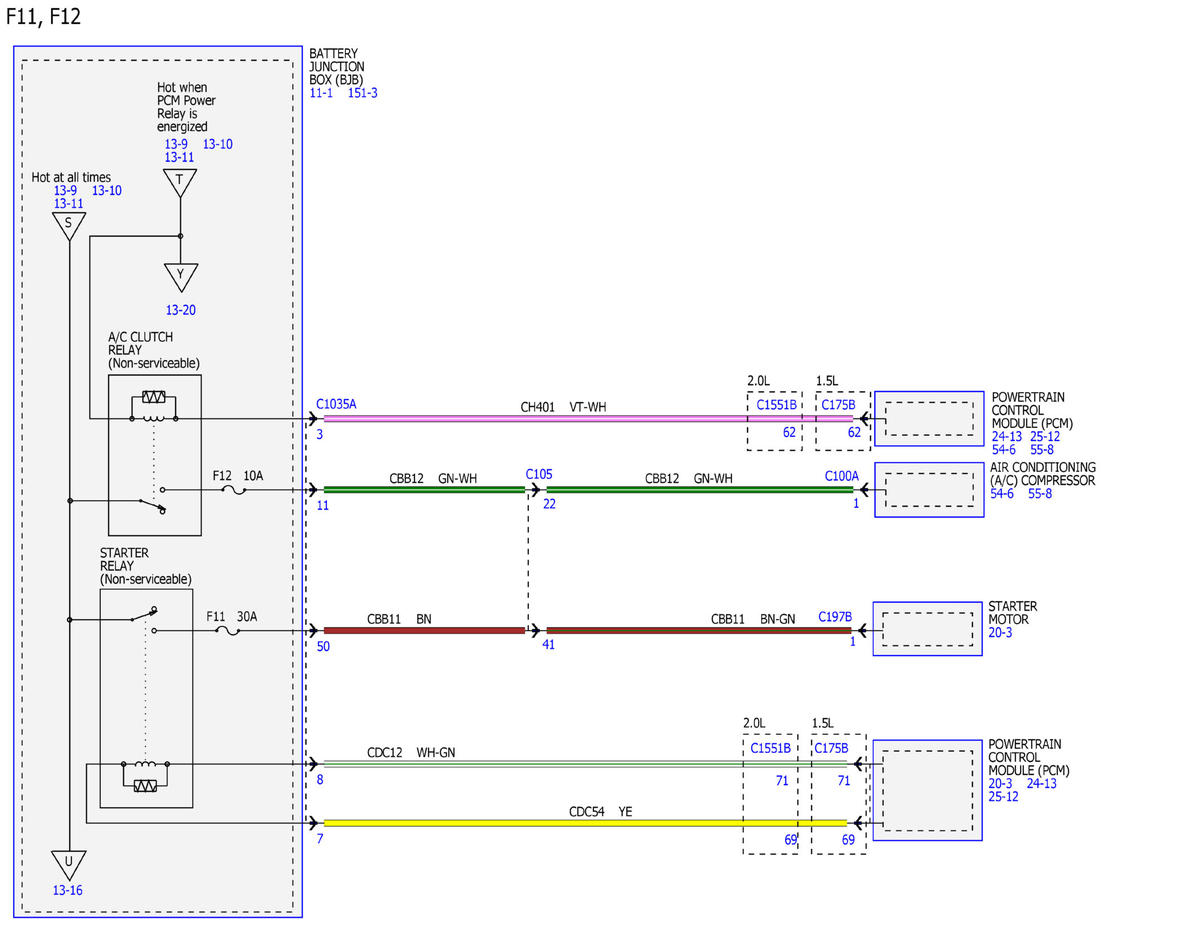

Fig 15: Power Distribution/BCM Wiring Diagram (15 Of 44)

GFDWR137298

Courtesy of FORD MOTOR COMPANY

Fig 16: Power Distribution/BCM Wiring Diagram (16 Of 44)

GFDWR137299

Courtesy of FORD MOTOR COMPANY

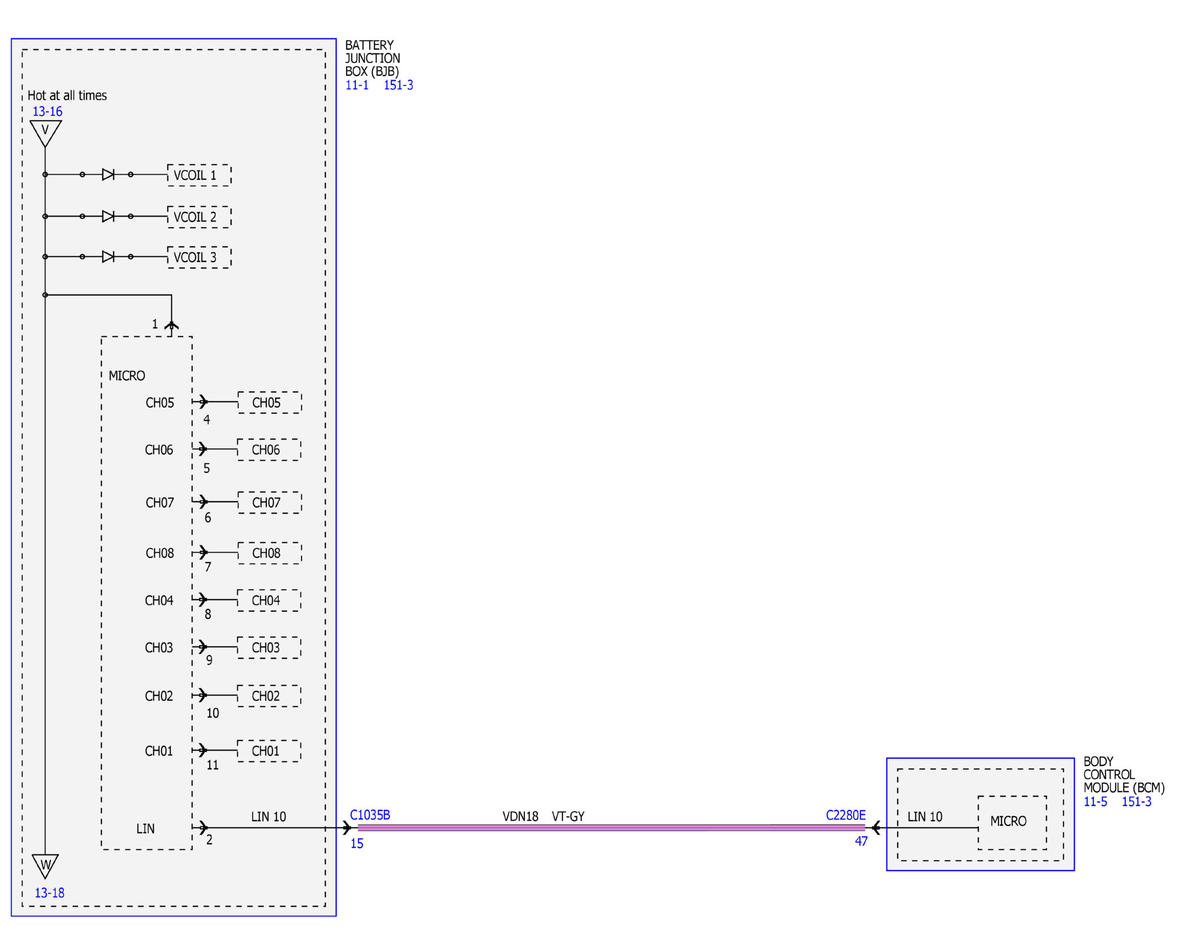

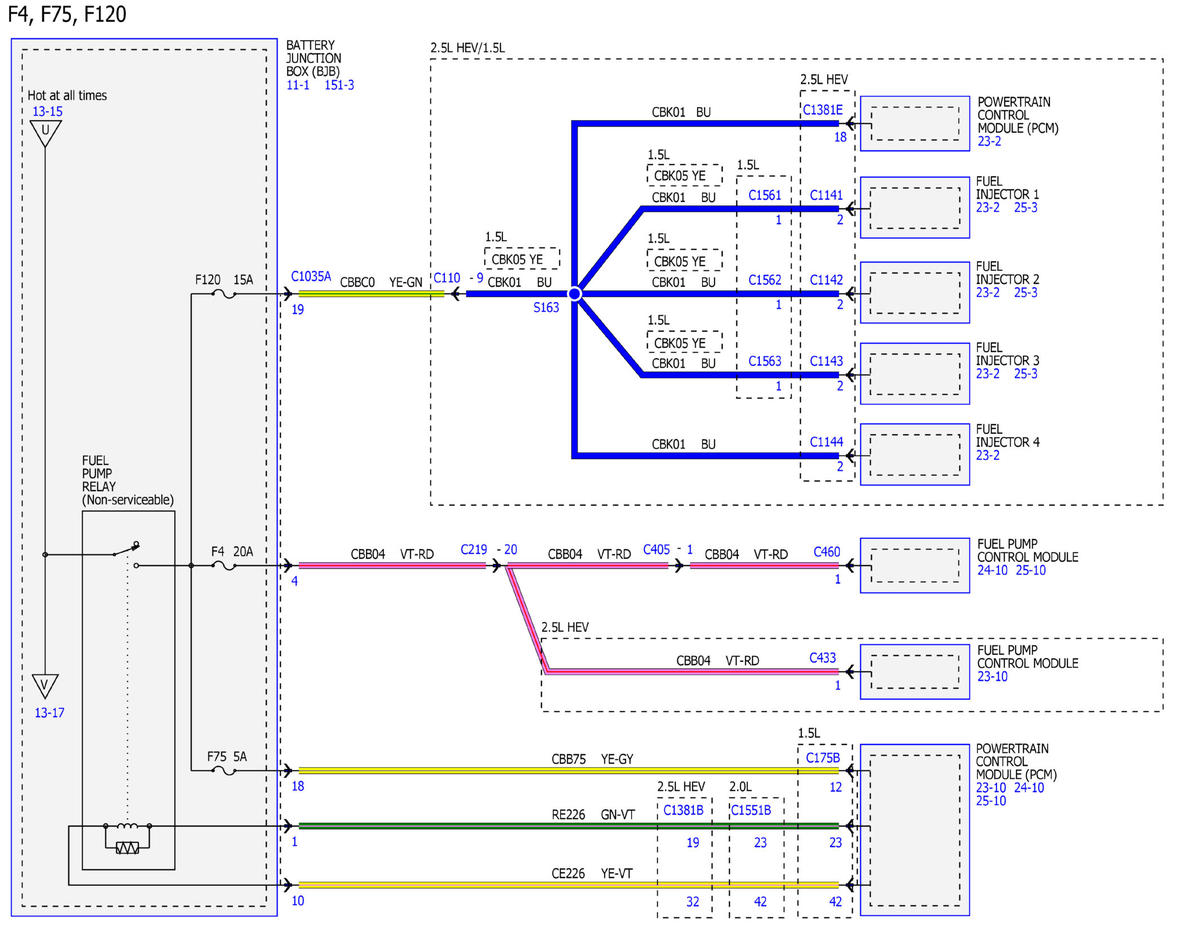

Fig 17: Power Distribution/BCM Wiring Diagram (17 Of 44)

GFDWR137300

Courtesy of FORD MOTOR COMPANY

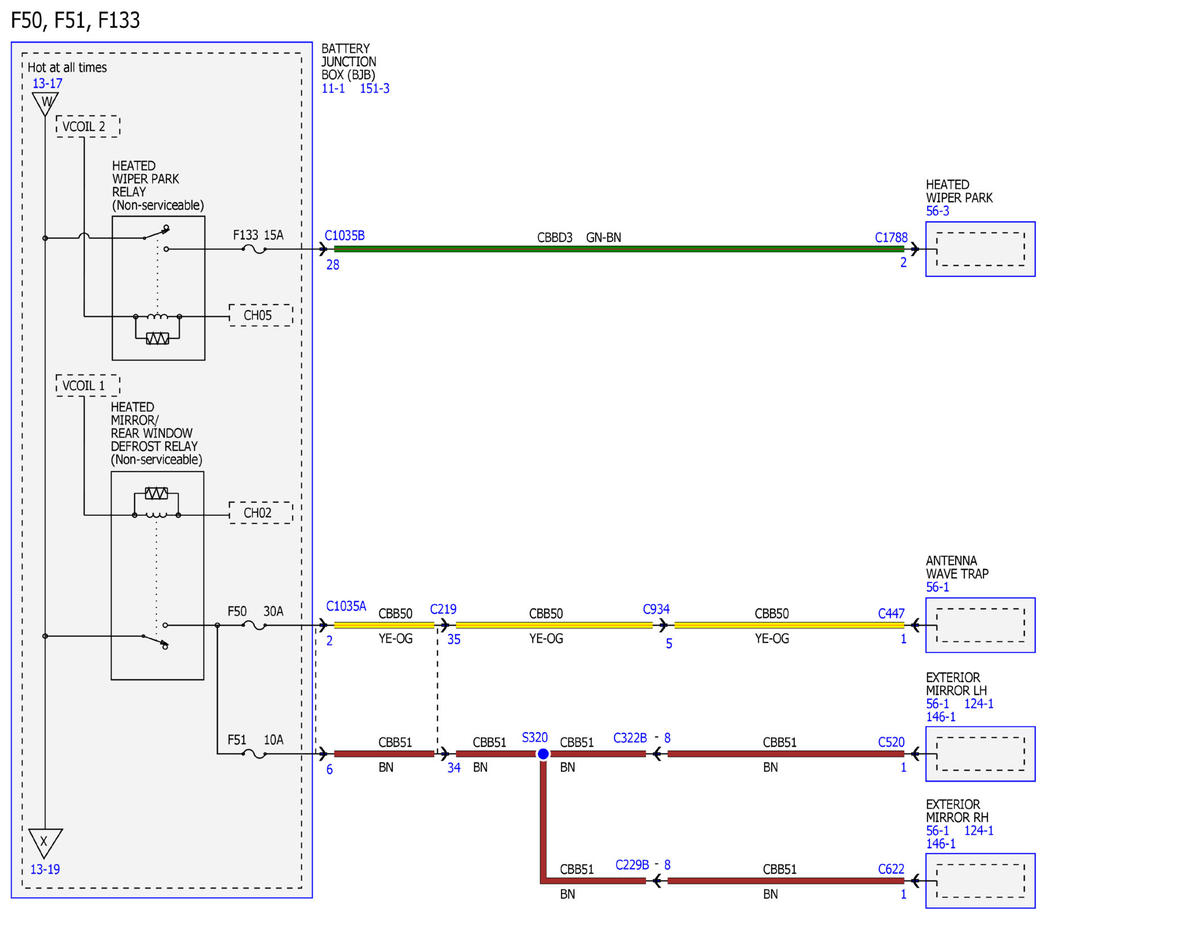

Fig 18: Power Distribution/BCM Wiring Diagram (18 Of 44)

GFDWR137301

Courtesy of FORD MOTOR COMPANY

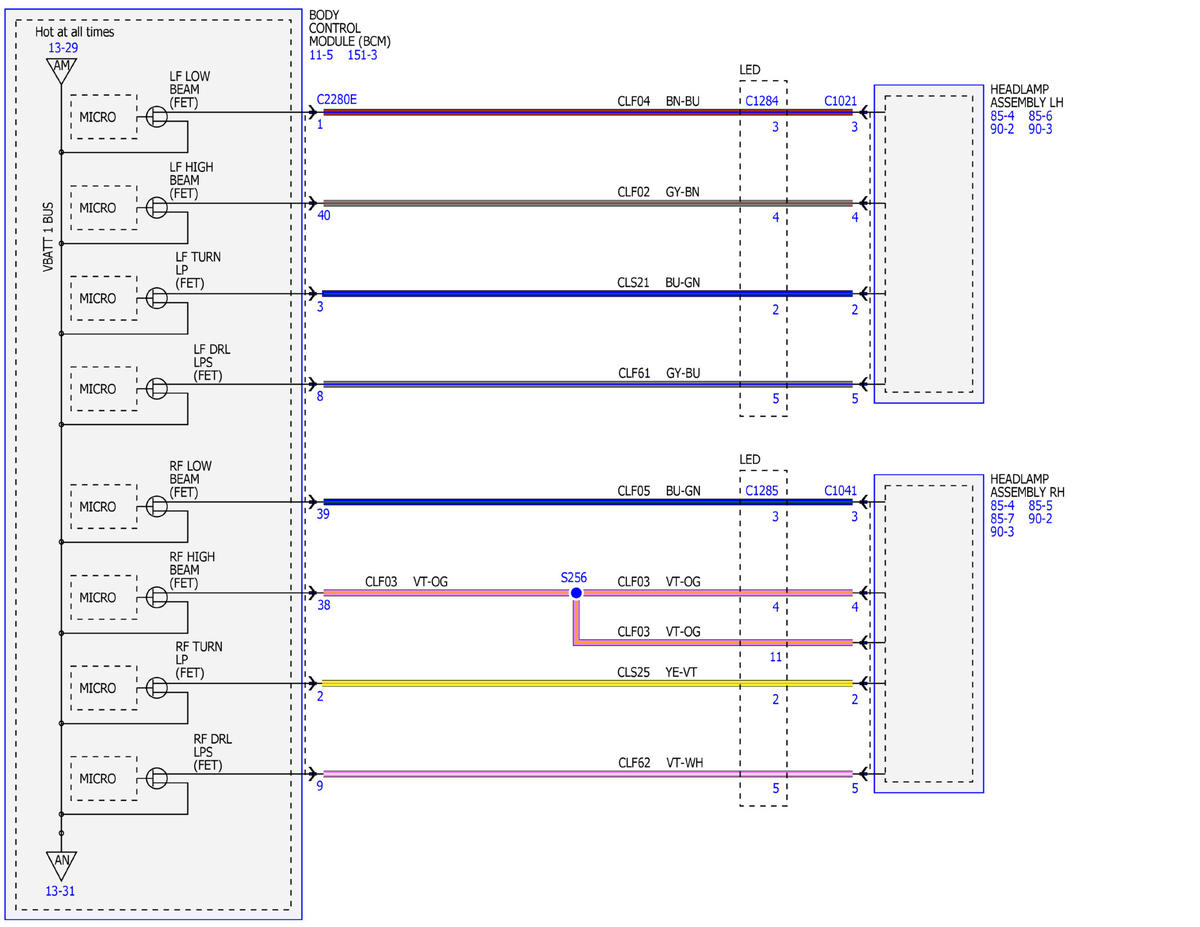

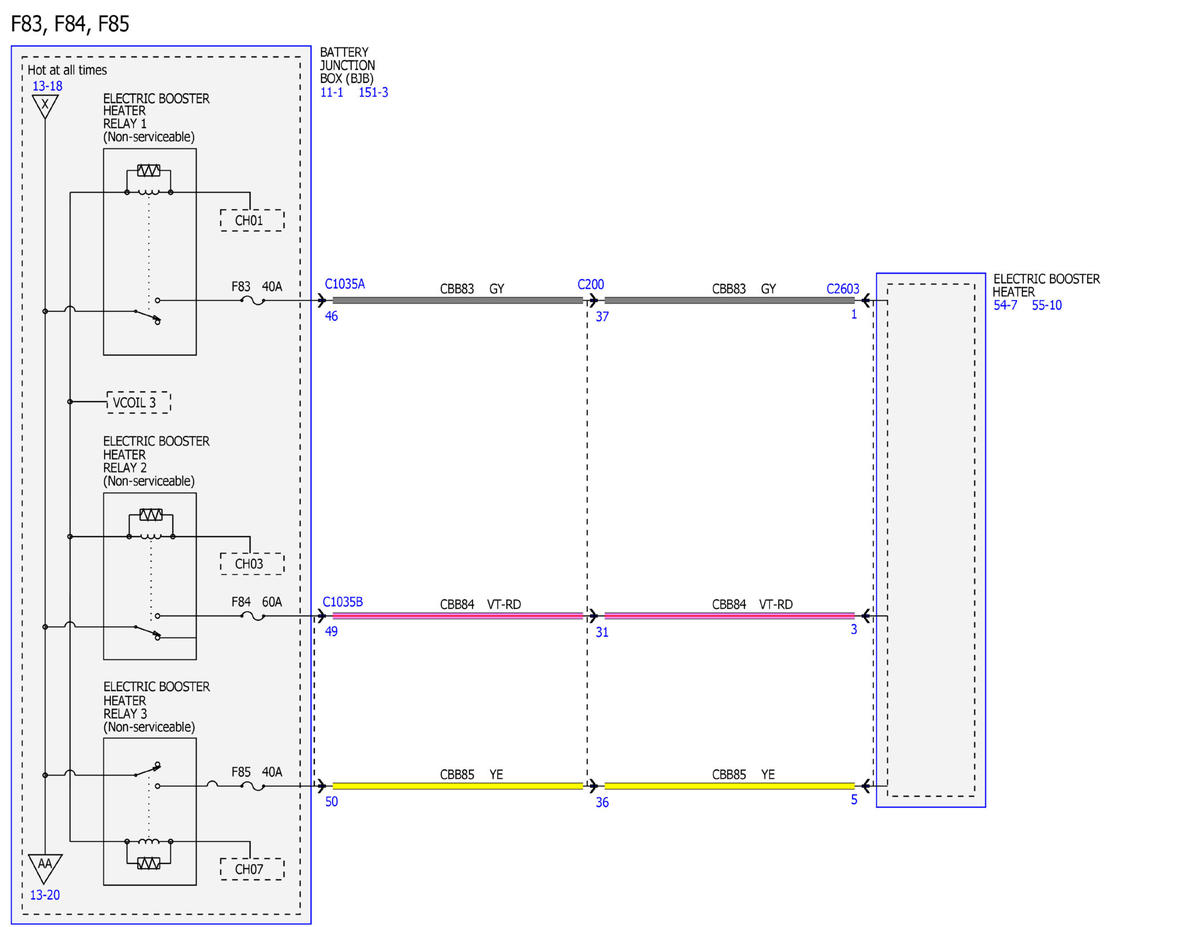

Fig 19: Power Distribution/BCM Wiring Diagram (19 Of 44)

GFDWR137302

Courtesy of FORD MOTOR COMPANY

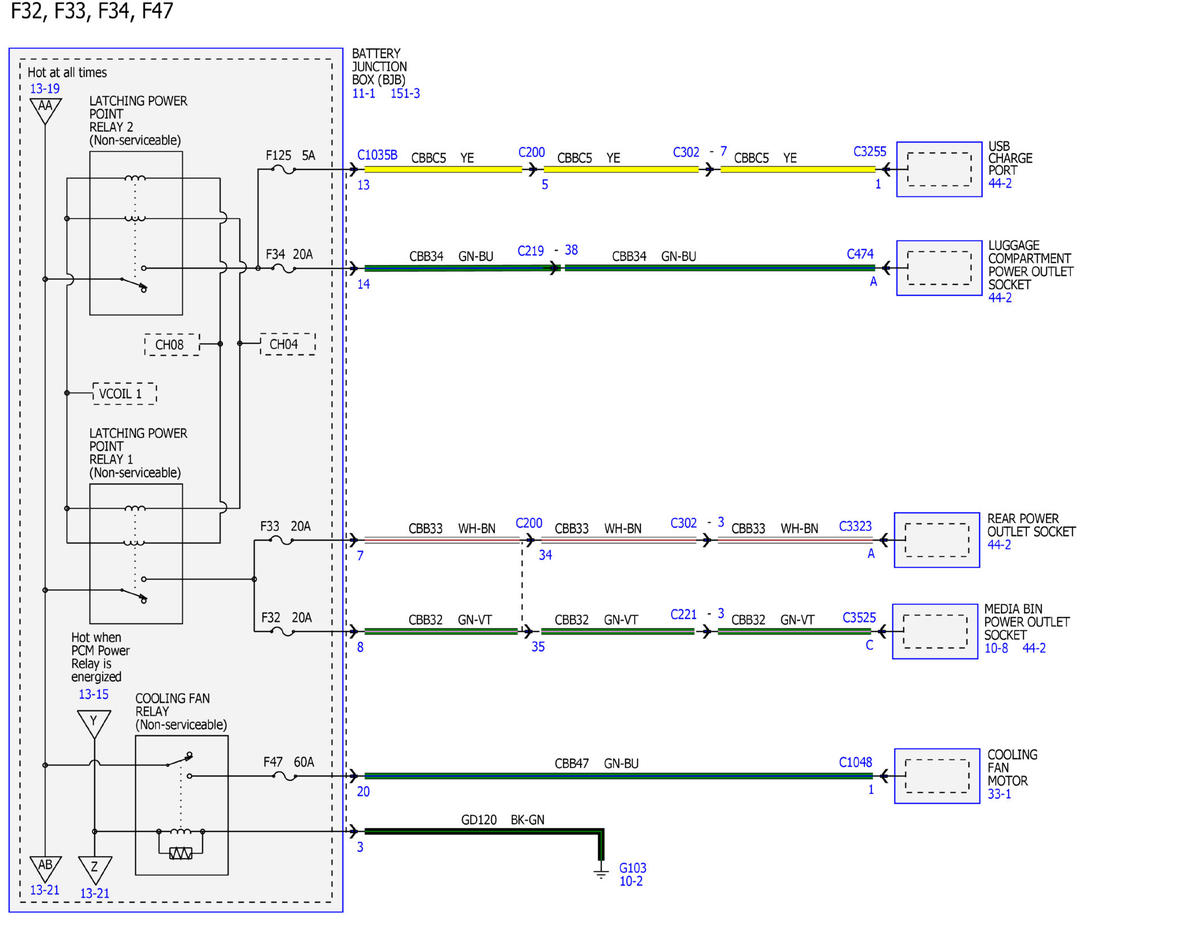

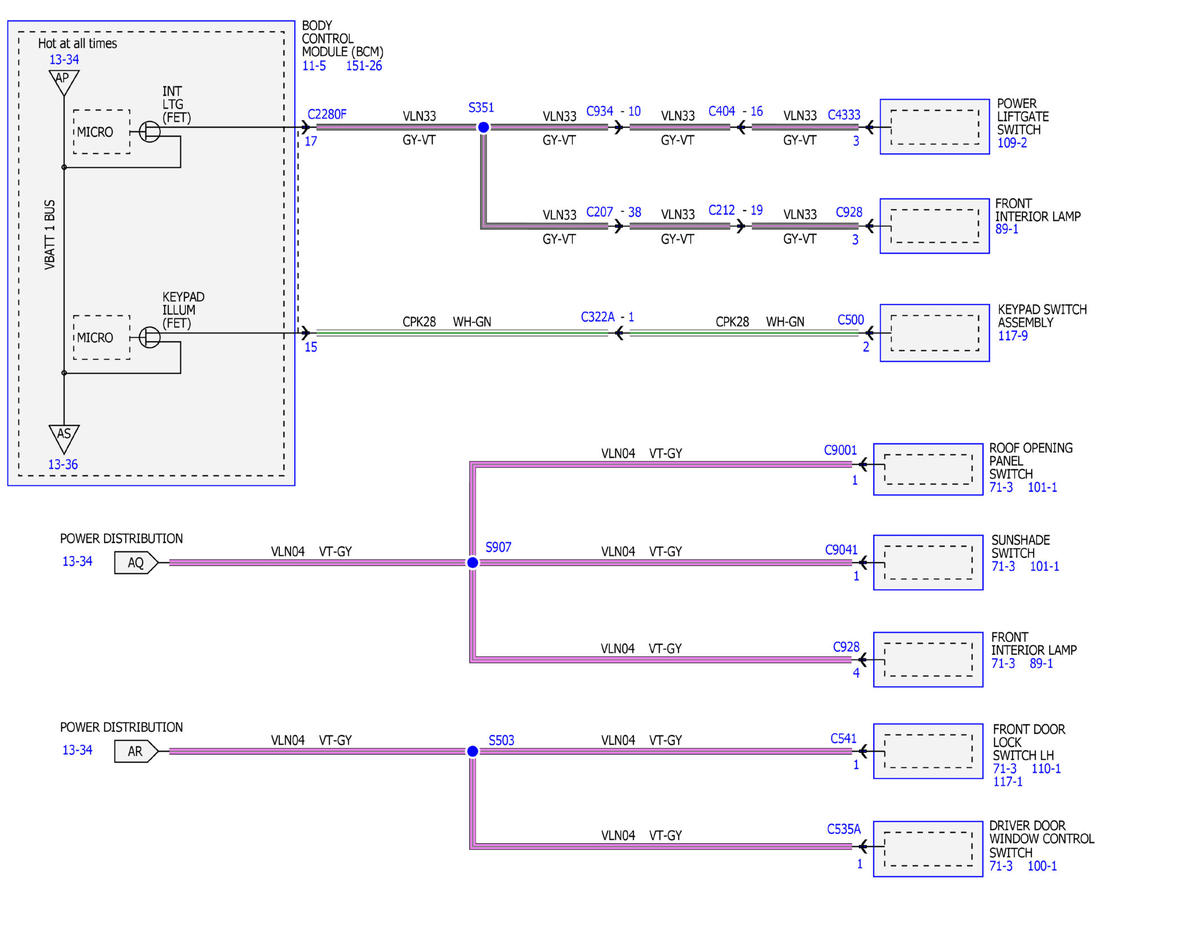

Fig 20: Power Distribution/BCM Wiring Diagram (20 Of 44)

GFDWR137304

Courtesy of FORD MOTOR COMPANY

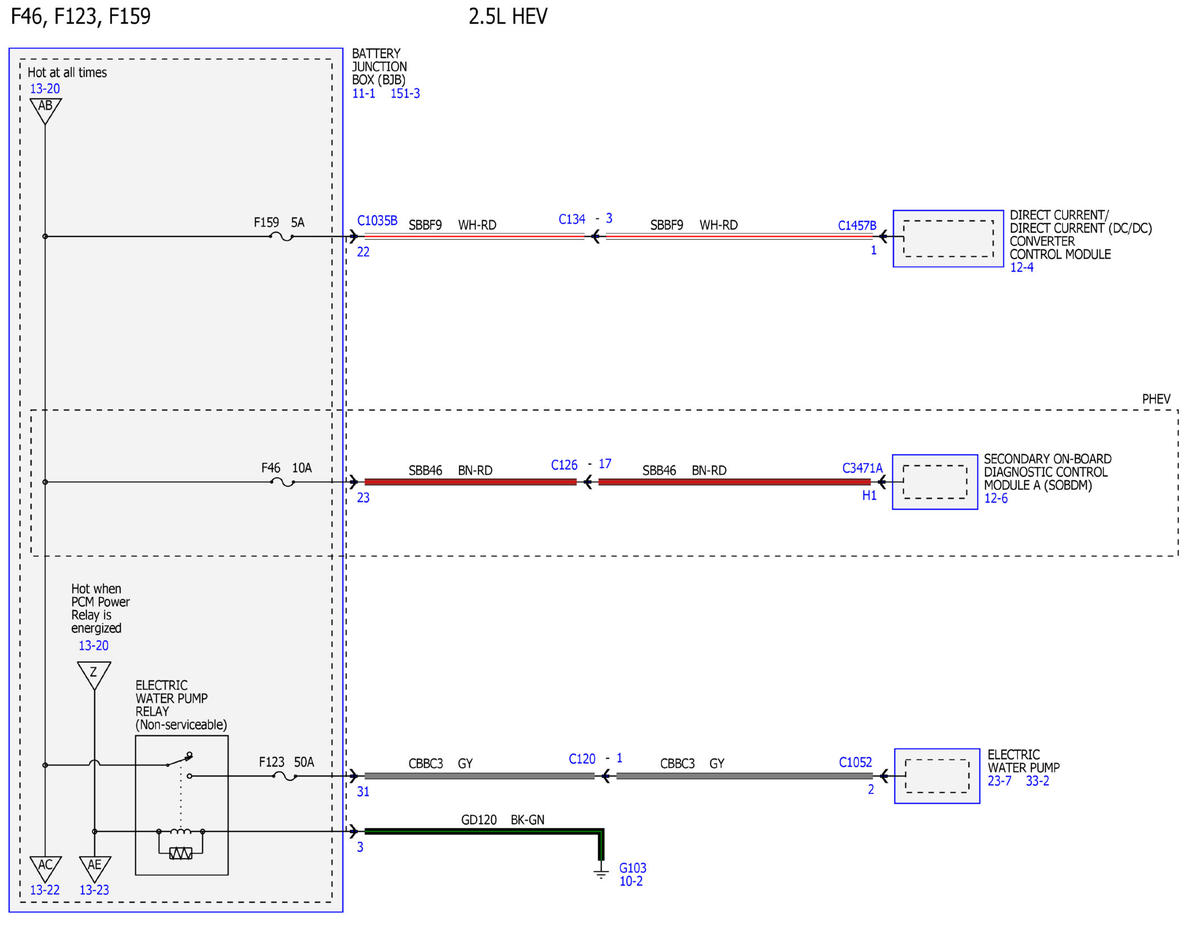

Fig 21: Power Distribution/BCM Wiring Diagram (21 Of 44)

GFDWR137305

Courtesy of FORD MOTOR COMPANY

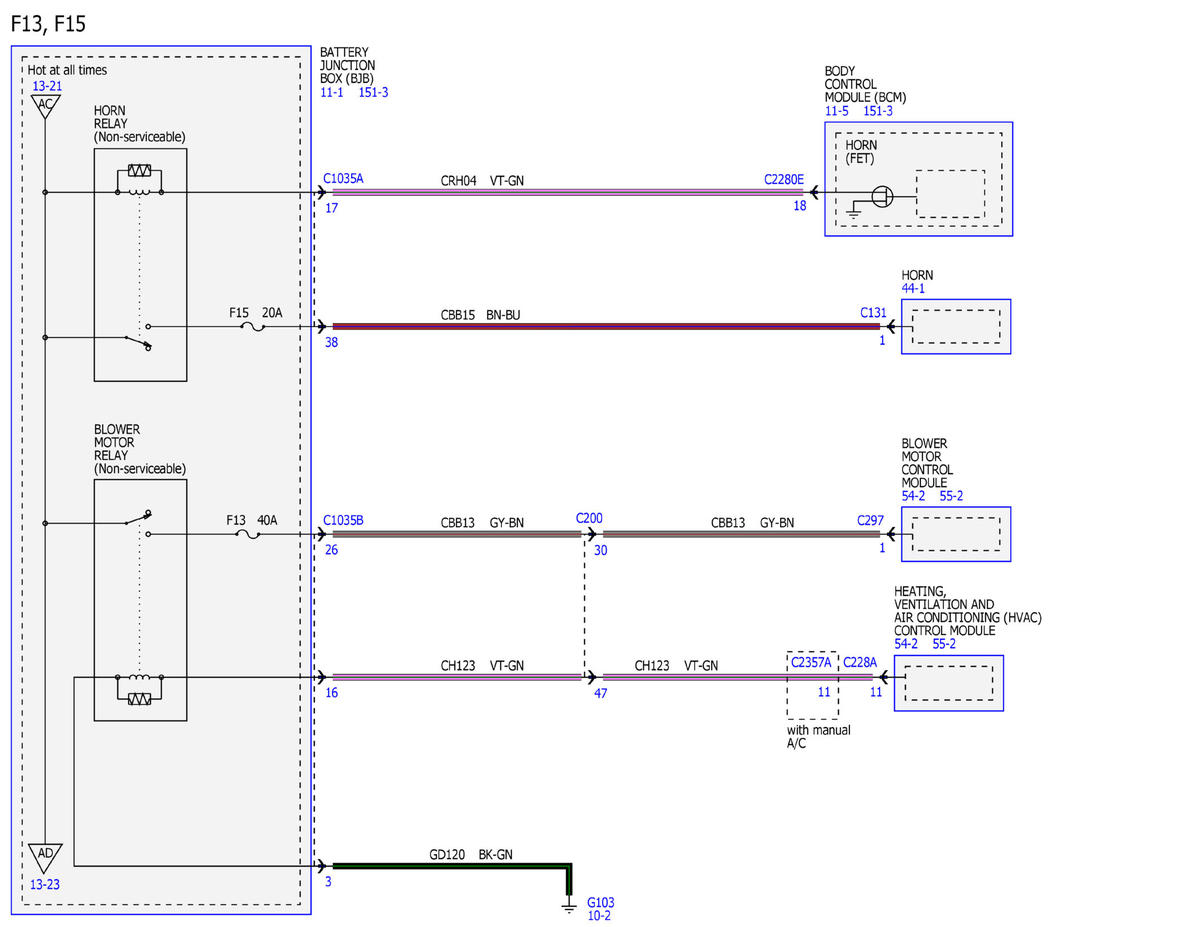

Fig 22: Power Distribution/BCM Wiring Diagram (22 Of 44)

GFDWR137306

Courtesy of FORD MOTOR COMPANY

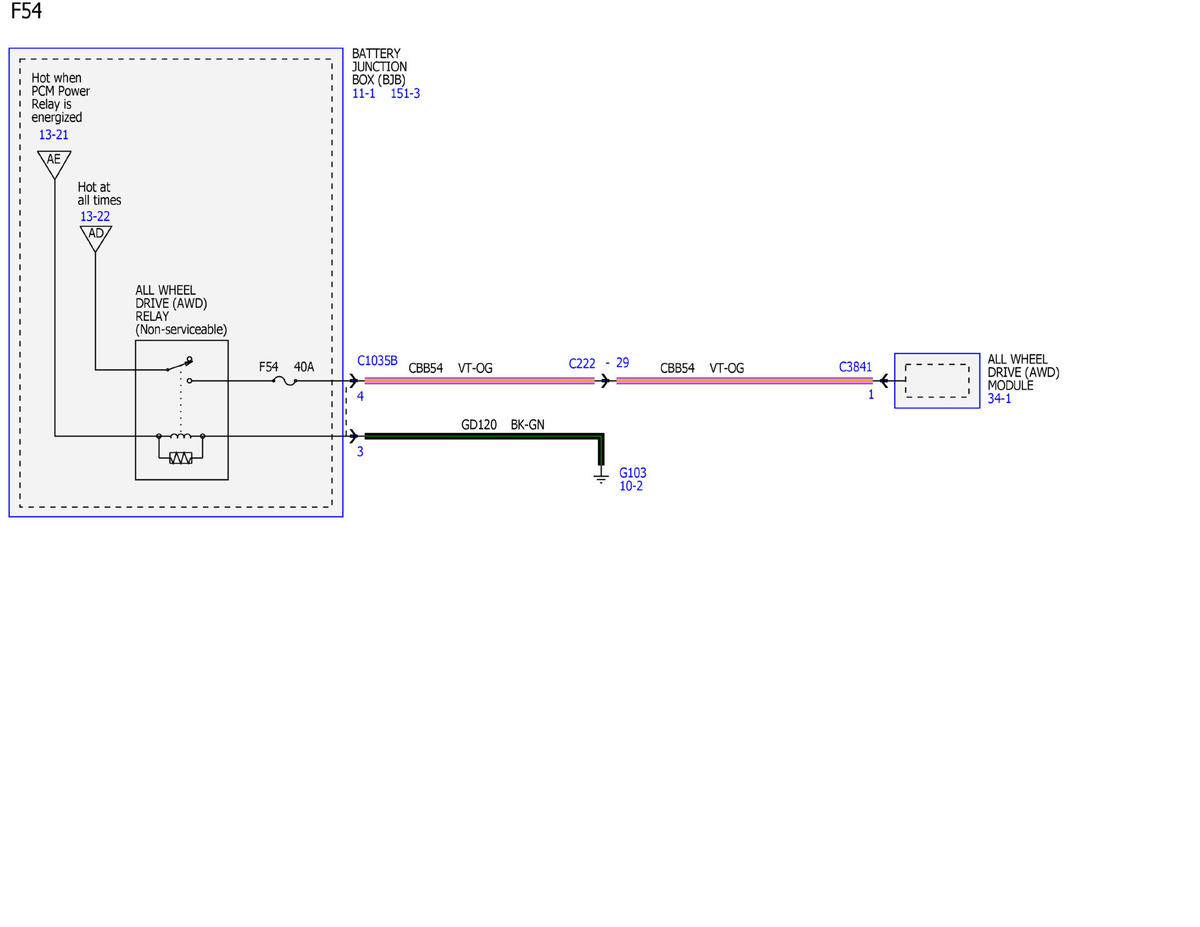

Fig 23: Power Distribution/BCM Wiring Diagram (23 Of 44)

GFDWR137307

Courtesy of FORD MOTOR COMPANY

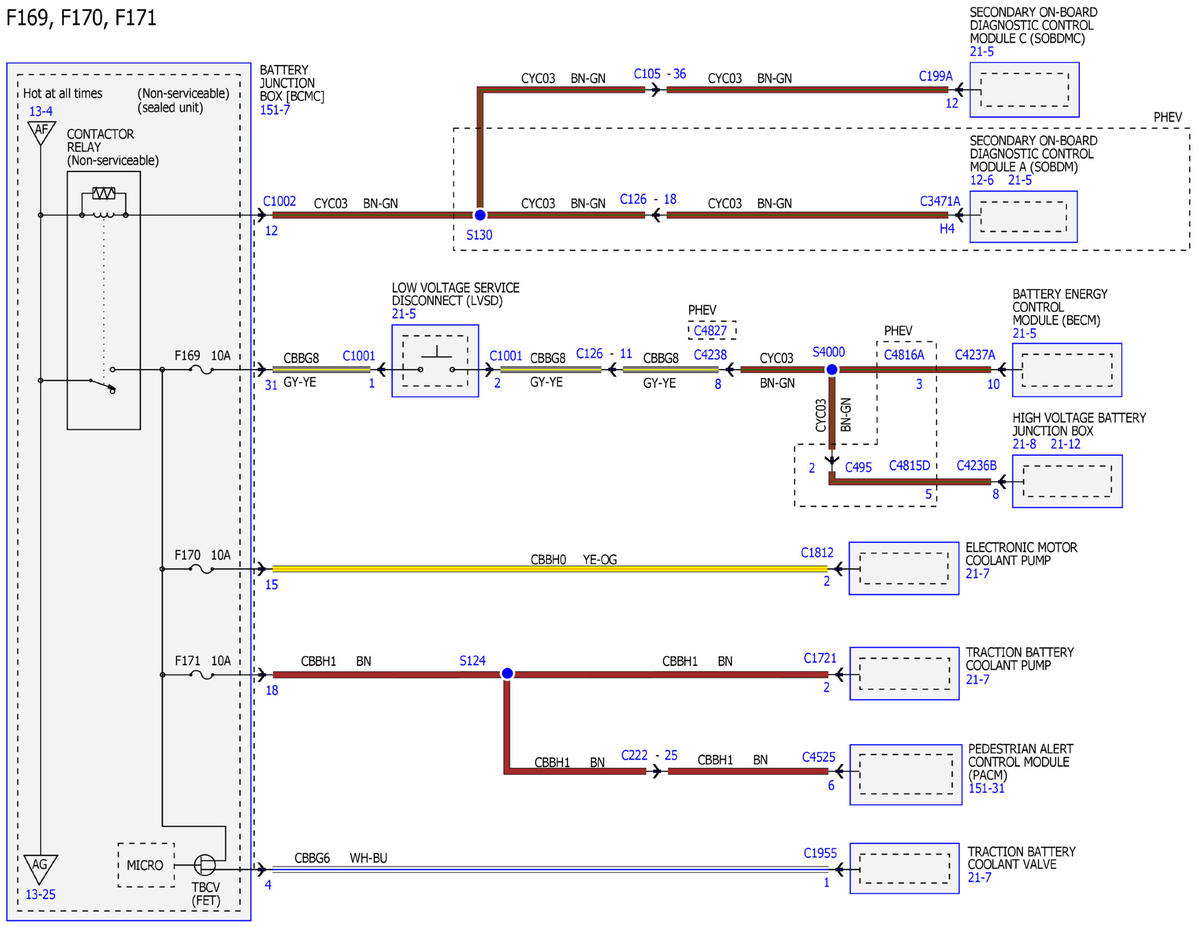

Fig 24: Power Distribution/BCM Wiring Diagram (24 Of 44)

GFDWR137308

Courtesy of FORD MOTOR COMPANY

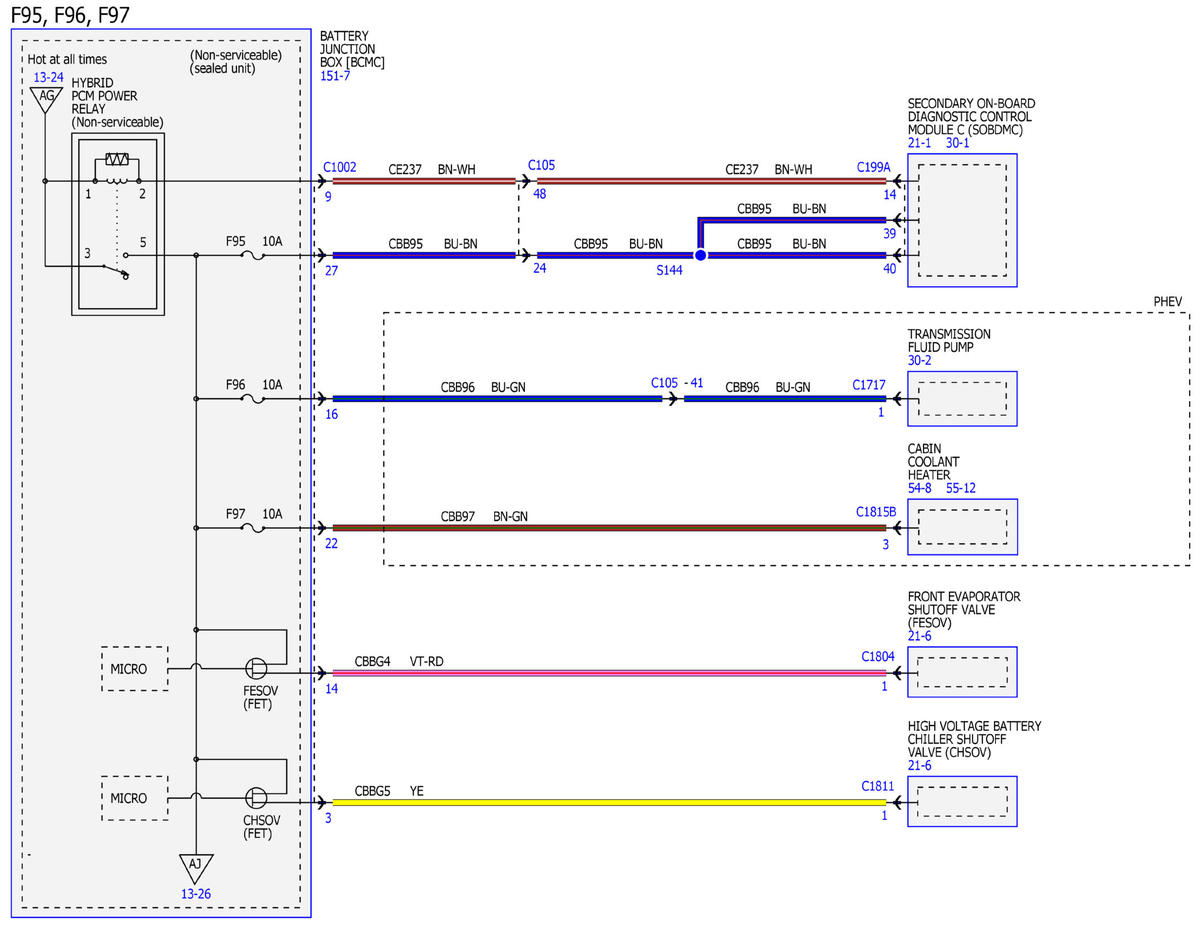

Fig 25: Power Distribution/BCM Wiring Diagram (25 Of 44)

GFDWR137309

Courtesy of FORD MOTOR COMPANY

Fig 26: Power Distribution/BCM Wiring Diagram (26 Of 44)

GFDWR137310

Courtesy of FORD MOTOR COMPANY

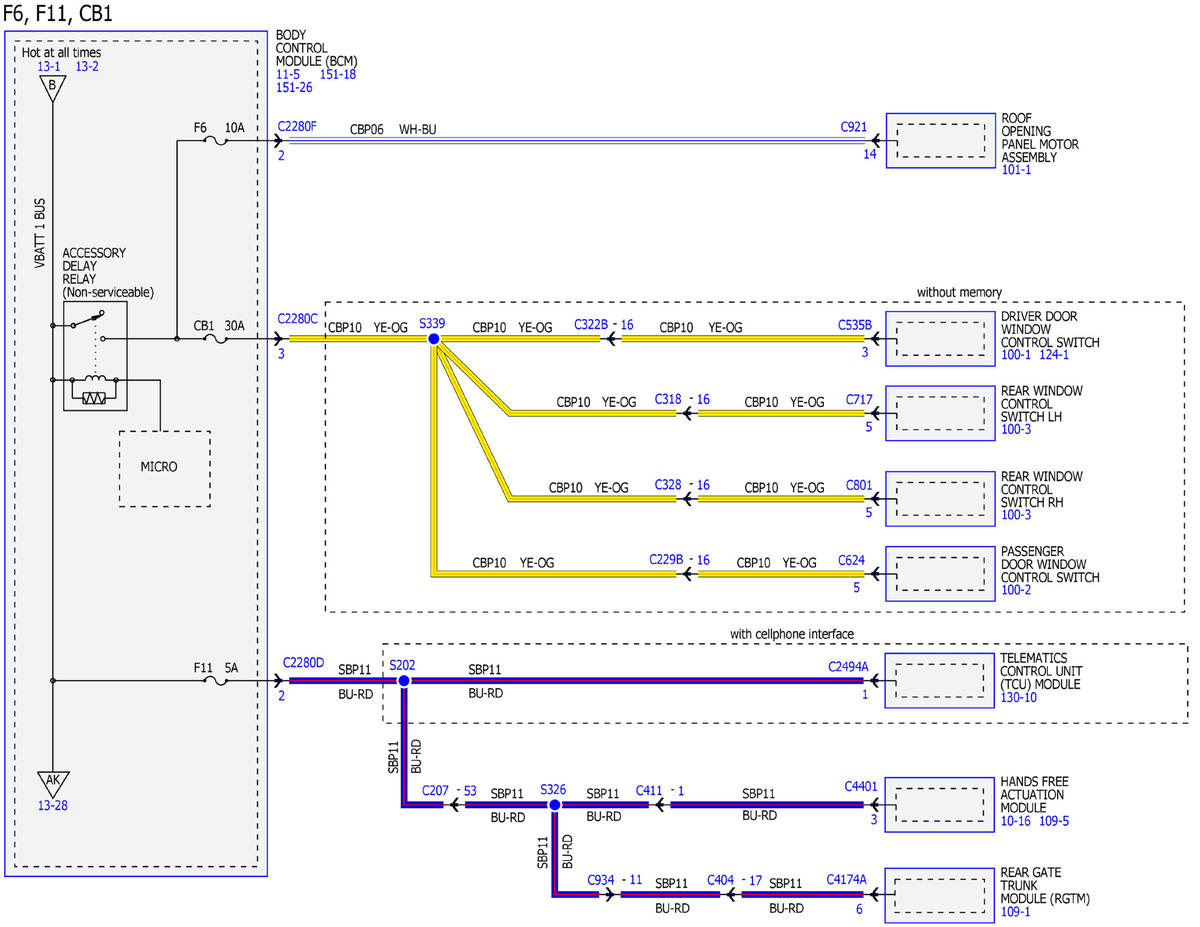

Fig 27: Power Distribution/BCM Wiring Diagram (27 Of 44)

GFDWR137311

Courtesy of FORD MOTOR COMPANY

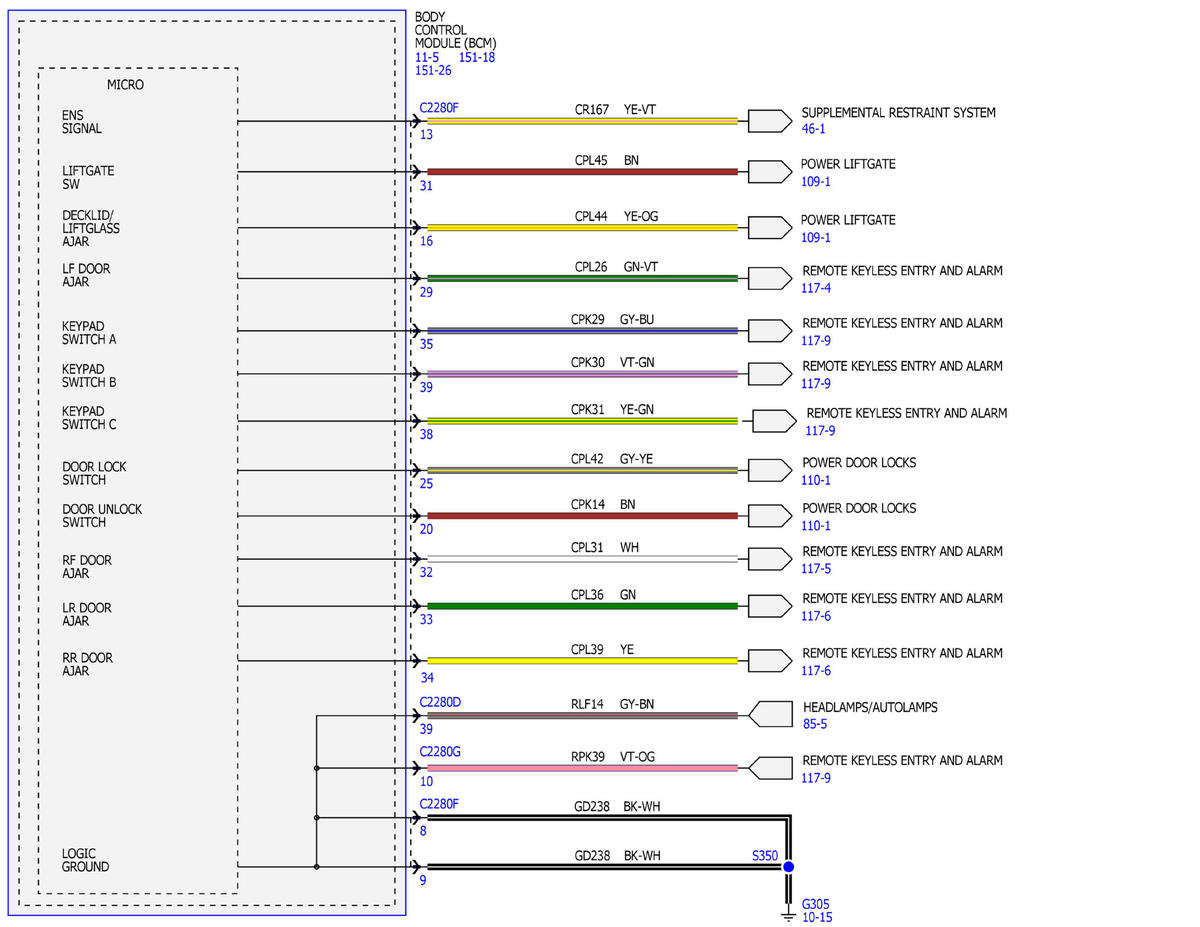

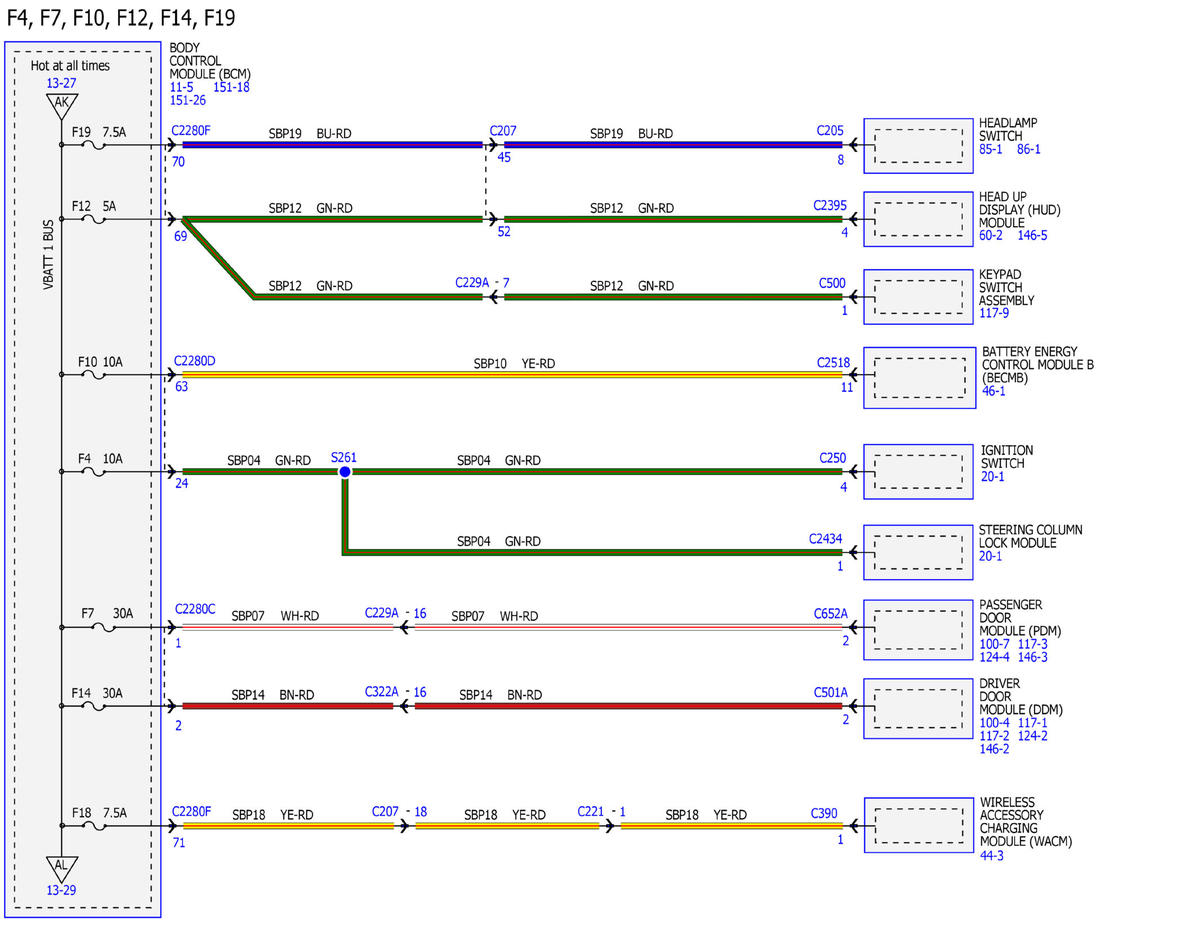

Fig 28: Power Distribution/BCM Wiring Diagram (28 Of 44)

GFDWR137312

Courtesy of FORD MOTOR COMPANY

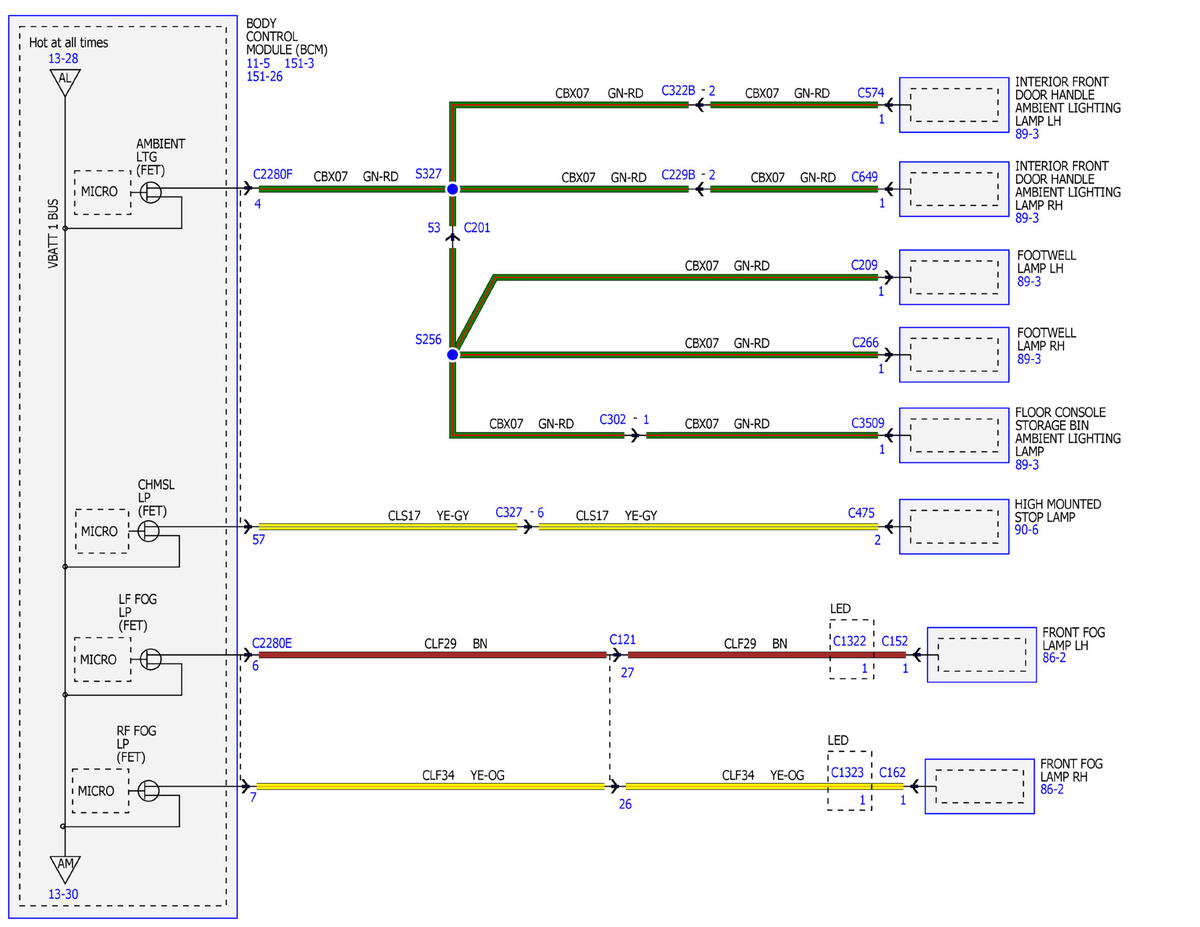

Fig 29: Power Distribution/BCM Wiring Diagram (29 Of 44)

GFDWR137313

Courtesy of FORD MOTOR COMPANY

Fig 30: Power Distribution/BCM Wiring Diagram (30 Of 44)

GFDWR137315

Courtesy of FORD MOTOR COMPANY

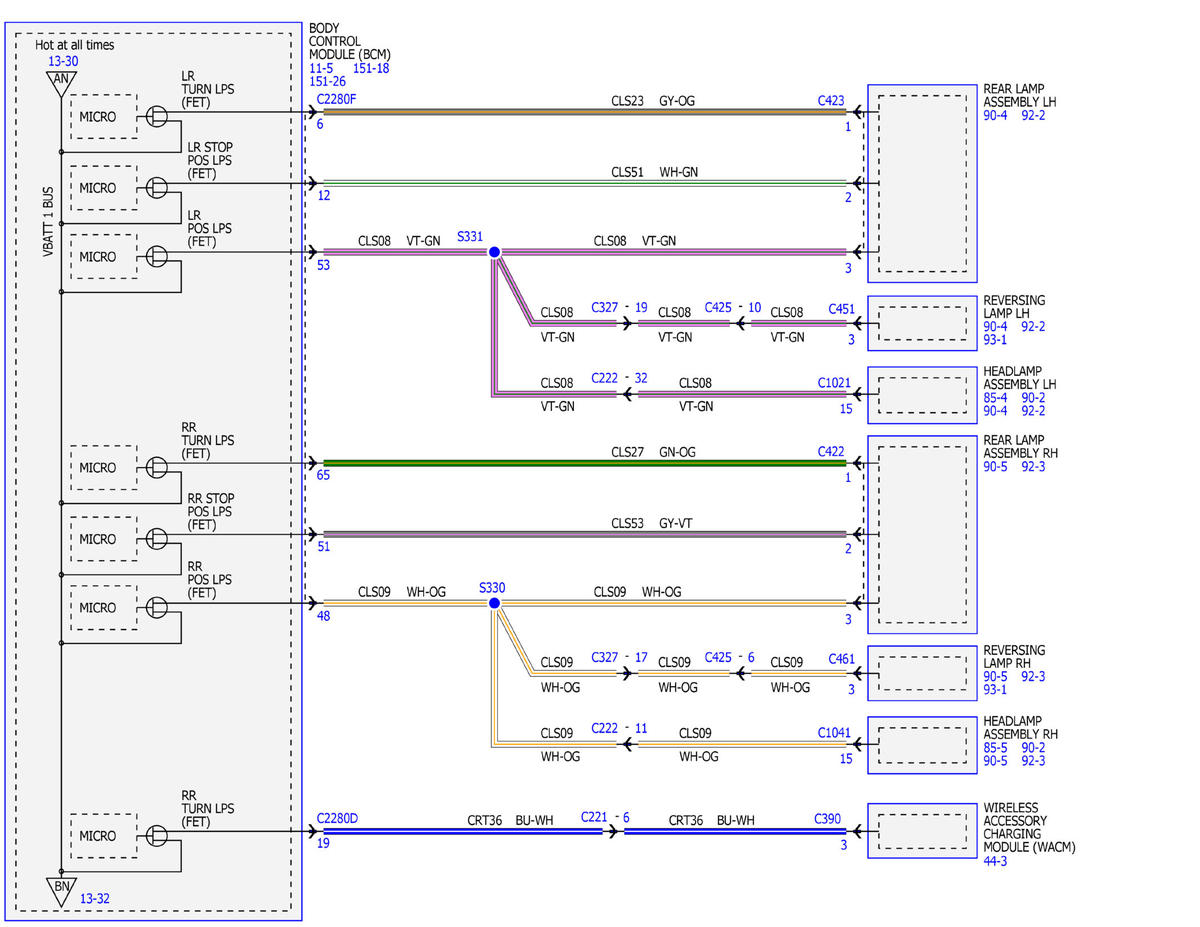

Fig 31: Power Distribution/BCM Wiring Diagram (31 Of 44)

GFDWR137316

Courtesy of FORD MOTOR COMPANY

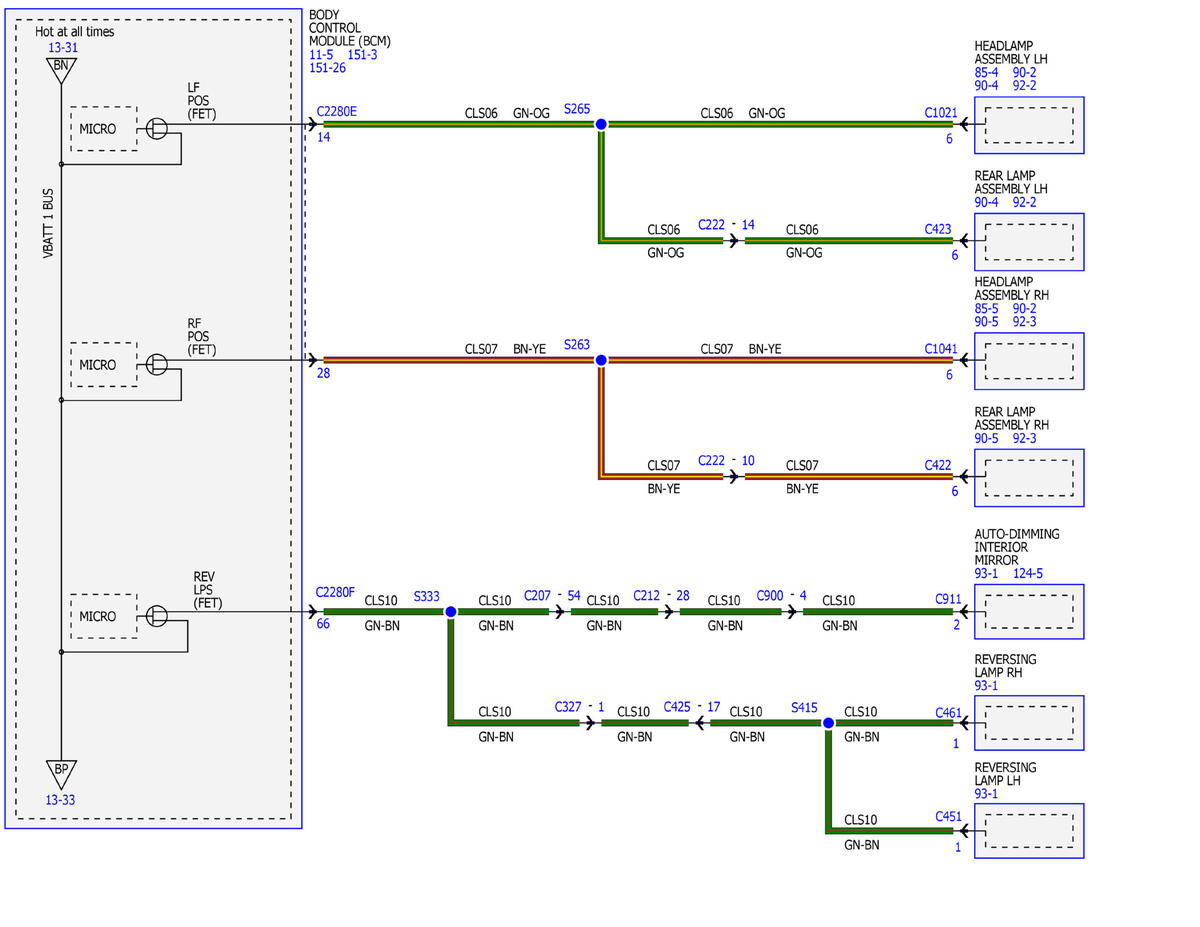

Fig 32: Power Distribution/BCM Wiring Diagram (32 Of 44)

GFDWR137317

Courtesy of FORD MOTOR COMPANY

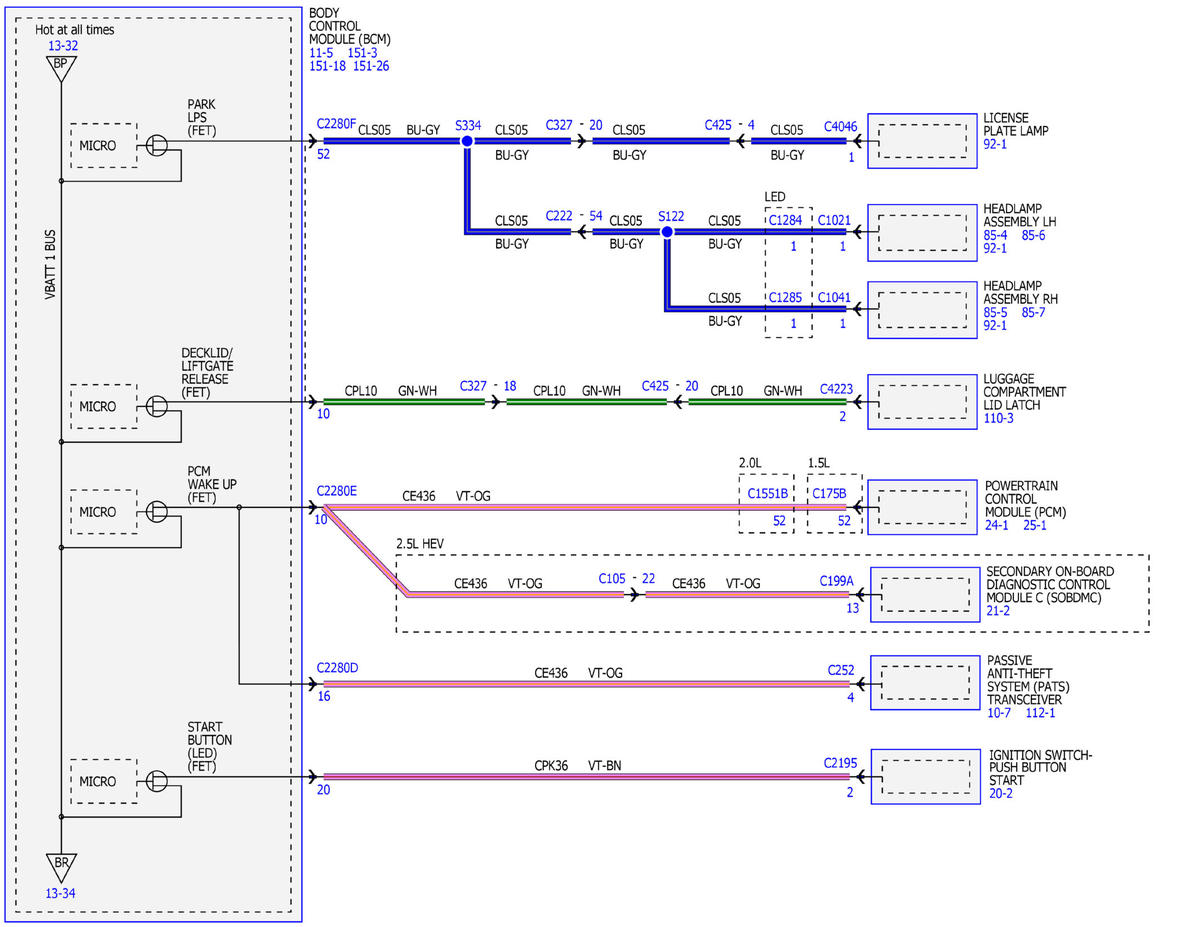

Fig 33: Power Distribution/BCM Wiring Diagram (33 Of 44)

GFDWR137318

Courtesy of FORD MOTOR COMPANY

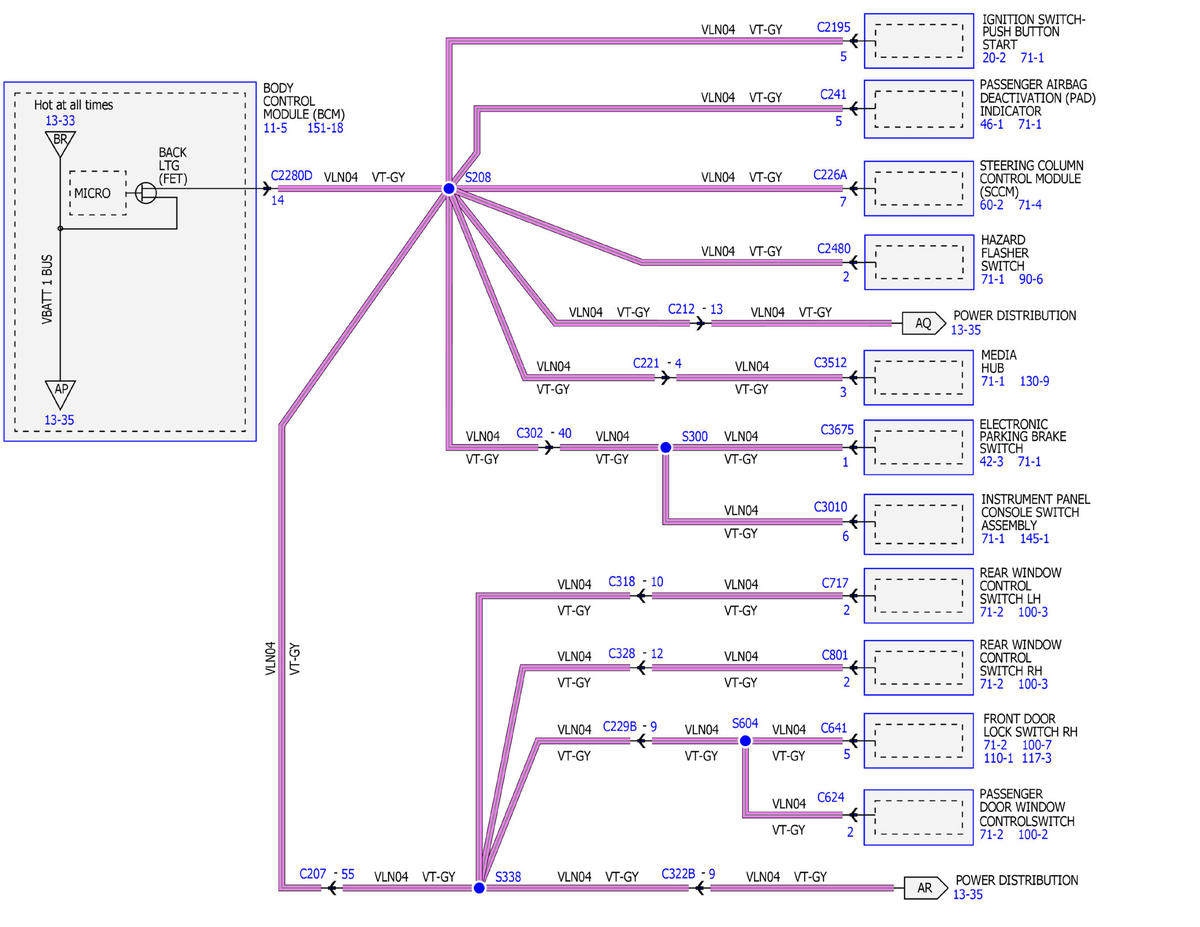

Fig 34: Power Distribution/BCM Wiring Diagram (34 Of 44)

GFDWR137319

Courtesy of FORD MOTOR COMPANY

Fig 35: Power Distribution/BCM Wiring Diagram (35 Of 44)

GFDWR137320

Courtesy of FORD MOTOR COMPANY

Fig 36: Power Distribution/BCM Wiring Diagram (36 Of 44)

GFDWR137321

Courtesy of FORD MOTOR COMPANY

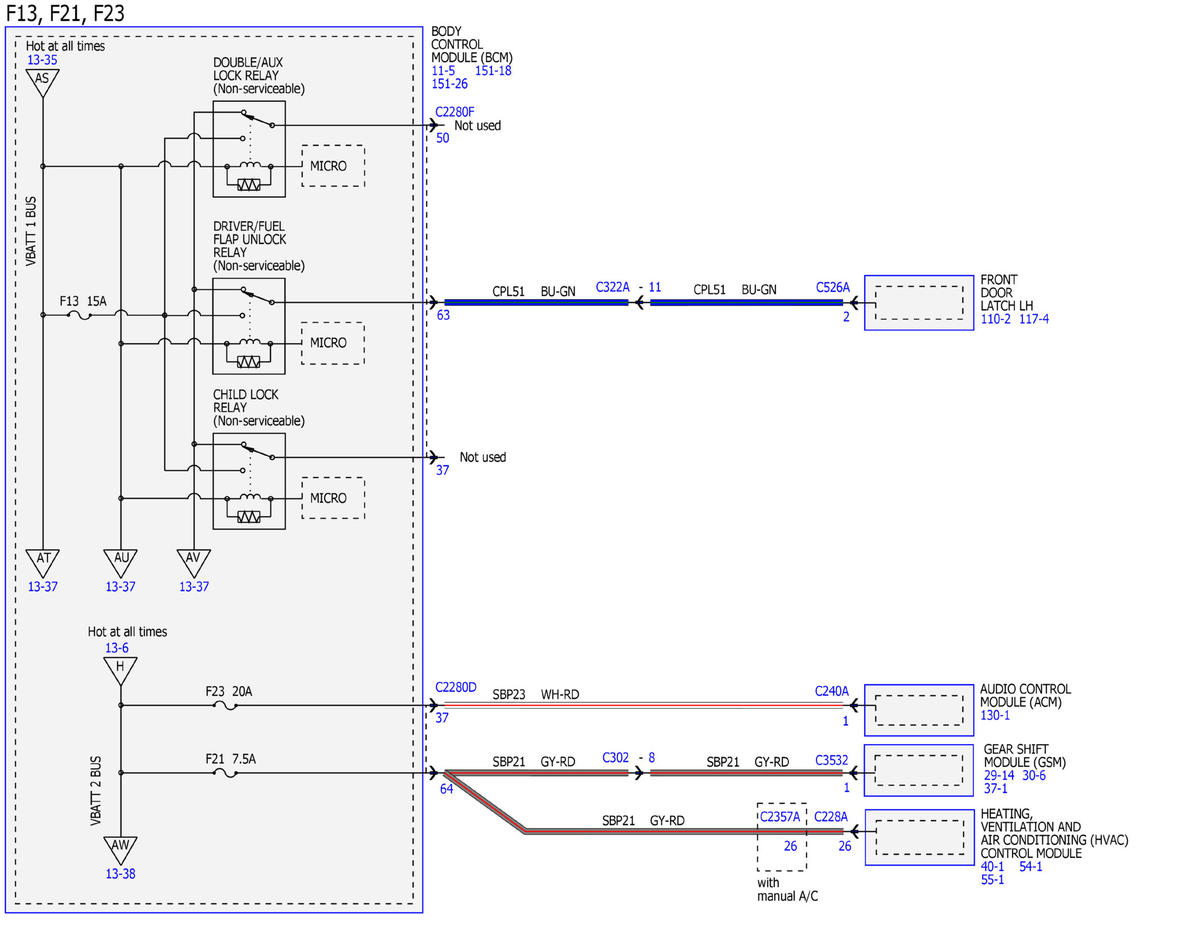

Fig 37: Power Distribution/BCM Wiring Diagram (37 Of 44)

GFDWR137322

Courtesy of FORD MOTOR COMPANY

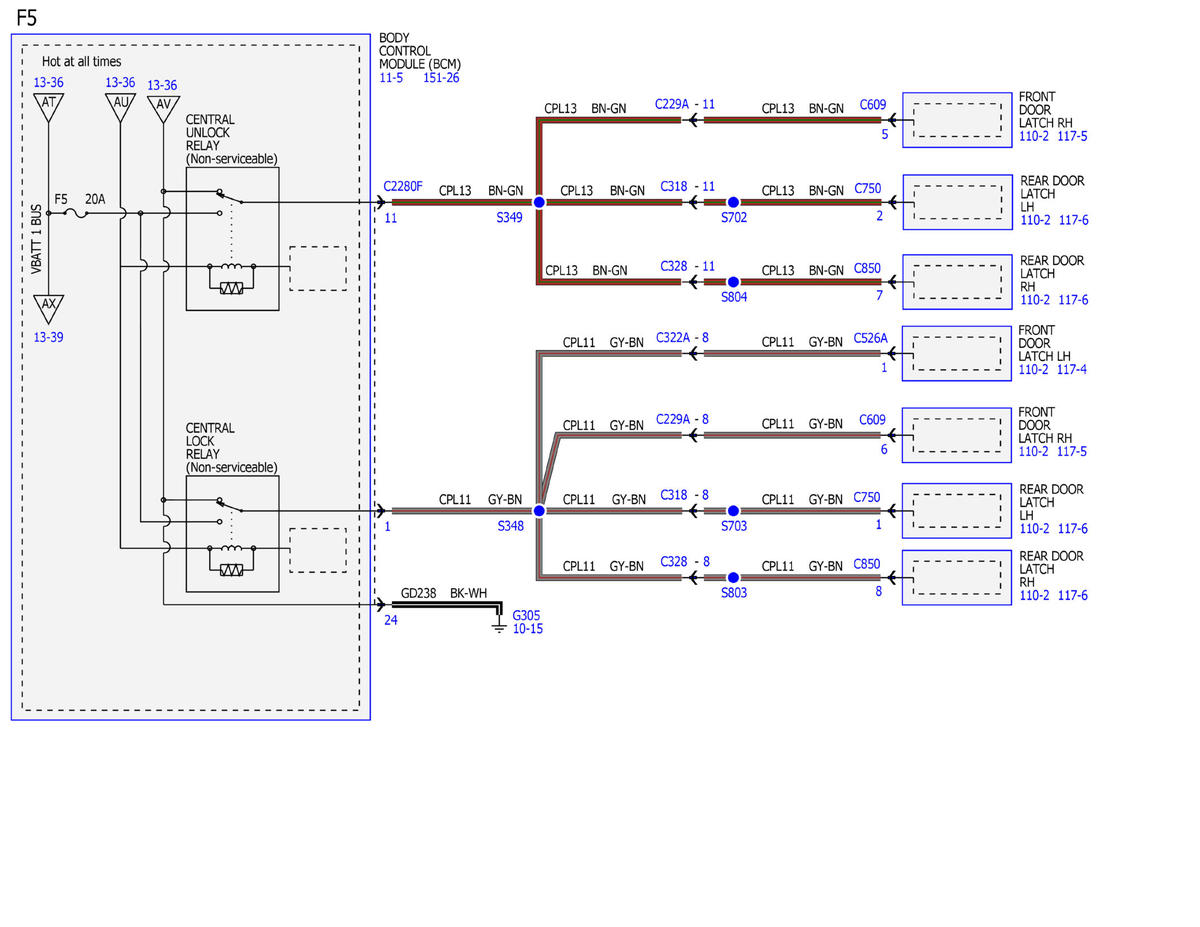

Fig 38: Power Distribution/BCM Wiring Diagram (38 Of 44)

GFDWR137323

Courtesy of FORD MOTOR COMPANY

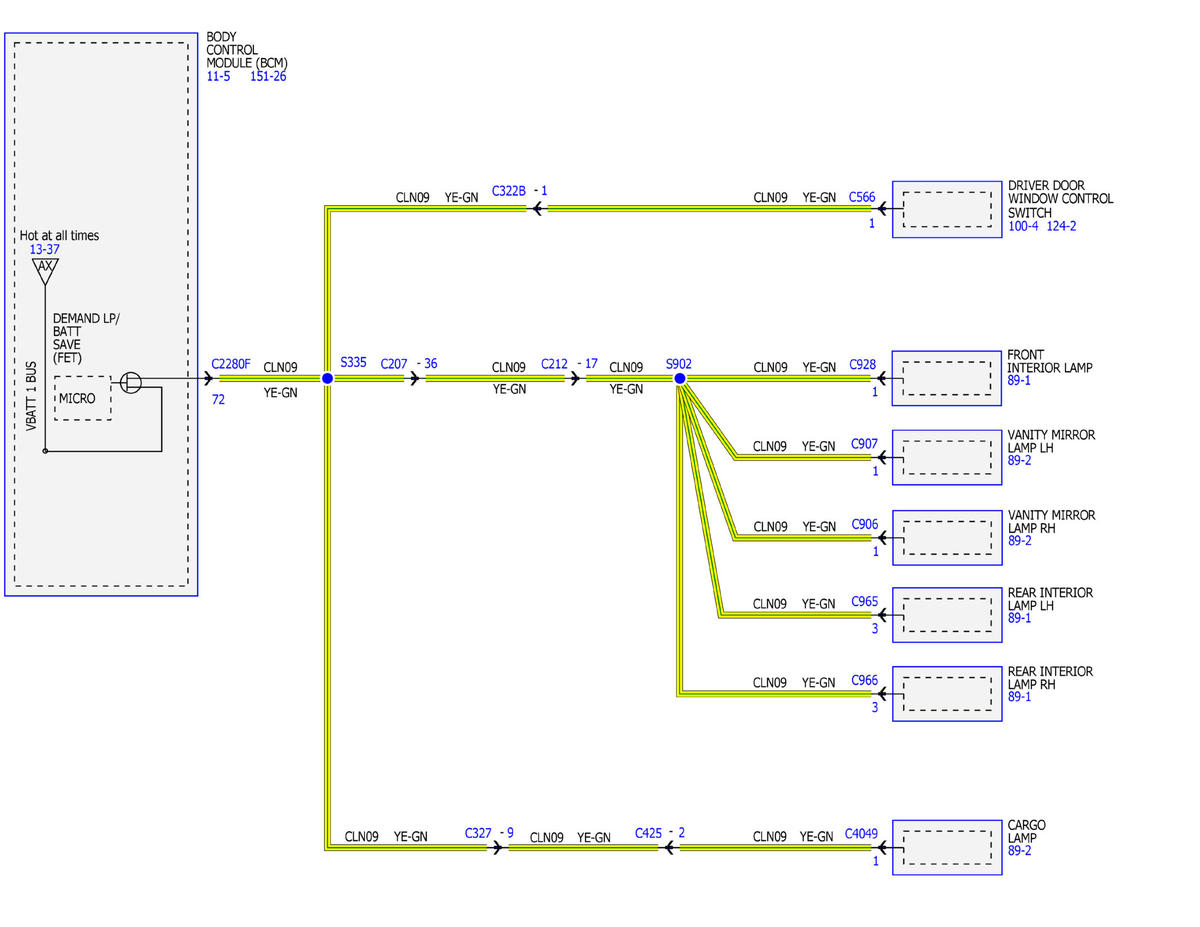

Fig 39: Power Distribution/BCM Wiring Diagram (39 Of 44)

GFDWR137324

Courtesy of FORD MOTOR COMPANY

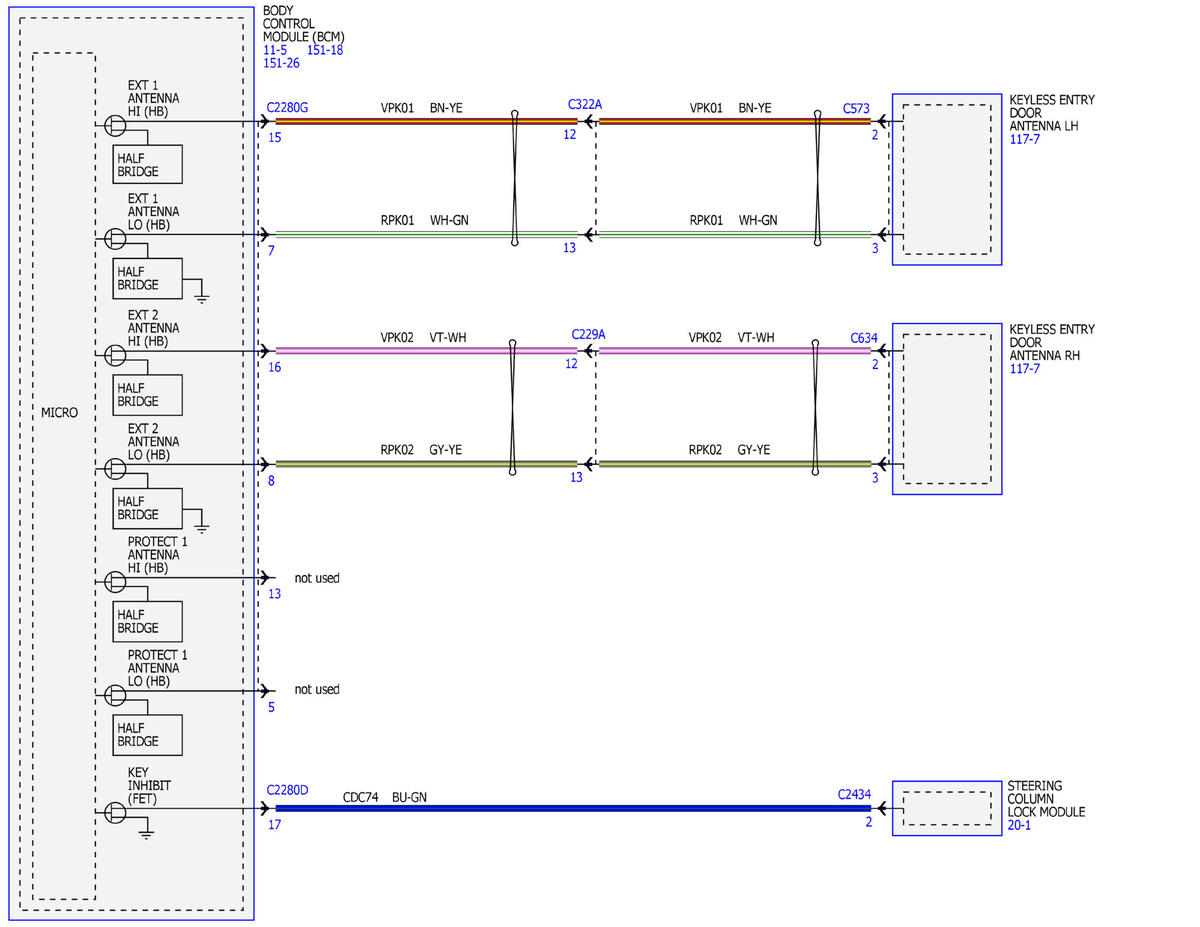

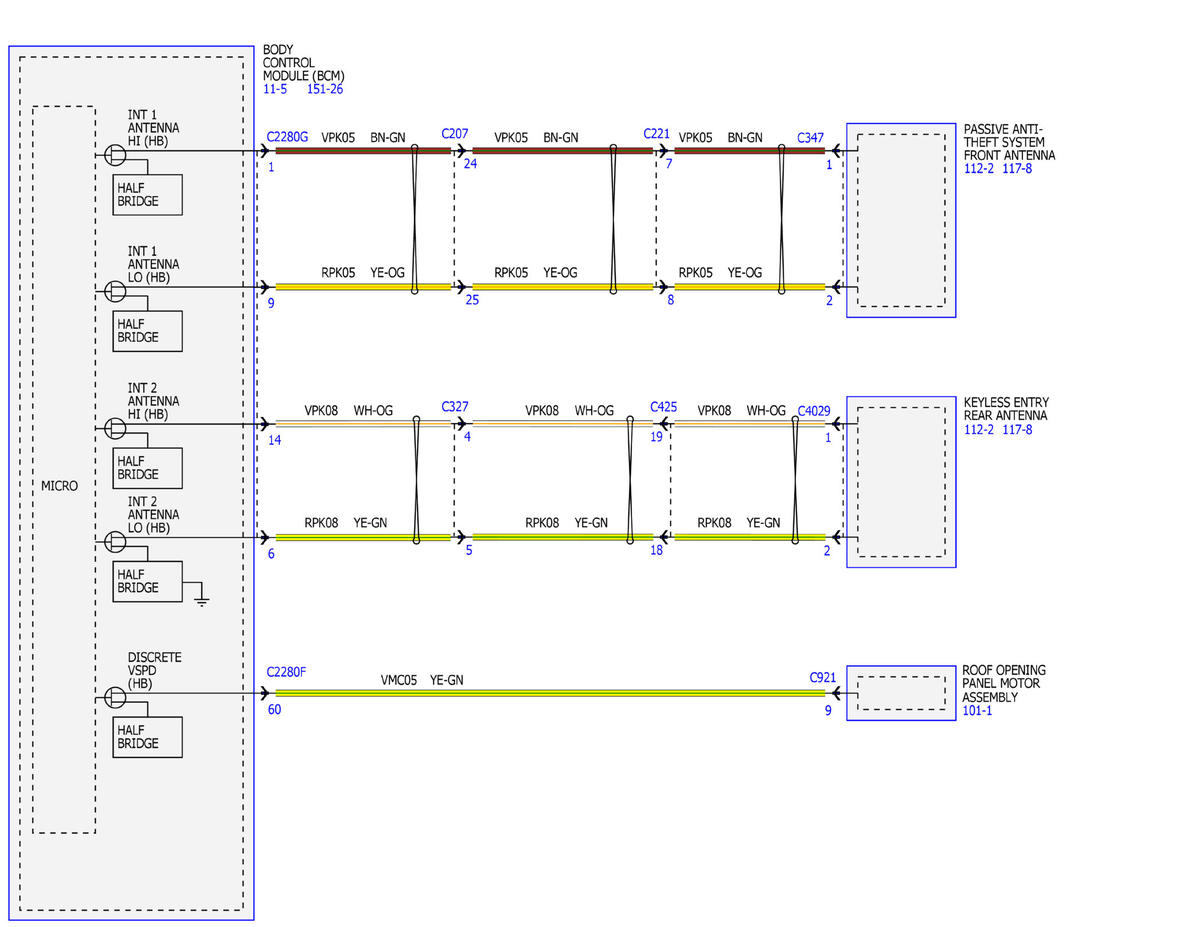

Fig 40: Power Distribution/BCM Wiring Diagram (40 Of 44)

GFDWR137326

Courtesy of FORD MOTOR COMPANY

Fig 41: Power Distribution/BCM Wiring Diagram (41 Of 44)

GFDWR137327

Courtesy of FORD MOTOR COMPANY

Fig 42: Power Distribution/BCM Wiring Diagram (42 Of 44)

GFDWR137328

Courtesy of FORD MOTOR COMPANY

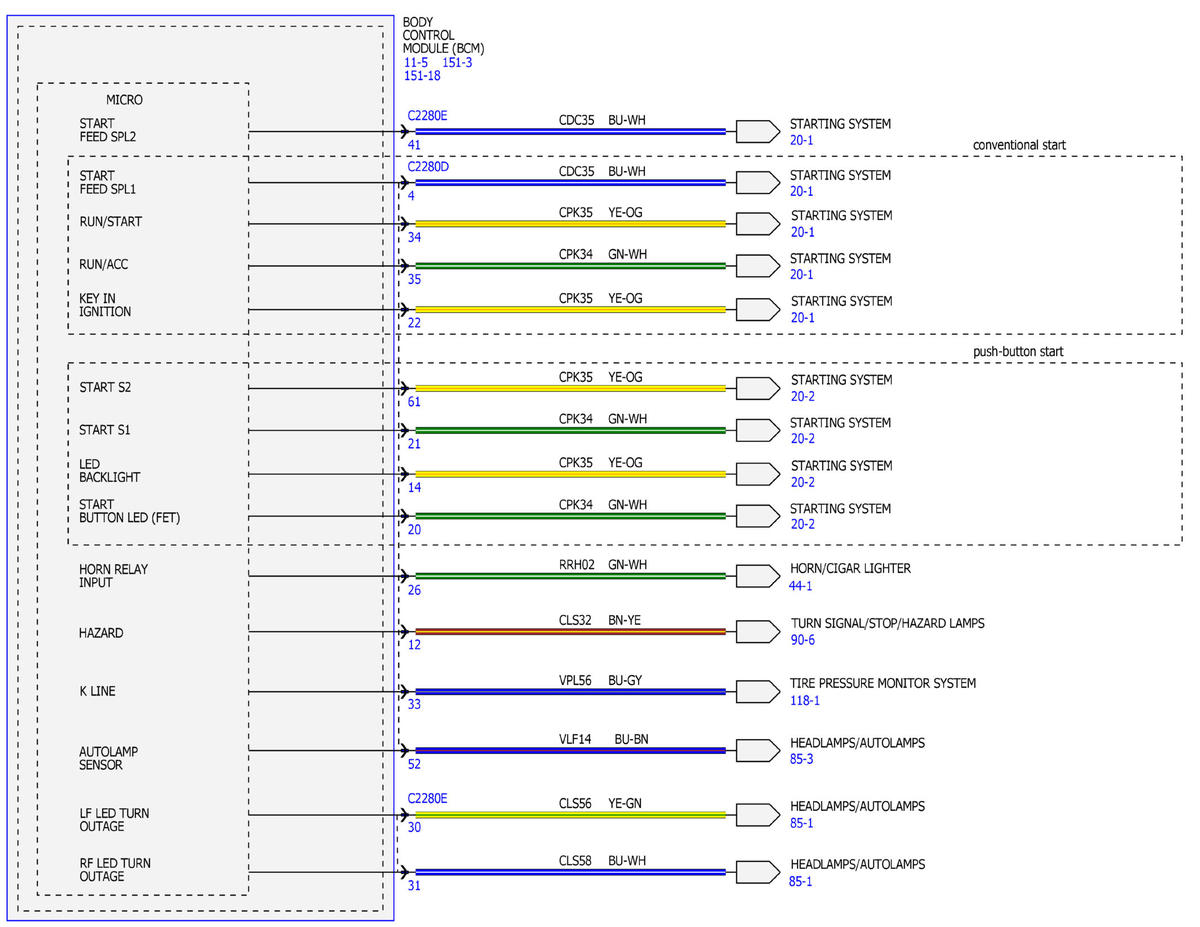

Fig 43: Power Distribution/BCM Wiring Diagram (43 Of 44)

GFDWR137329

Courtesy of FORD MOTOR COMPANY

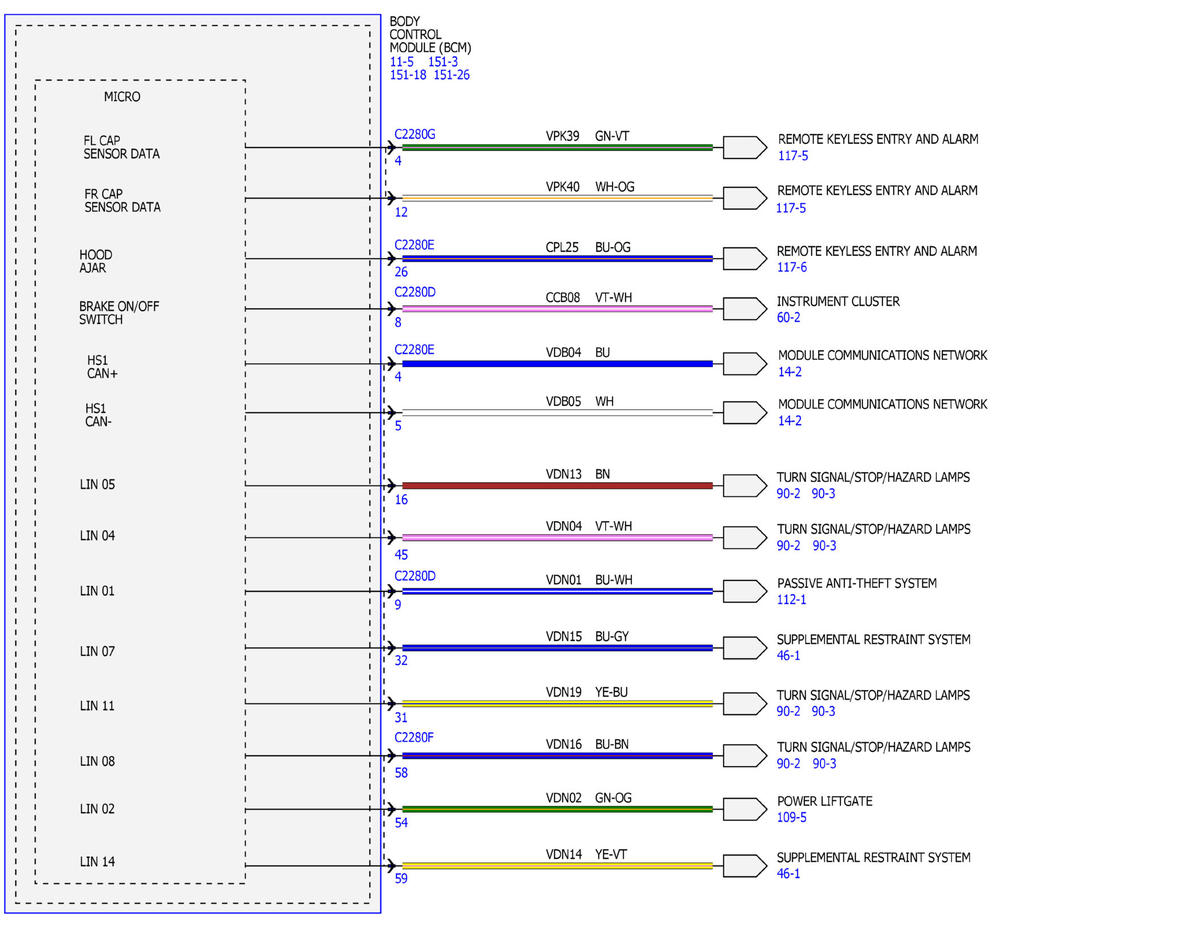

Fig 44: Power Distribution/BCM Wiring Diagram (44 Of 44)

GFDWR137330

Courtesy of FORD MOTOR COMPANY
