Power Windows

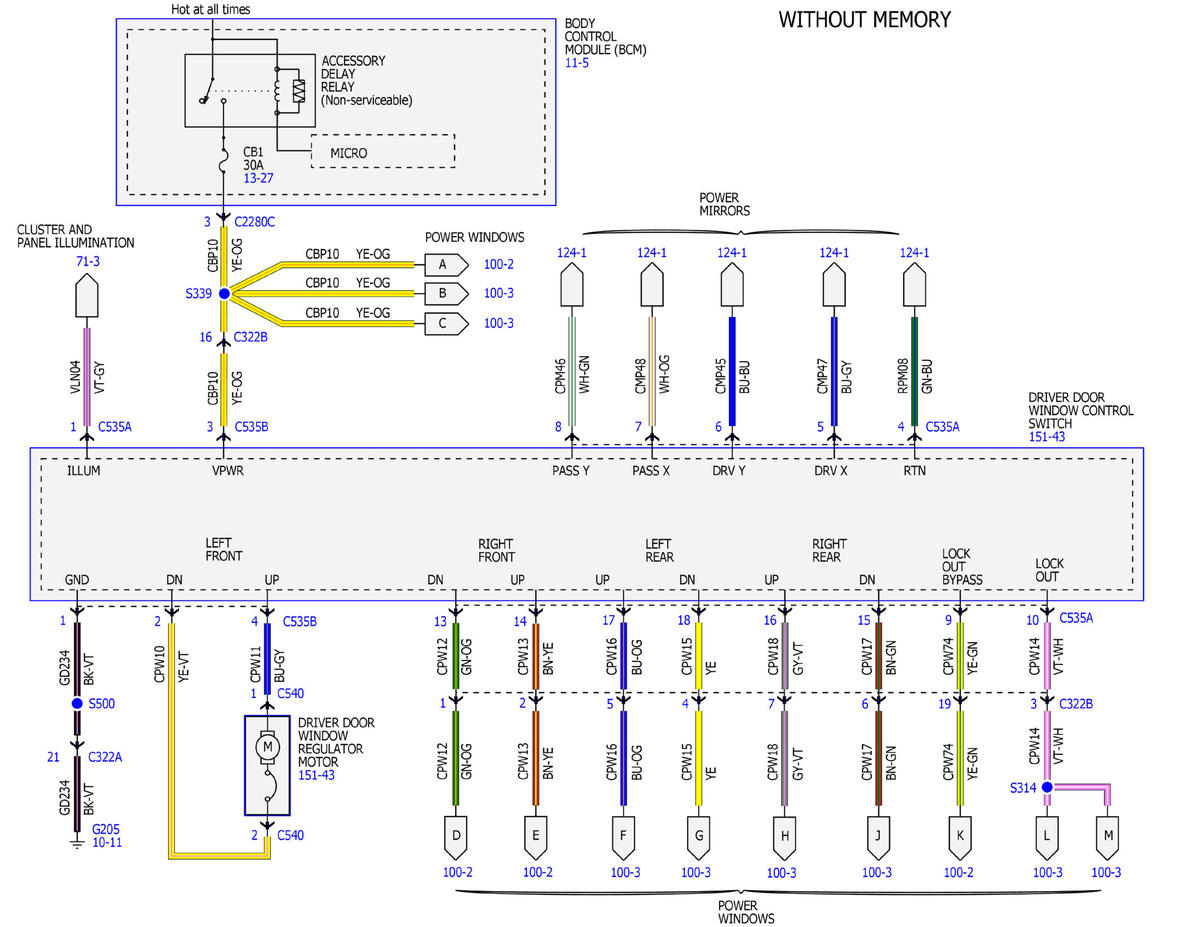

Fig 1: Power Windows Wiring Diagram (1 Of 9)

GFDWR137352

Courtesy of FORD MOTOR COMPANY

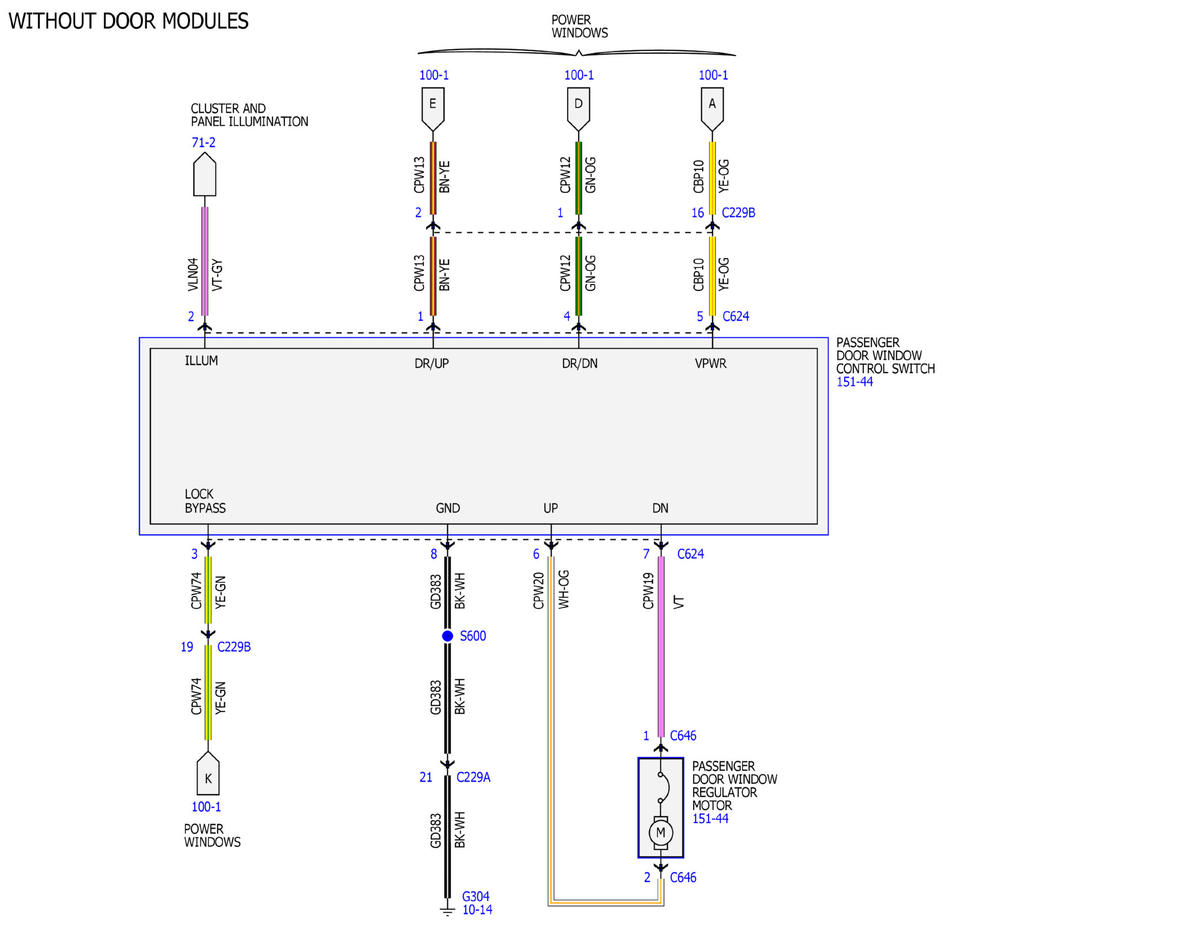

Fig 2: Power Windows Wiring Diagram (2 Of 9)

GFDWR137353

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Windows Wiring Diagram (3 Of 9)

GFDWR137354

Courtesy of FORD MOTOR COMPANY

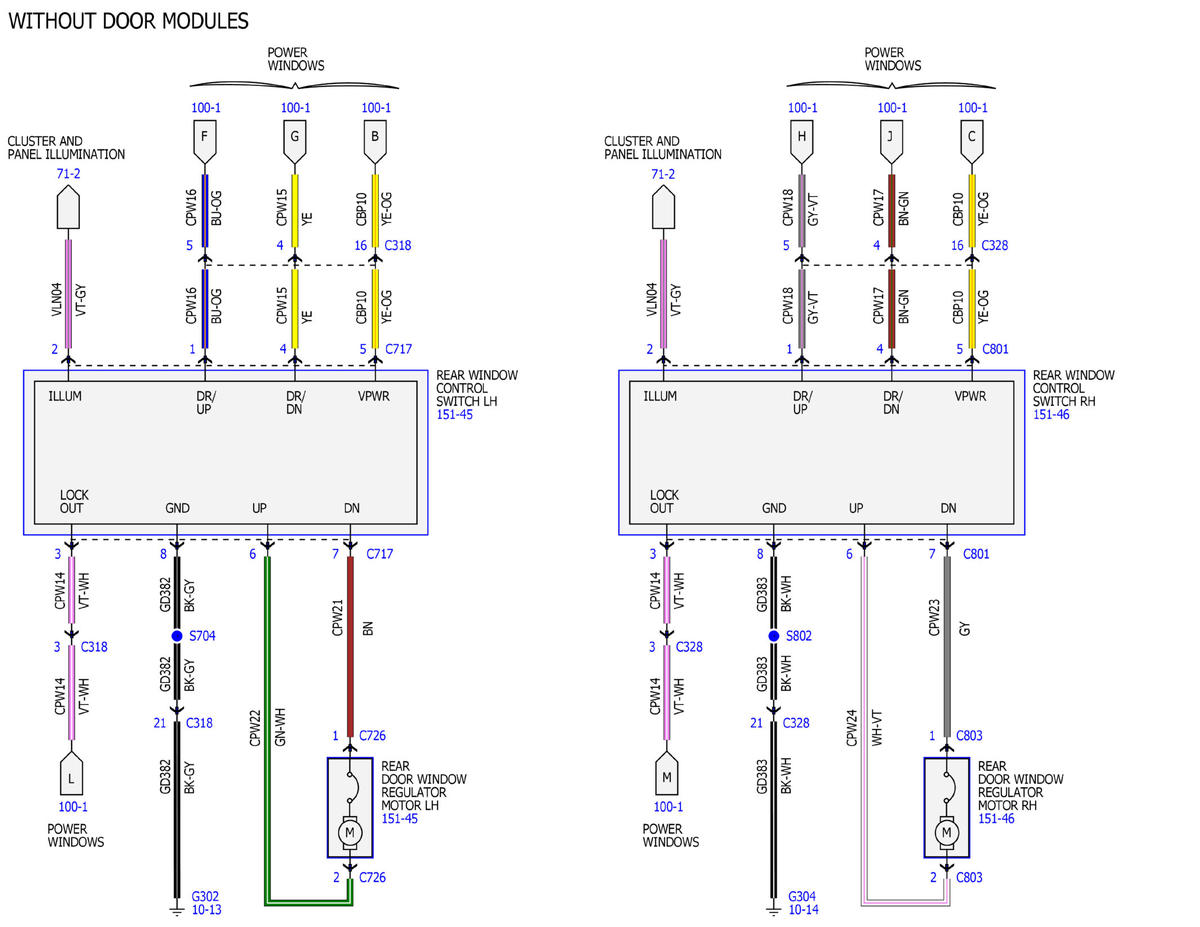

Fig 4: Power Windows Wiring Diagram (4 Of 9)

GFDWR137355

Courtesy of FORD MOTOR COMPANY

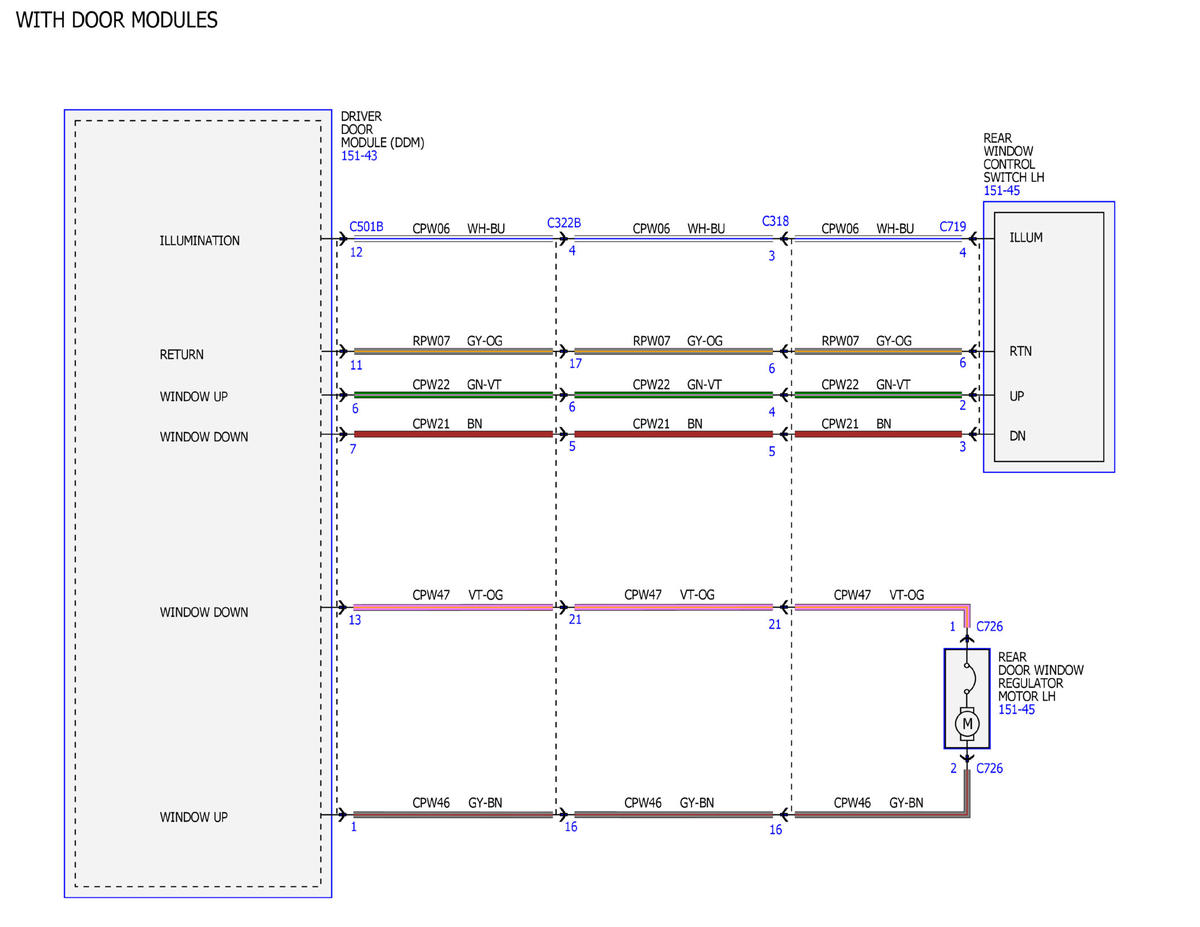

Fig 5: Power Windows Wiring Diagram (5 Of 9)

GFDWR137356

Courtesy of FORD MOTOR COMPANY

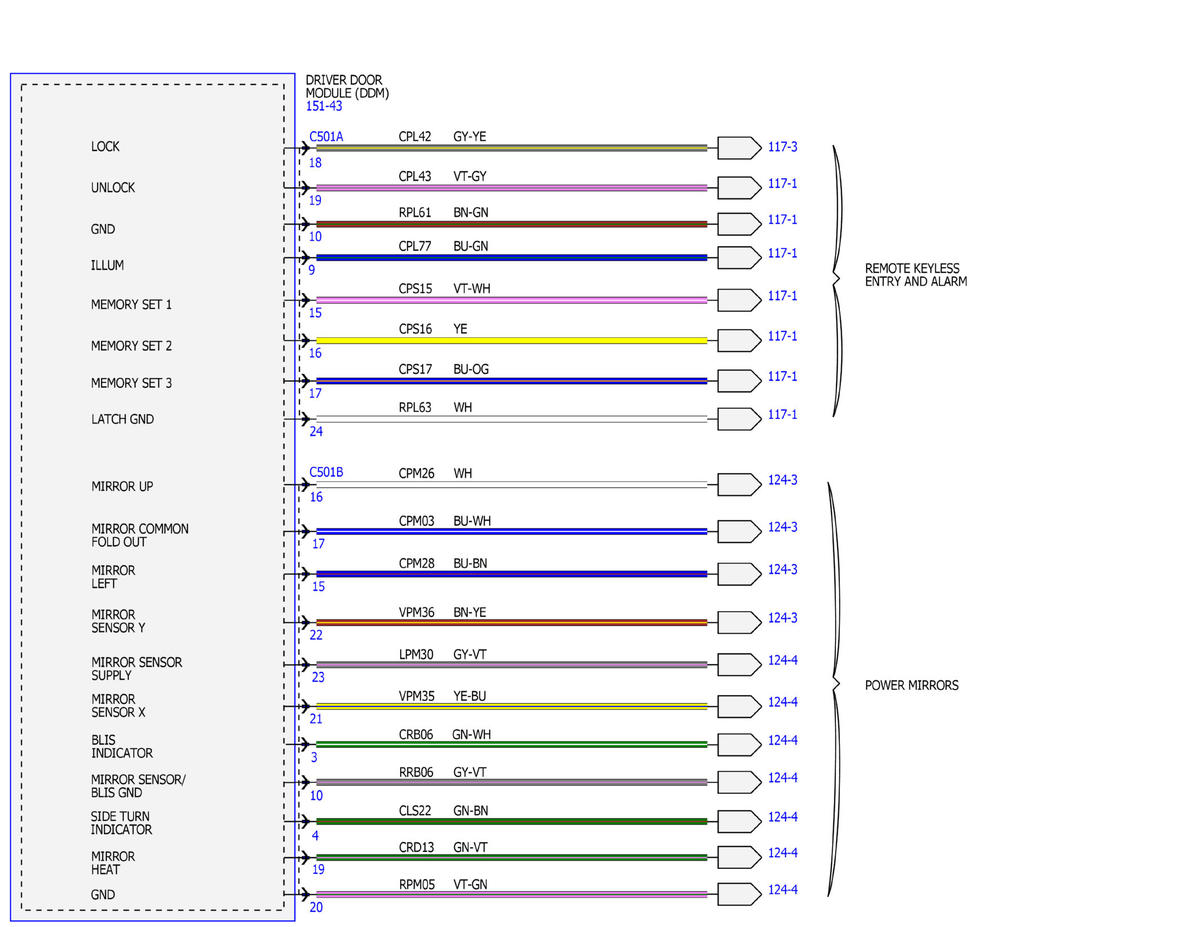

Fig 6: Power Windows Wiring Diagram (6 Of 9)

GFDWR137357

Courtesy of FORD MOTOR COMPANY

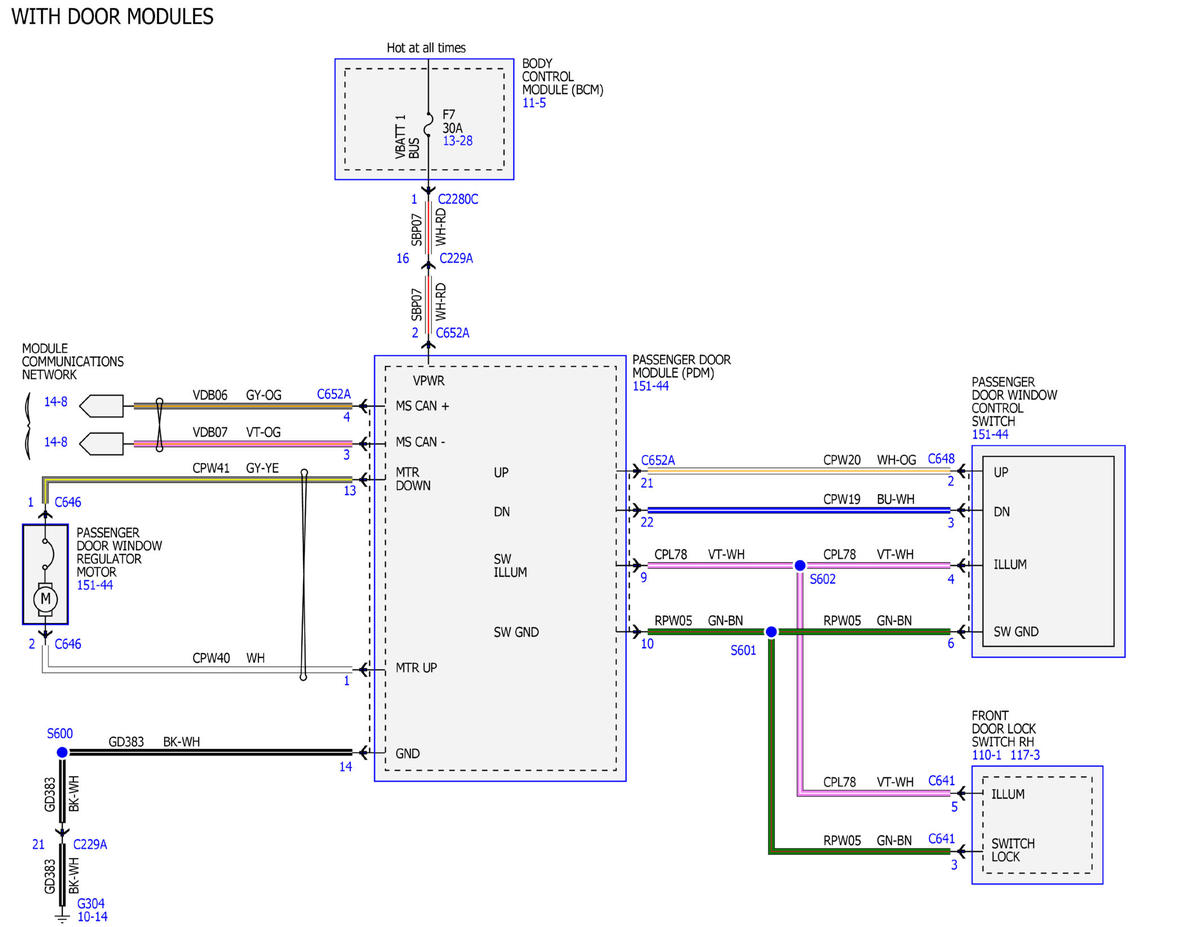

Fig 7: Power Windows Wiring Diagram (7 Of 9)

GFDWR137358

Courtesy of FORD MOTOR COMPANY

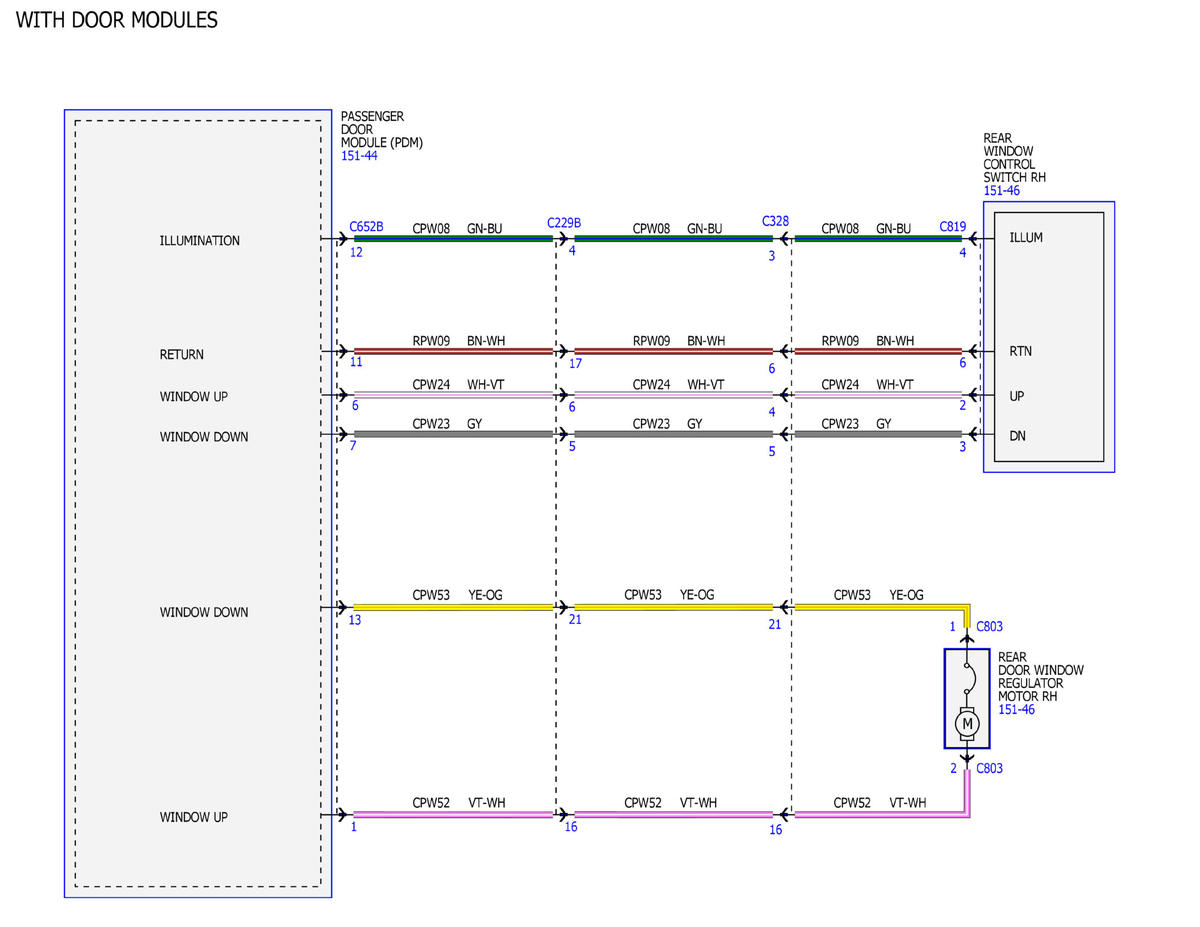

Fig 8: Power Windows Wiring Diagram (8 Of 9)

GFDWR137359

Courtesy of FORD MOTOR COMPANY

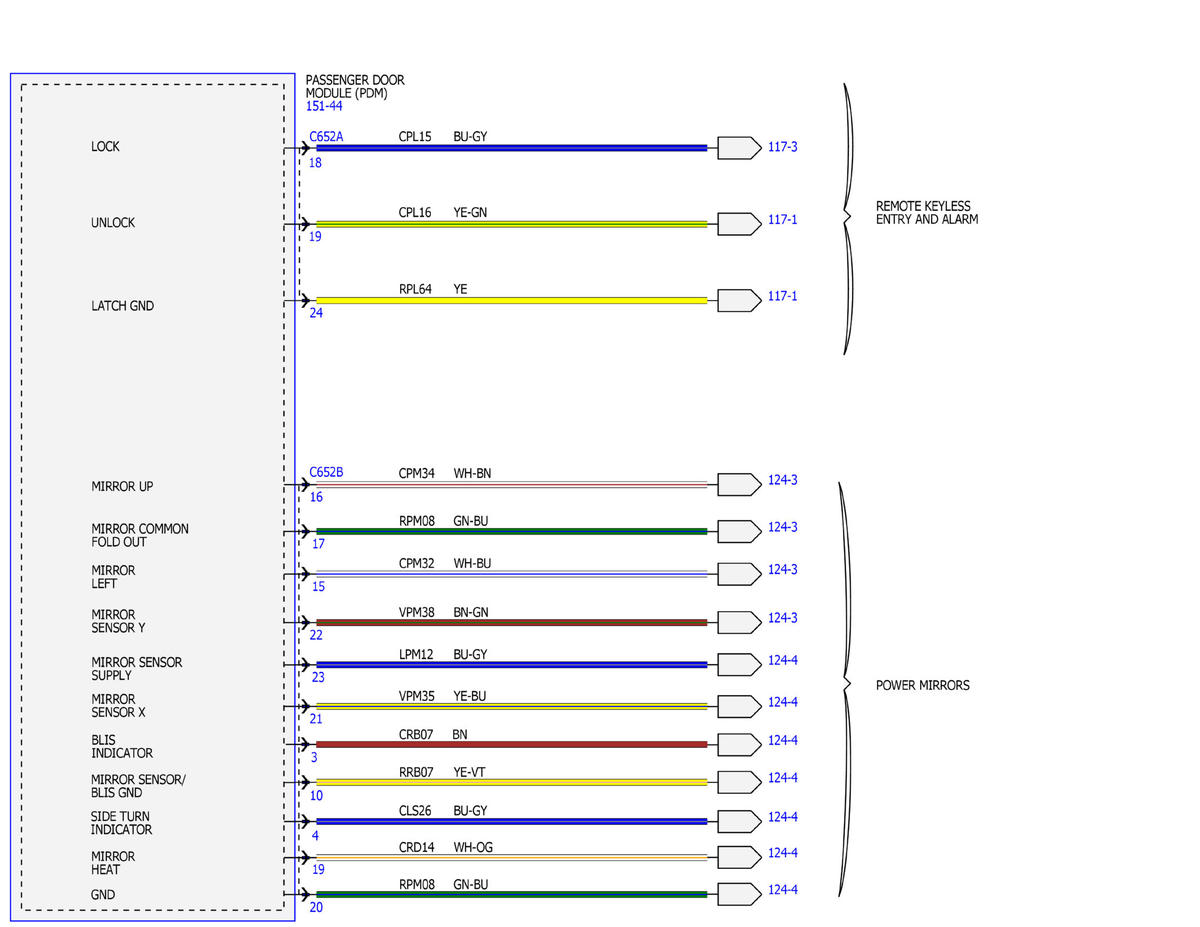

Fig 9: Power Windows Wiring Diagram (9 Of 9)

GFDWR137360

Courtesy of FORD MOTOR COMPANY
