Starting System

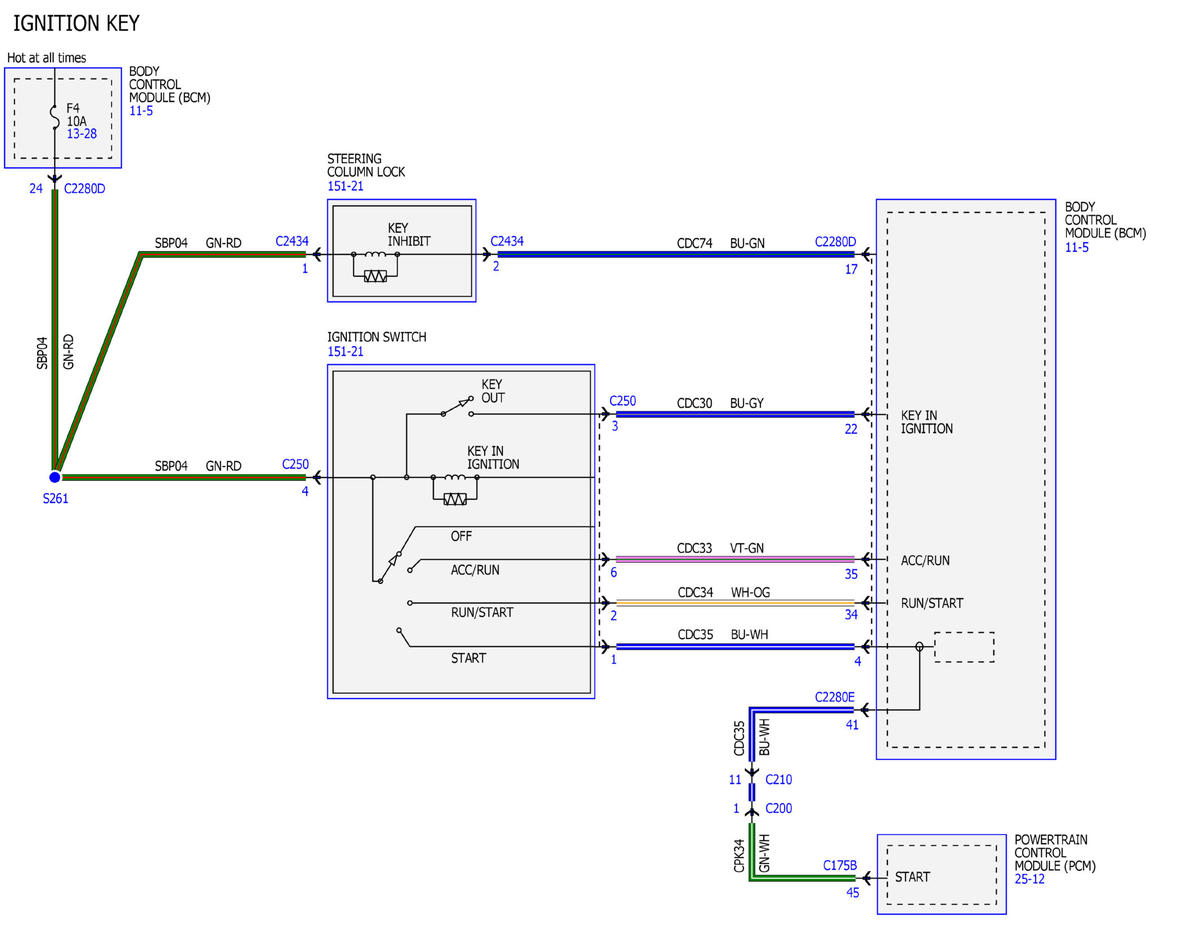

Fig 1: Starting System Wiring Diagram (1 Of 3)
GFDWR137373Courtesy of FORD MOTOR COMPANY

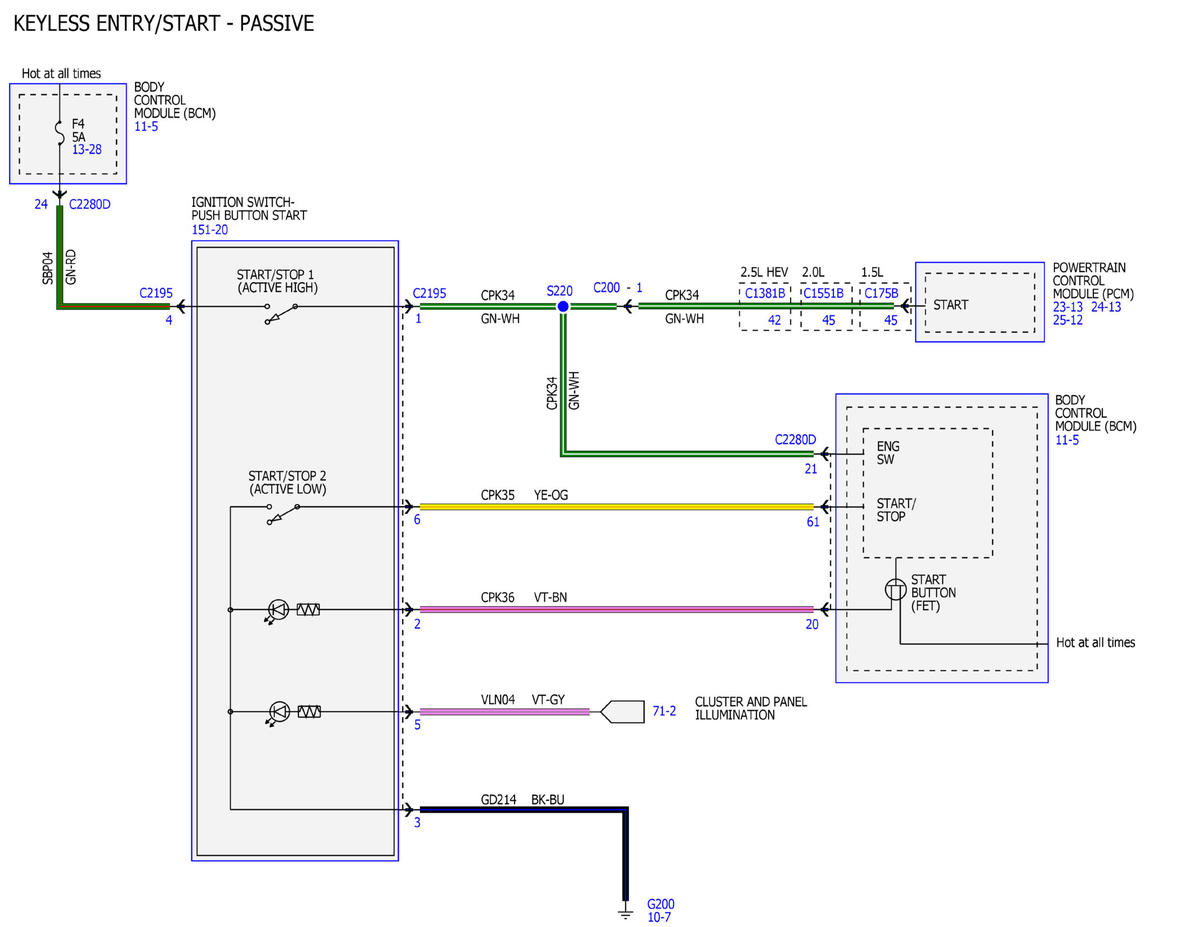

Fig 2: Starting System Wiring Diagram (2 Of 3)
GFDWR137374Courtesy of FORD MOTOR COMPANY

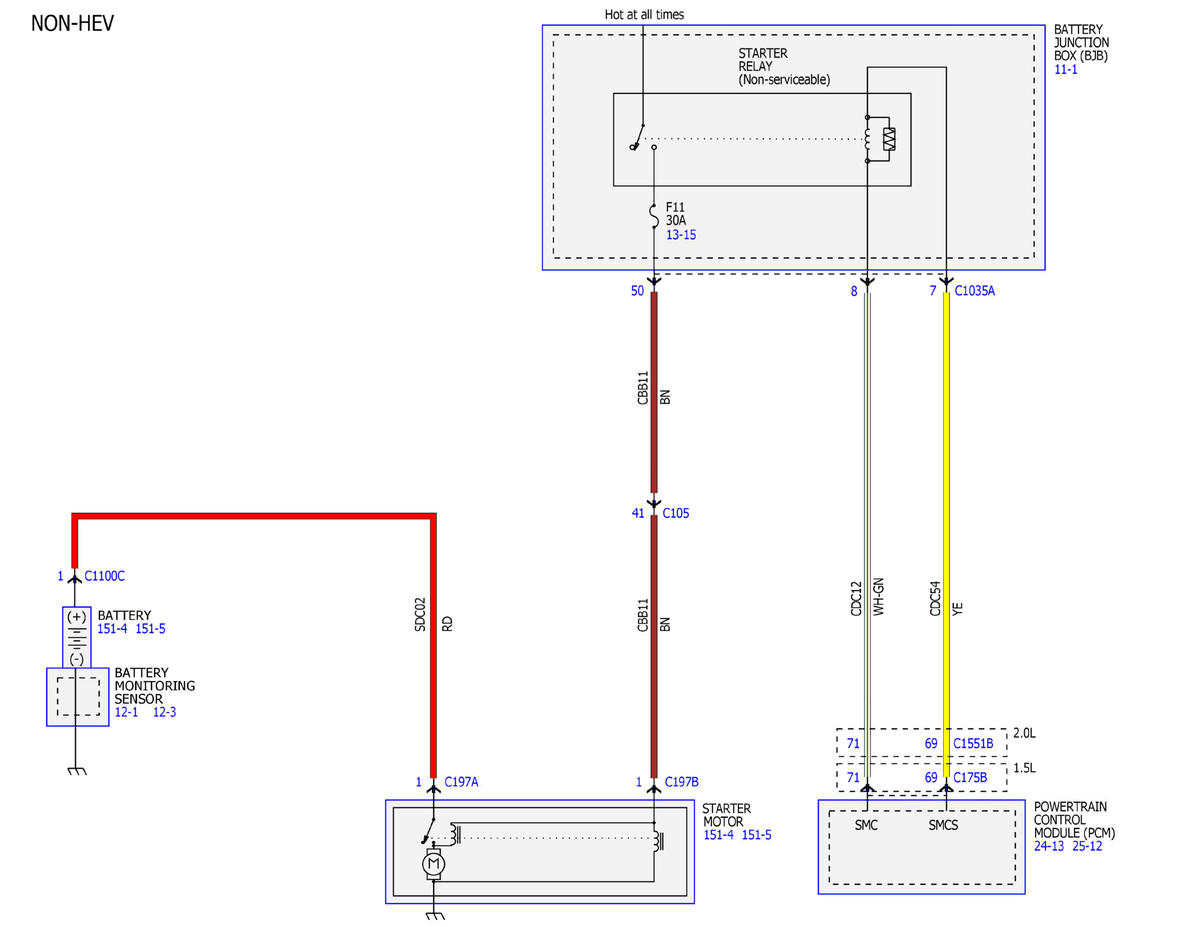

Fig 3: Starting System Wiring Diagram (3 Of 3)
GFDWR137375Courtesy of FORD MOTOR COMPANY
