Steering Gear: Removal

  1. Remove the front subframe. Refer to: Front Subframe .

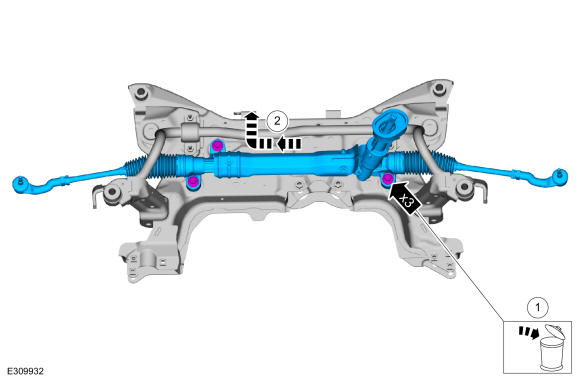

    1. Remove and discard the steering gear retainers.
    2. Position the steering gear to the RH side then remove it from the front subframe.
    GFD586297Courtesy of FORD MOTOR COMPANY

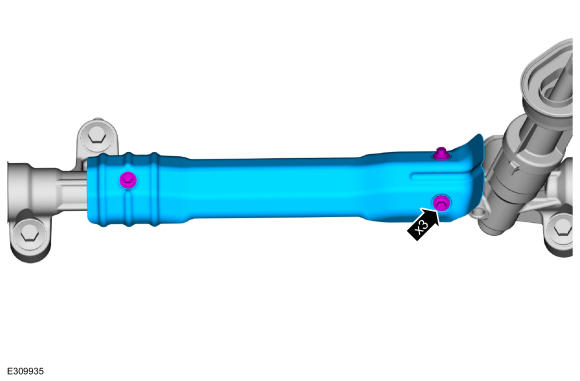

  3. NOTE: This step is only necessary when installing a new component.

    Remove the retainers and the steering gear shield.

GFD586298Courtesy of FORD MOTOR COMPANY
