Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

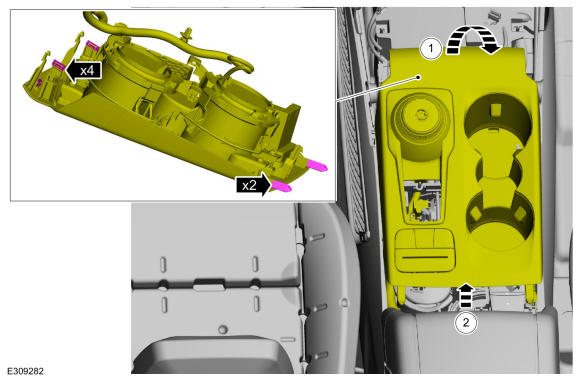

1. Release the clips and position aside the floor console upper trim panel.
   1. Lift the front of the upper trim panel to release the clips.
   2. Slide upper trim panel forward to release rear retaining tabs.

   Courtesy of FORD MOTOR COMPANY

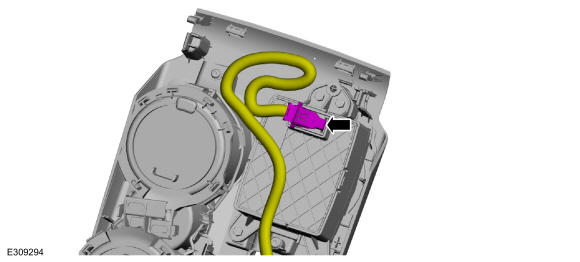

2. Disconnect the GSM.

   Courtesy of FORD MOTOR COMPANY

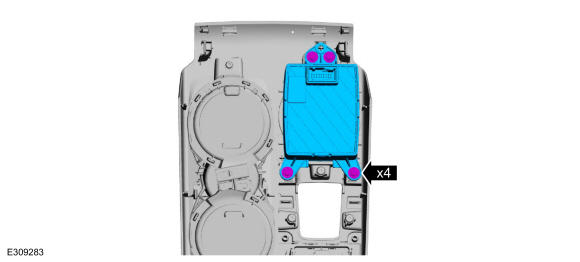

3. Remove the bolts and the GSM.

Courtesy of FORD MOTOR COMPANY
