Front Seat Control Switch: Removal

NOTE: Driver seat shown in illustration, passenger seat similar.

1. Remove the front seat. Refer to: Front Seat

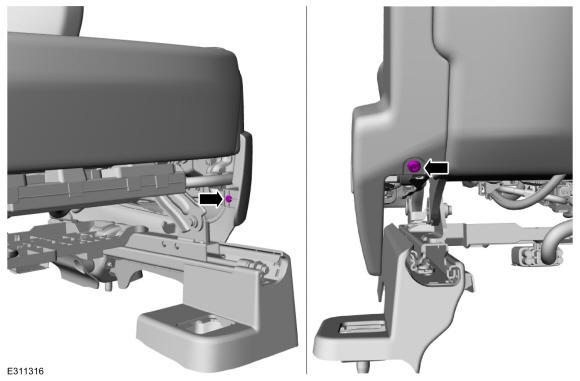

2. Remove the front seat side shield screws.

   Courtesy of FORD MOTOR COMPANY

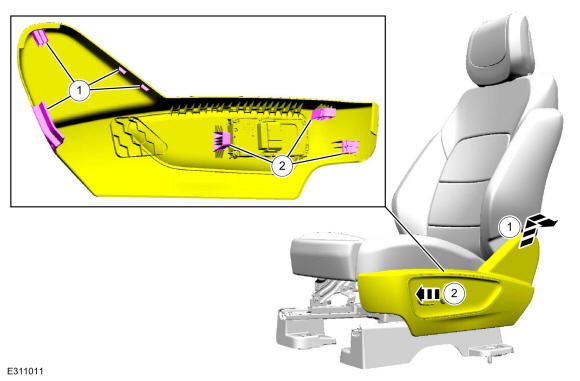

3. 1. Firmly grasp the front seat side shield, lift up and out, separating the side shield from the recliner bracket.
   2. Slide the front seat side shield forward and separate the side shield from the seat.

   Courtesy of FORD MOTOR COMPANY

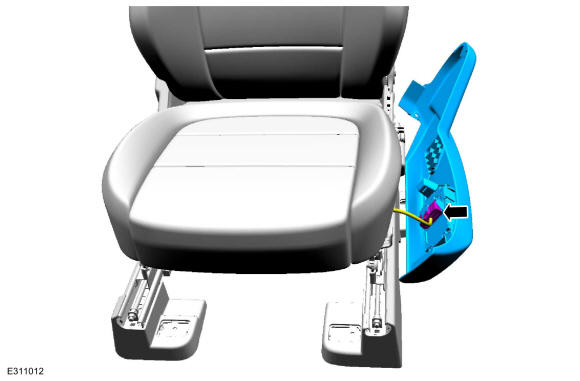

4. Disconnect the electrical connector and remove the front seat side shield

   Courtesy of FORD MOTOR COMPANY

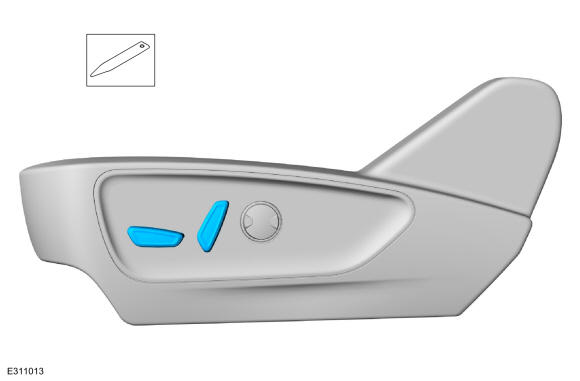

5. Remove the front seat control switch knobs.

   Courtesy of FORD MOTOR COMPANY

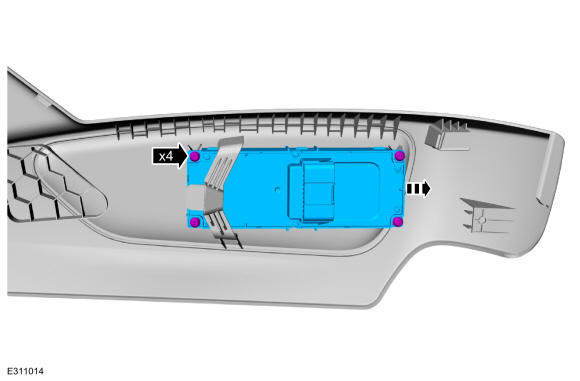

6. Remove the screws and the front seat control switch.

Courtesy of FORD MOTOR COMPANY
