Fuel Pump Driver Module (FPDM): Installation

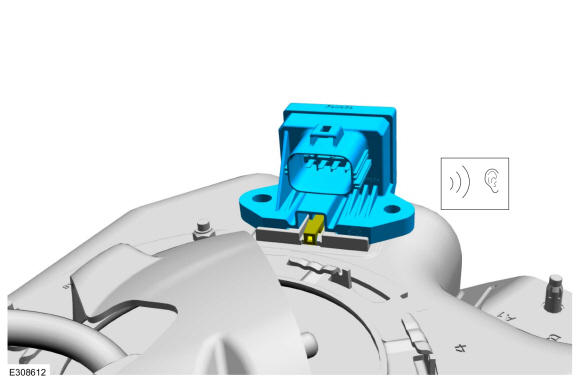

Install the fuel pump driver module to the bracket until it clicks and locks into position.

Courtesy of FORD MOTOR COMPANY
Connect the fuel pump driver module electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the fuel tank. Refer to: Fuel Tank
