Fuel Pump Driver Module (FPDM): Removal

NOTE: The fuel pump driver module is attached to the top of the fuel tank.

1. For component location information. Refer to: Fuel Charging and Controls - Component Location .
2. Remove the fuel tank. Refer to: Fuel Tank

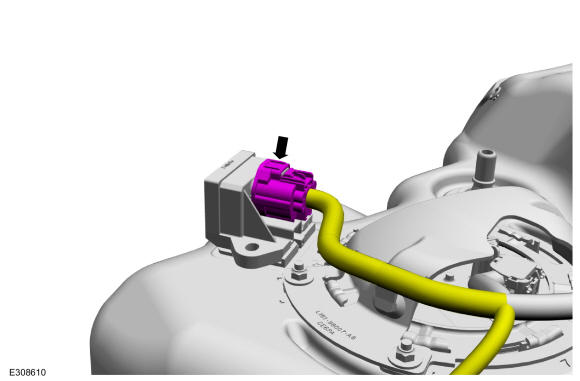

3. Disconnect the fuel pump driver module electrical connector.

   Courtesy of FORD MOTOR COMPANY

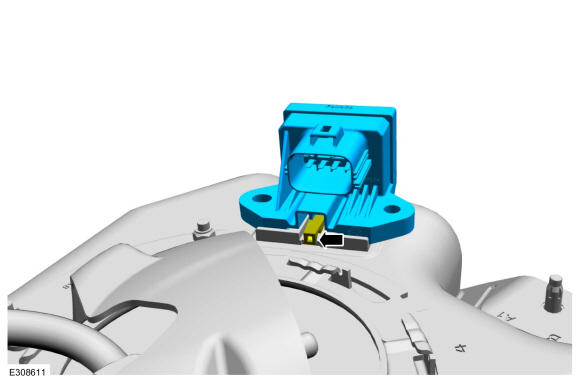

4. Release the fuel pump driver module retaining tab, then remove the fuel pump driver module from the bracket.

Courtesy of FORD MOTOR COMPANY
