Component Testing

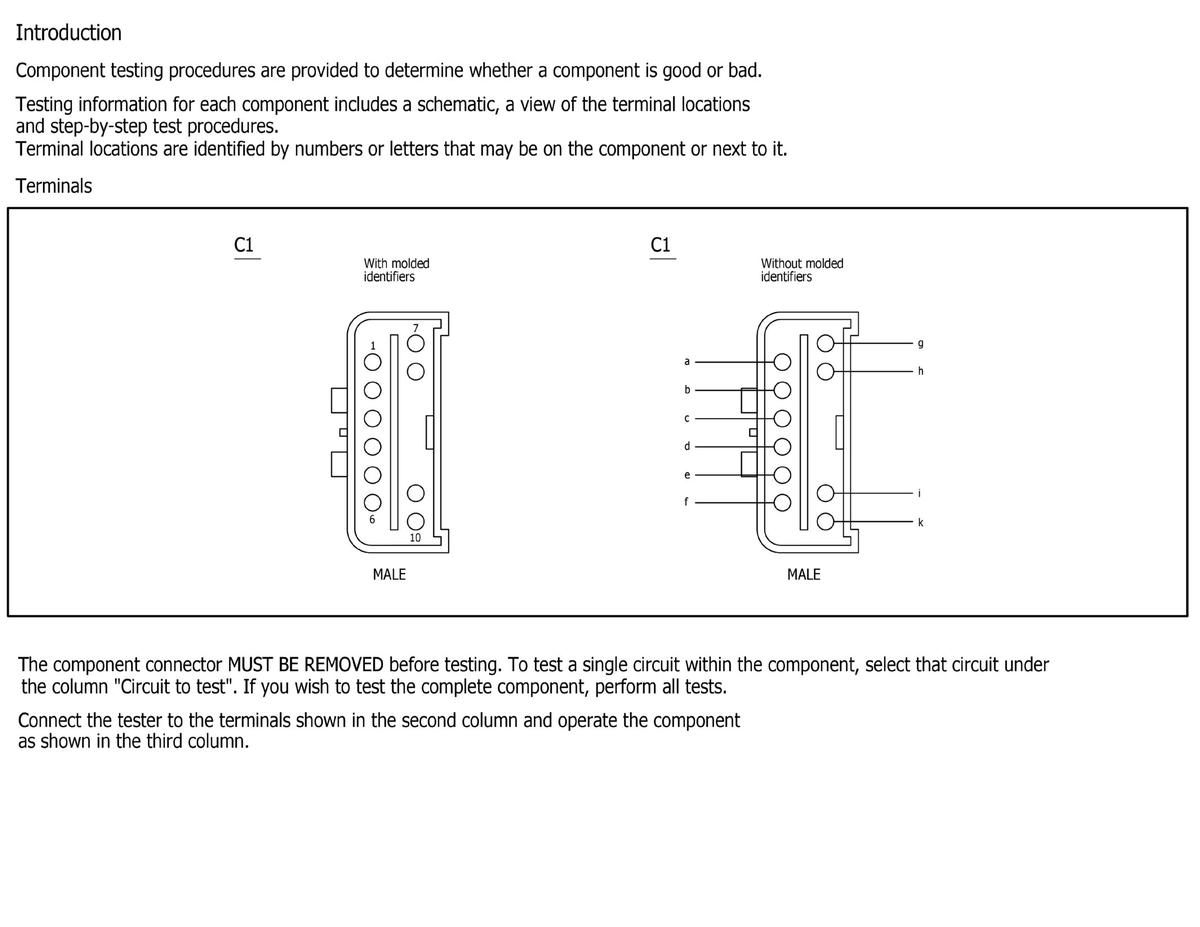

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

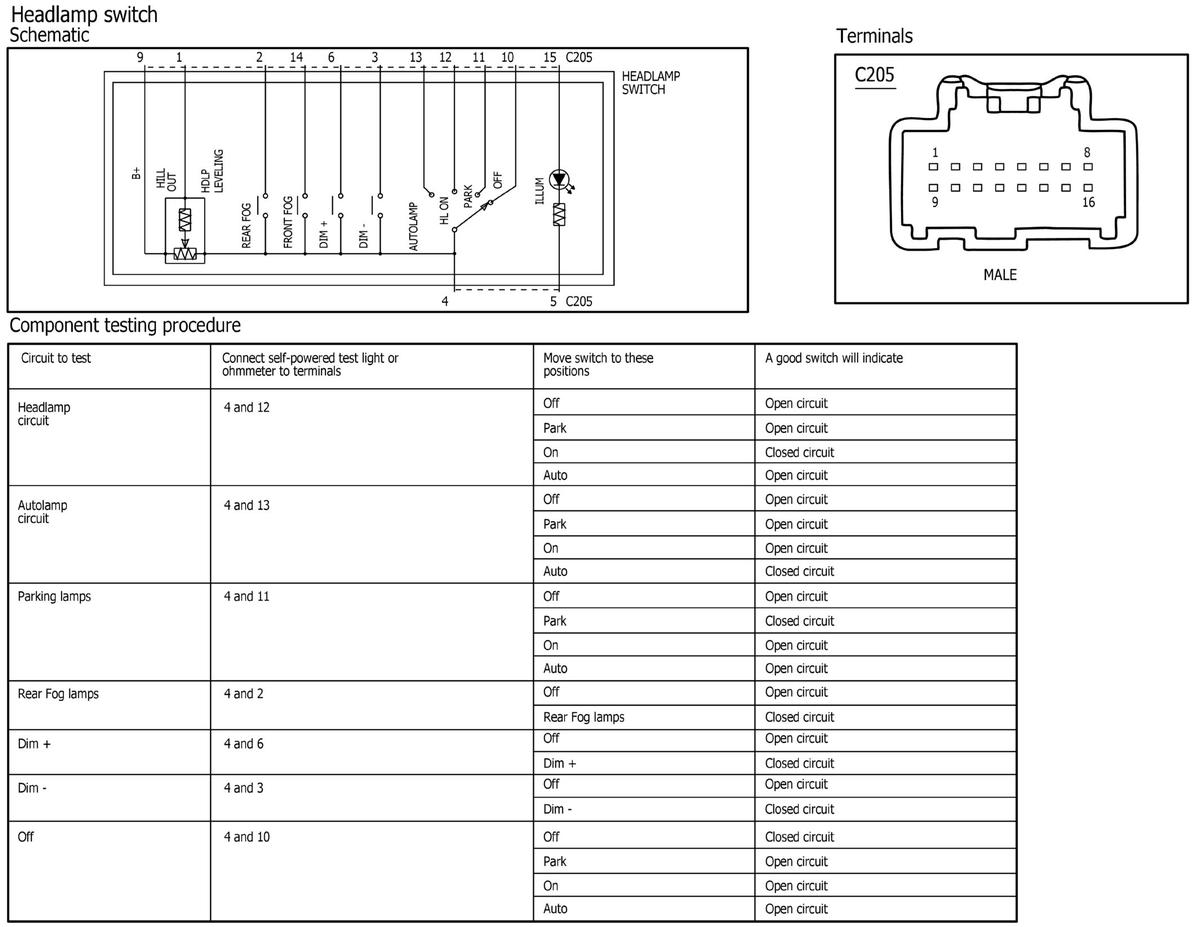

Fig 2: Headlamp Switch Component Testing

Courtesy of FORD MOTOR COMPANY

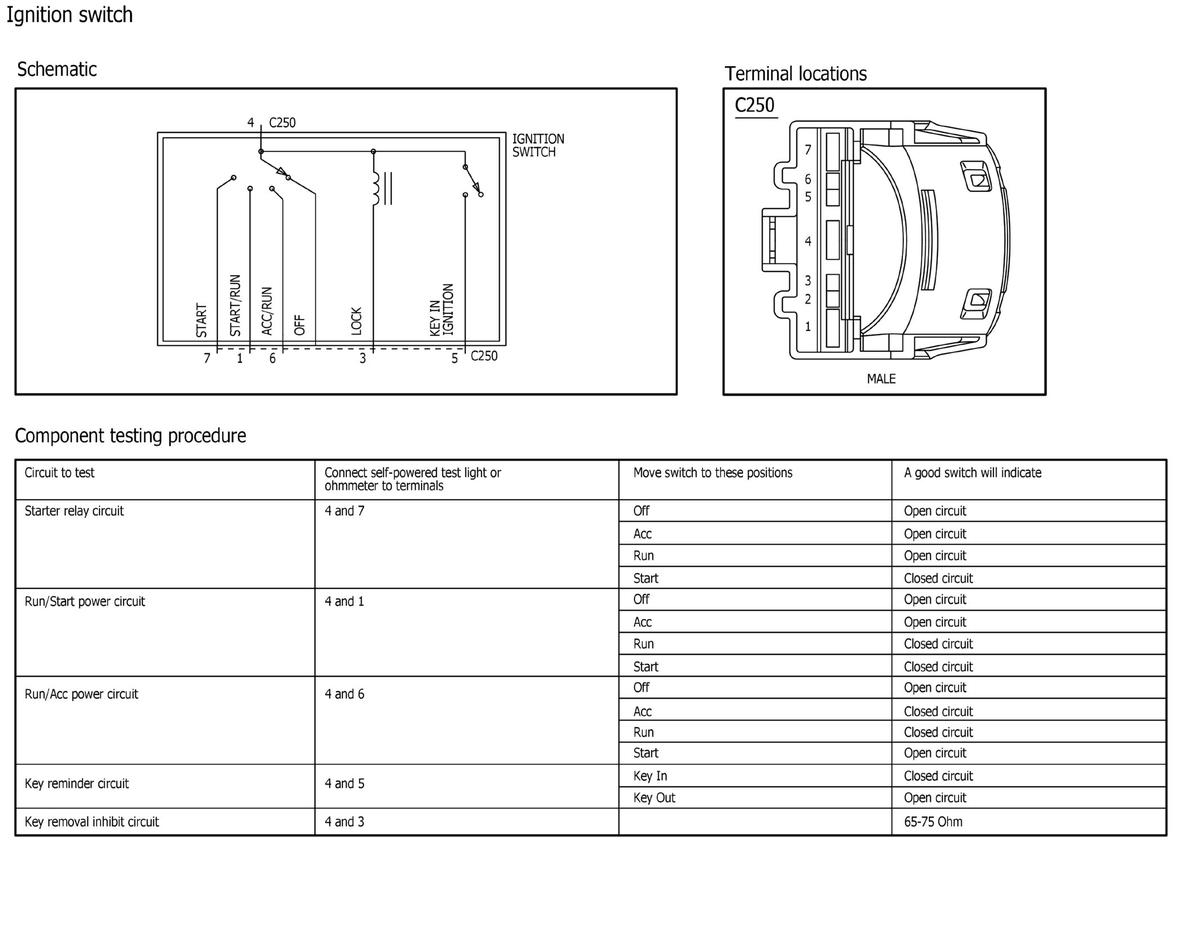

Fig 3: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

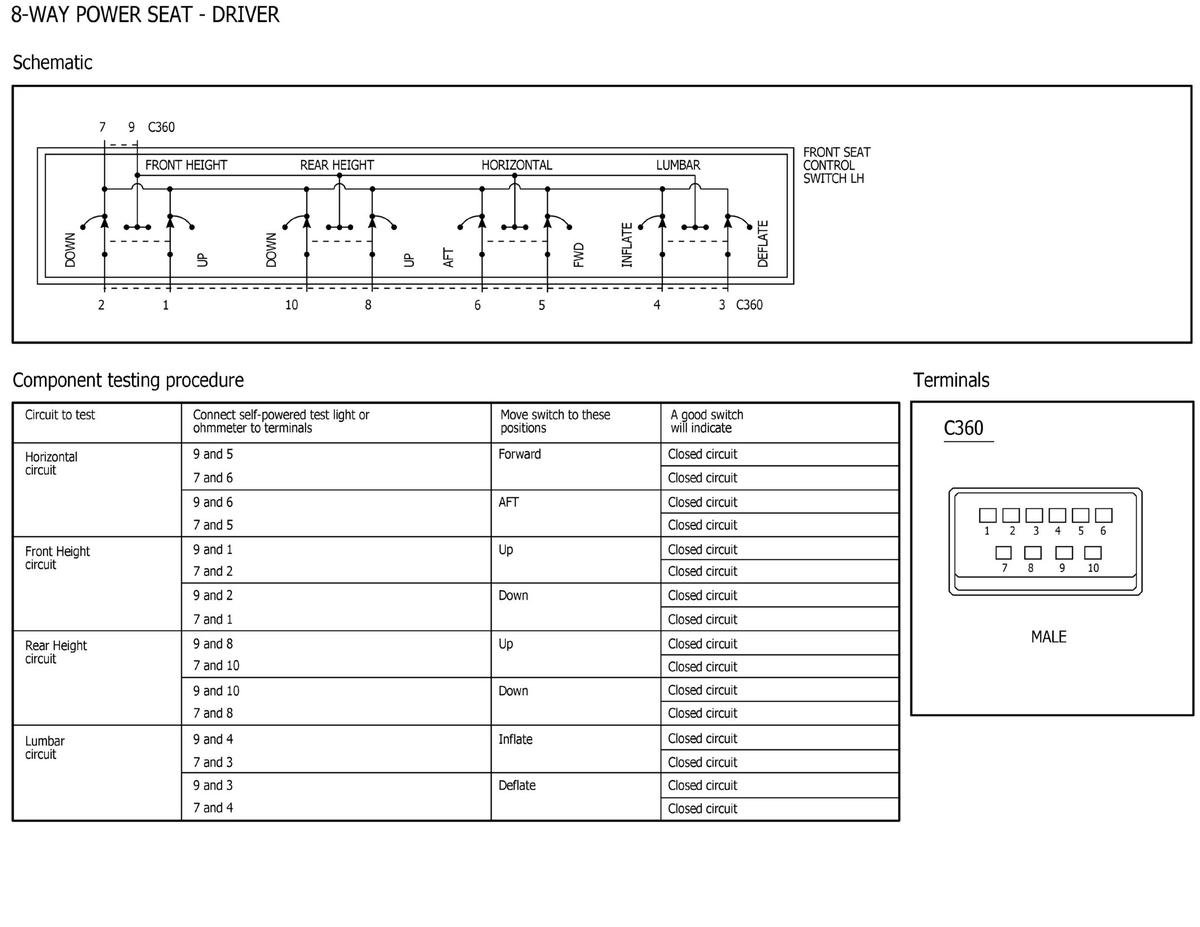

Fig 4: 8-Way Power Seat - Driver Component Testing

Courtesy of FORD MOTOR COMPANY

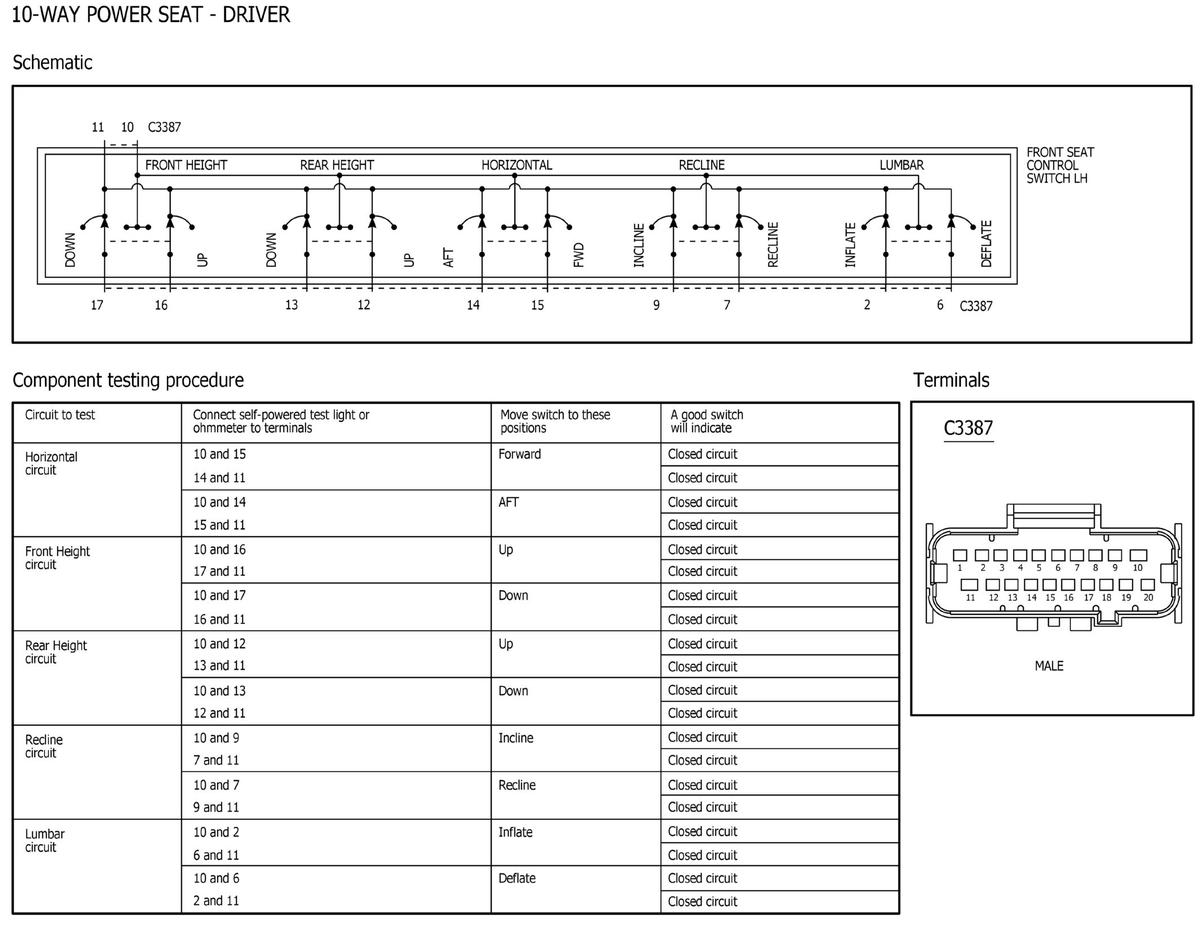

Fig 5: 10-Way Power Seat - Driver Component Testing

Courtesy of FORD MOTOR COMPANY

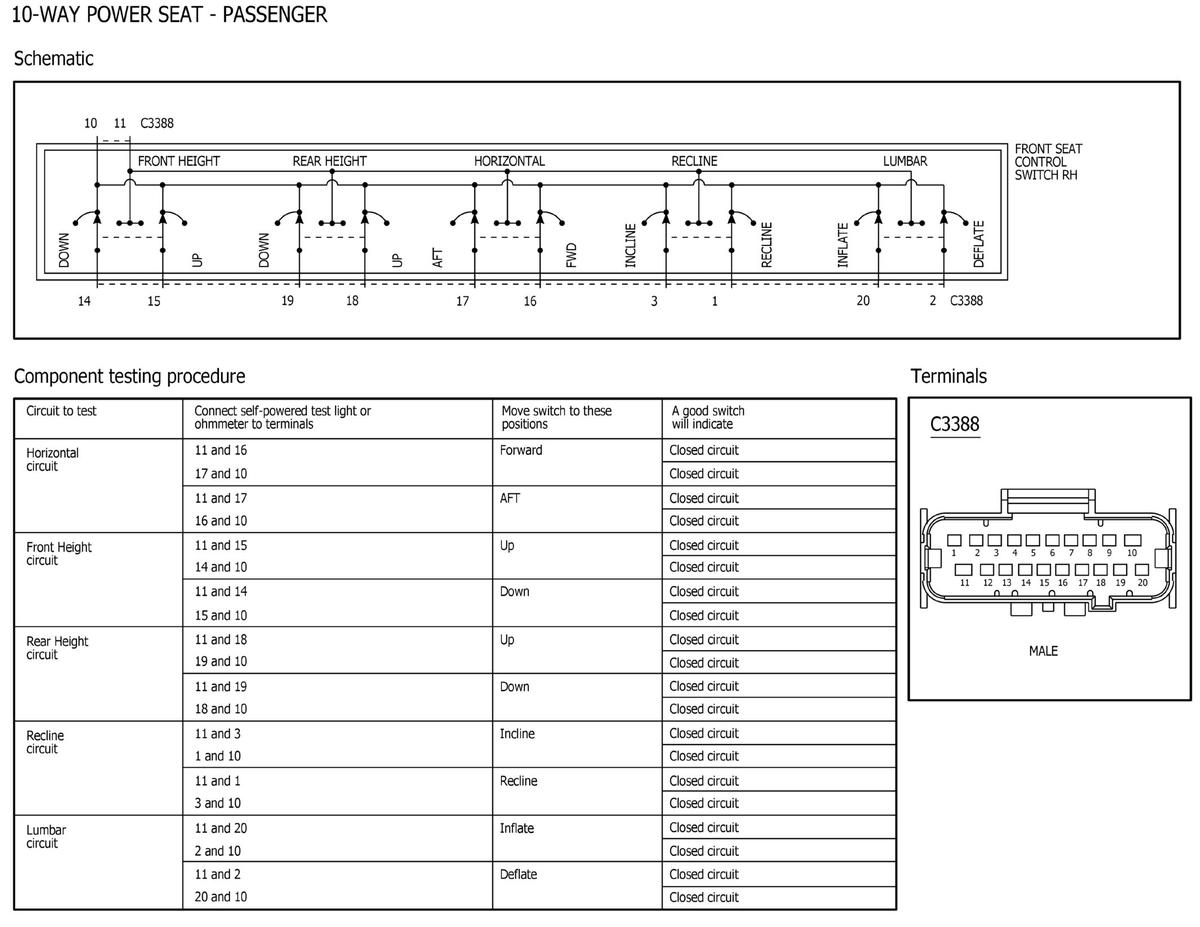

Fig 6: 10-Way Power Seat - Passenger Component Testing

Courtesy of FORD MOTOR COMPANY

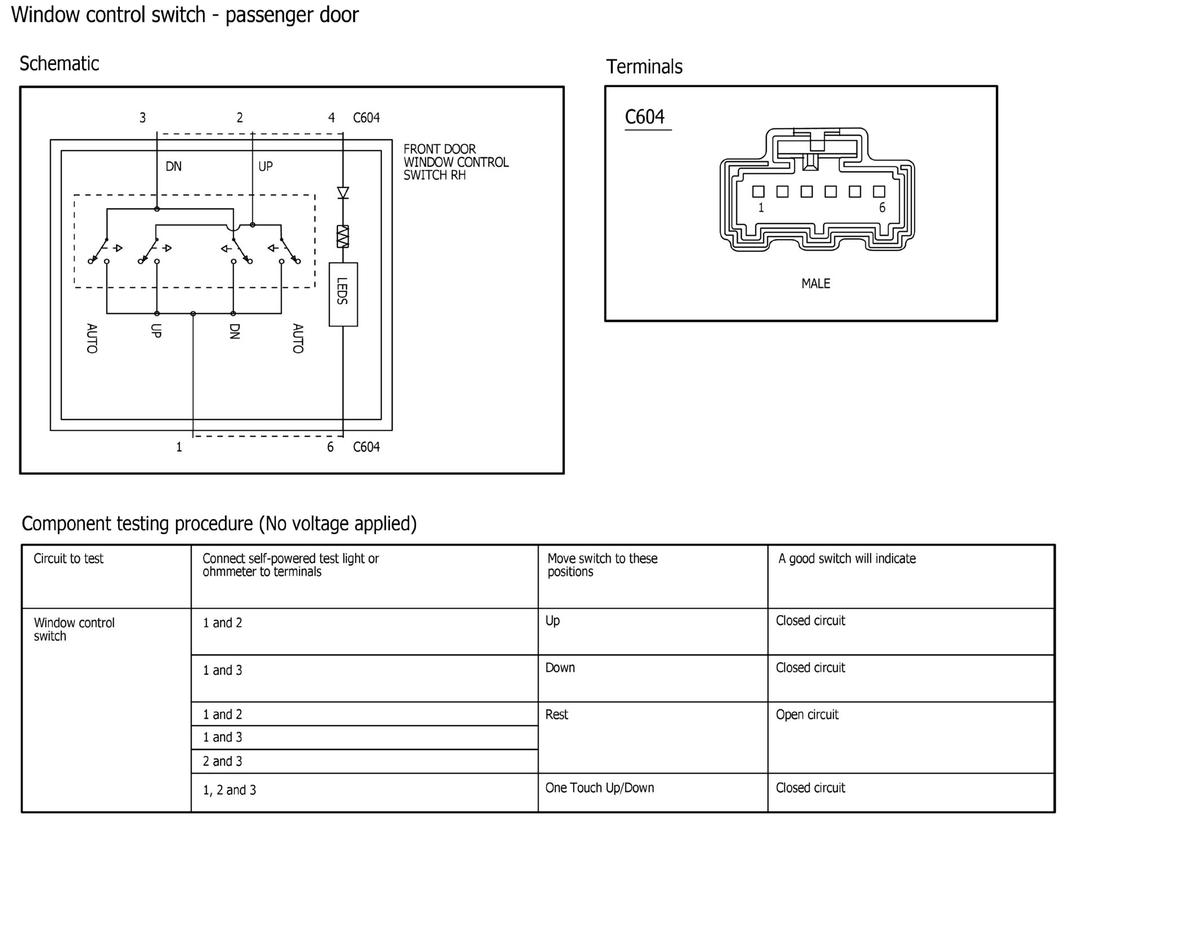

Fig 7: Window Control Switch - Passenger Door Component Testing

Courtesy of FORD MOTOR COMPANY

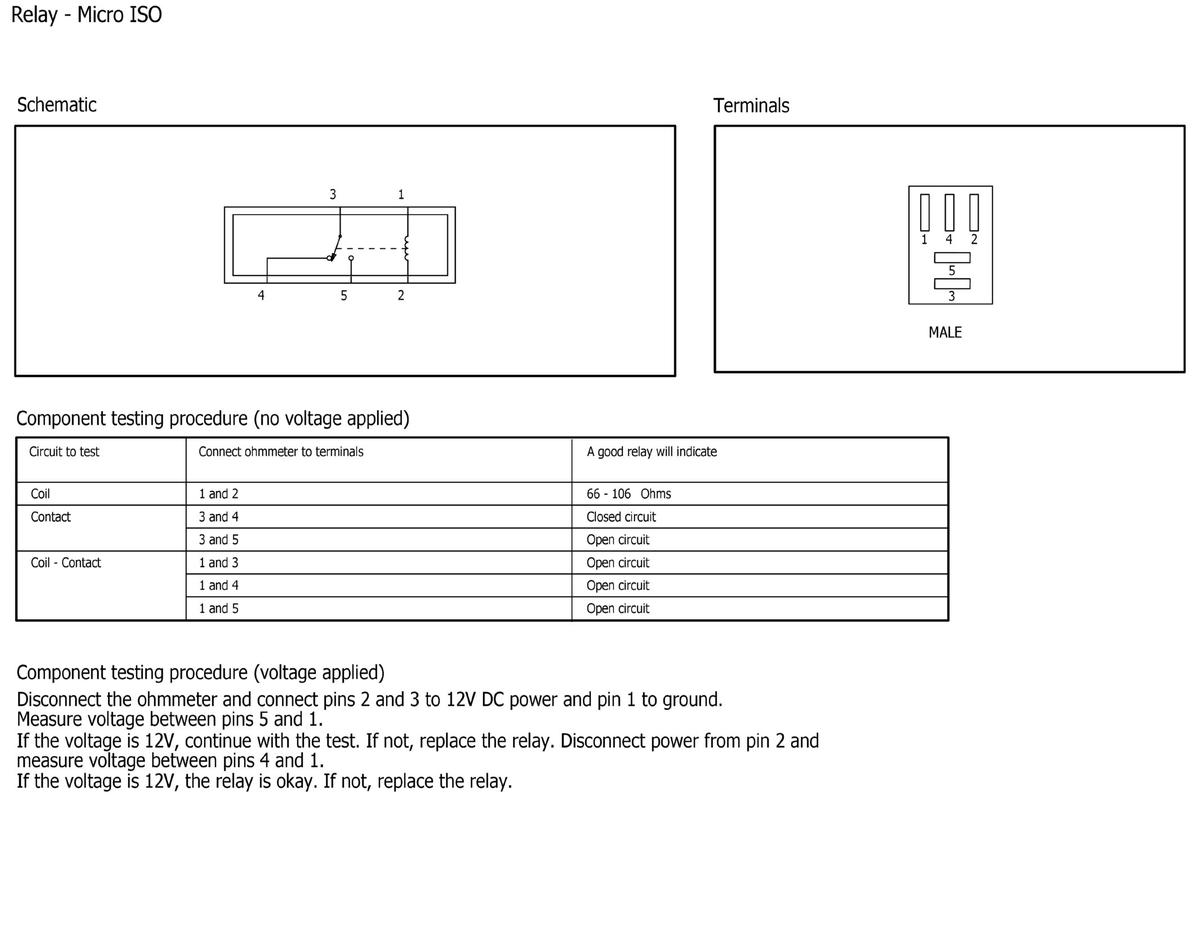

Fig 8: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

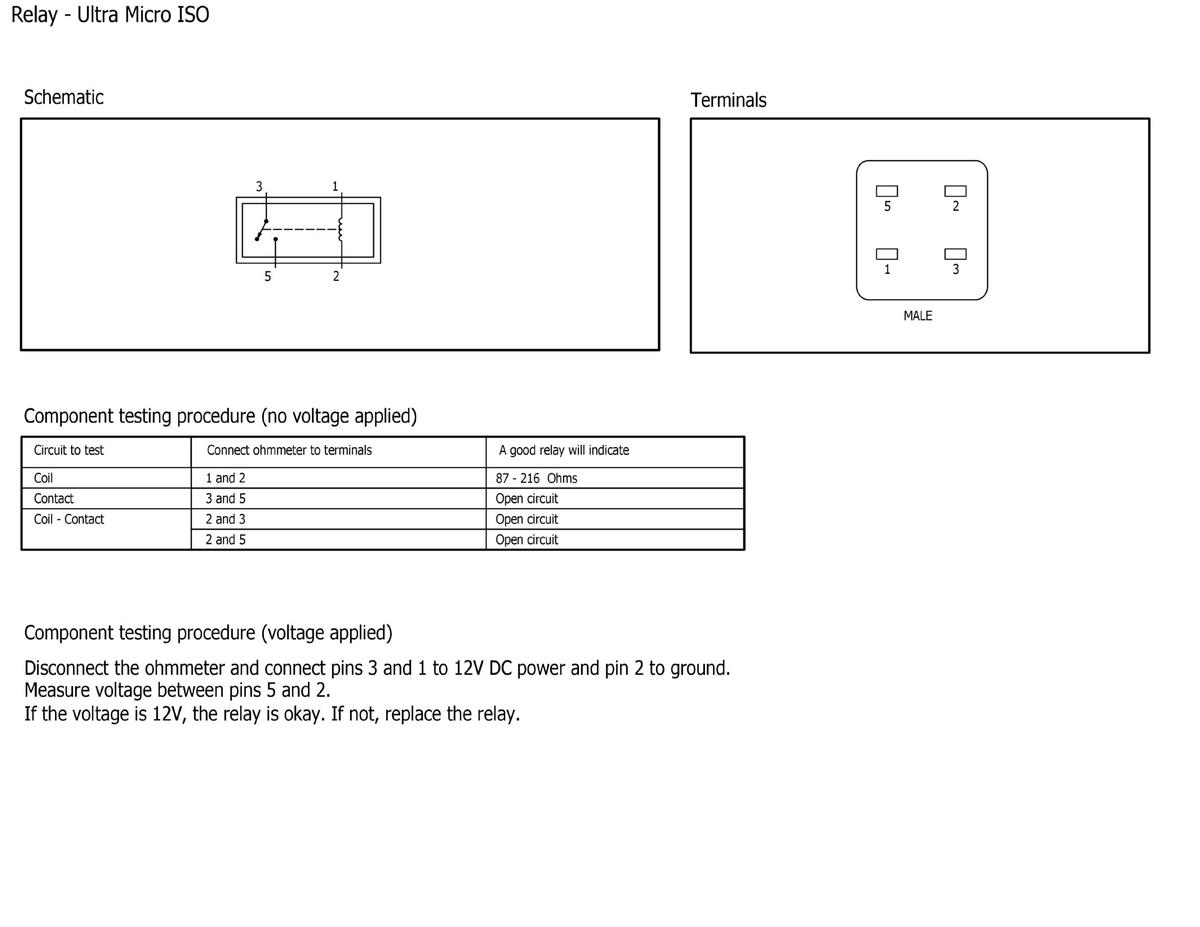

Fig 9: Relay - Ultra Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

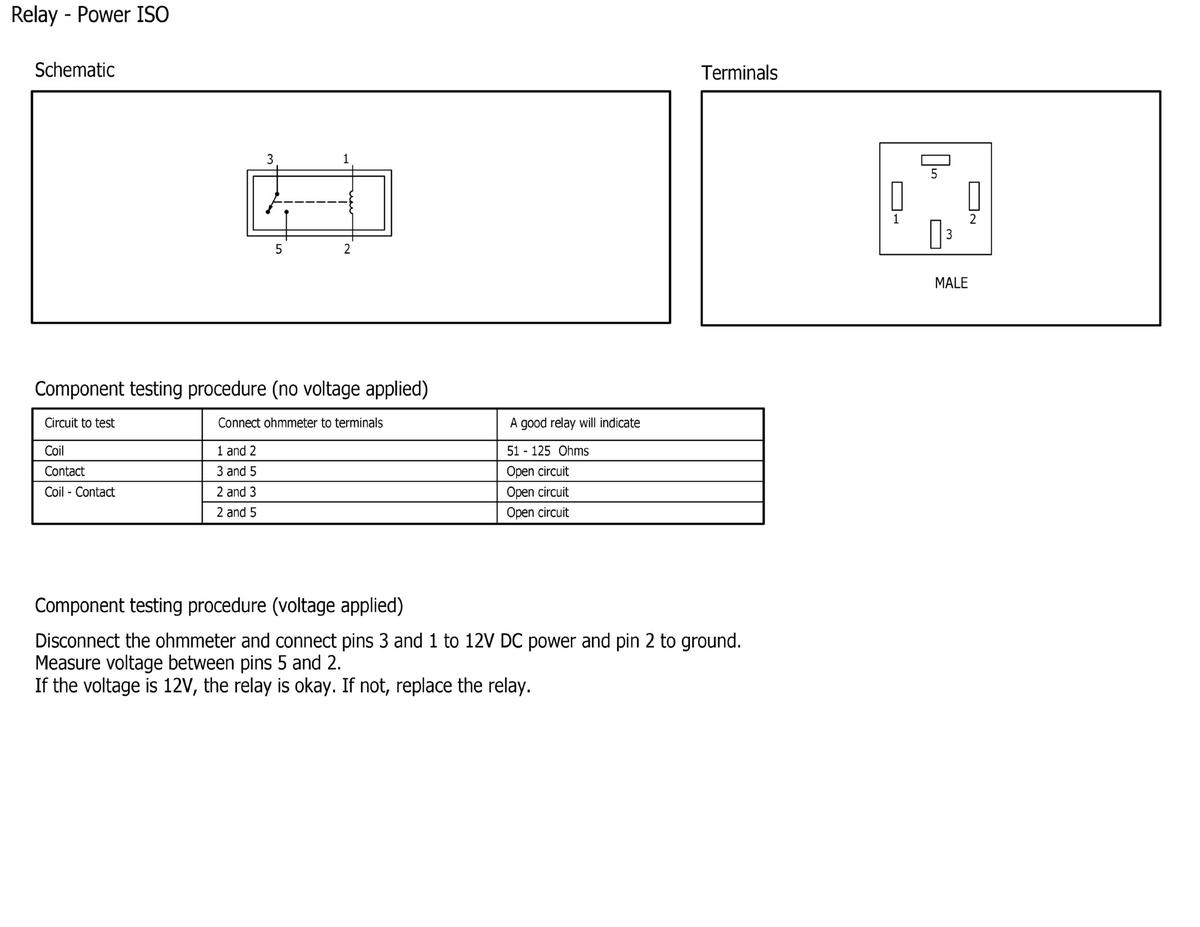

Fig 10: Relay - Power ISO Component Testing

Courtesy of FORD MOTOR COMPANY
