OEM Ground Distribution: Grounds

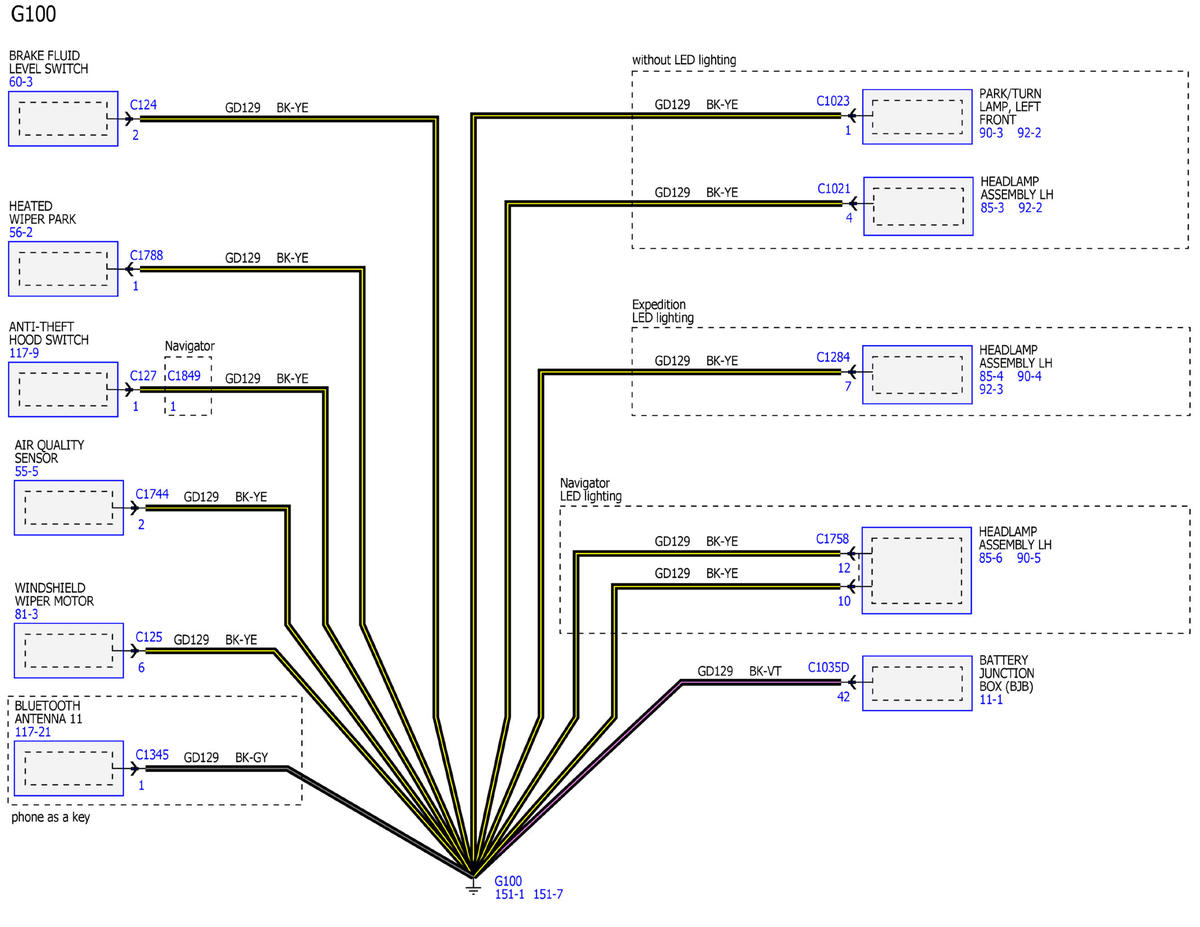

GFDWR134765Courtesy of FORD MOTOR COMPANY

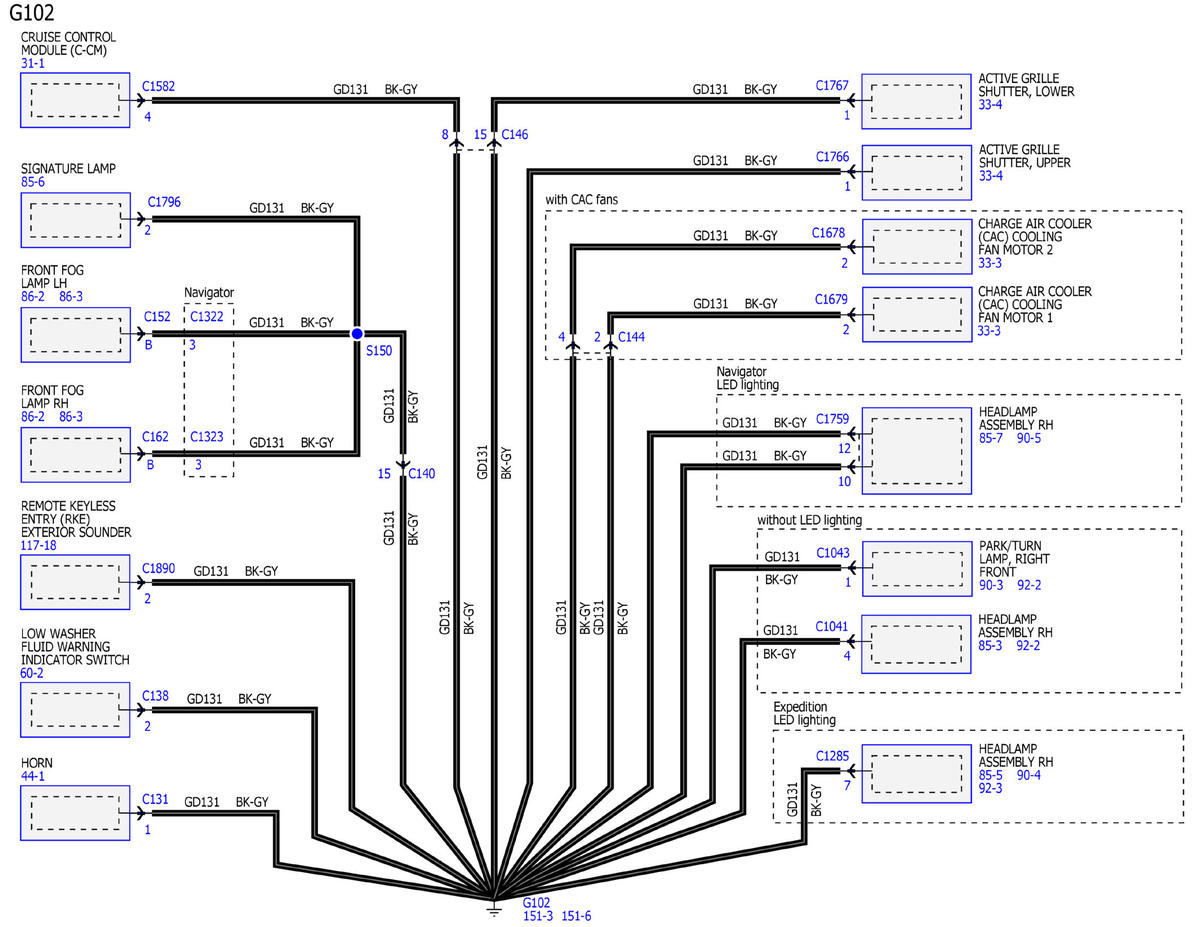

GFDWR134776Courtesy of FORD MOTOR COMPANY

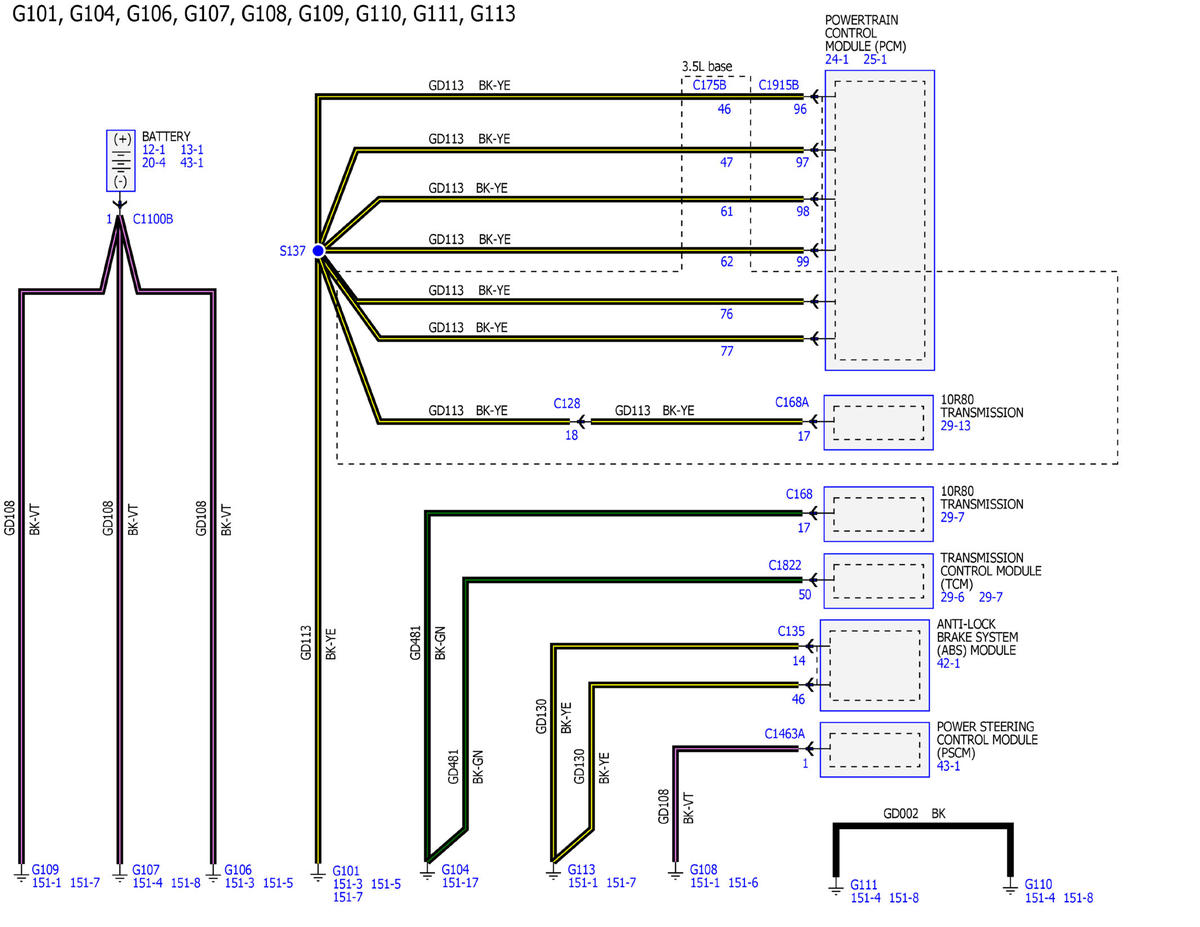

GFDWR134783Courtesy of FORD MOTOR COMPANY

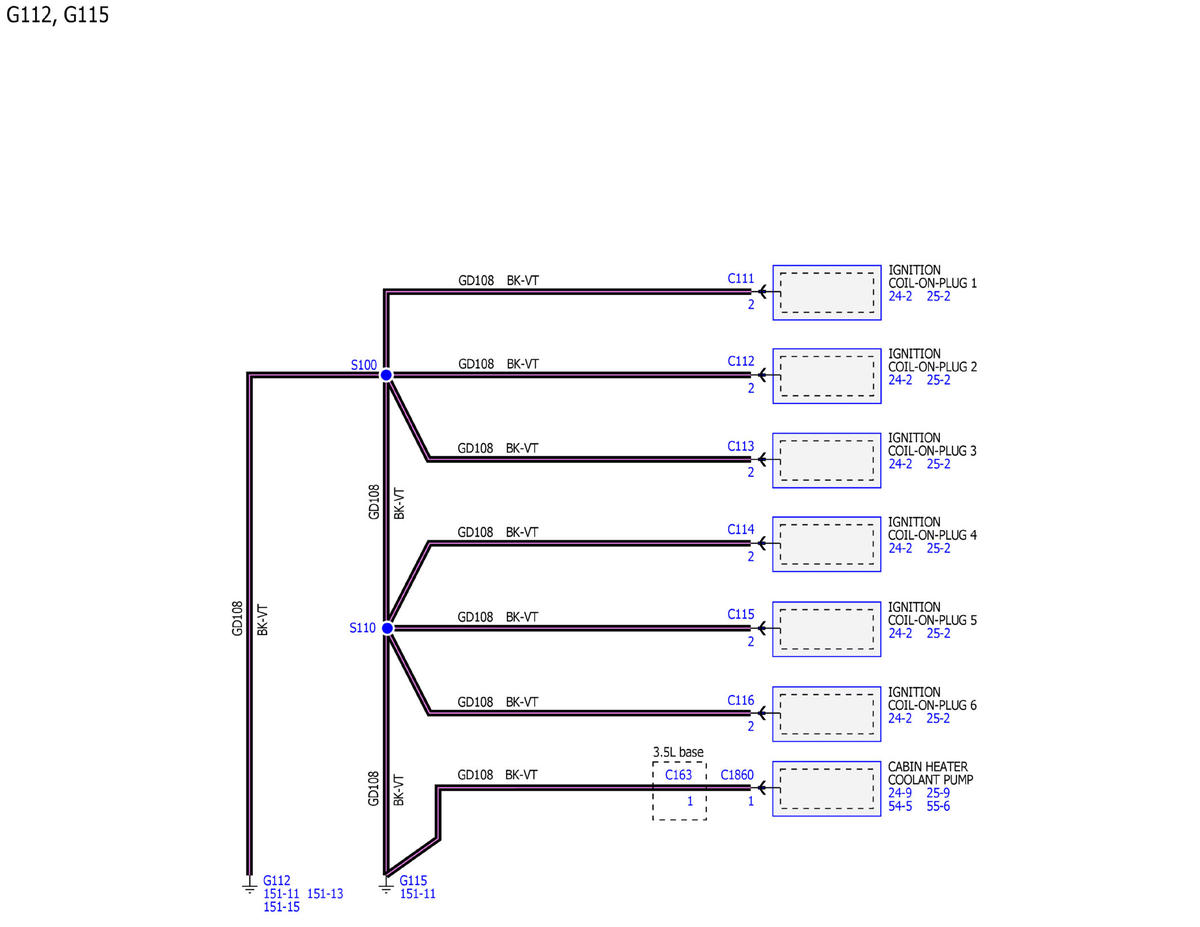

GFDWR134784Courtesy of FORD MOTOR COMPANY

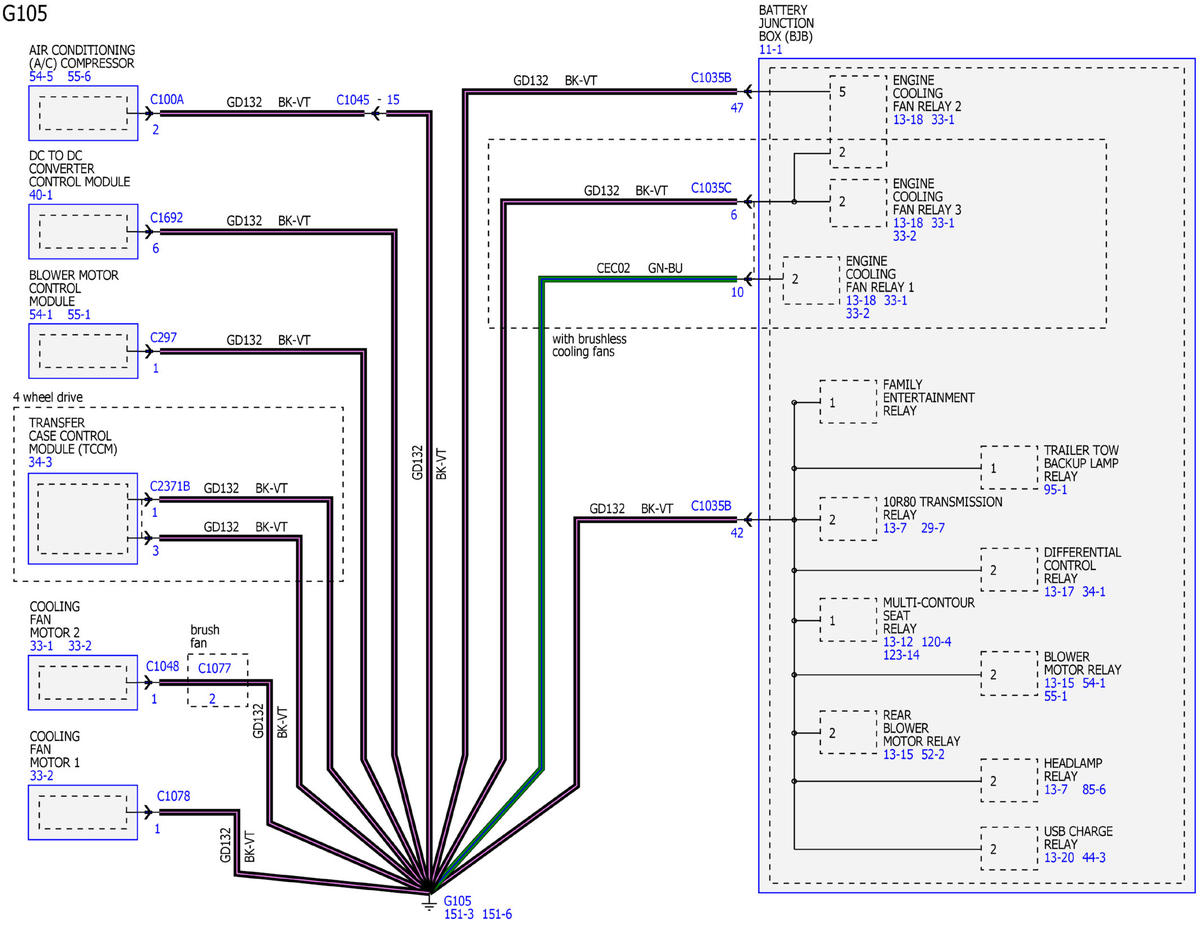

GFDWR134785Courtesy of FORD MOTOR COMPANY

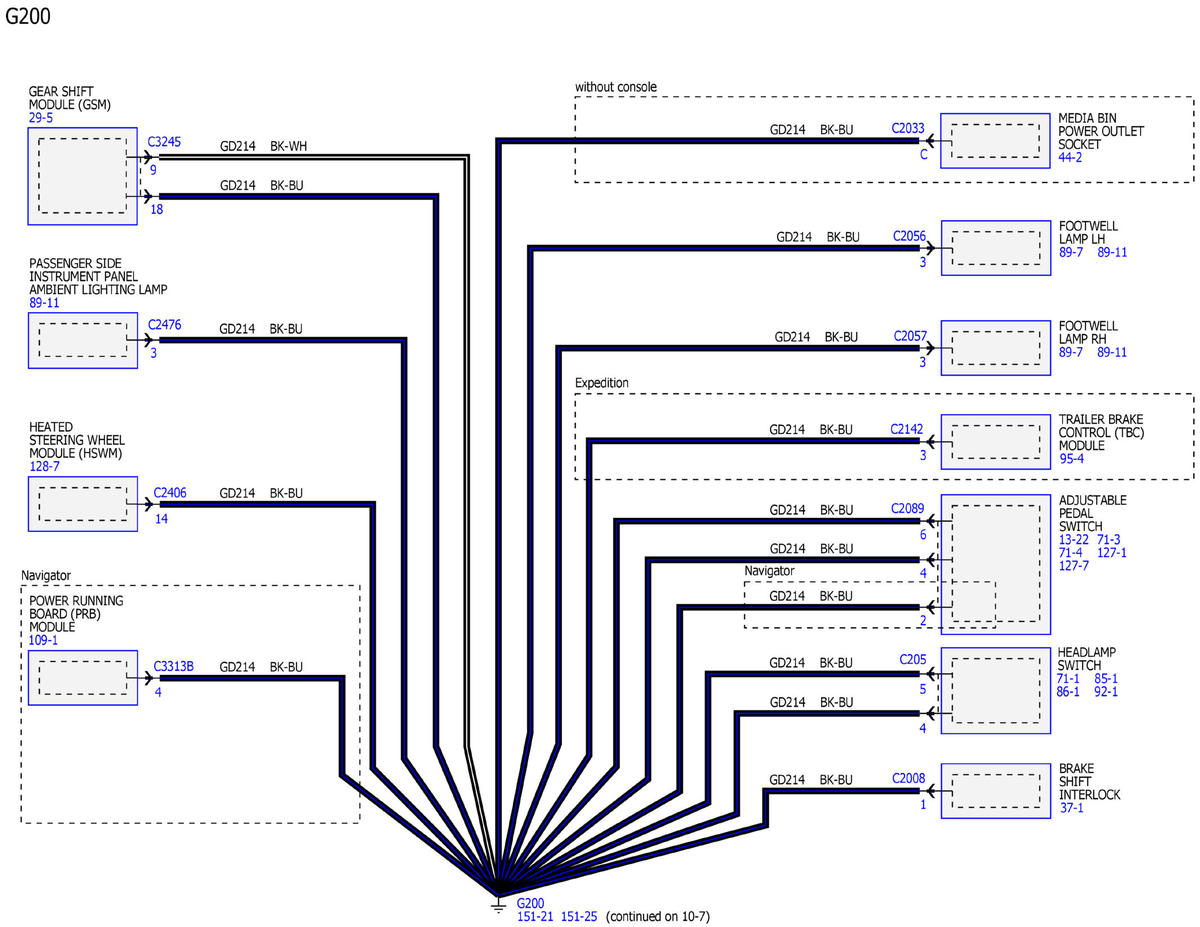

GFDWR134786Courtesy of FORD MOTOR COMPANY

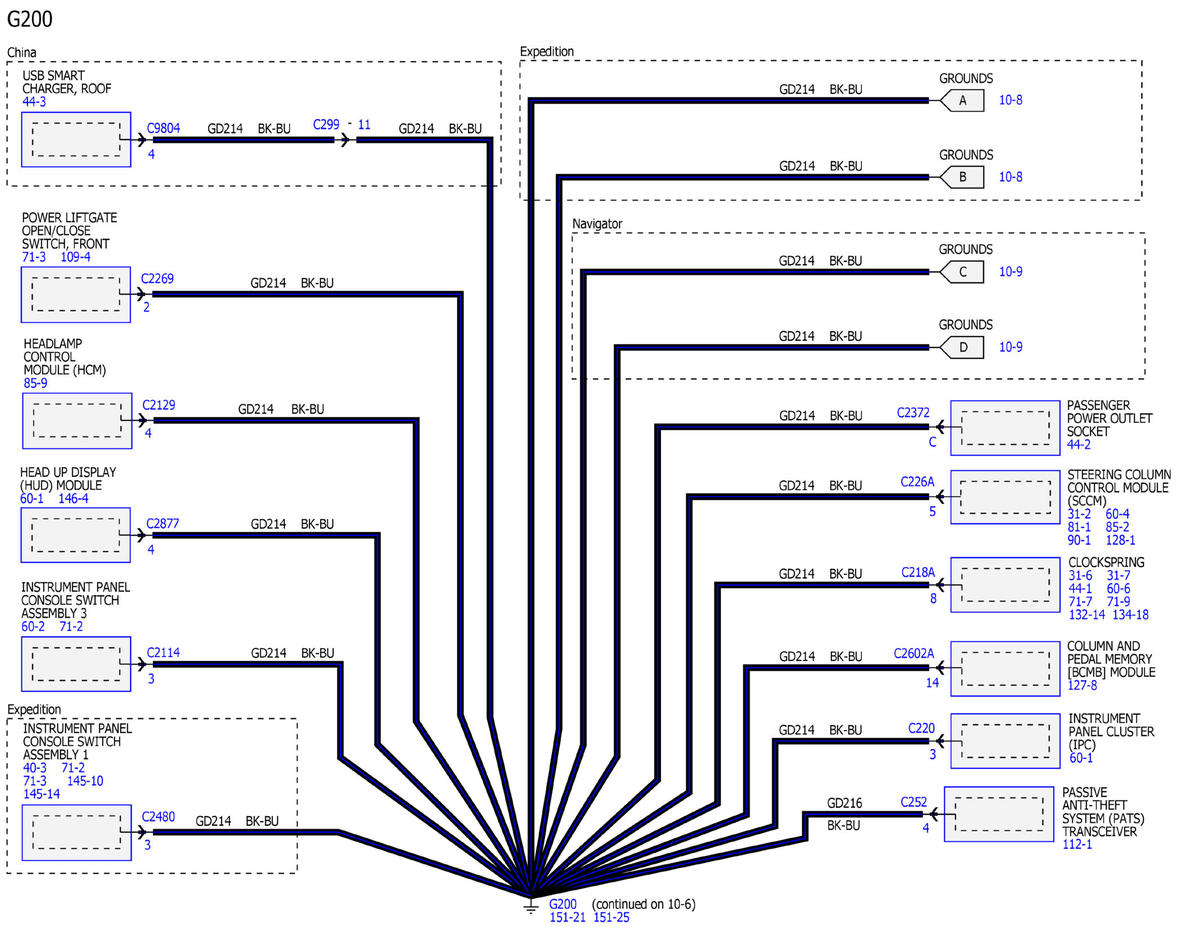

GFDWR134787Courtesy of FORD MOTOR COMPANY

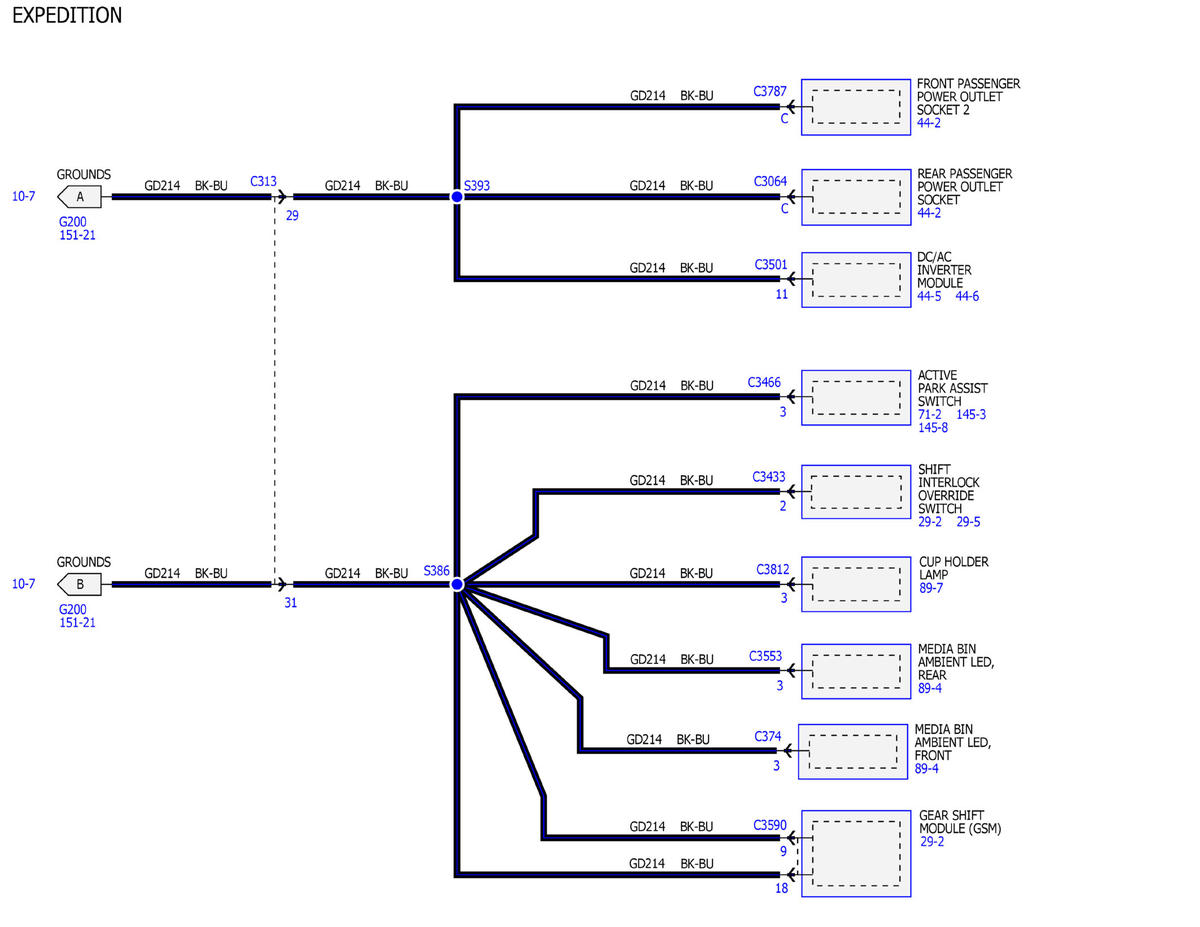

GFDWR134788Courtesy of FORD MOTOR COMPANY

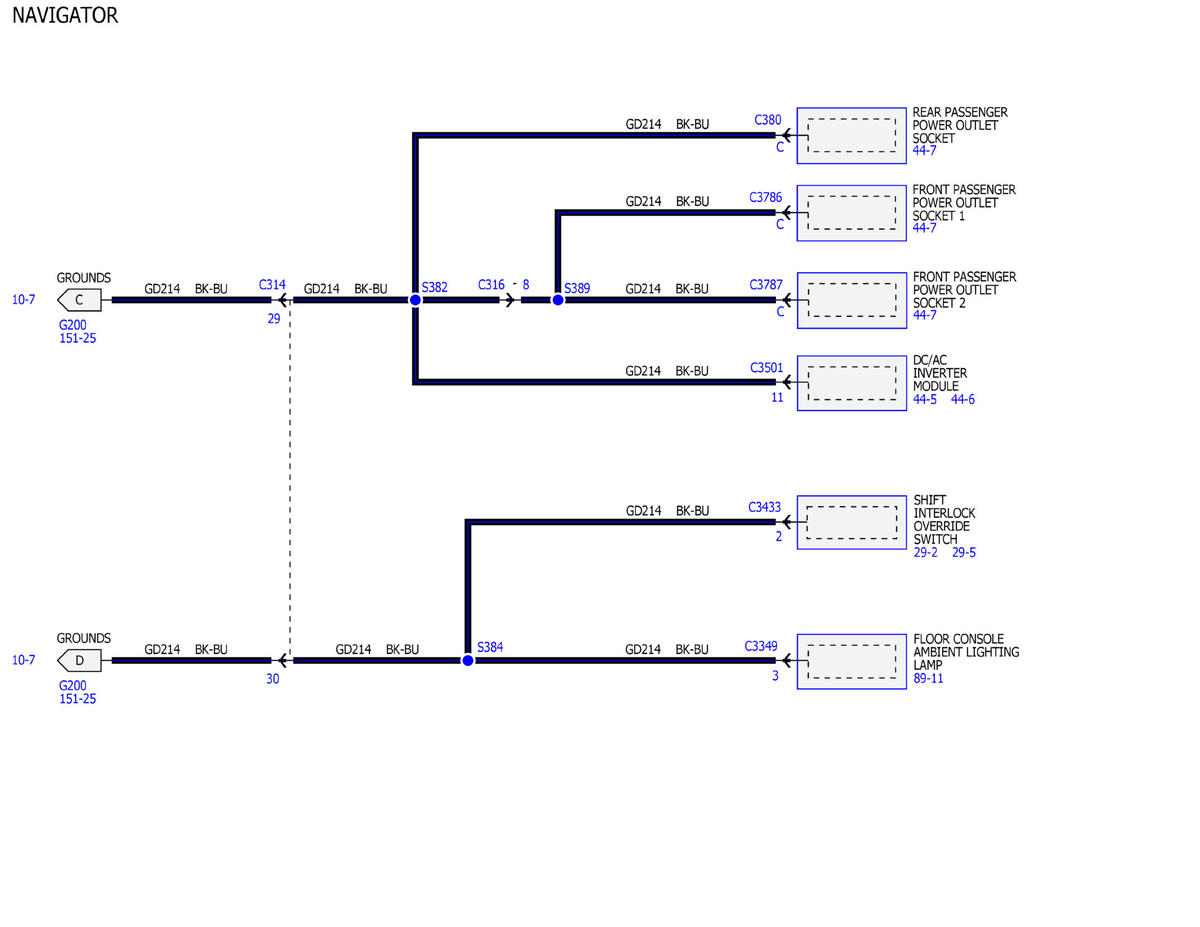

GFDWR134789Courtesy of FORD MOTOR COMPANY

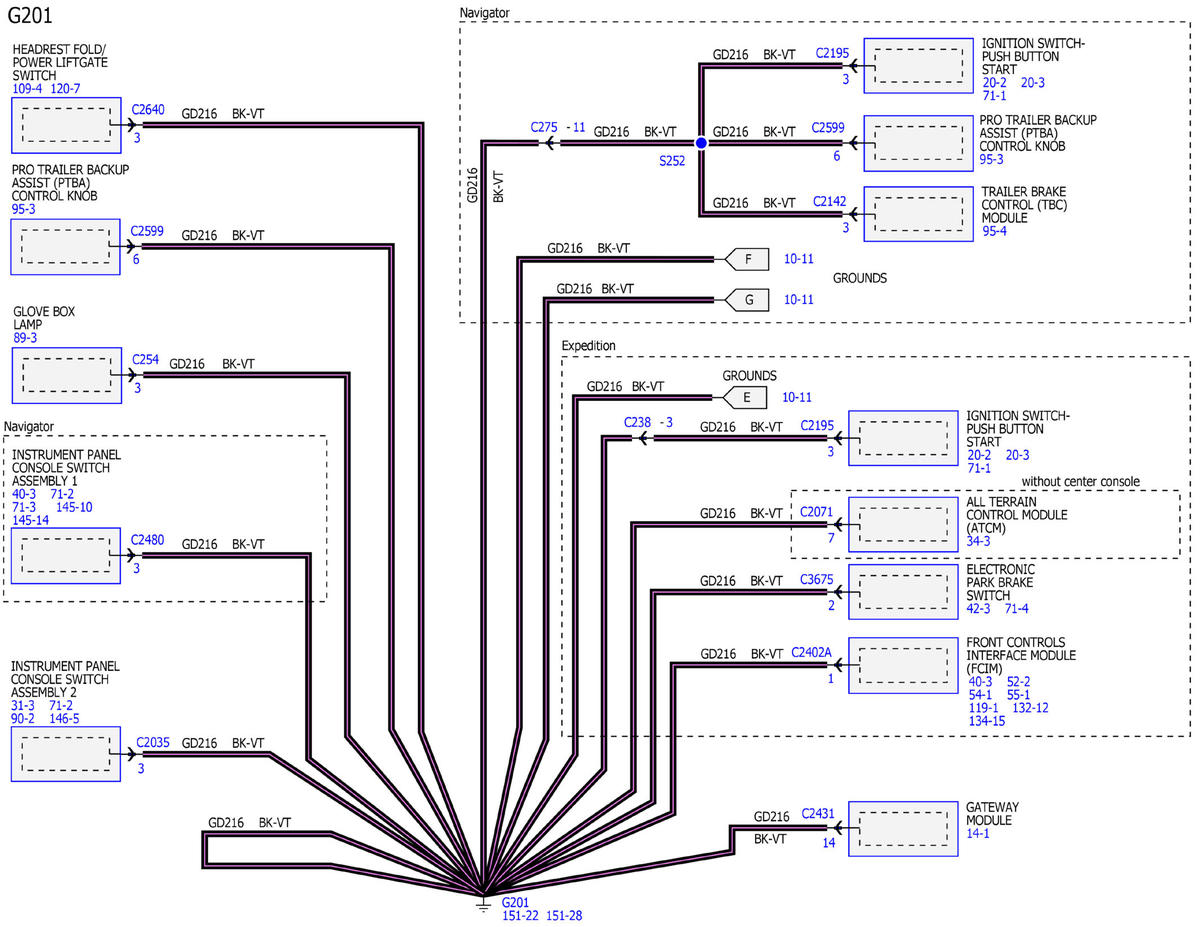

GFDWR134766Courtesy of FORD MOTOR COMPANY

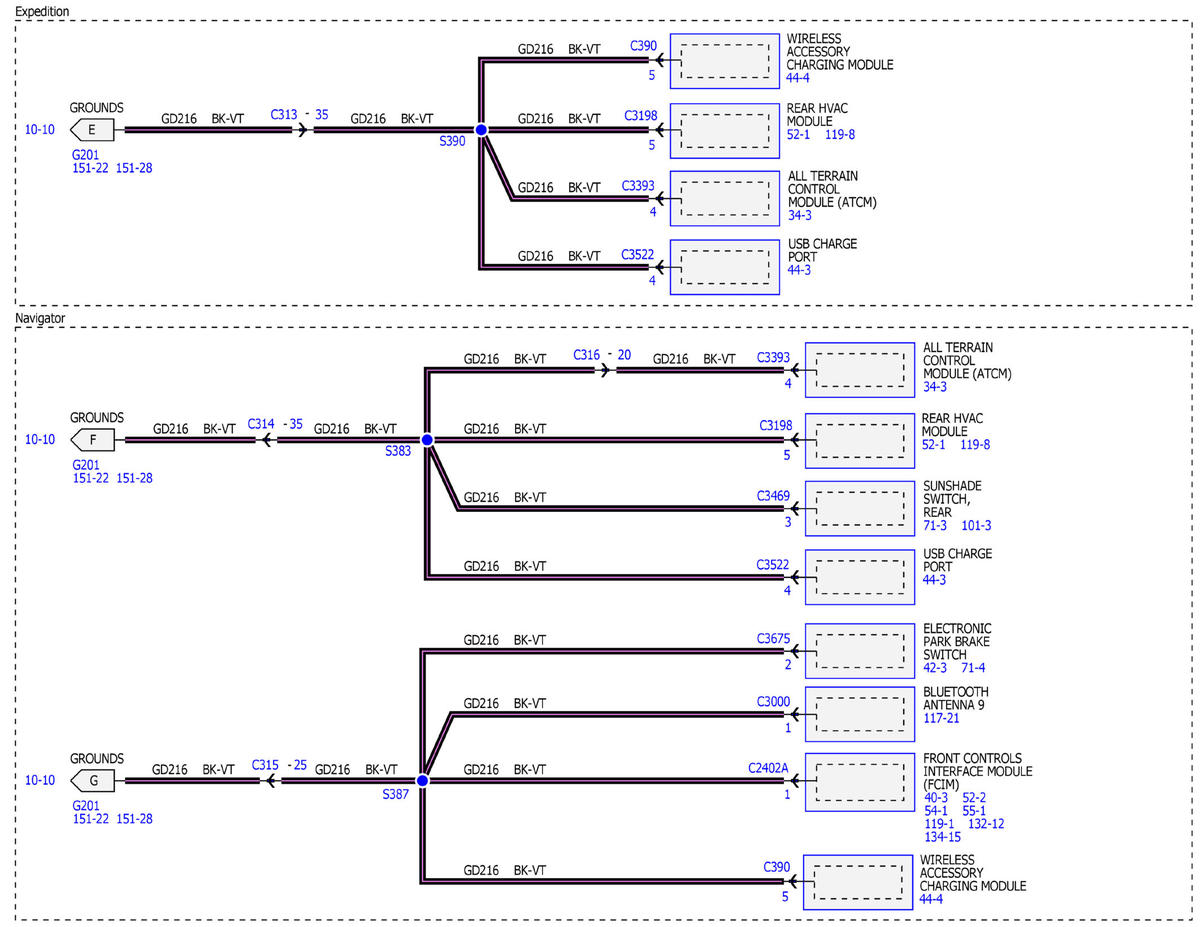

GFDWR134767Courtesy of FORD MOTOR COMPANY

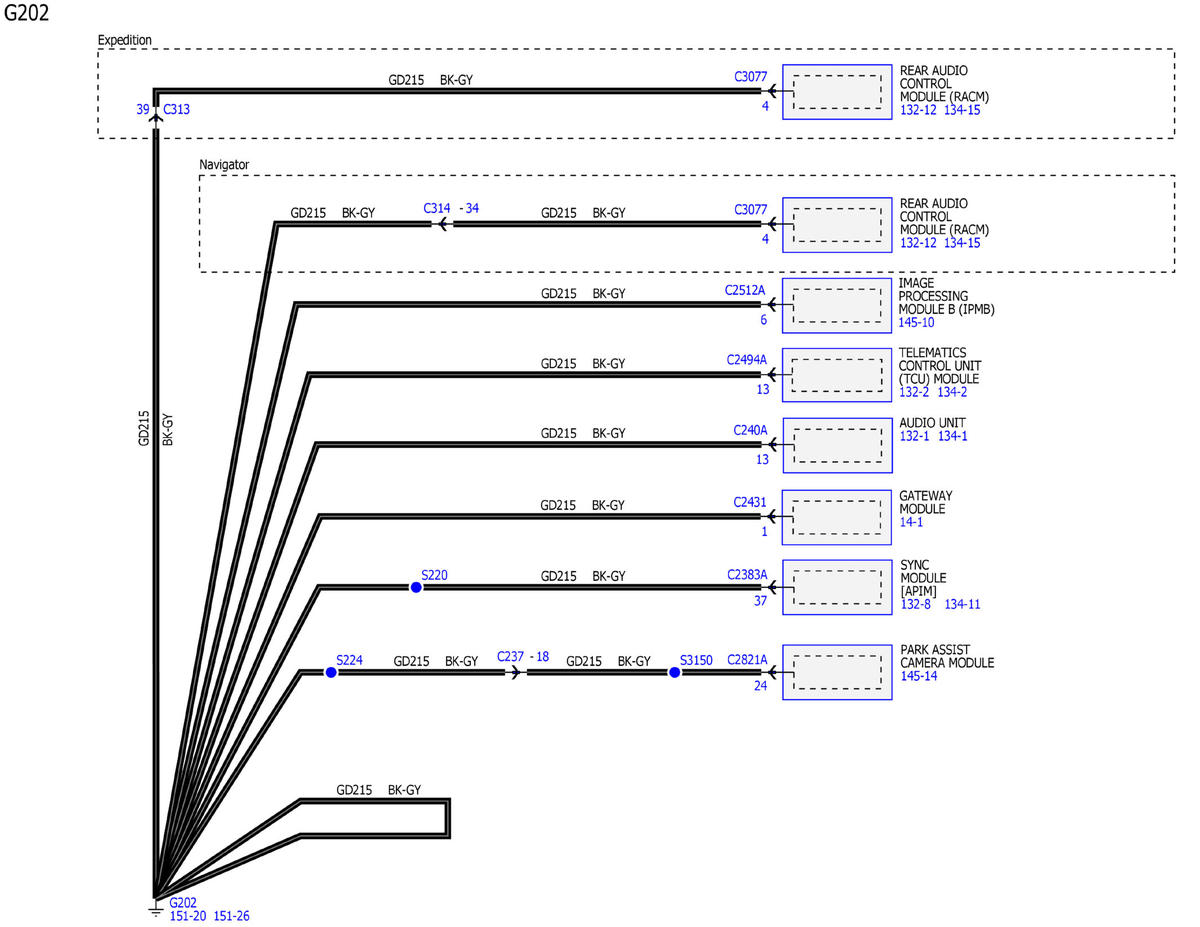

GFDWR134768Courtesy of FORD MOTOR COMPANY

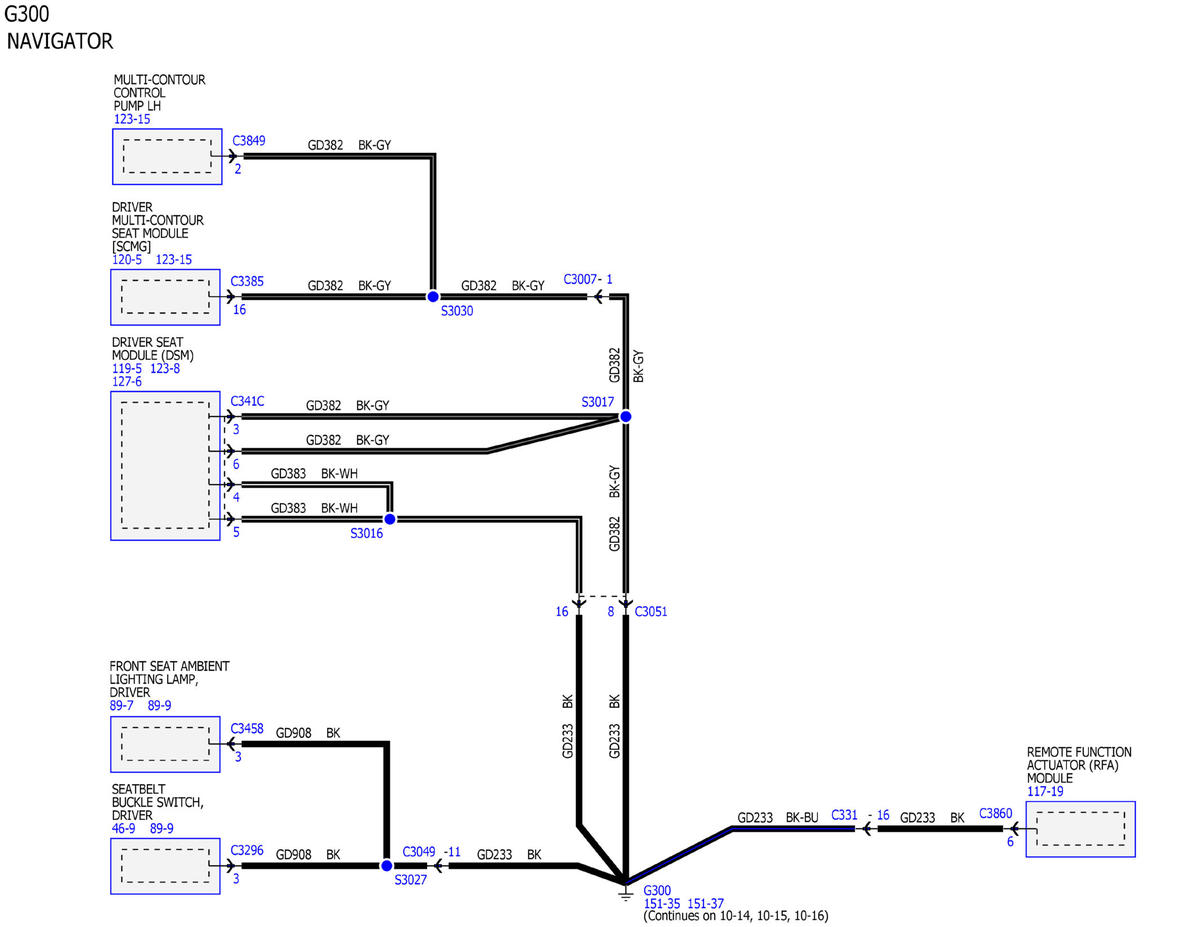

GFDWR134769Courtesy of FORD MOTOR COMPANY

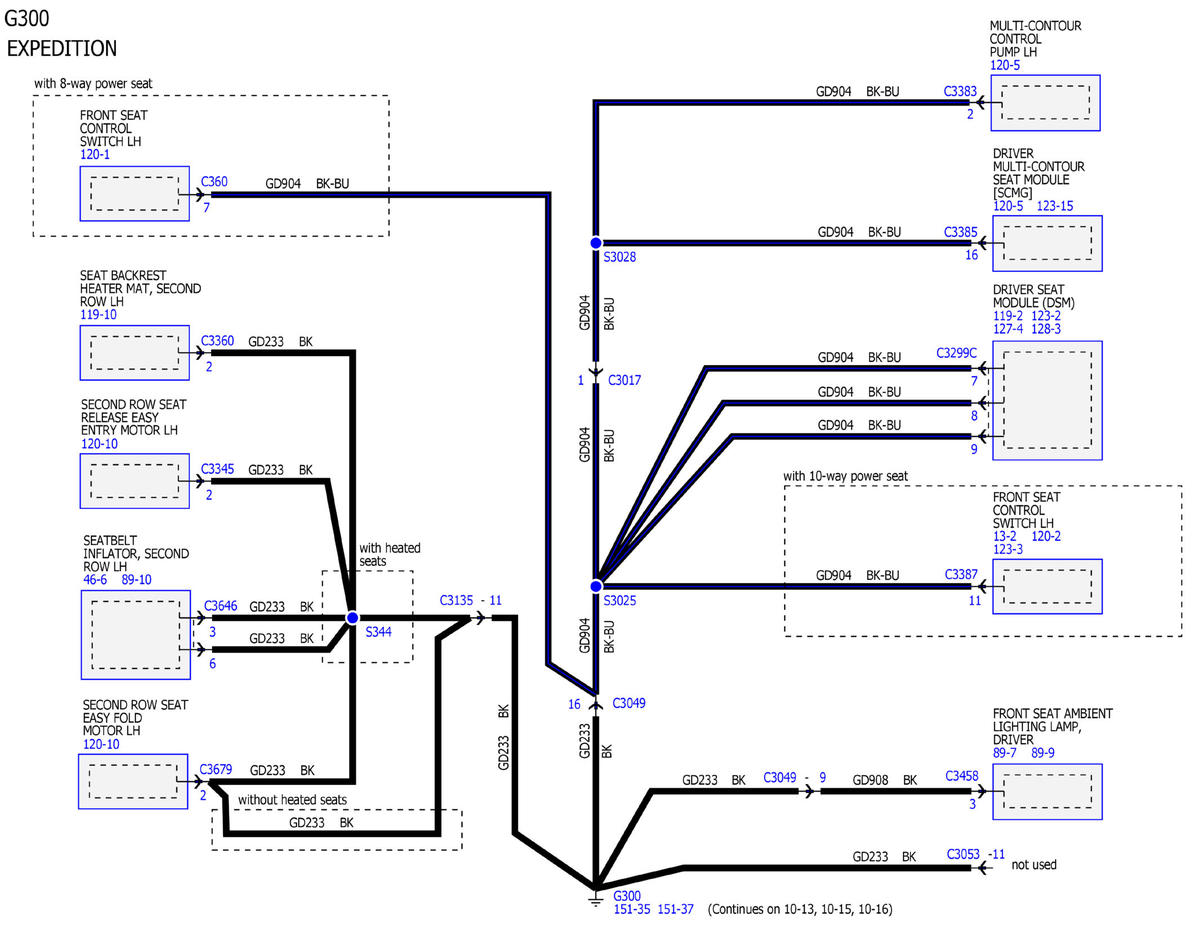

GFDWR134770Courtesy of FORD MOTOR COMPANY

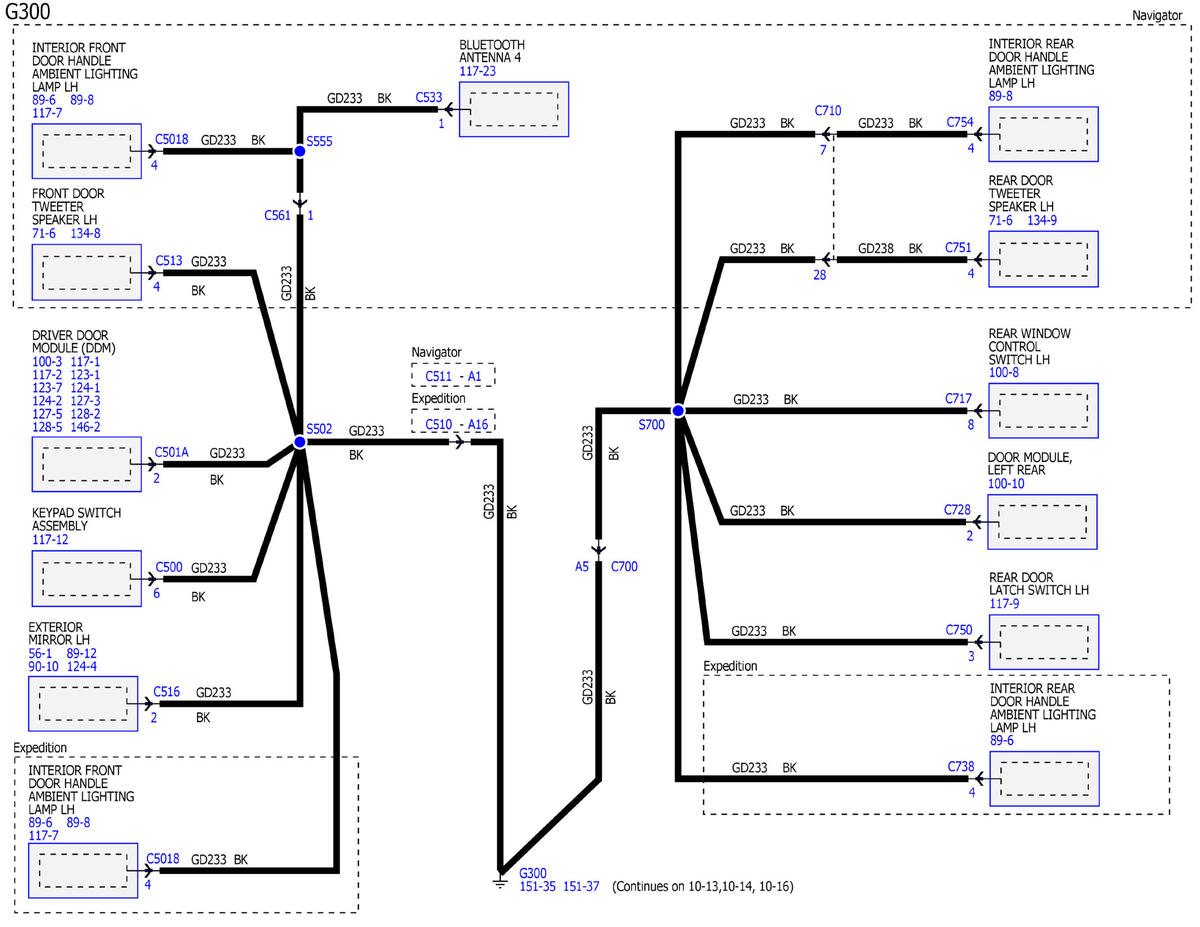

GFDWR134771Courtesy of FORD MOTOR COMPANY

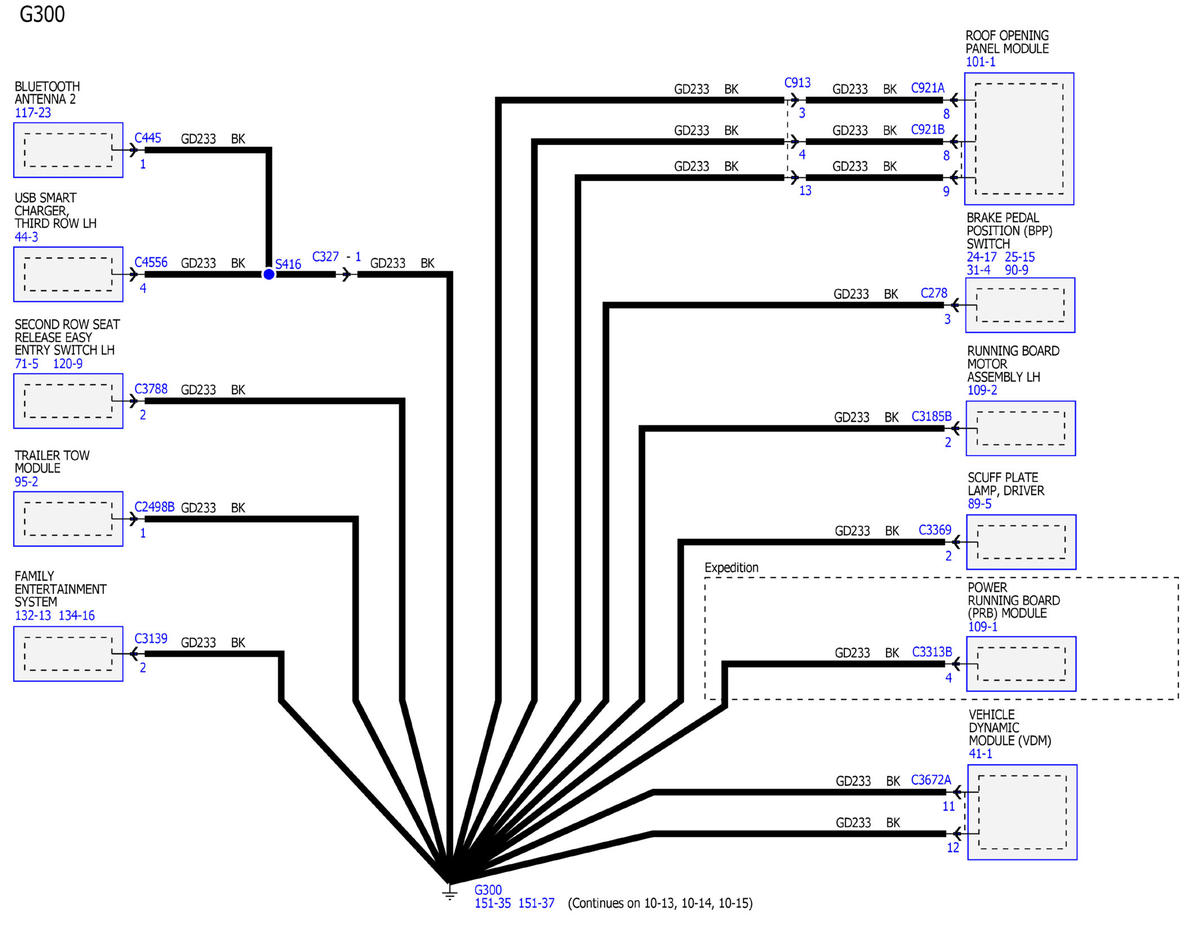

GFDWR134772Courtesy of FORD MOTOR COMPANY

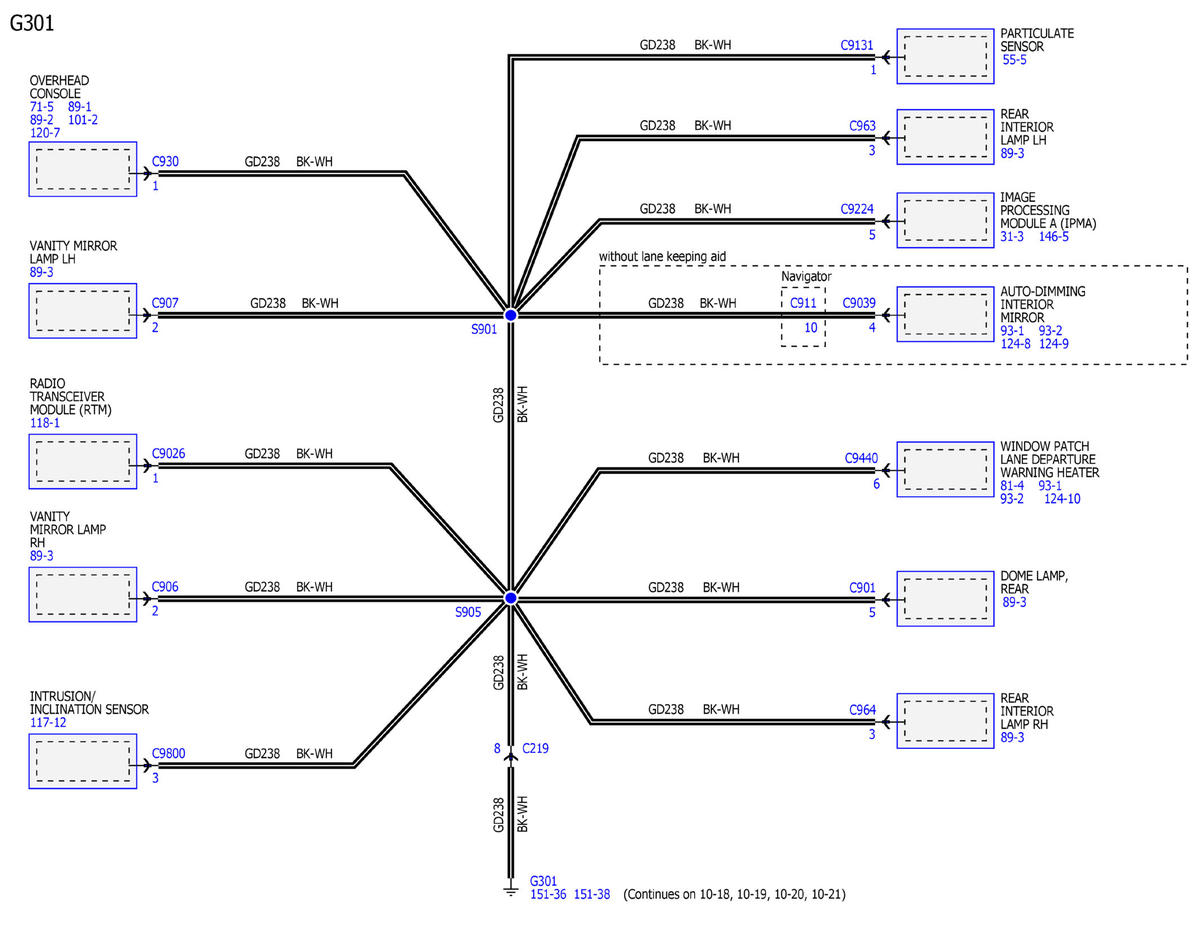

GFDWR134773Courtesy of FORD MOTOR COMPANY

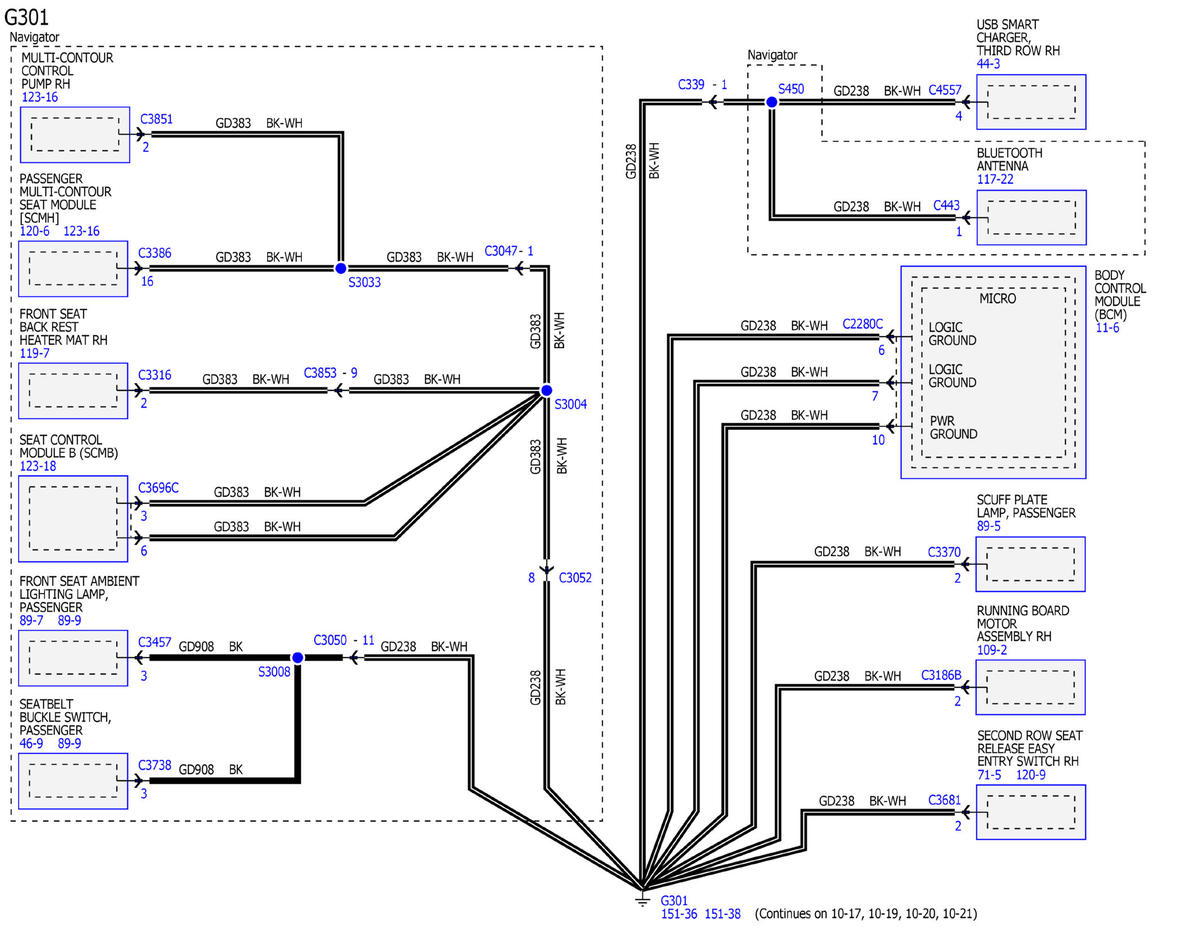

GFDWR134774Courtesy of FORD MOTOR COMPANY

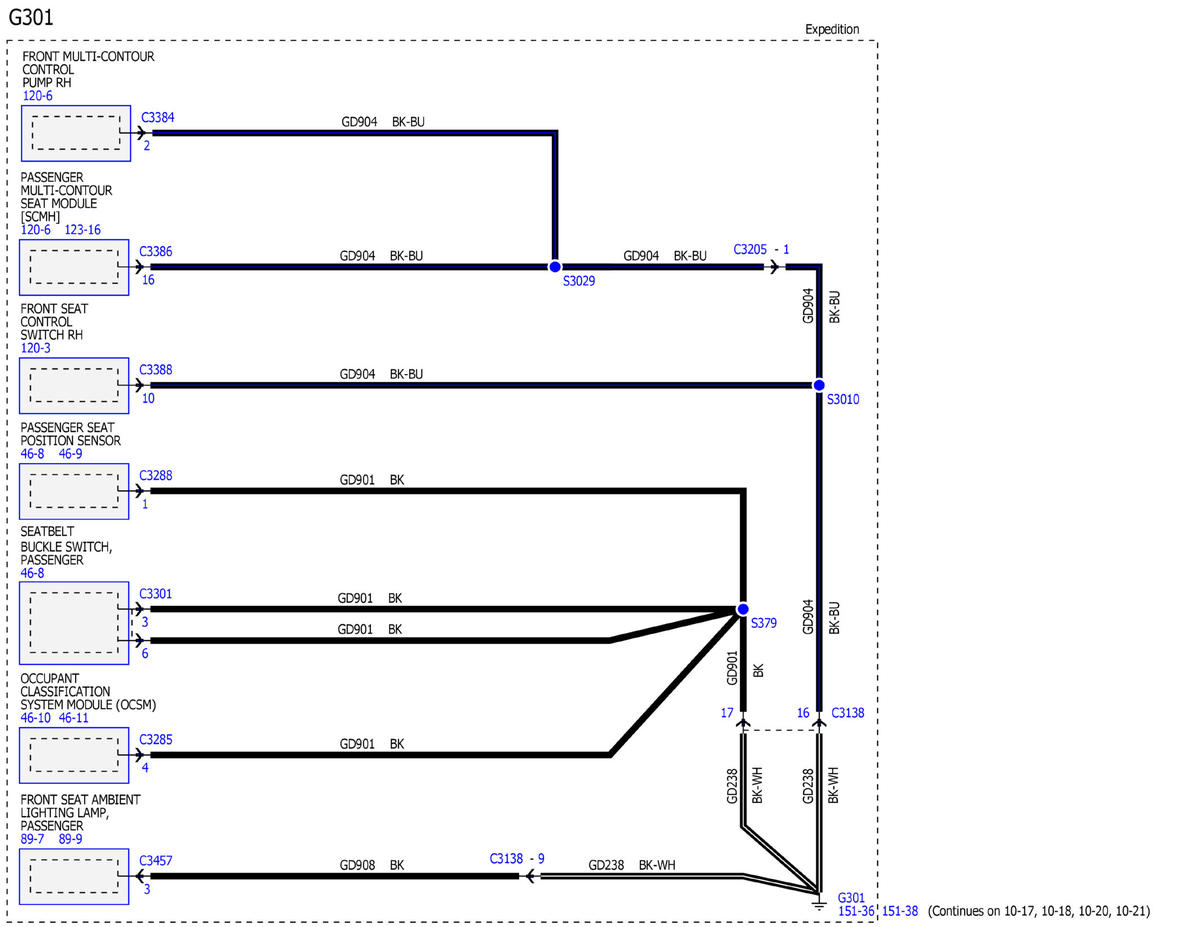

GFDWR134775Courtesy of FORD MOTOR COMPANY

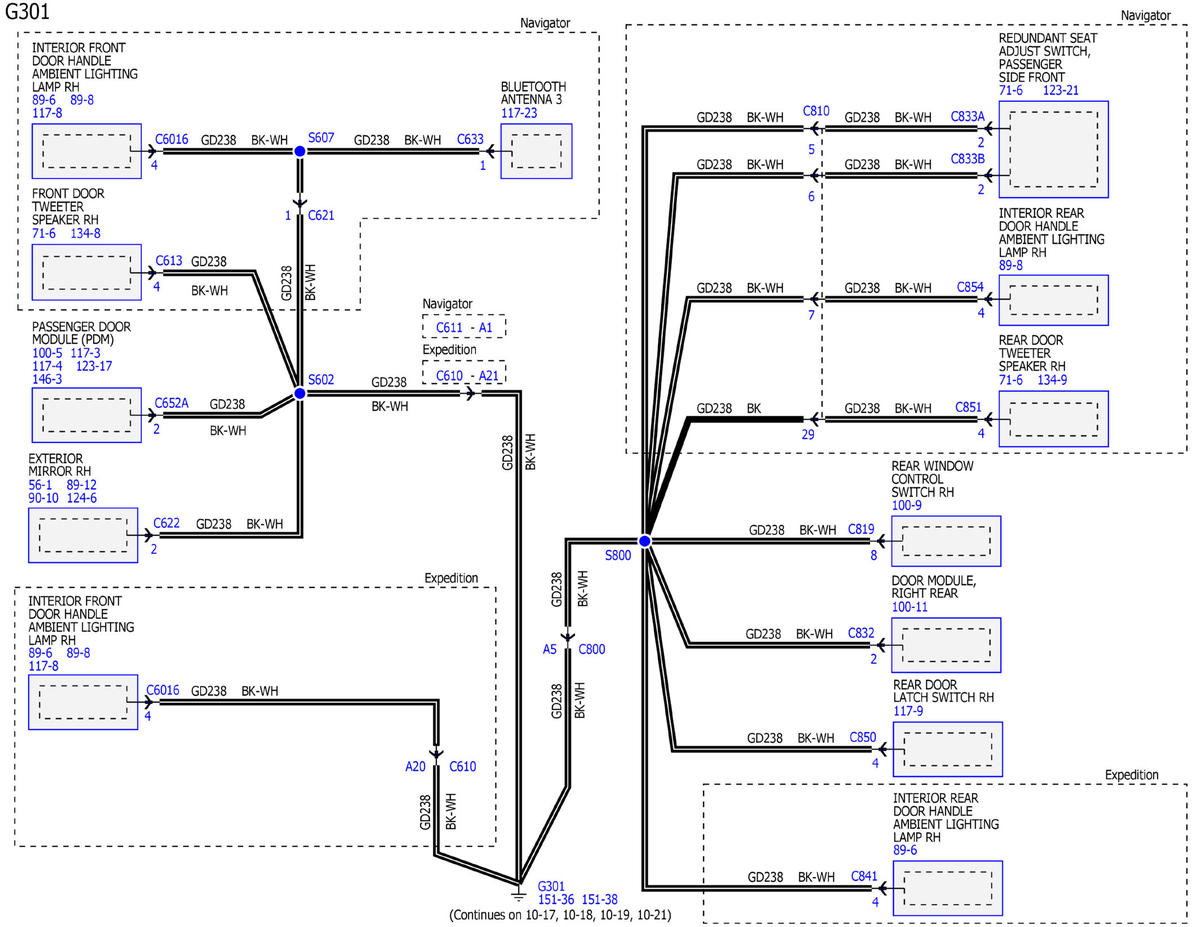

GFDWR134777Courtesy of FORD MOTOR COMPANY

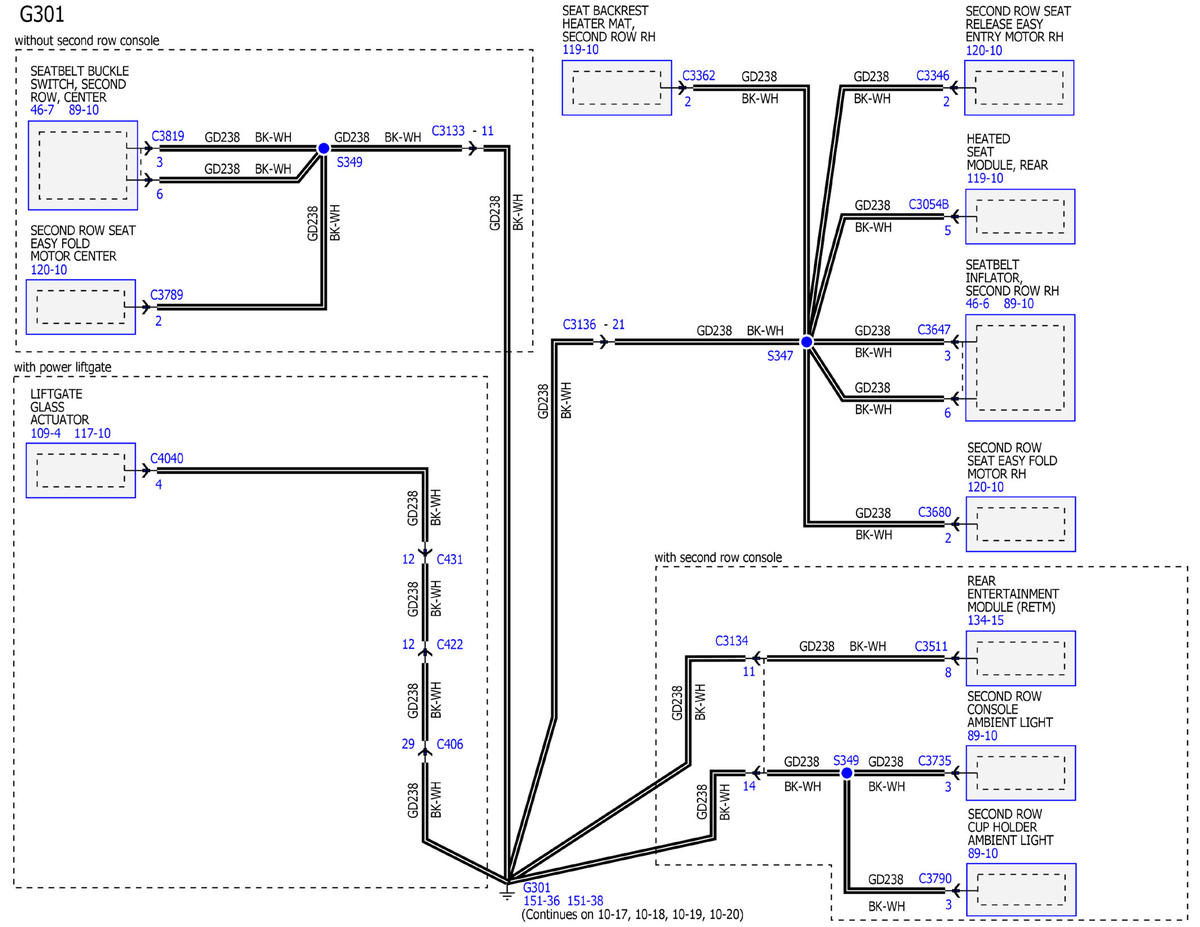

GFDWR134778Courtesy of FORD MOTOR COMPANY

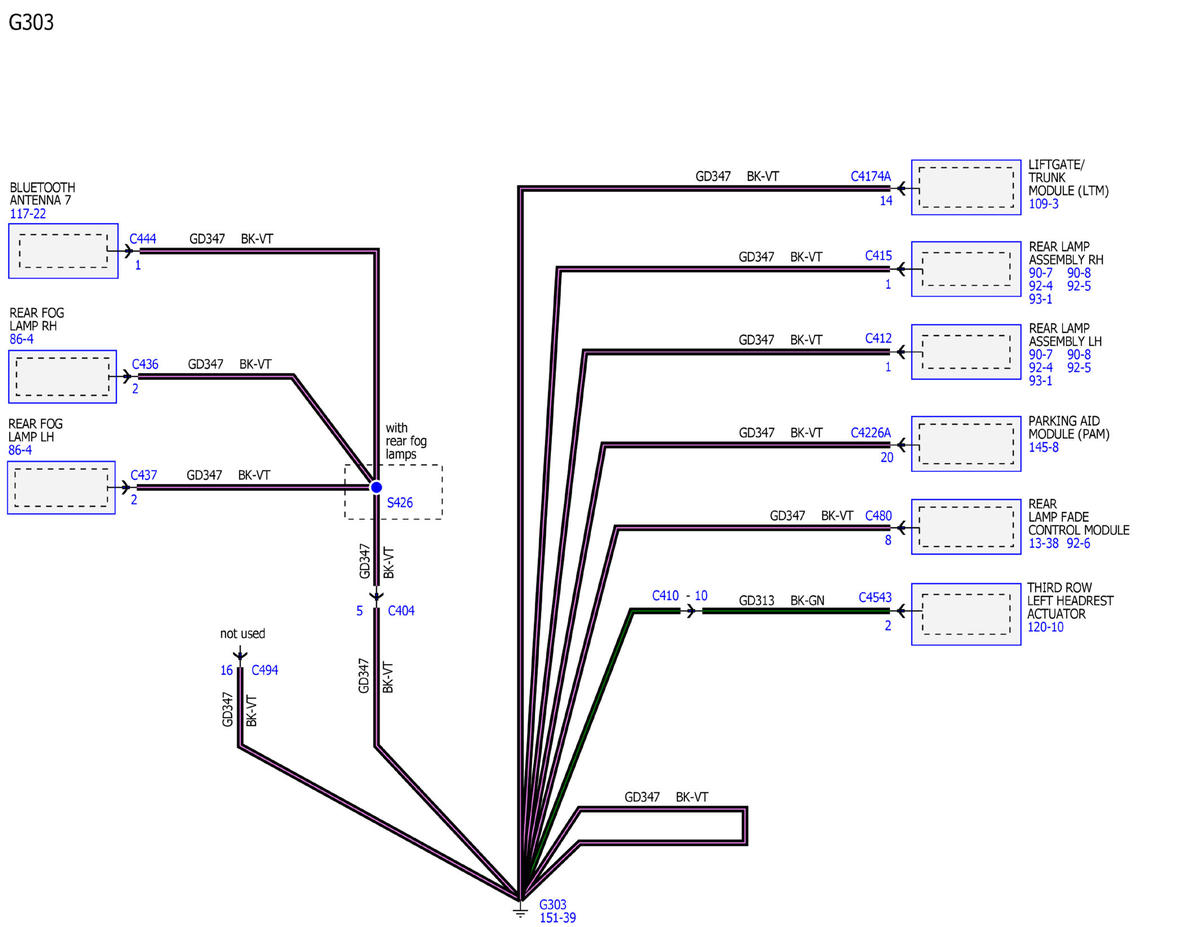

GFDWR134779Courtesy of FORD MOTOR COMPANY

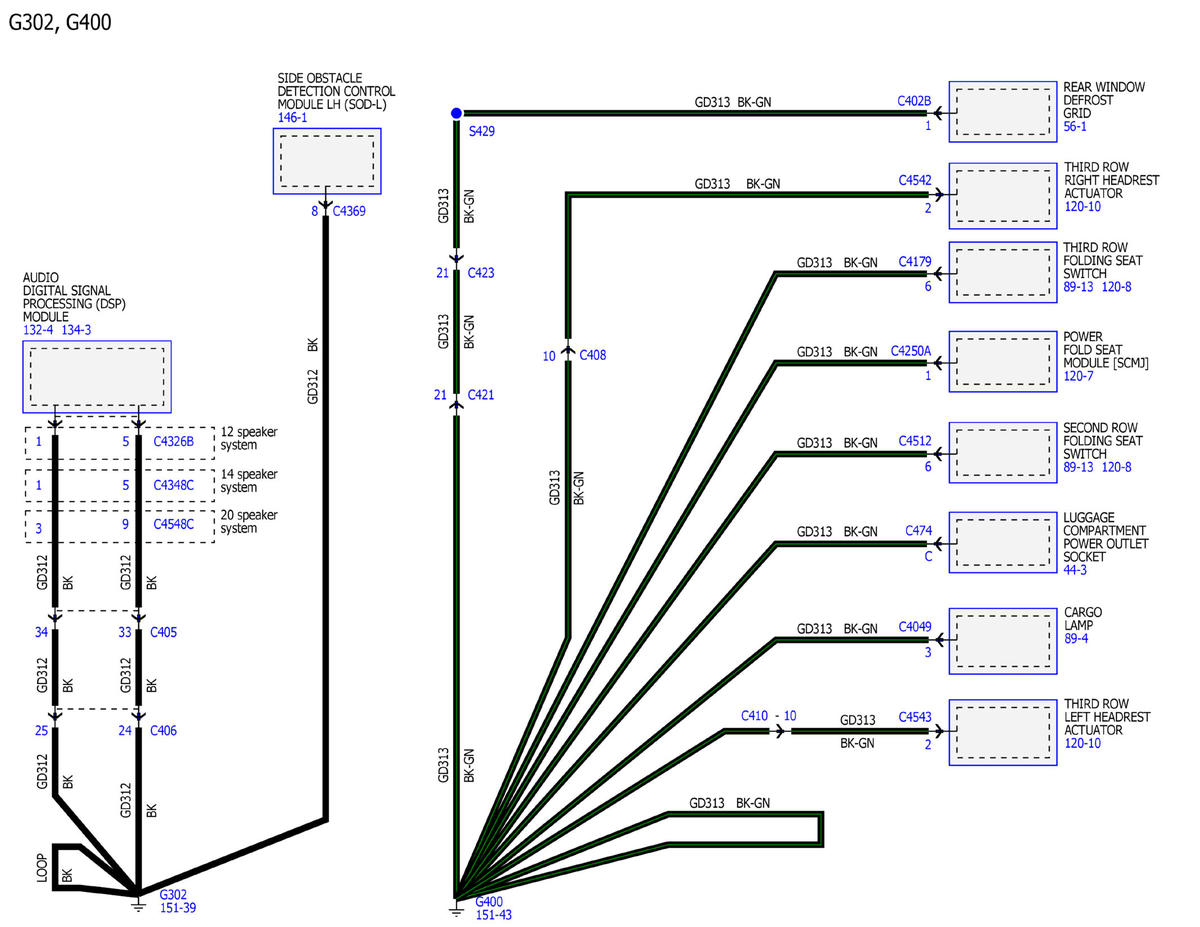

GFDWR134780Courtesy of FORD MOTOR COMPANY

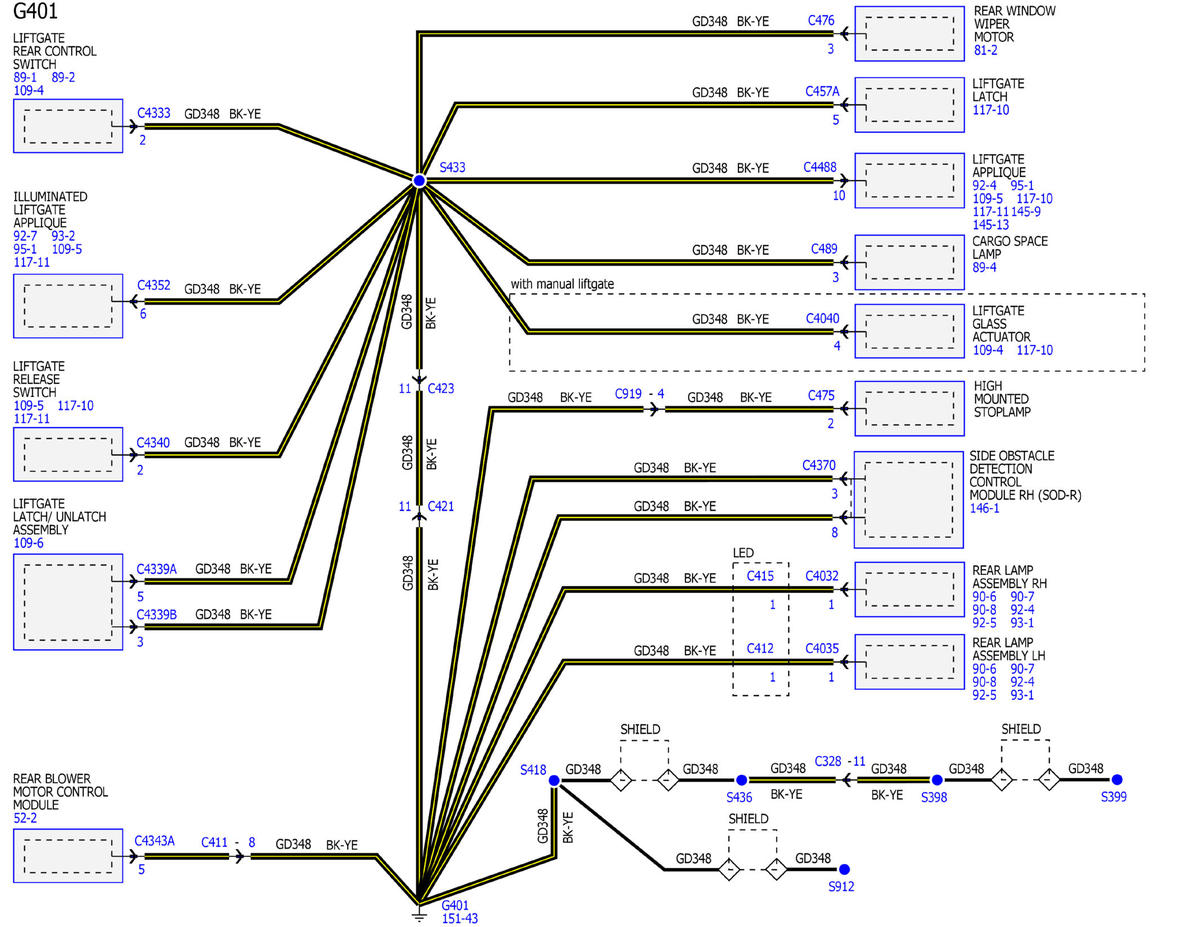

GFDWR134781Courtesy of FORD MOTOR COMPANY

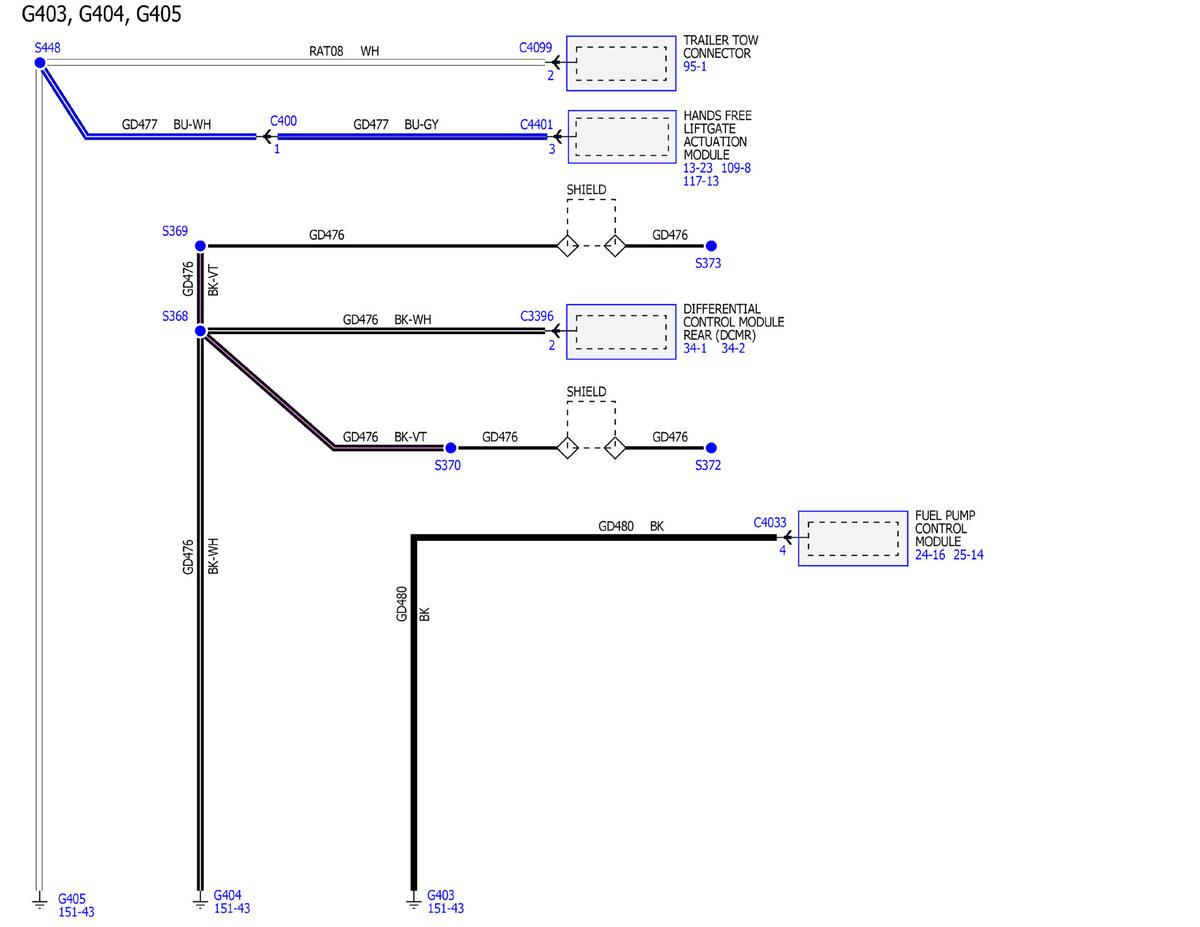

GFDWR134782Courtesy of FORD MOTOR COMPANY
