Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

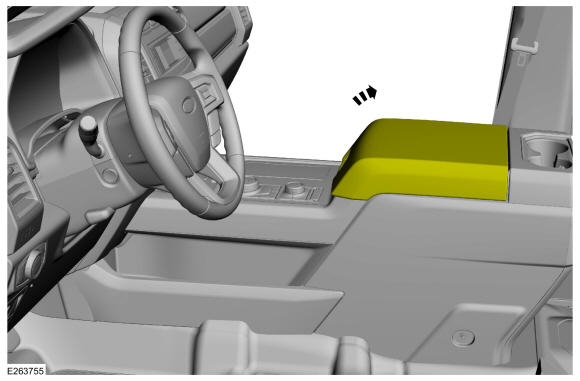

1. Open the console door.

   Courtesy of FORD MOTOR COMPANY

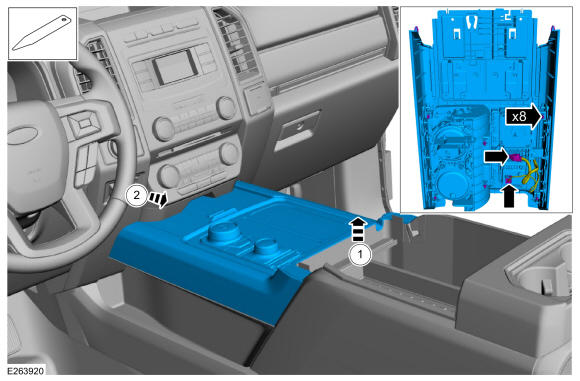

2. Detach the console cover, disconnect the electrical connectors and remove the console cover.

   Courtesy of FORD MOTOR COMPANY

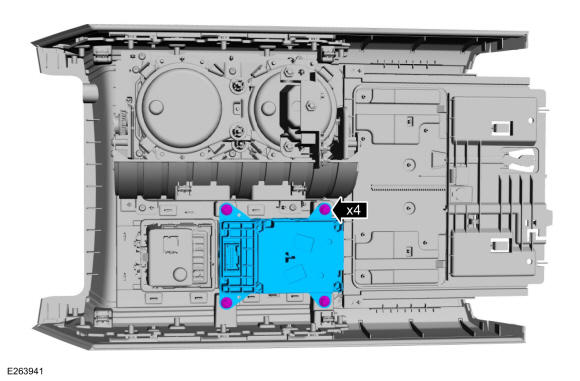

3. Remove the bolts and the GSM.

   Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
