Differential Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Check

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Remove the differential fluid fill plug.

   Courtesy of FORD MOTOR COMPANY

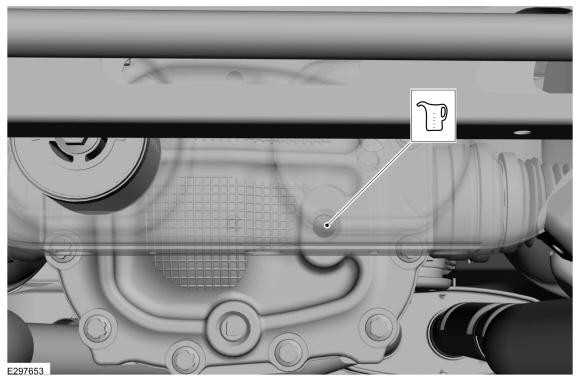

3. Check and top-off the differential with clean differential gear lubricant. The differential gear lubricant level should be to the bottom of the fluid fill plug opening. Refer to: Specifications .

   Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

   Courtesy of FORD MOTOR COMPANY

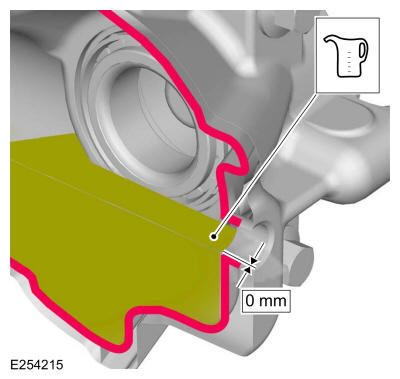

4. Ensure the RDU gear lubricant level to the bottom of the filler hole (as shown).

   Courtesy of FORD MOTOR COMPANY

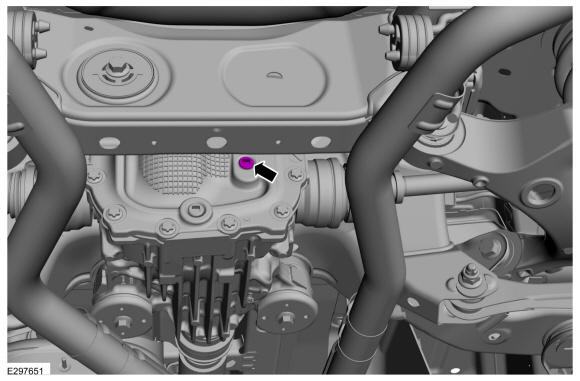

5. Install the differential fluid fill plug.

   Torque: 25 lb.ft (34 Nm)

Courtesy of FORD MOTOR COMPANY
