Driveshaft Alignment Bushing: Disassembly

  1. Remove the rear driveshaft. Refer to: Rear Driveshaft .
  2. Remove the driveshaft flexible coupling. Refer to: Driveshaft Flexible Coupling .

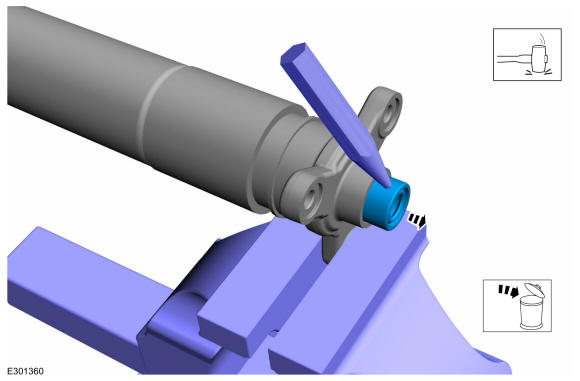

  3. Using the general equipments, remove and discard the driveshaft alignment bushing. Use the General Equipment: Vise. Use the General Equipment: Copper Hammer. Use the General Equipment: Punch
GFD510004Courtesy of FORD MOTOR COMPANY
