Intake Manifold: Removal

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the bolts and the suspension support bar.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. Air cleaner. Refer to: Air cleaner .
2. CAC outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .

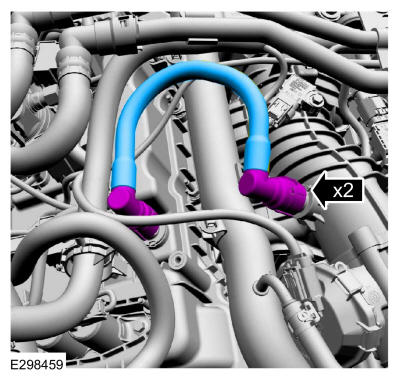

- Disconnect the crankcase vent tube quick release couplings. Refer to: QUICK RELEASE COUPLING - 3.0L
- Remove the crankcase vent tube.
Courtesy of FORD MOTOR COMPANY

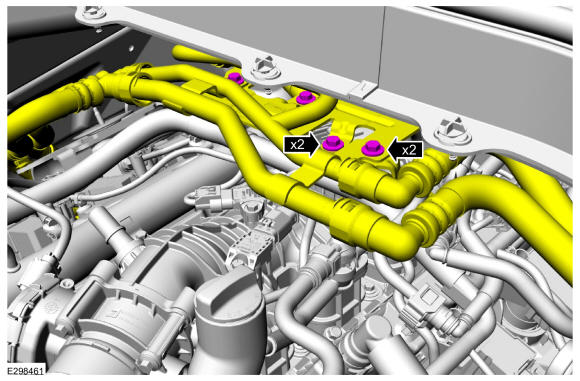

- Remove the coolant pipe bracket retaining bolts.
  Torque: 97 lb.in (11 Nm)
- Remove the intake manifold bracket retaining bolts.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

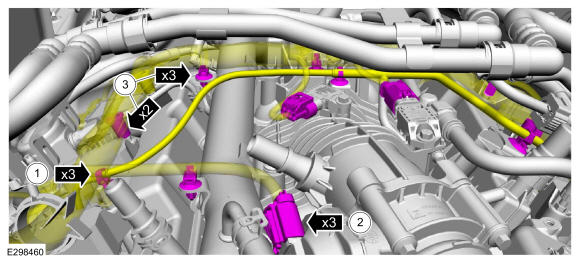

1. Detach the vacuum tube retainers.
2. Disconnect the engine wiring harness electrical connectors.
3. Detach the engine wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

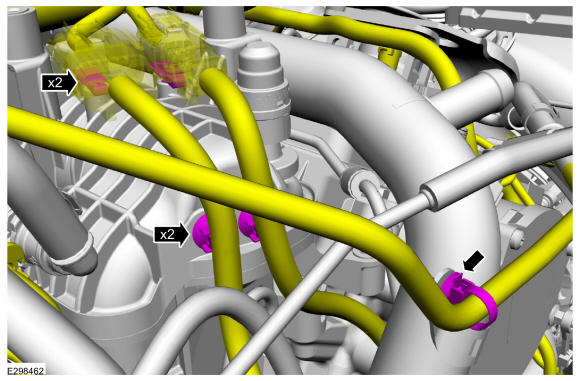

1. Detach the wiring harness retainers.
2. Detach the fuel tube retainer.
Courtesy of FORD MOTOR COMPANY

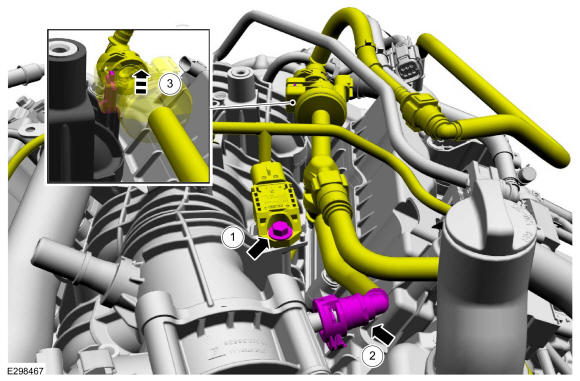

1. Remove the bolt and position the vacuum pressure sensor aside.
2. Disconnect the EVAP purge valve quick release coupling. Refer to: QUICK RELEASE COUPLING - 3.0L
3. Slide the EVAP purge valve off of the bracket.
Courtesy of FORD MOTOR COMPANY

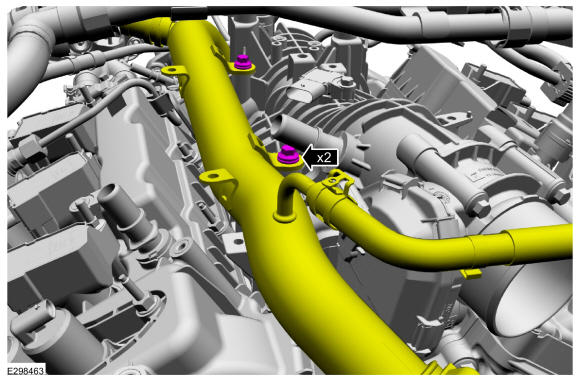

Remove the bolts and position the coolant pipe aside.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

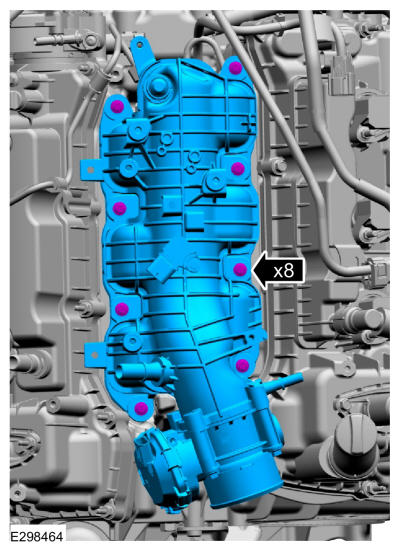

1. Loosen the intake manifold bolts.
2. NOTE: The coolant pipe may come out during removal of the intake manifold.

  Remove the intake manifold.
Courtesy of FORD MOTOR COMPANY

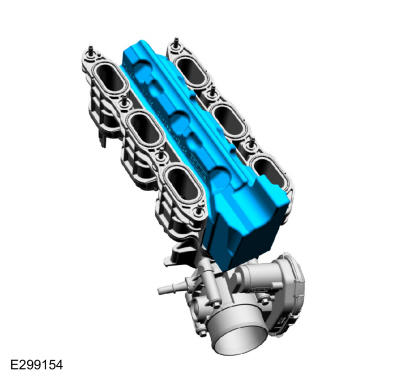

Remove the insulator.

Courtesy of FORD MOTOR COMPANY

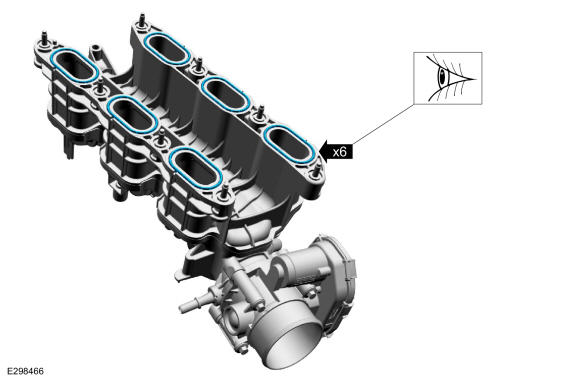

- Remove and inspect the gaskets, replace as necessary.
- Clean and inspect all sealing surfaces.

Courtesy of FORD MOTOR COMPANY
