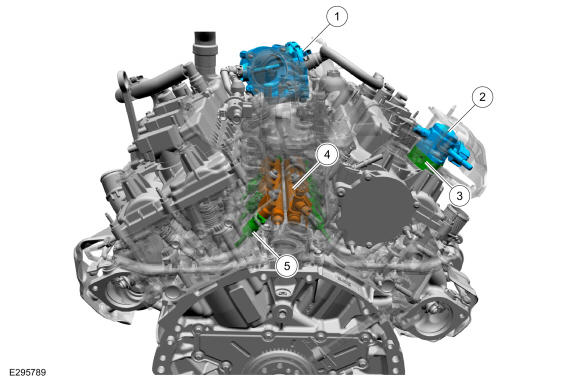

Fuel Charging and Controls - Component Location
›
3.0L EcoBoost
3.0L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle body
2
High-pressure fuel pump
3
High-pressure fuel pump drive unit
4
Direct injection fuel rail
5
Direct injection fuel injector
