Timing Chain: Installation

RH and LH timing chains

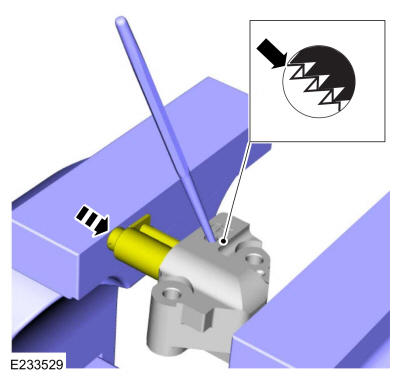

1. Using a small pick, carefully push the LH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise. Use the General Equipment: Vise

   Courtesy of FORD MOTOR COMPANY

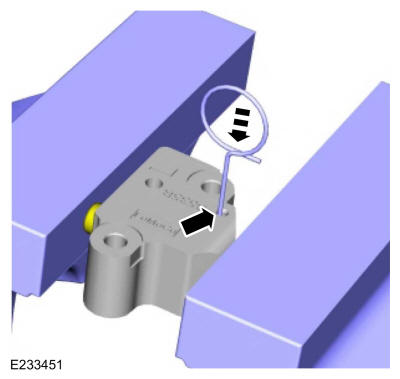

2. • Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
   • Remove the LH tensioner from the vise.

   Courtesy of FORD MOTOR COMPANY

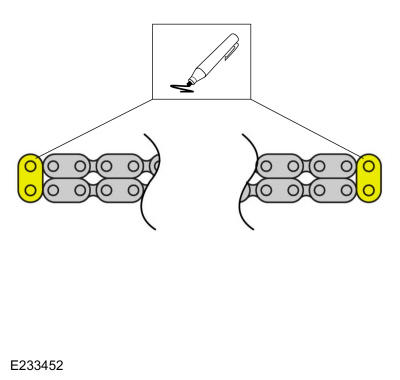

3. If the copper links are not visible, mark the links on each end, and use as timing marks.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Verify the crankshaft keyway is at the 11 o'clock position.
   NOTE: Make sure the upper half of the timing chain is below the tensioner arm dowel and above the chain guide pin.

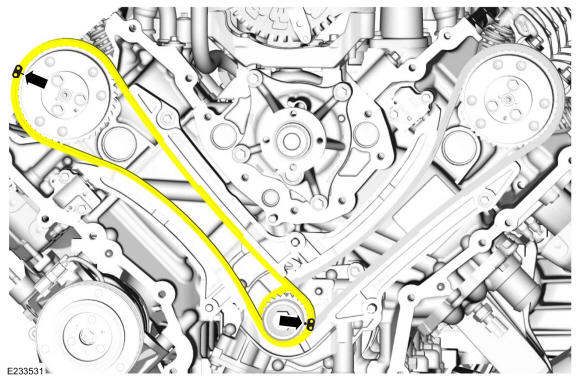

   Install the LH timing chain.

   • Align the colored link on the timing chain with the timing mark on the LH VCT assembly.
   • Align the colored link on the timing chain with the timing mark on the crankshaft sprocket.

   Courtesy of FORD MOTOR COMPANY

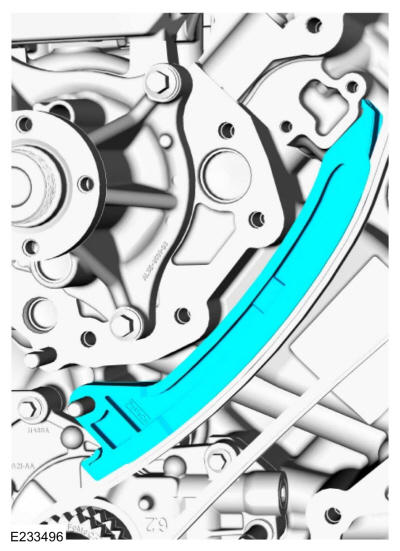

5. Install the LH timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

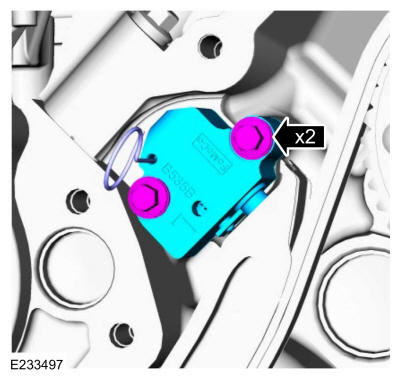

6. Install the LH primary timing chain tensioner and bolts.

   Torque:

   Stage 1: 89 lb.in (10 Nm)

   Stage 2: 45 °

   Courtesy of FORD MOTOR COMPANY

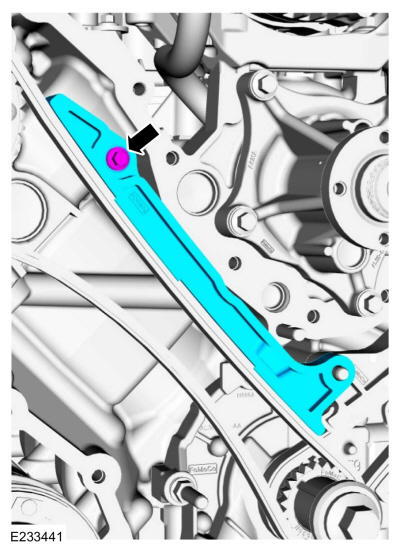

7. Install the LH timing chain guide and the bolt.

   Torque:

   Stage 1: 89 lb.in (10 Nm)

   Stage 2: 45 °

   Courtesy of FORD MOTOR COMPANY

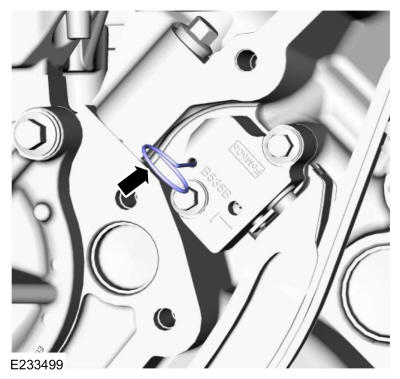

8. Remove the retaining clip from the LH timing chain tensioner.

   Courtesy of FORD MOTOR COMPANY

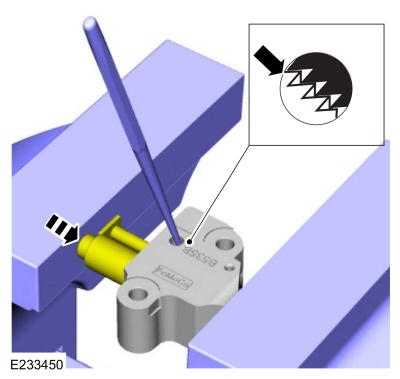

9. Using a small pick, carefully push the RH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise. Use the General Equipment: Vise

   Courtesy of FORD MOTOR COMPANY

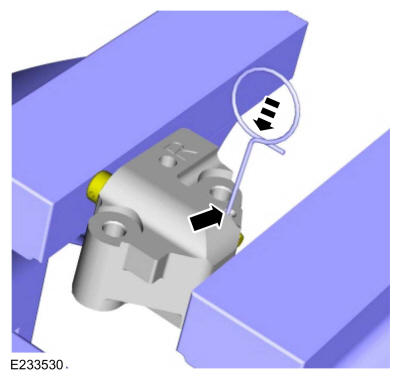

10. • Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
    • Remove the RH tensioner from the vise.

    Courtesy of FORD MOTOR COMPANY

11. If the copper links are not visible, mark the links on each end, and use as timing marks.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Verify the crankshaft keyway is at the 11 o'clock position.

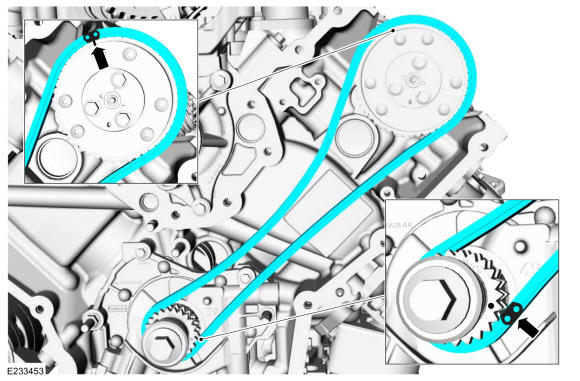

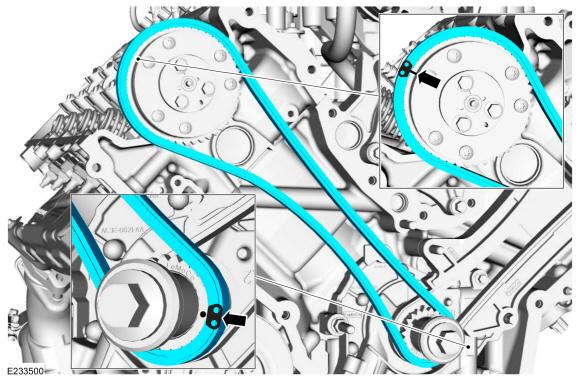

    Install the RH timing chain.

    • Align the colored link on the timing chain with the timing mark on the crankshaft sprocket.
    • Align the colored link on the timing chain with the timing mark on the RH VCT assembly.

    Courtesy of FORD MOTOR COMPANY

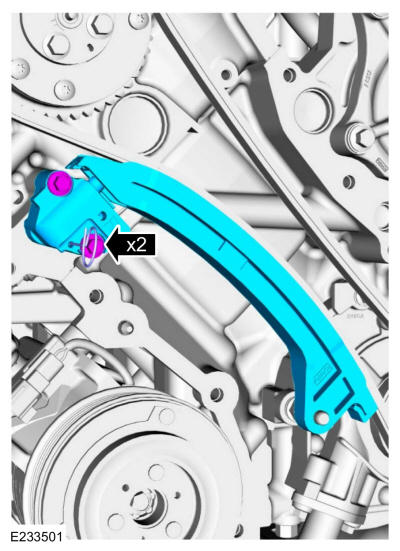

13. Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and the bolts.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

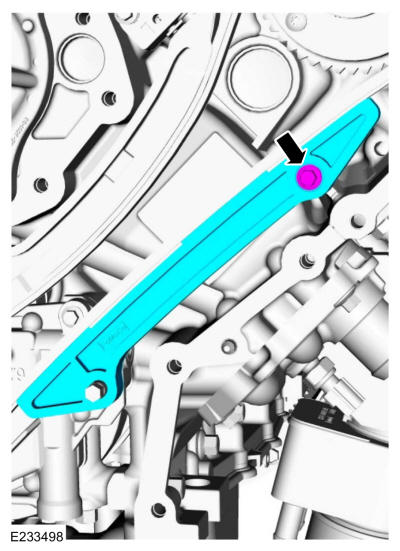

14. Install the RH timing chain guide and bolt.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

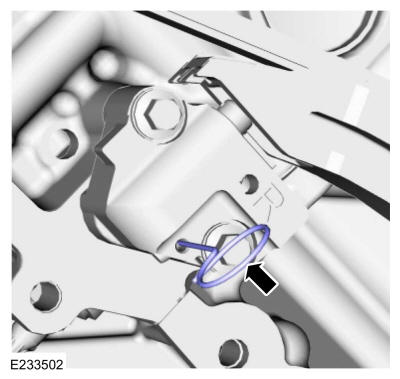

15. Remove the retaining clip from the RH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

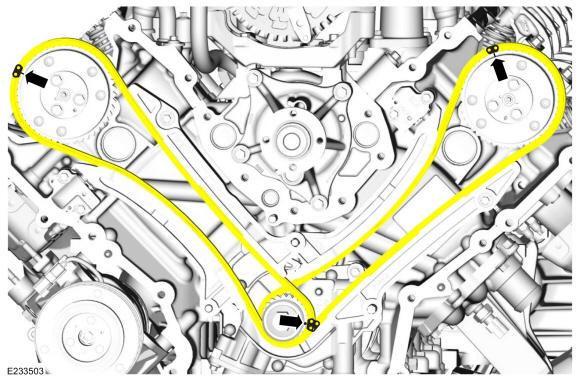

16. As a post-check, verify correct alignment of all timing marks.

    Courtesy of FORD MOTOR COMPANY

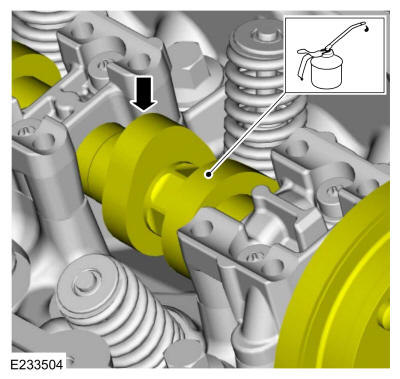

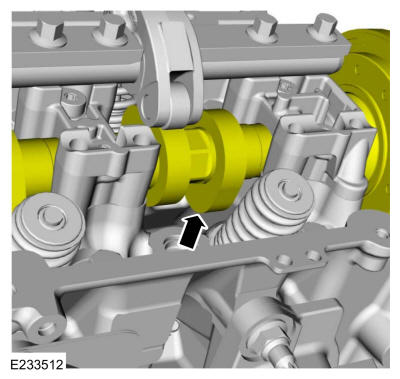

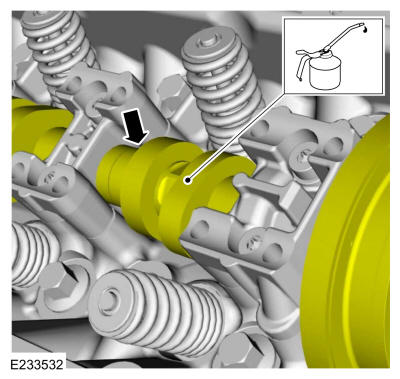

17. • Rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully opened.
    • Lubricate the all RH camshaft lopes with clean engine oil.

      Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

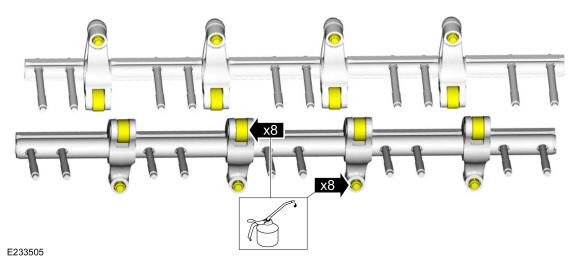

18. NOTE: LH shown, RH similar.

    Lubricate the LH and RH rocker arm shaft-to-valve tip and rocker arm-to-camshaft lobe contact area with clean engine oil prior to installation.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

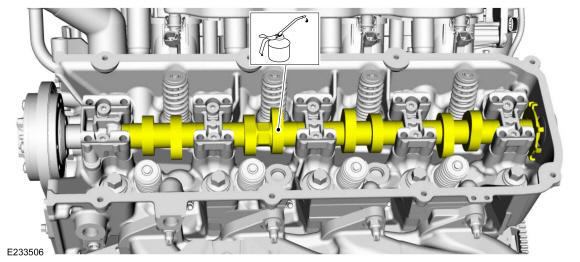

19. Lubricate the all LH camshaft lopes with clean engine oil.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

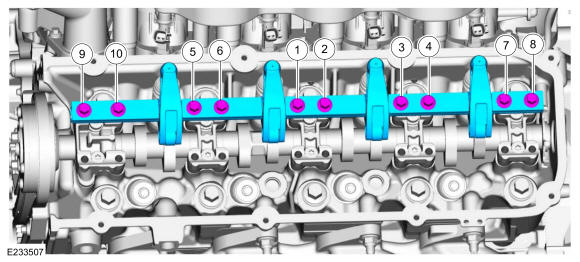

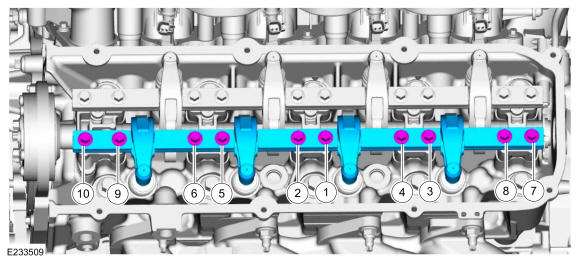

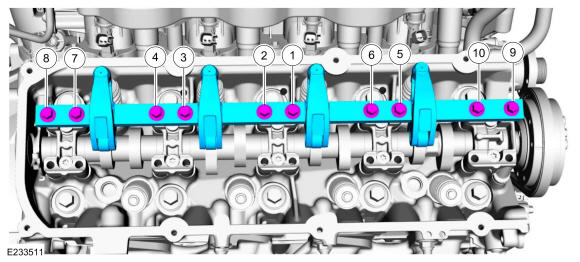

20. Install the LH intake rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

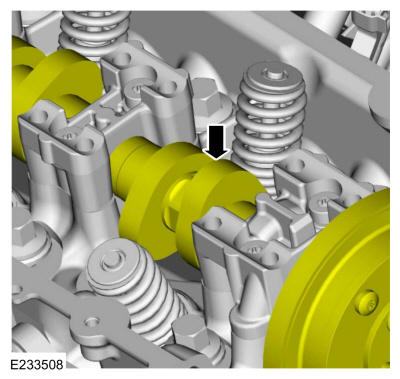

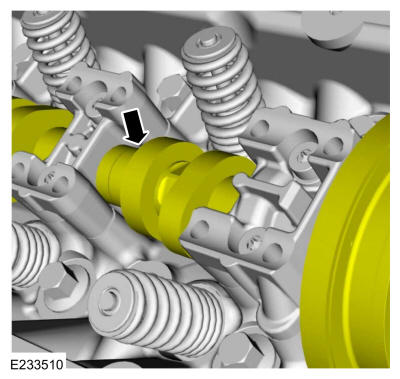

21. Rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully opened.

    Courtesy of FORD MOTOR COMPANY

22. Install the LH exhaust rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

23. Rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully closed.

    Courtesy of FORD MOTOR COMPANY

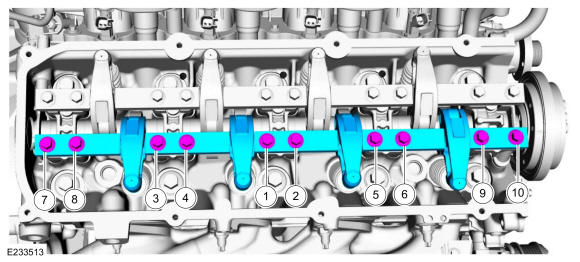

24. Install the RH intake rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

25. Rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully closed.

    Courtesy of FORD MOTOR COMPANY

26. Install the RH exhaust rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

    RH timing chain

    NOTE: The following step only cover installation of the RH timing chain.
27. Using a small pick, carefully push the RH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise. Use the General Equipment: Vise

    Courtesy of FORD MOTOR COMPANY

28. • Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
    • Remove the RH tensioner from the vise.

    Courtesy of FORD MOTOR COMPANY

29. If the copper links are not visible, mark 2 links on each end, and use as timing marks.

    Courtesy of FORD MOTOR COMPANY

30. NOTE: Verify the crankshaft keyway is at the 11 o'clock position.
    NOTE: The LH timing chain does not need to be aligned with the LH timing marks to install the RH timing chain.

    Install the RH timing chain.

    • Align the colored link on the timing chain with the timing mark on the crankshaft sprocket.
    • Align the colored link on the timing chain with the timing mark on the RH VCT assembly.

    Courtesy of FORD MOTOR COMPANY

31. Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and the bolts.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

32. Install the RH timing chain guide and bolt.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

33. Remove the retaining clip from the RH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

34. NOTE: The LH timing chain does not need to be aligned with the LH timing marks to install the RH timing chain.

    As a post-check, verify correct alignment of the RH timing marks.

    Courtesy of FORD MOTOR COMPANY

35. Lubricate the RH rocker arm shaft-to-valve tip and rocker arm-to-camshaft lobe contact area with clean engine oil prior to installation.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

36. • Rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully closed.
    • Lubricate the all RH camshaft lopes with clean engine oil.

      Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

37. Install the RH intake rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

38. Rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully closed.

    Courtesy of FORD MOTOR COMPANY

39. Install the RH exhaust rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

    RH and LH timing chains

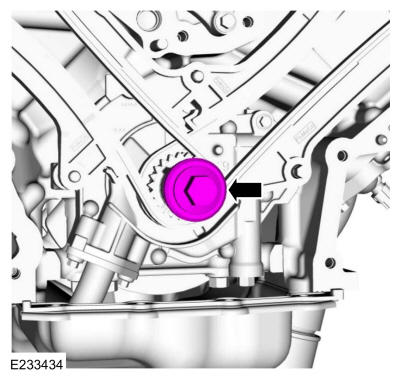

40. Remove the crankshaft bolt.

    Courtesy of FORD MOTOR COMPANY

41. Install the lower spark plugs. Refer to: Spark Plugs .
42. Install the engine front cover. Refer to: Engine Front Cover .
