Adjustable Steering Column

Fig 1: Adjustable Steering Column System Wiring Diagrams (1 Of 4)

Courtesy of FORD MOTOR COMPANY

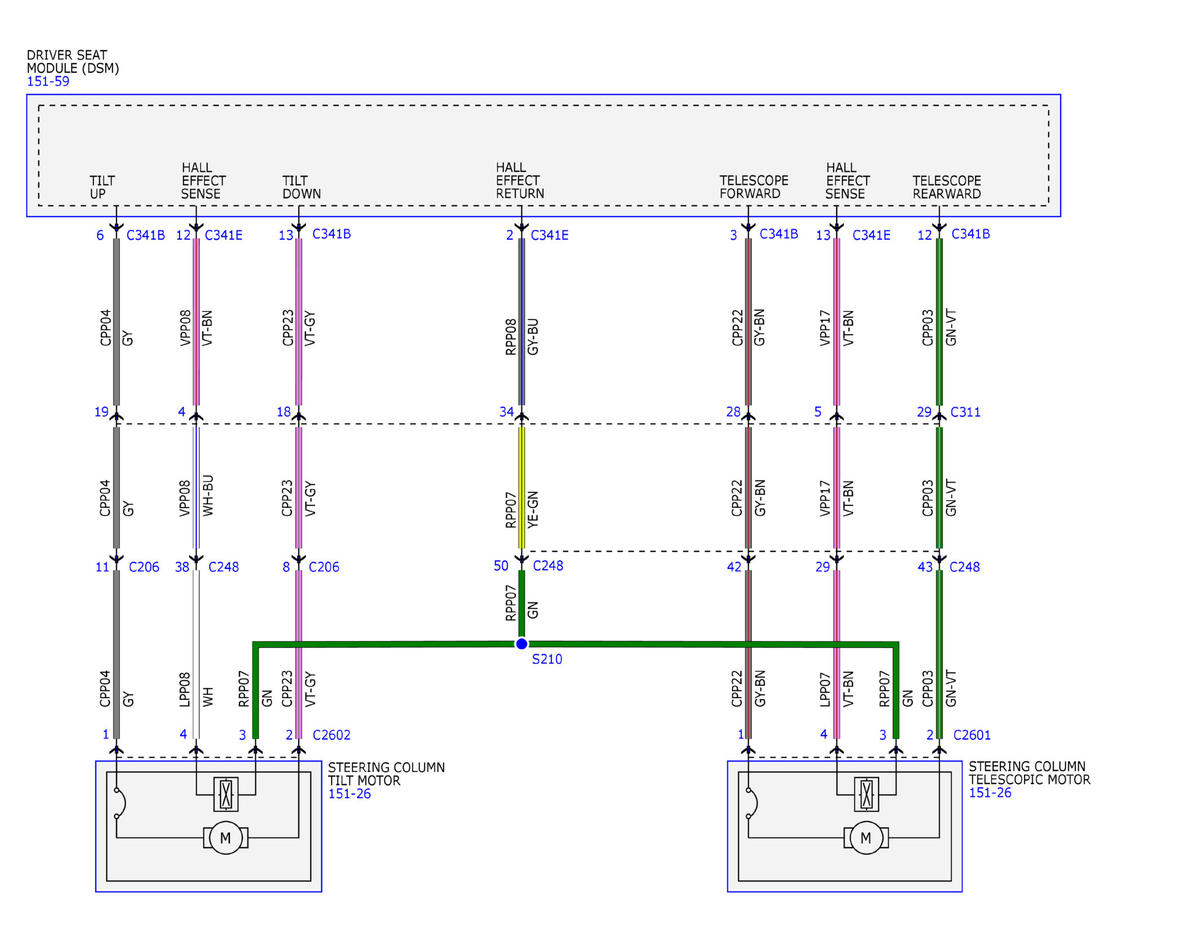

Fig 2: Adjustable Steering Column System Wiring Diagrams (2 Of 4)

Courtesy of FORD MOTOR COMPANY

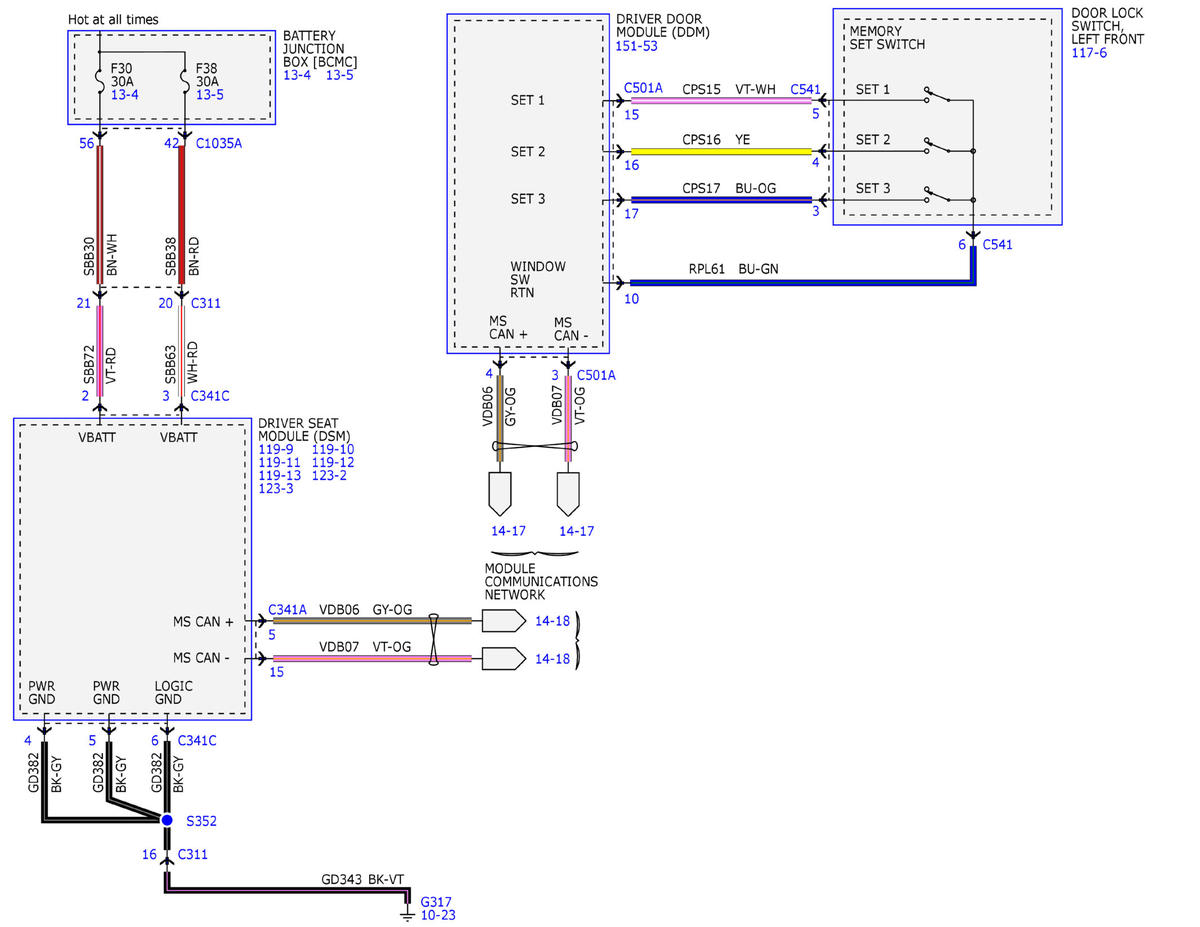

Fig 3: Adjustable Steering Column System Wiring Diagrams (3 Of 4)

Courtesy of FORD MOTOR COMPANY

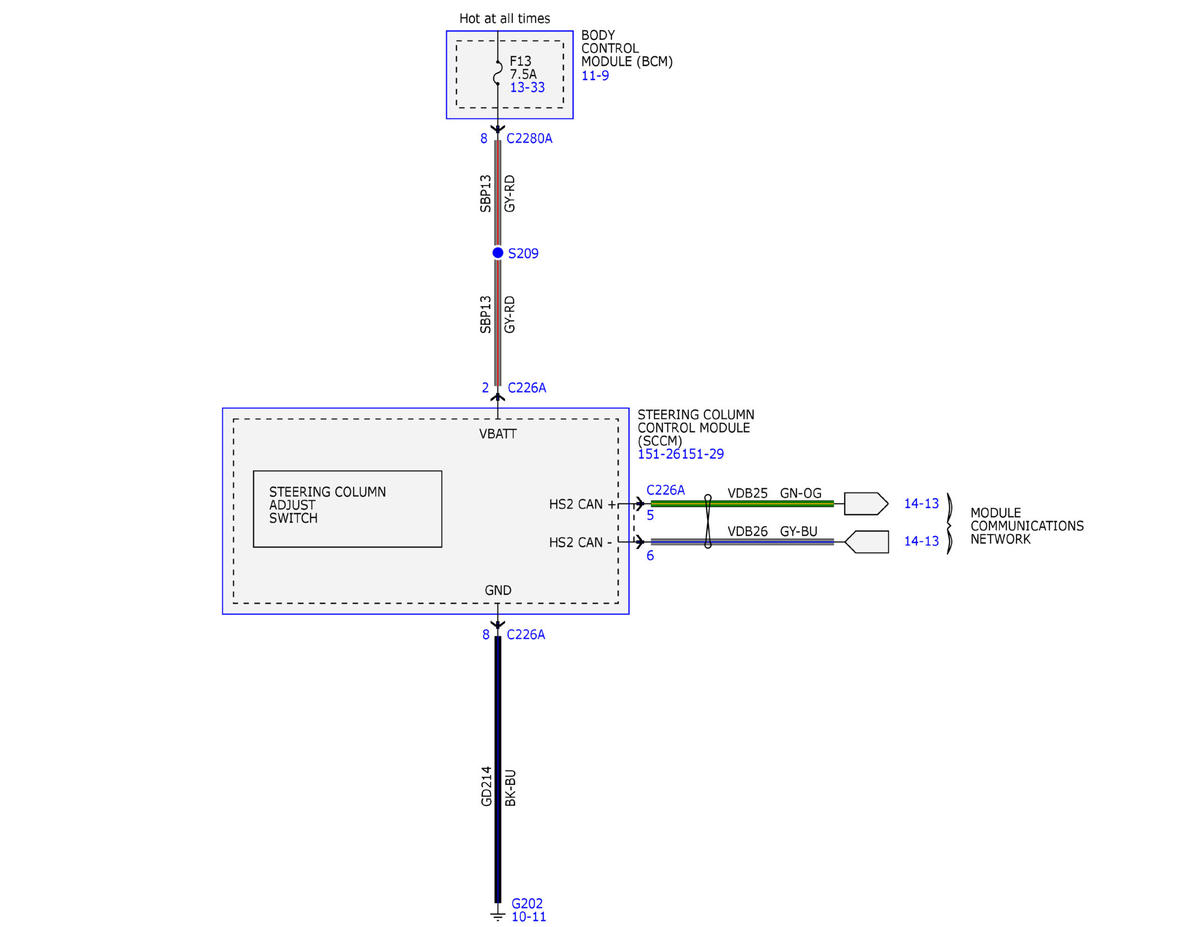

Fig 4: Adjustable Steering Column System Wiring Diagrams (4 Of 4)

Courtesy of FORD MOTOR COMPANY
