Audio System/Navigation

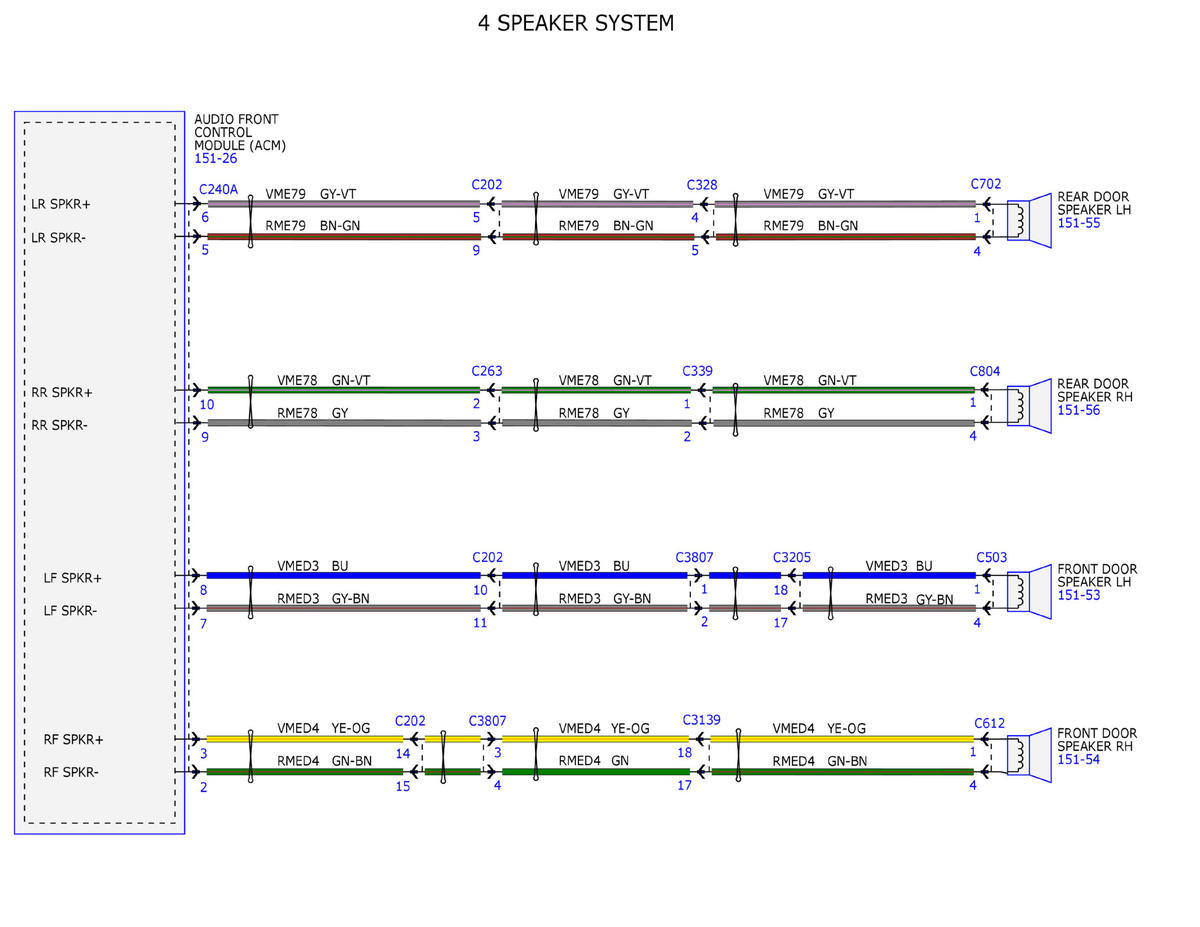

Fig 1: Audio System/Navigation System Wiring Diagrams (1 Of 5)
GFDWR94327Courtesy of FORD MOTOR COMPANY

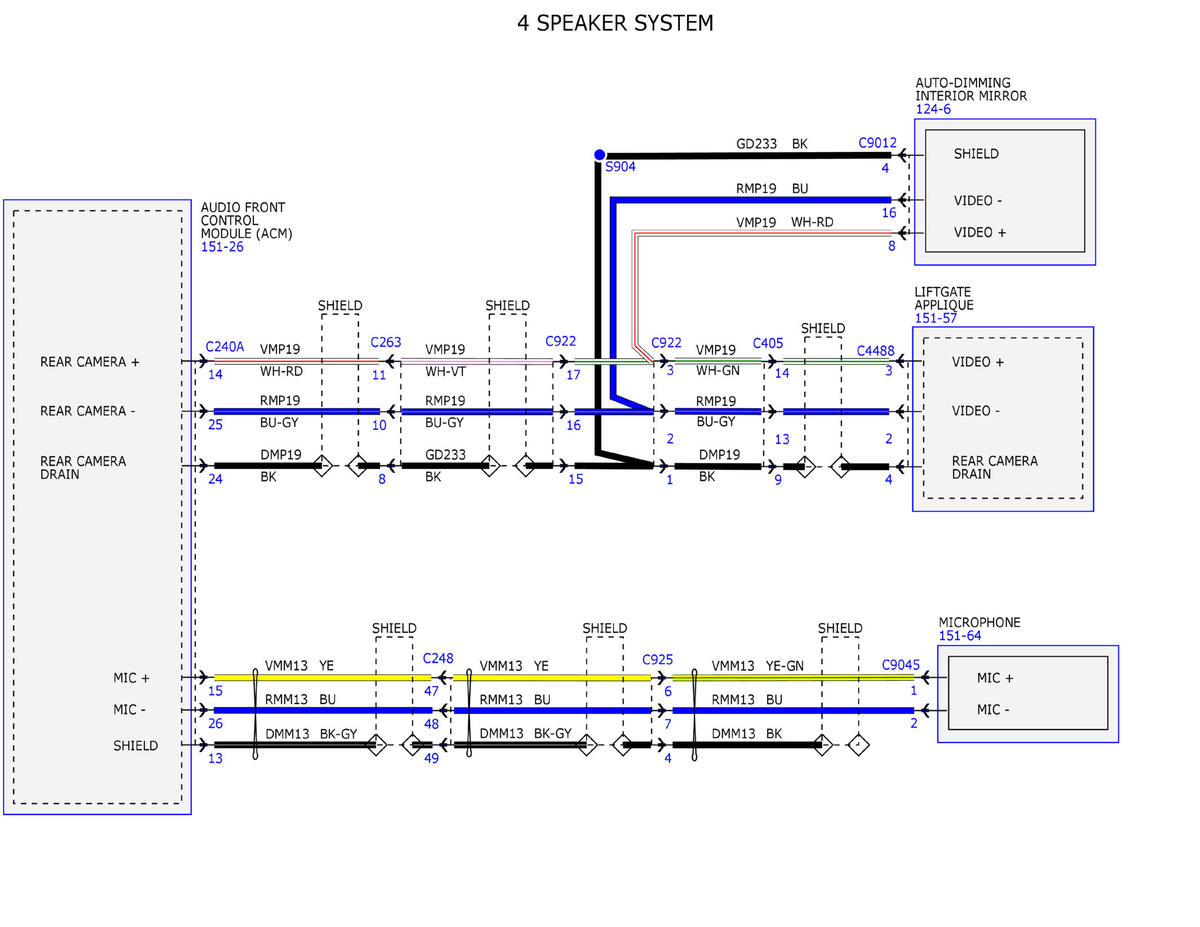

Fig 2: Audio System/Navigation System Wiring Diagrams (2 Of 5)
GFDWR94328Courtesy of FORD MOTOR COMPANY

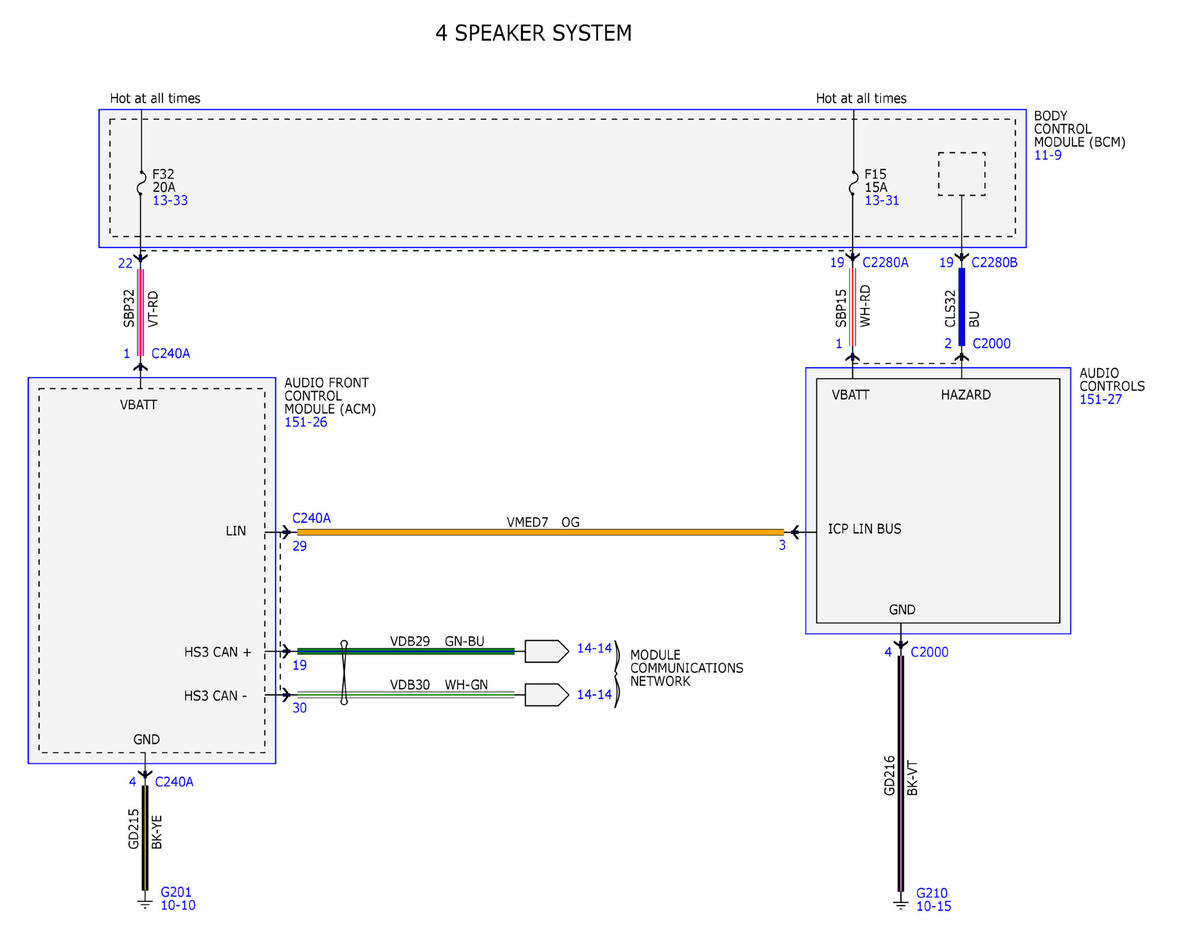

Fig 3: Audio System/Navigation System Wiring Diagrams (3 Of 5)
GFDWR94329Courtesy of FORD MOTOR COMPANY

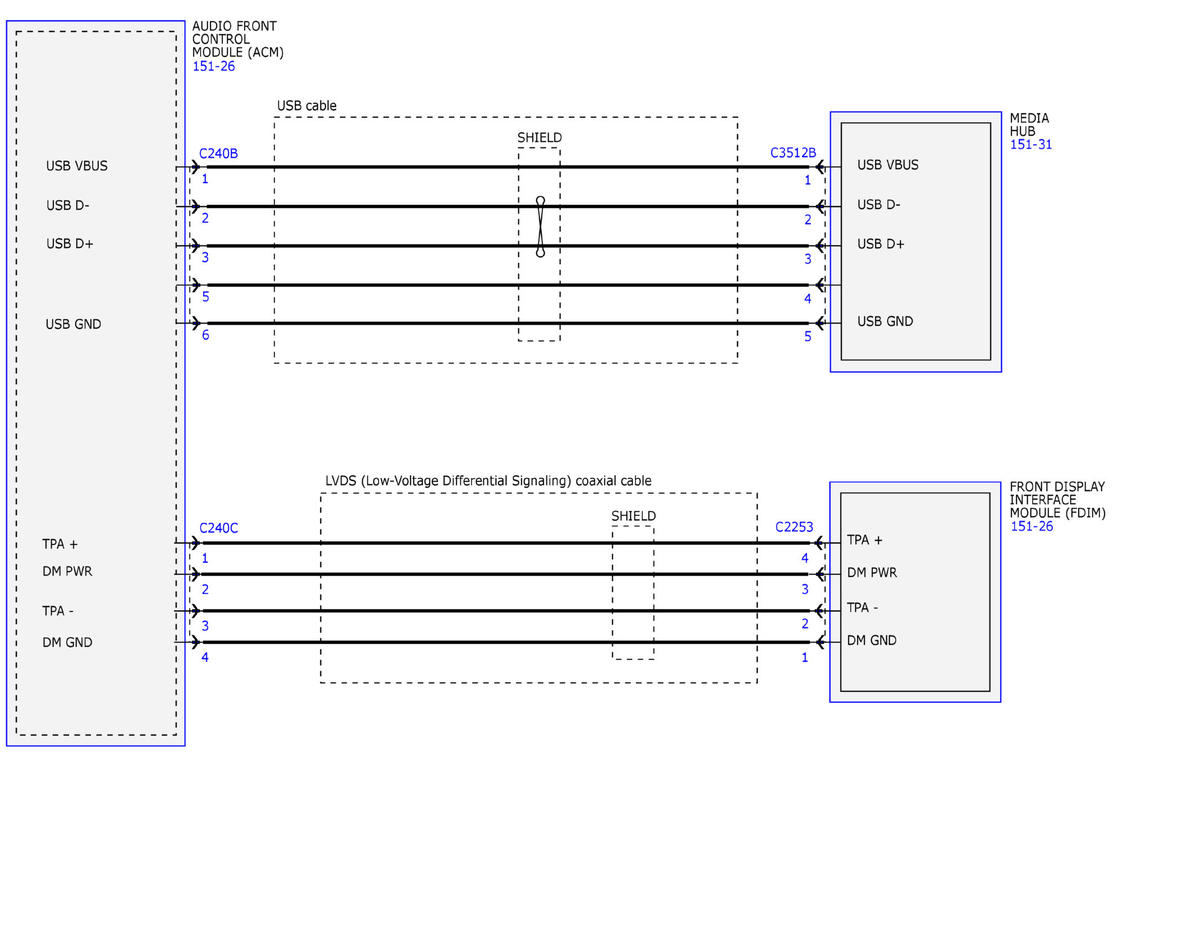

Fig 4: Audio System/Navigation System Wiring Diagrams (4 Of 5)
GFDWR94330Courtesy of FORD MOTOR COMPANY

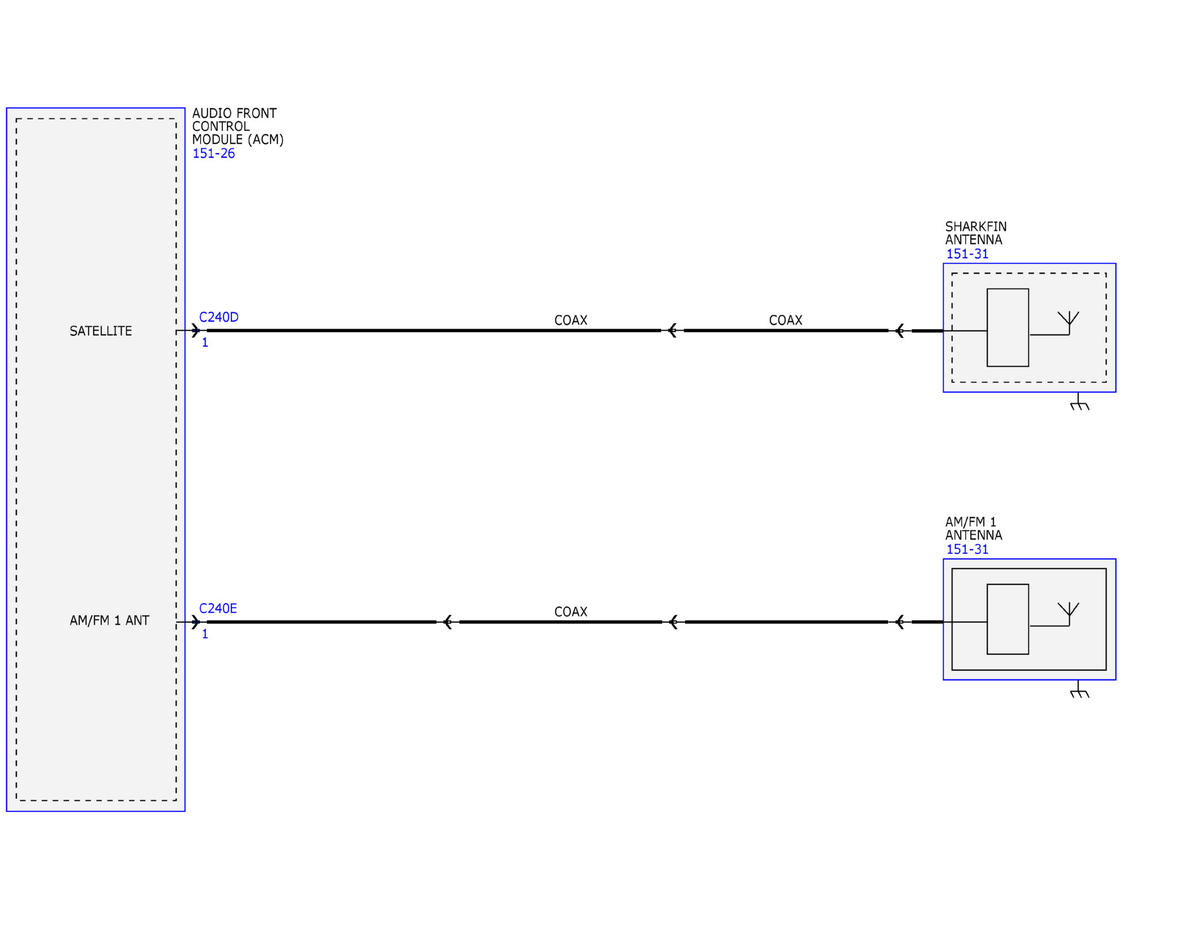

Fig 5: Audio System/Navigation System Wiring Diagrams (5 Of 5)
GFDWR94331Courtesy of FORD MOTOR COMPANY
