Automatic Climate Control System

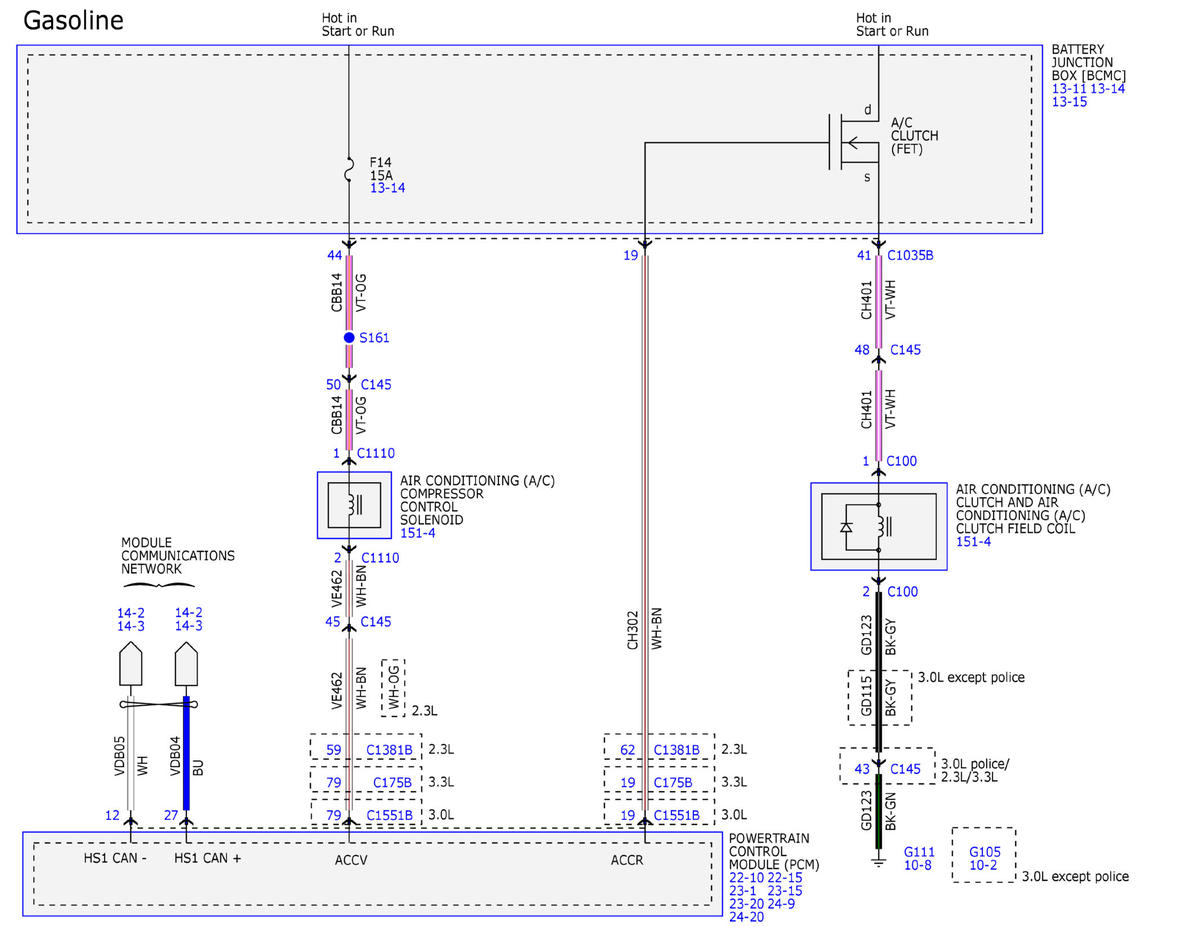

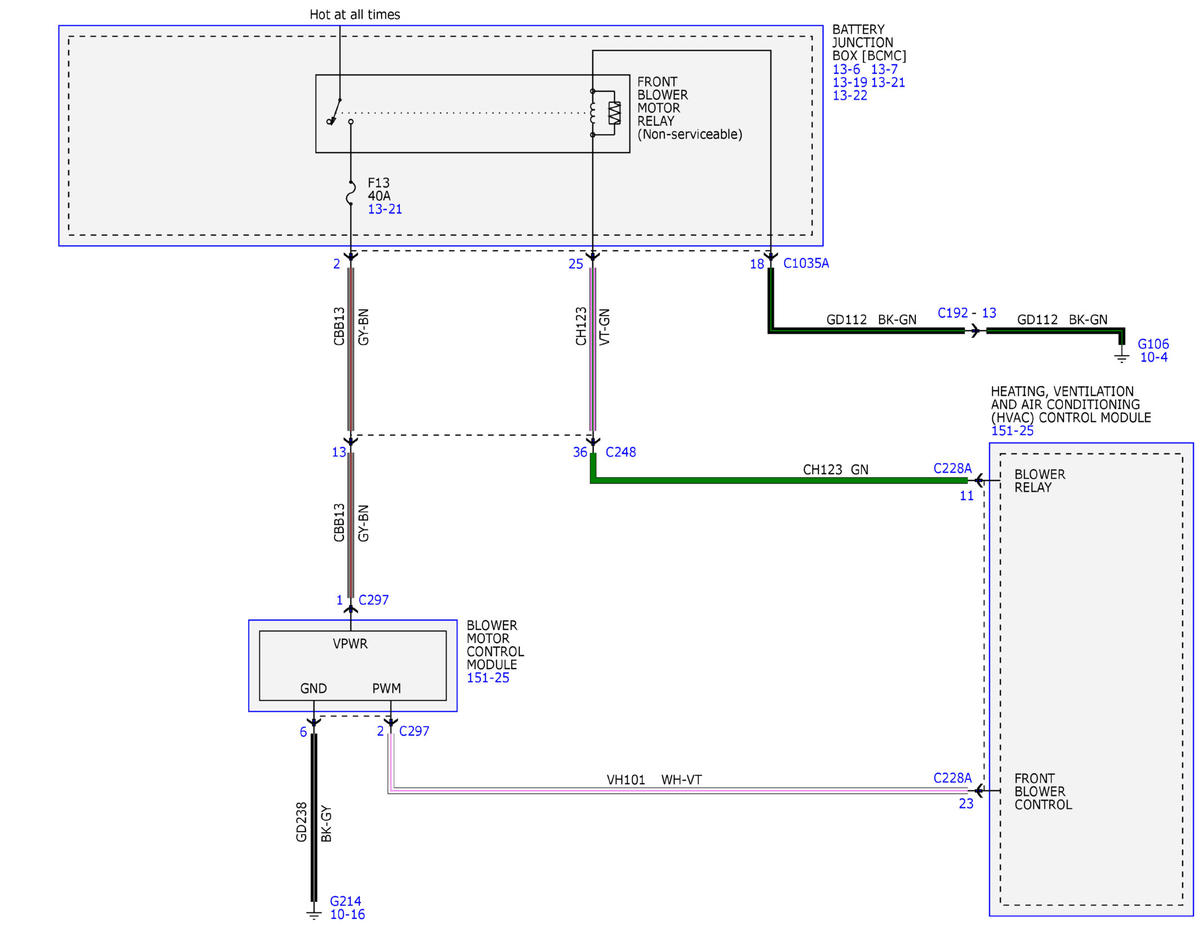

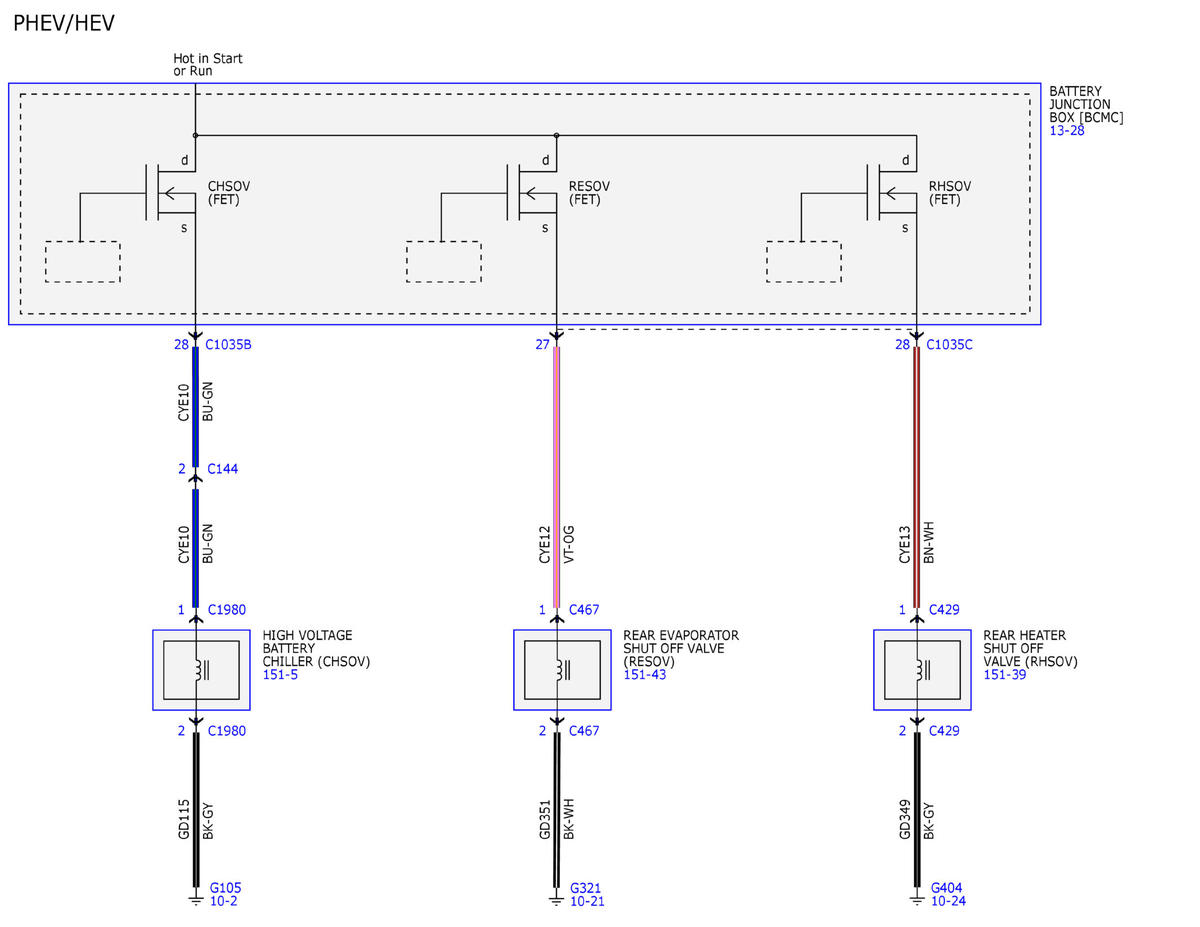

Fig 1: Automatic Climate Control System Wiring Diagrams (1 Of 18)

Courtesy of FORD MOTOR COMPANY

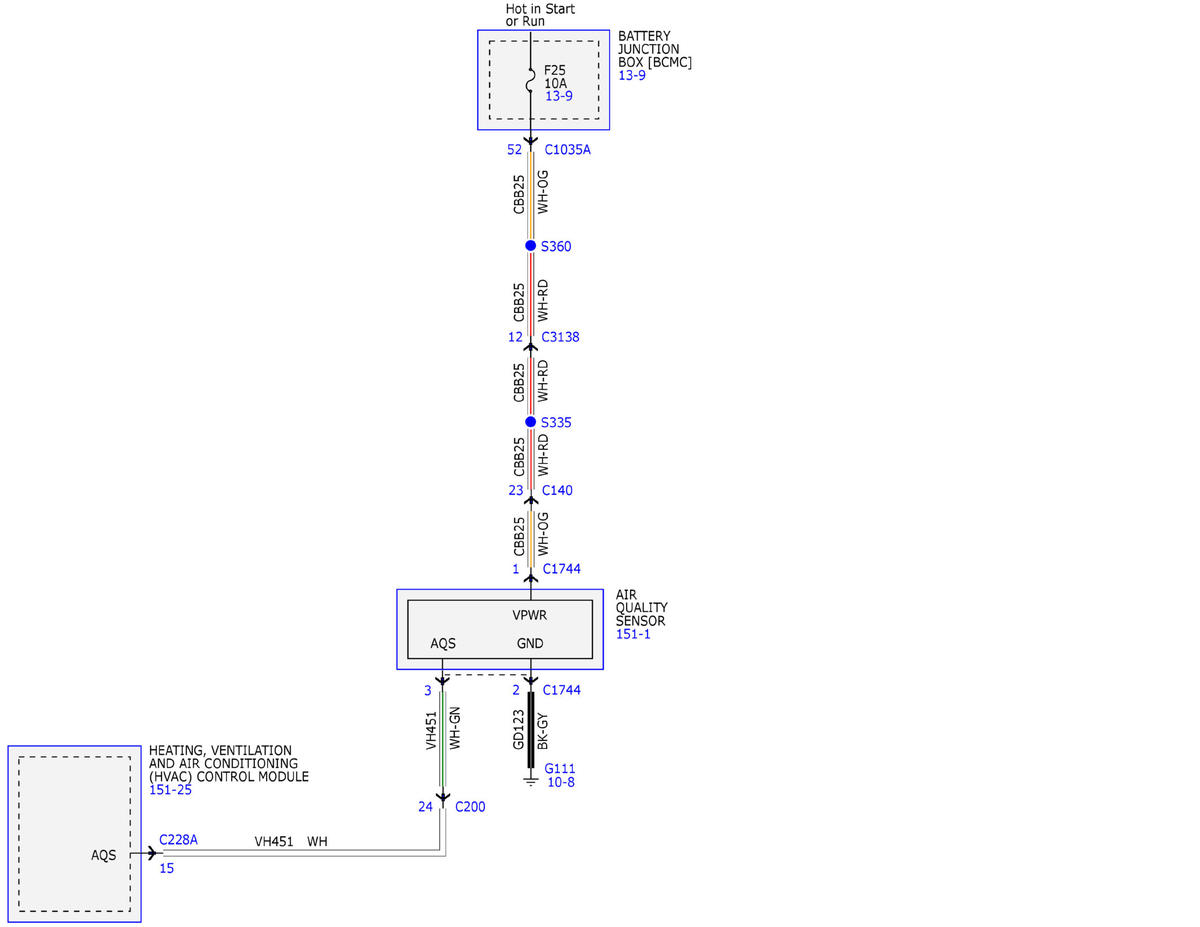

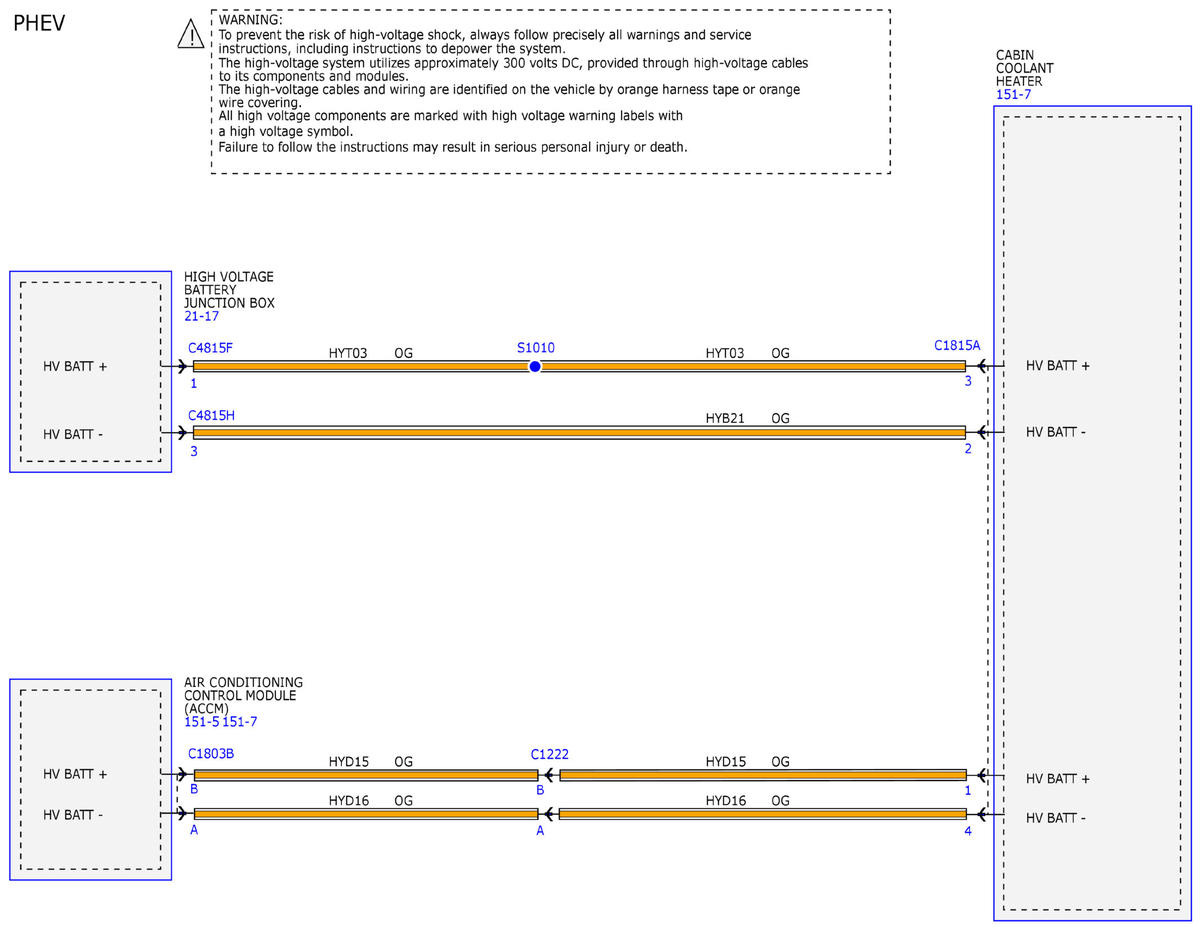

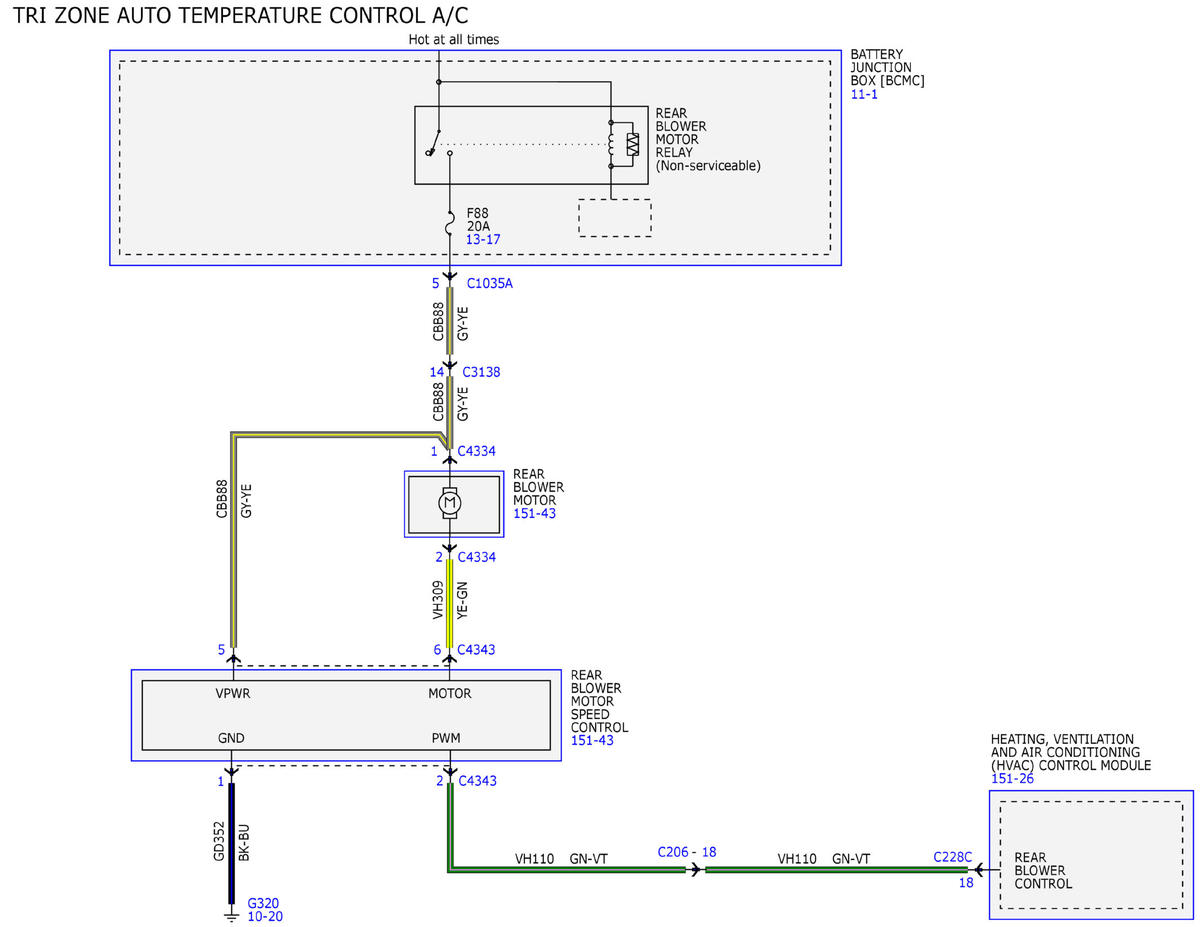

Fig 2: Automatic Climate Control System Wiring Diagrams (2 Of 18)

Courtesy of FORD MOTOR COMPANY

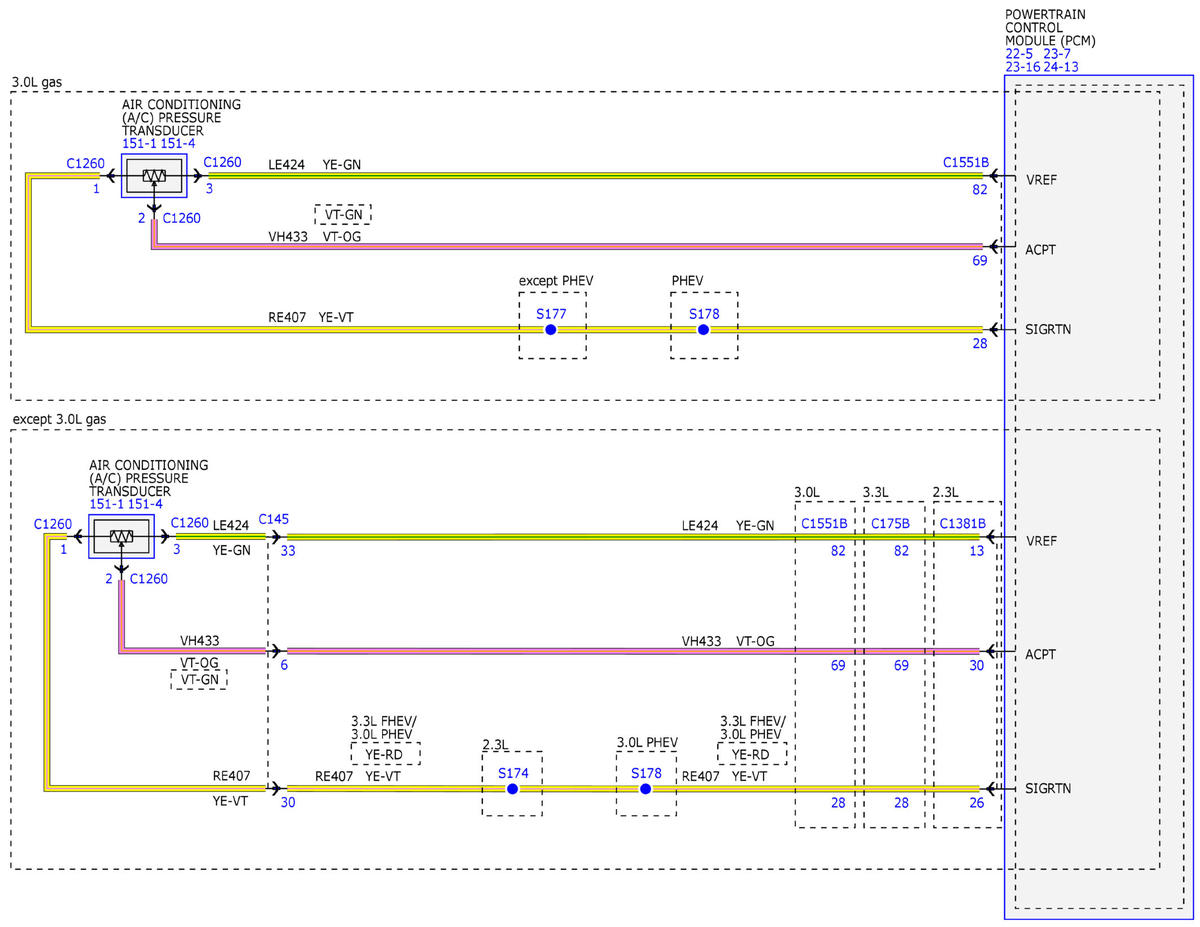

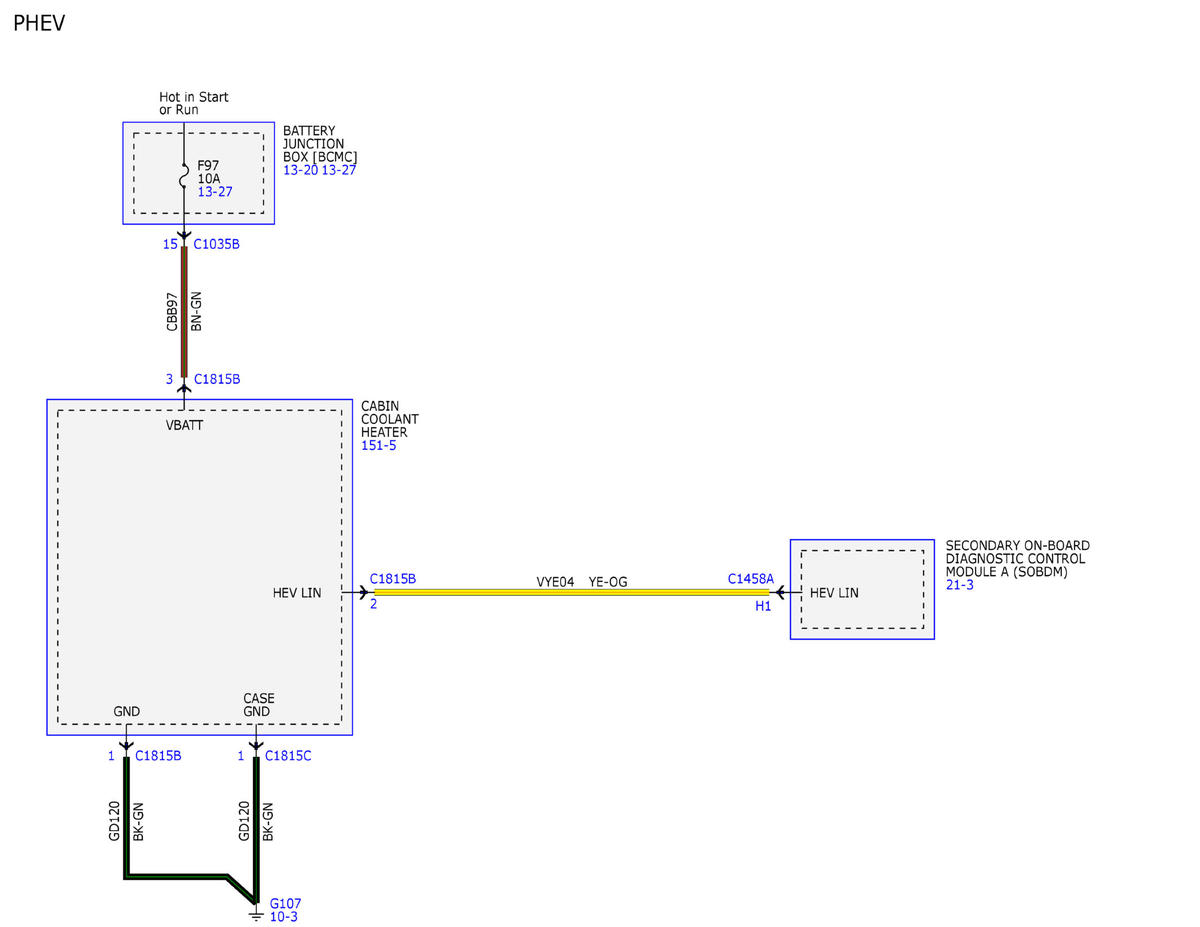

Fig 3: Automatic Climate Control System Wiring Diagrams (3 Of 18)

Courtesy of FORD MOTOR COMPANY

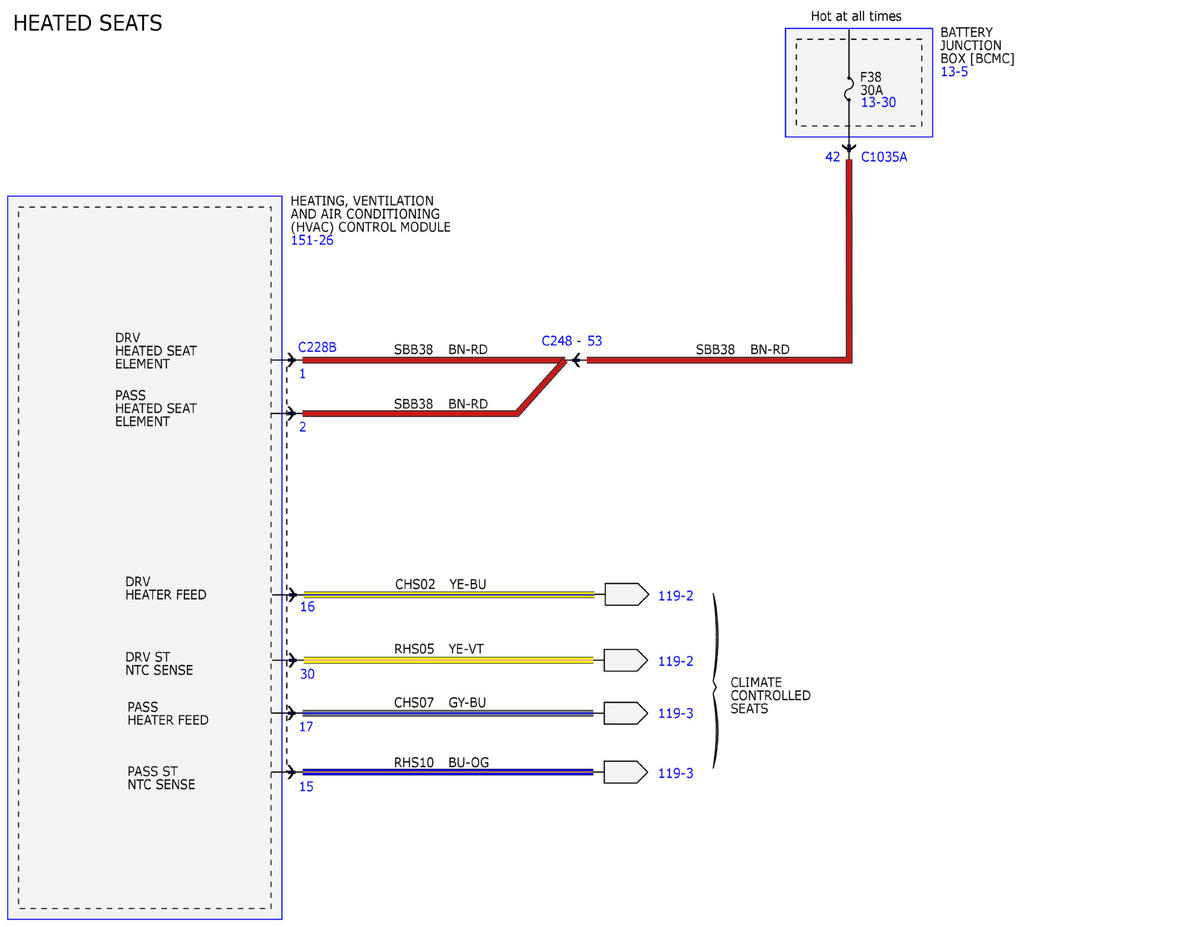

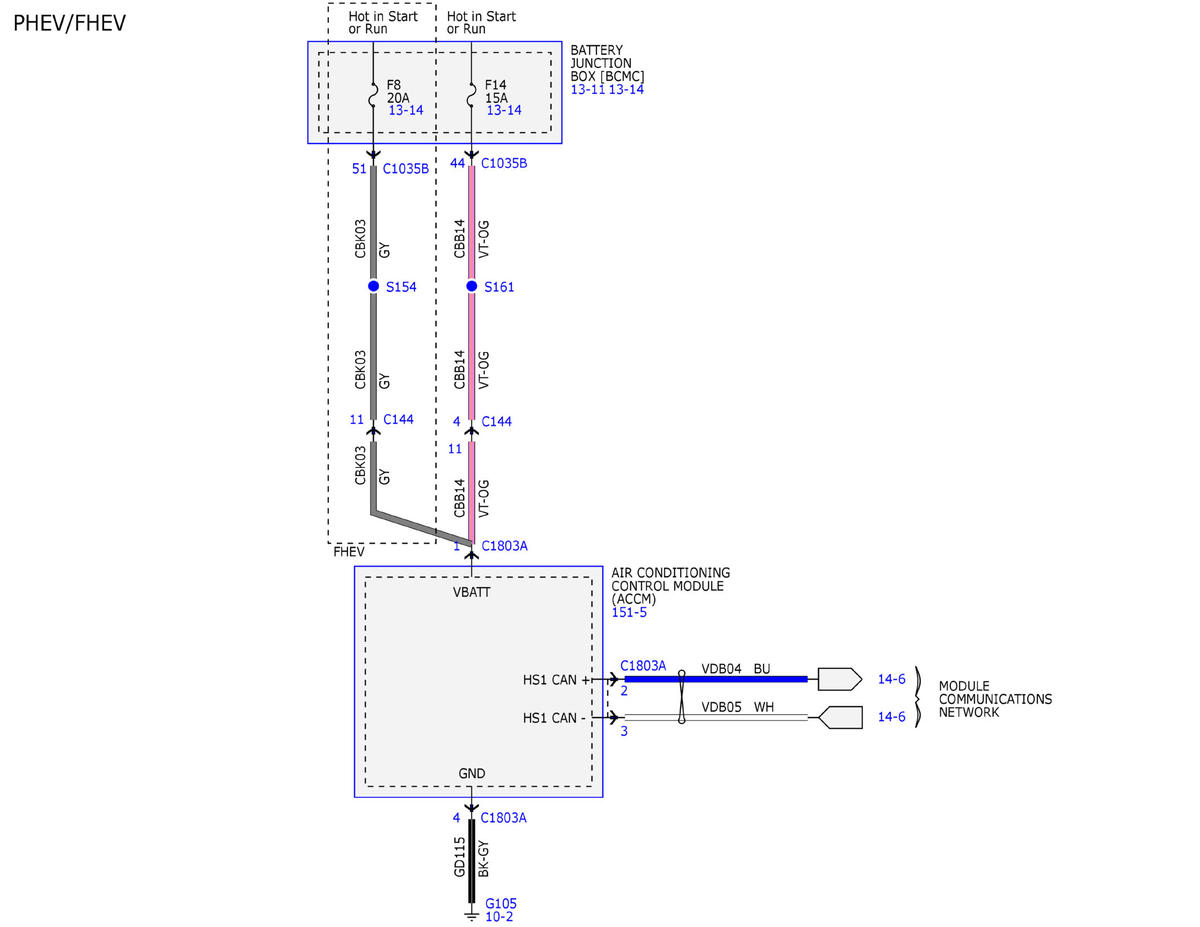

Fig 4: Automatic Climate Control System Wiring Diagrams (4 Of 18)

Courtesy of FORD MOTOR COMPANY

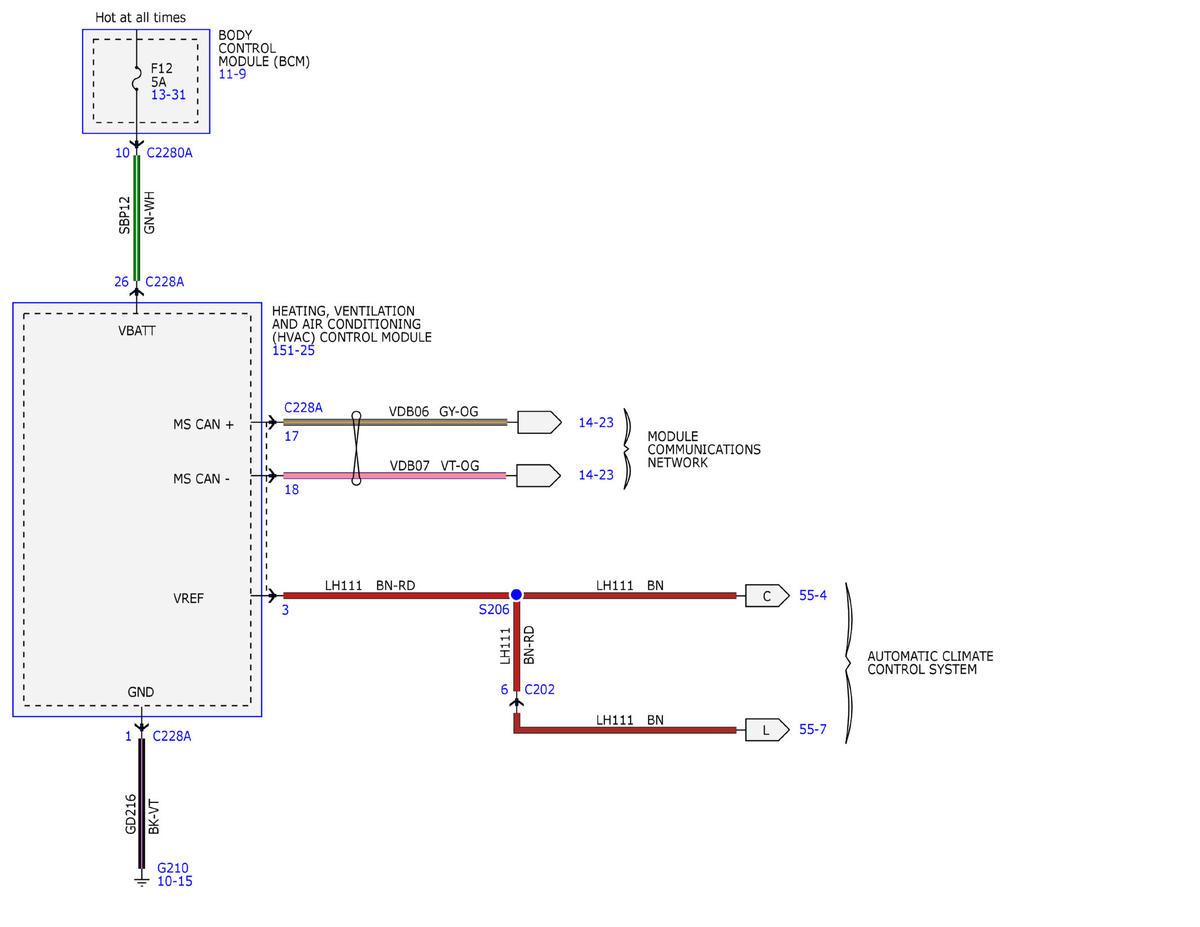

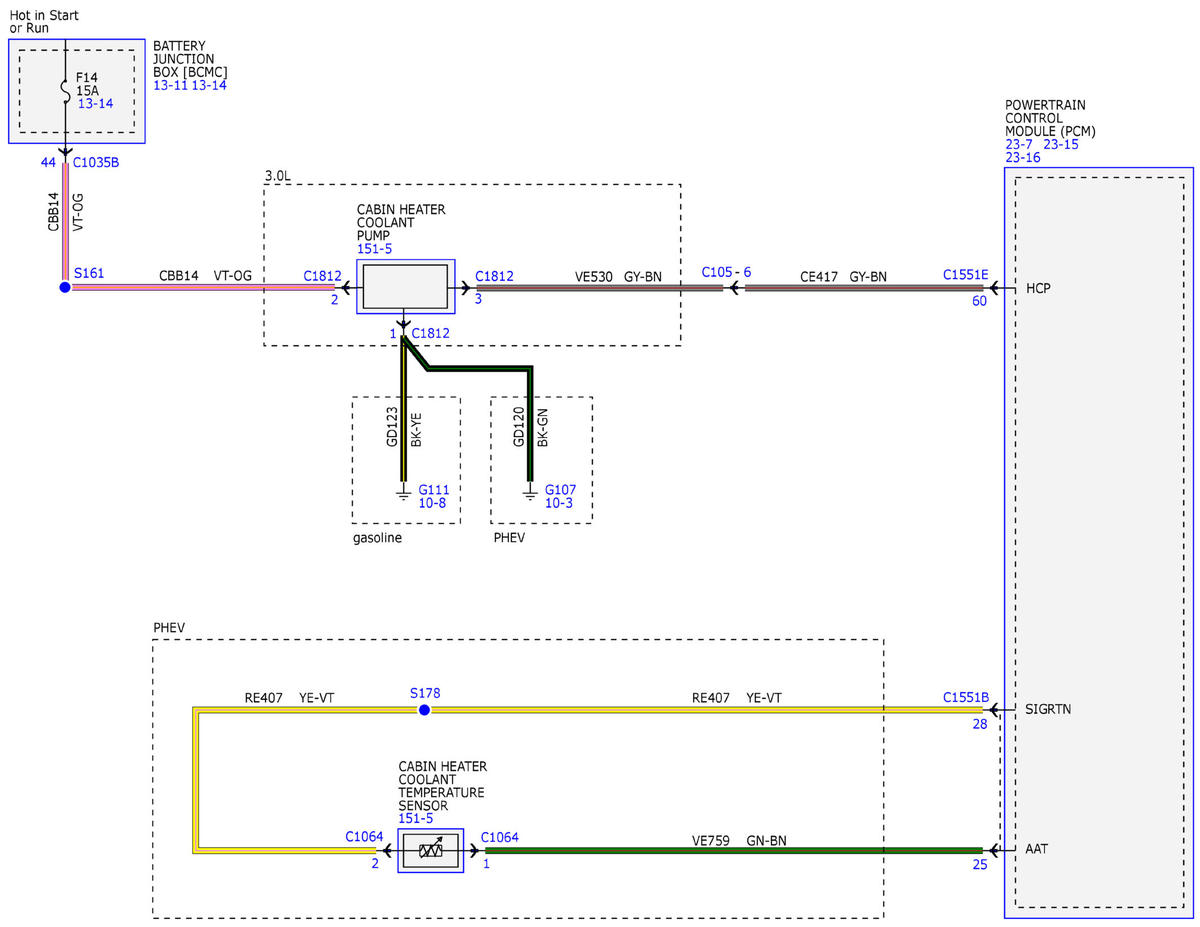

Fig 5: Automatic Climate Control System Wiring Diagrams (5 Of 18)

Courtesy of FORD MOTOR COMPANY

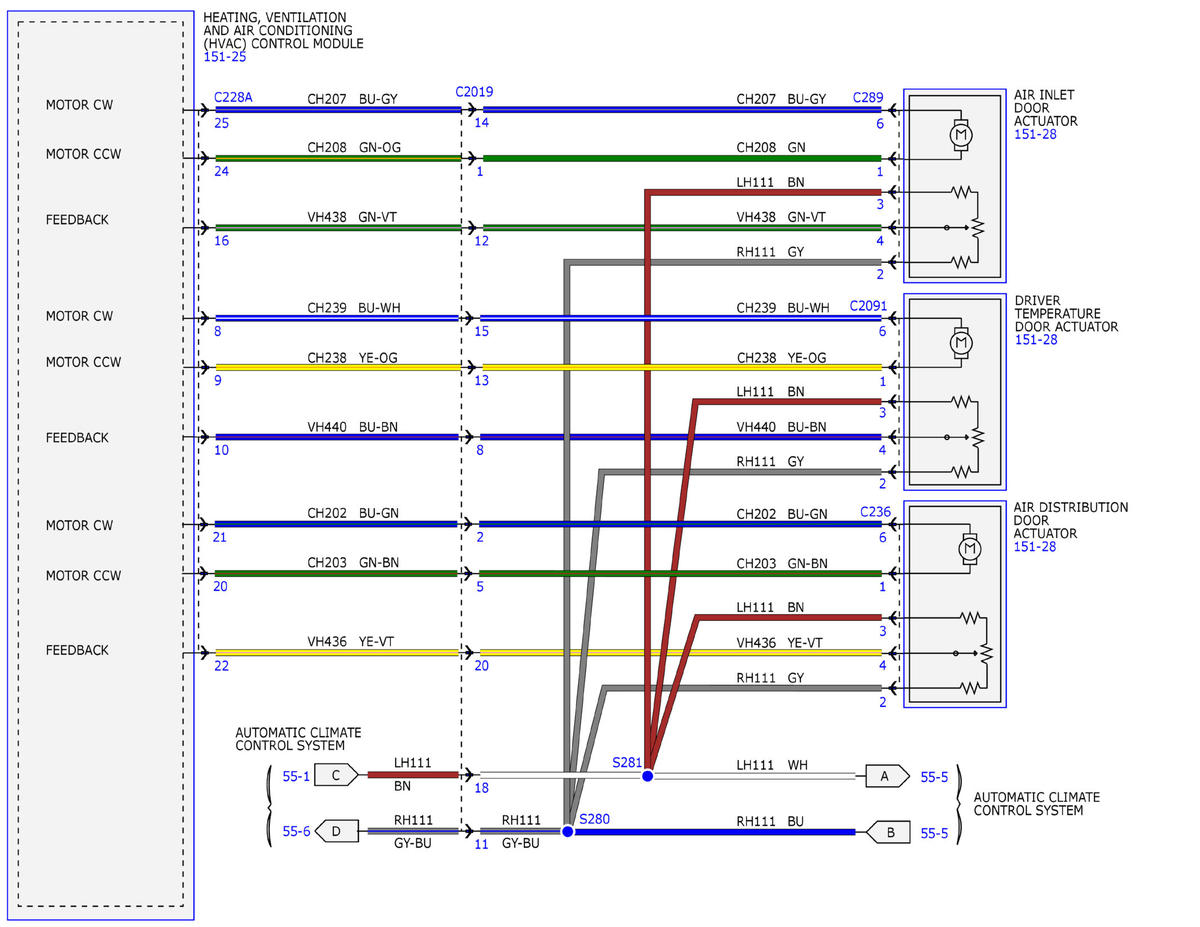

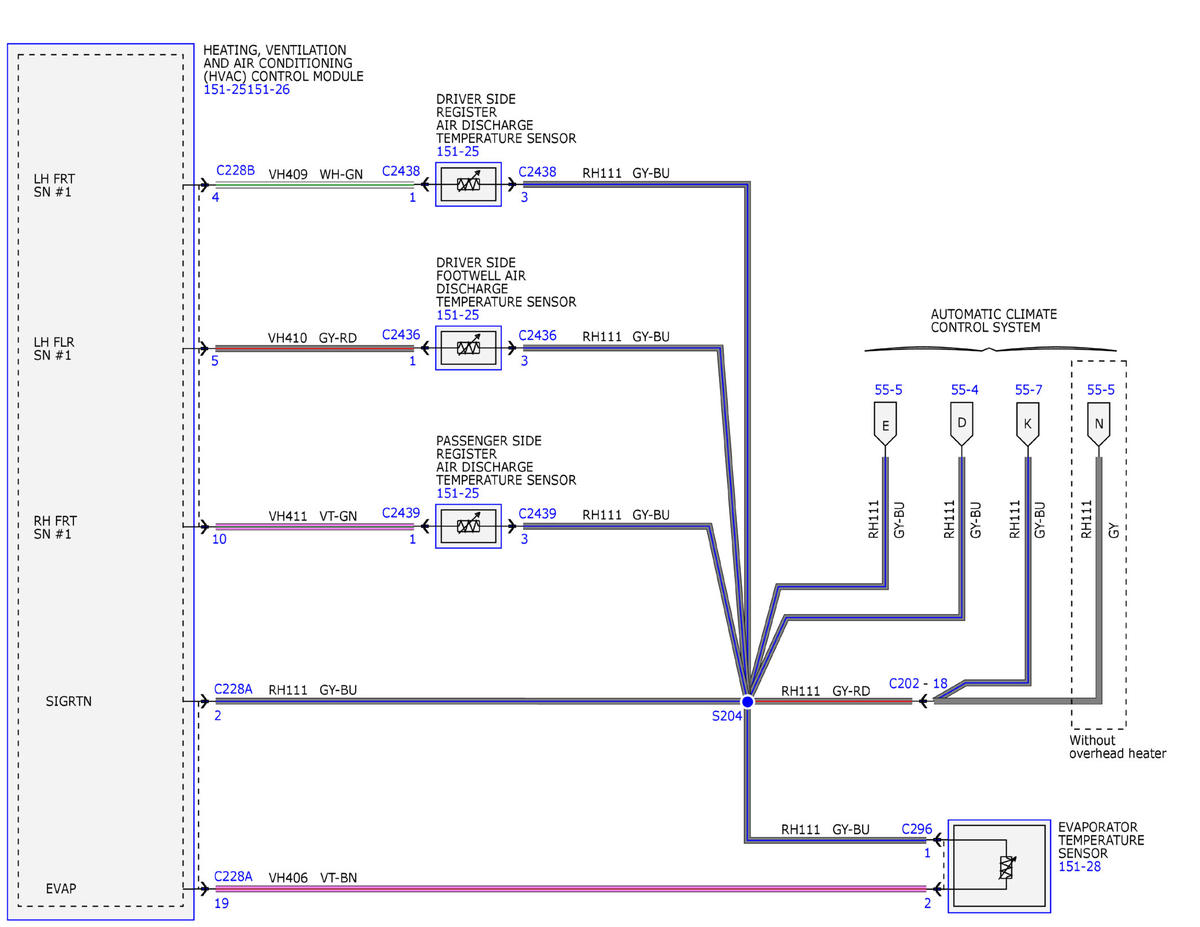

Fig 6: Automatic Climate Control System Wiring Diagrams (6 Of 18)

Courtesy of FORD MOTOR COMPANY

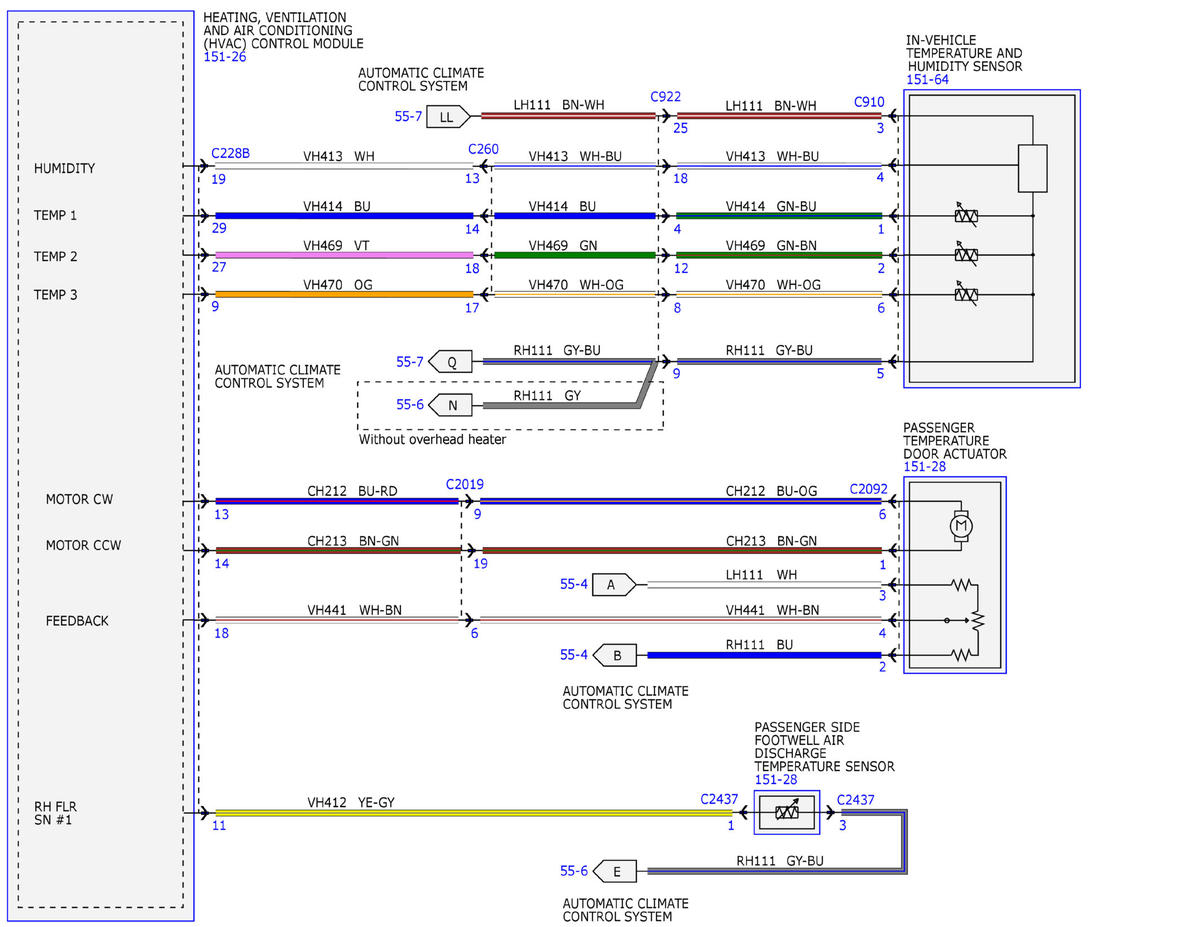

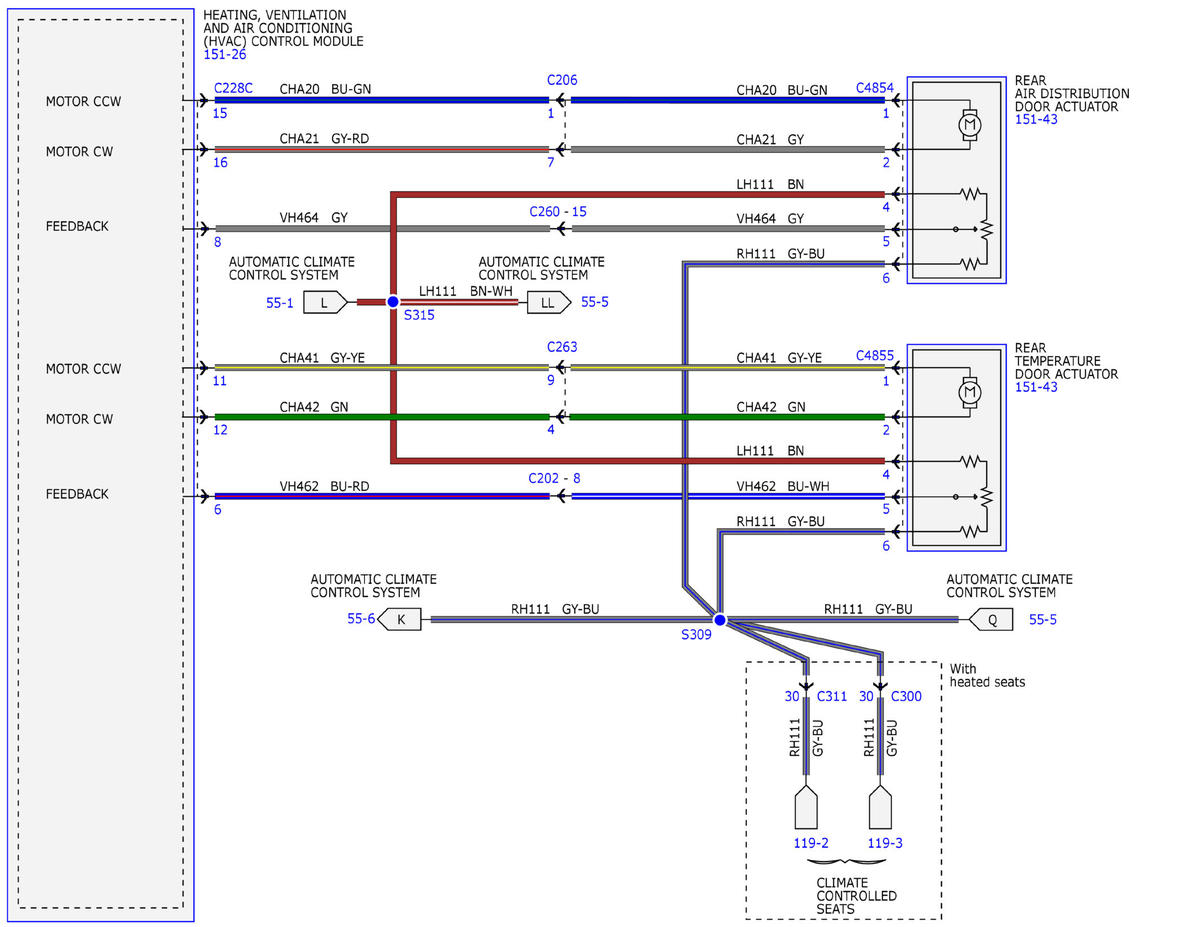

Fig 7: Automatic Climate Control System Wiring Diagrams (7 Of 18)

Courtesy of FORD MOTOR COMPANY

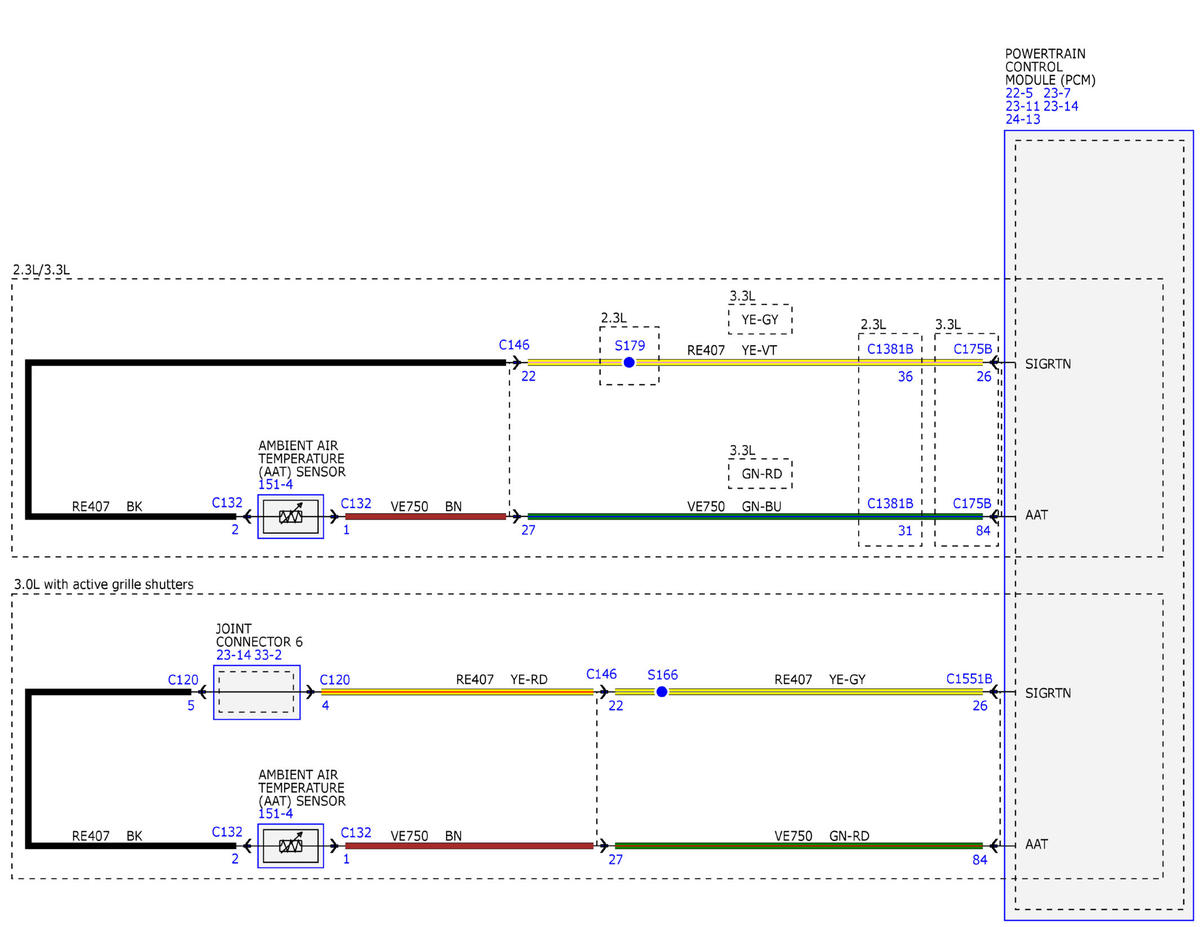

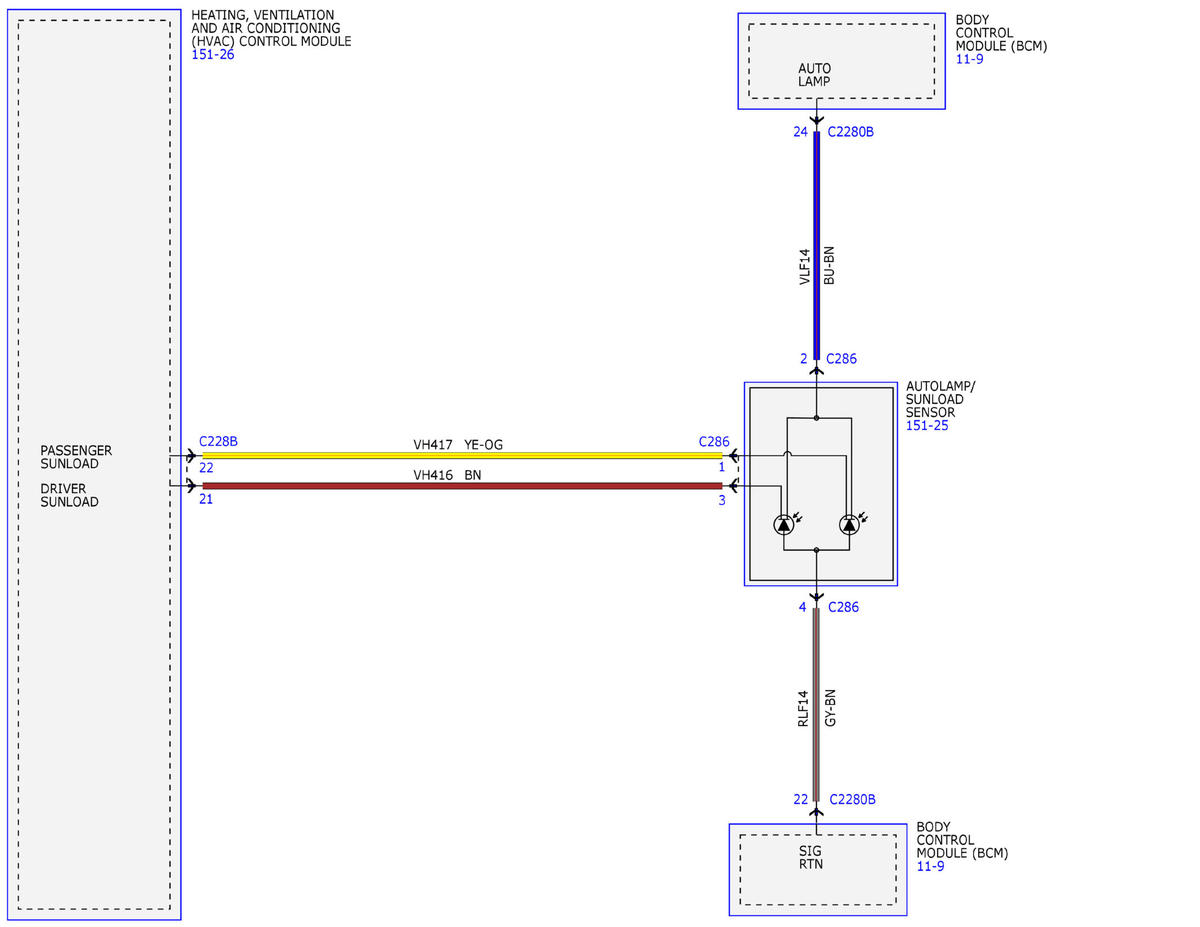

Fig 8: Automatic Climate Control System Wiring Diagrams (8 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 9: Automatic Climate Control System Wiring Diagrams (9 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 10: Automatic Climate Control System Wiring Diagrams (10 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Automatic Climate Control System Wiring Diagrams (11 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Automatic Climate Control System Wiring Diagrams (12 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Automatic Climate Control System Wiring Diagrams (13 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Automatic Climate Control System Wiring Diagrams (14 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Automatic Climate Control System Wiring Diagrams (15 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Automatic Climate Control System Wiring Diagrams (16 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Automatic Climate Control System Wiring Diagrams (17 Of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Automatic Climate Control System Wiring Diagrams (18 Of 18)

Courtesy of FORD MOTOR COMPANY
