Cruise Control

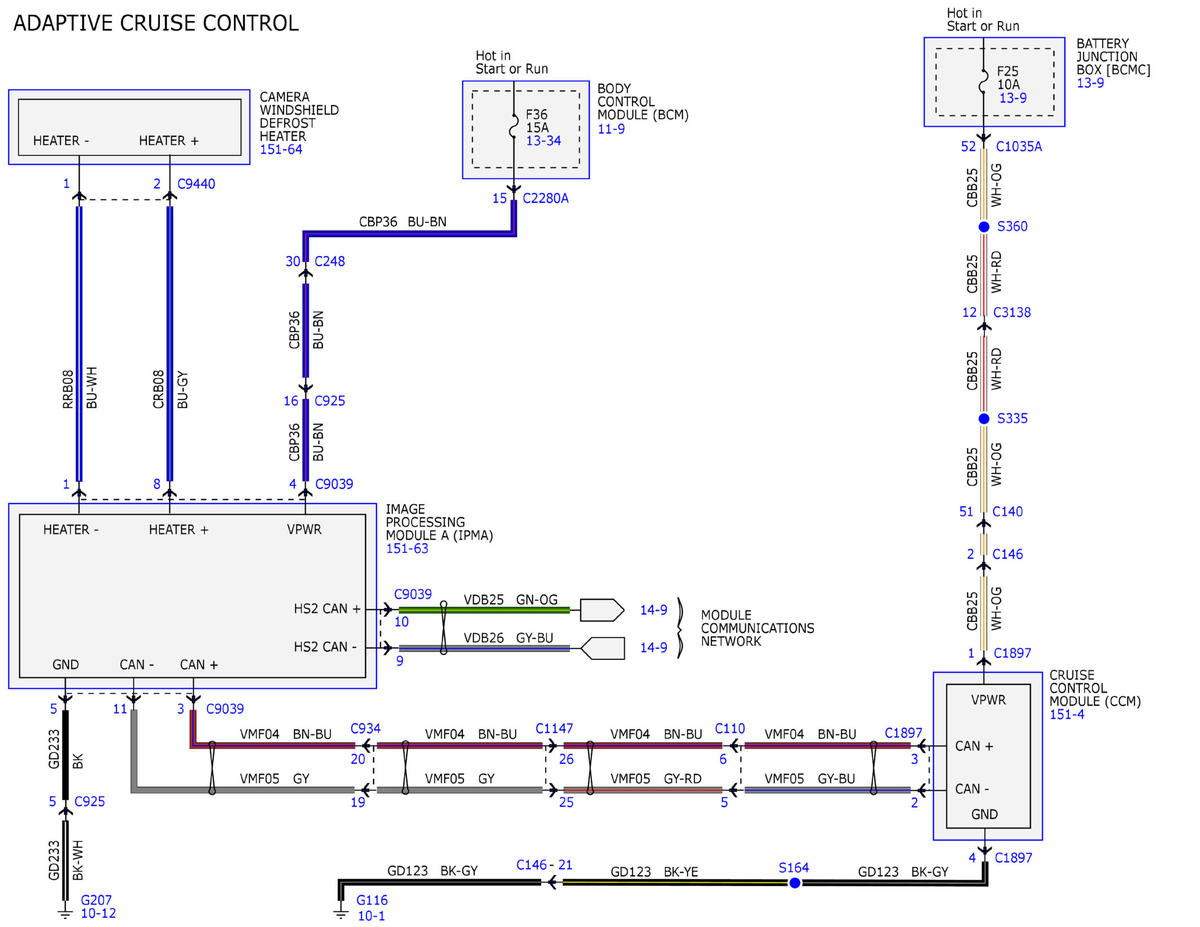

Fig 1: Cruise Control System Wiring Diagrams (1 Of 5)
GFDWR94409Courtesy of FORD MOTOR COMPANY

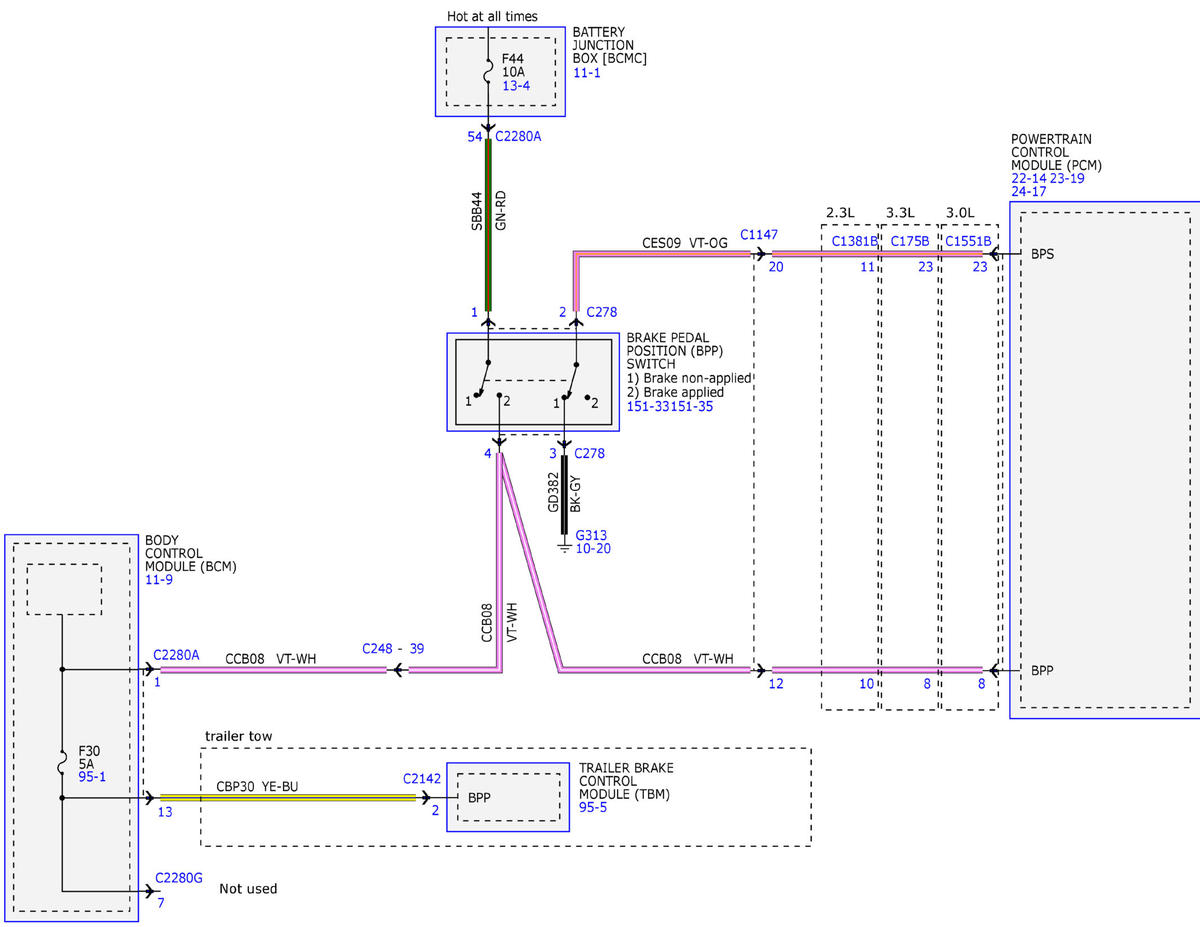

Fig 2: Cruise Control System Wiring Diagrams (2 Of 5)
GFDWR94410Courtesy of FORD MOTOR COMPANY

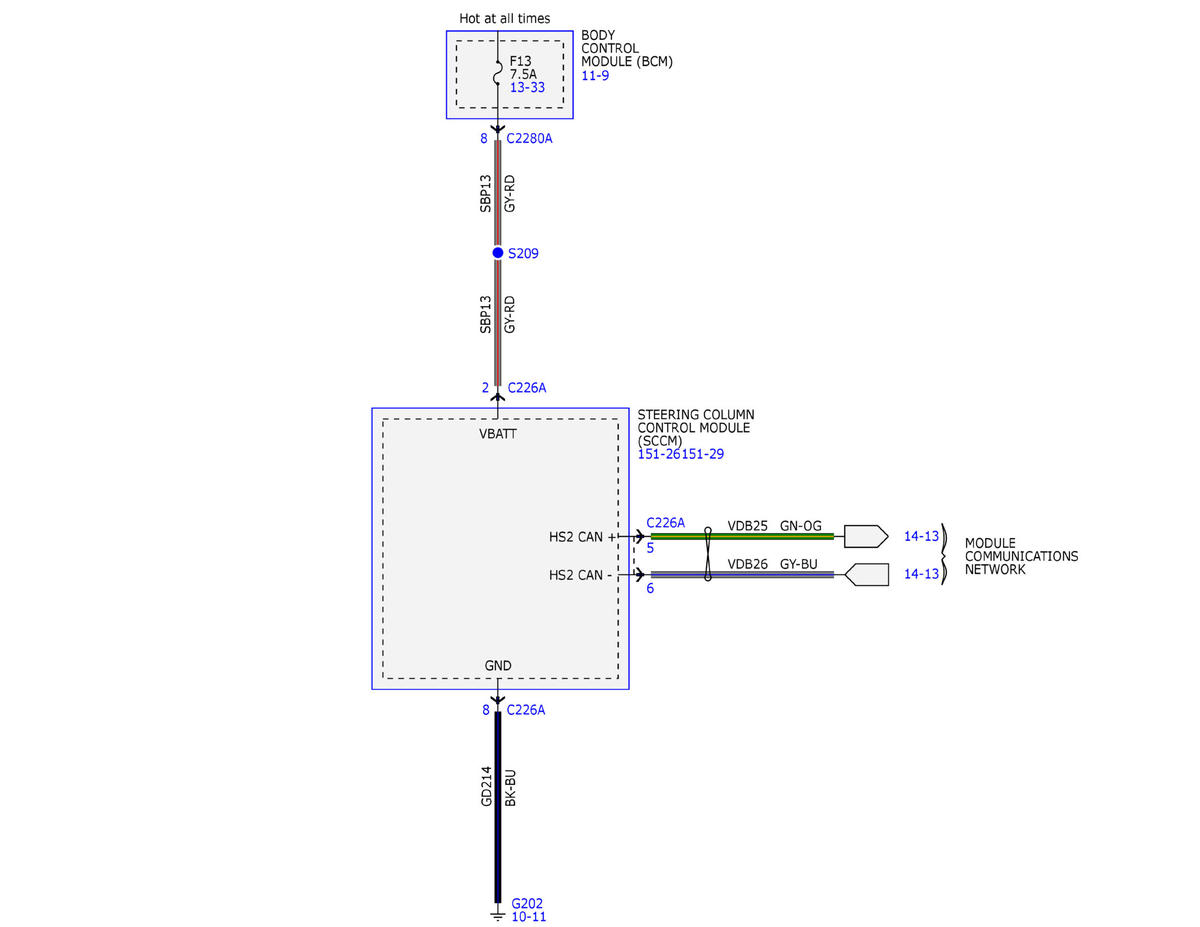

Fig 3: Cruise Control System Wiring Diagrams (3 Of 5)
GFDWR94411Courtesy of FORD MOTOR COMPANY

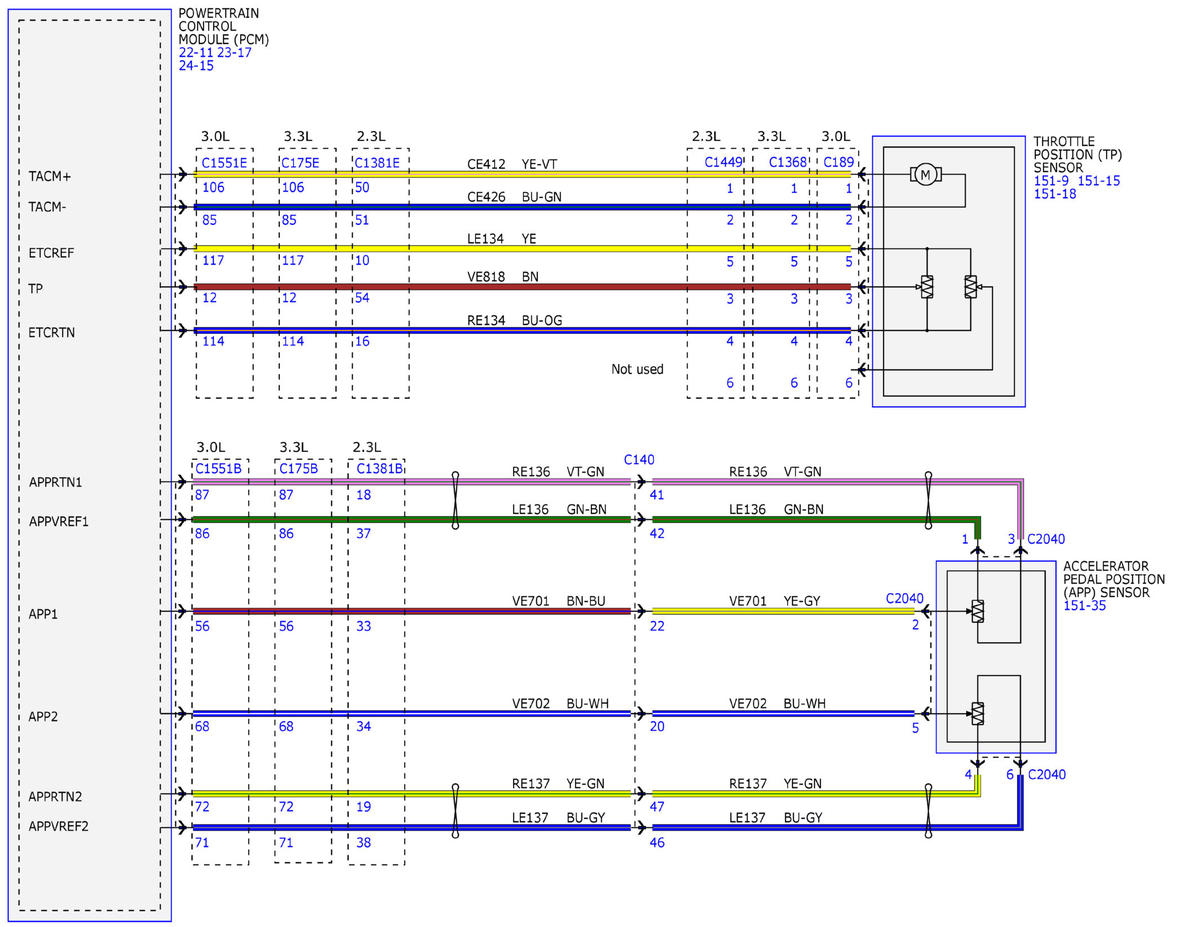

Fig 4: Cruise Control System Wiring Diagrams (4 Of 5)
GFDWR94412Courtesy of FORD MOTOR COMPANY

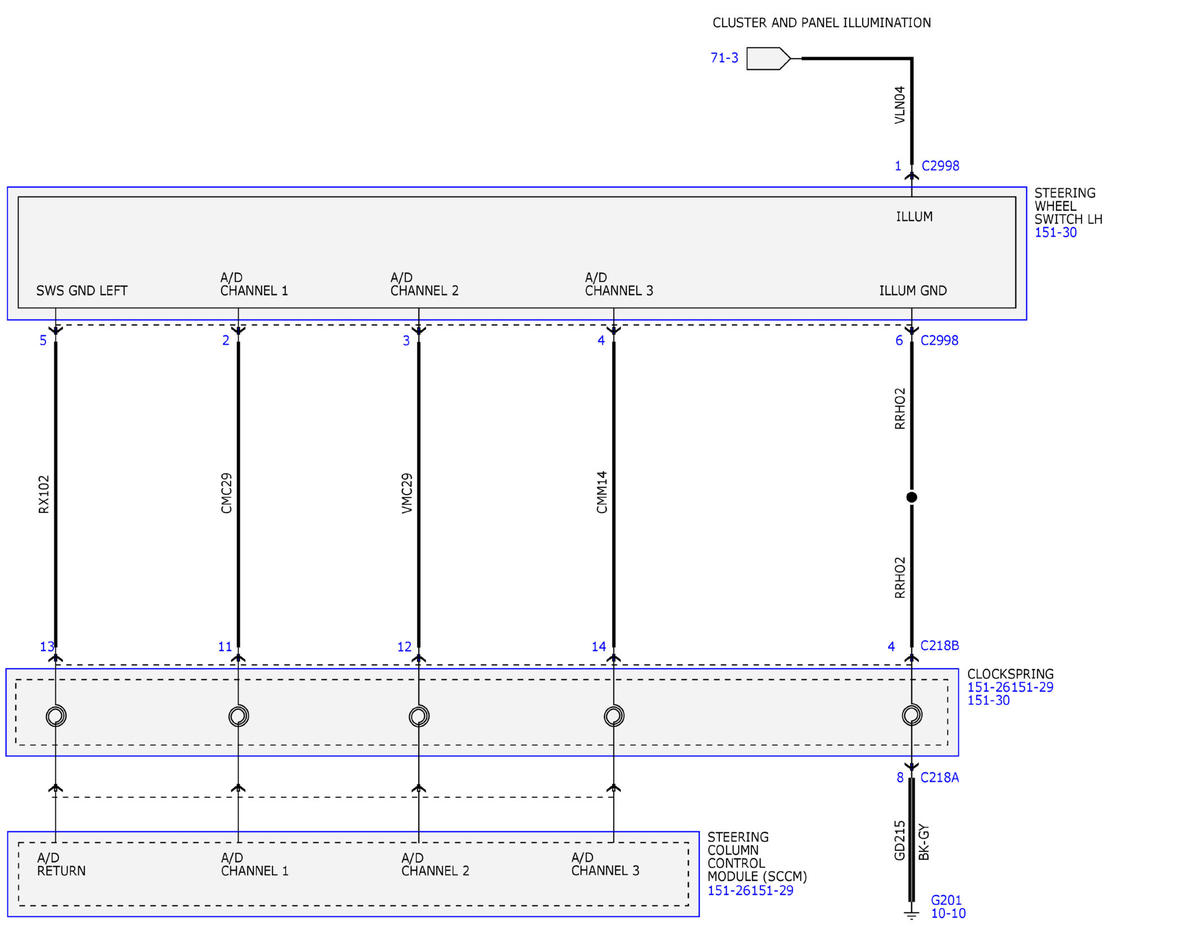

Fig 5: Cruise Control System Wiring Diagrams (5 Of 5)
GFDWR94413Courtesy of FORD MOTOR COMPANY
